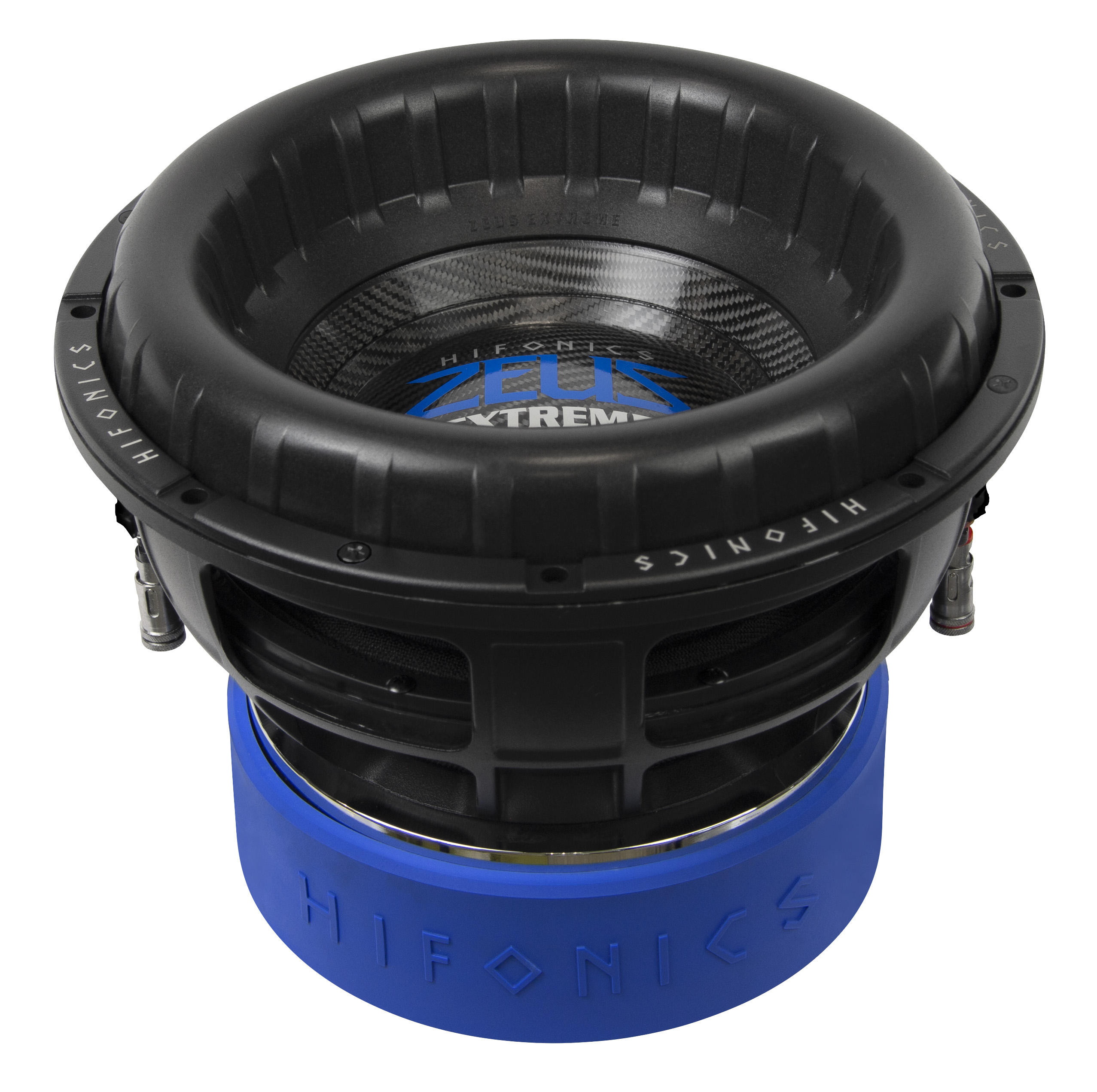

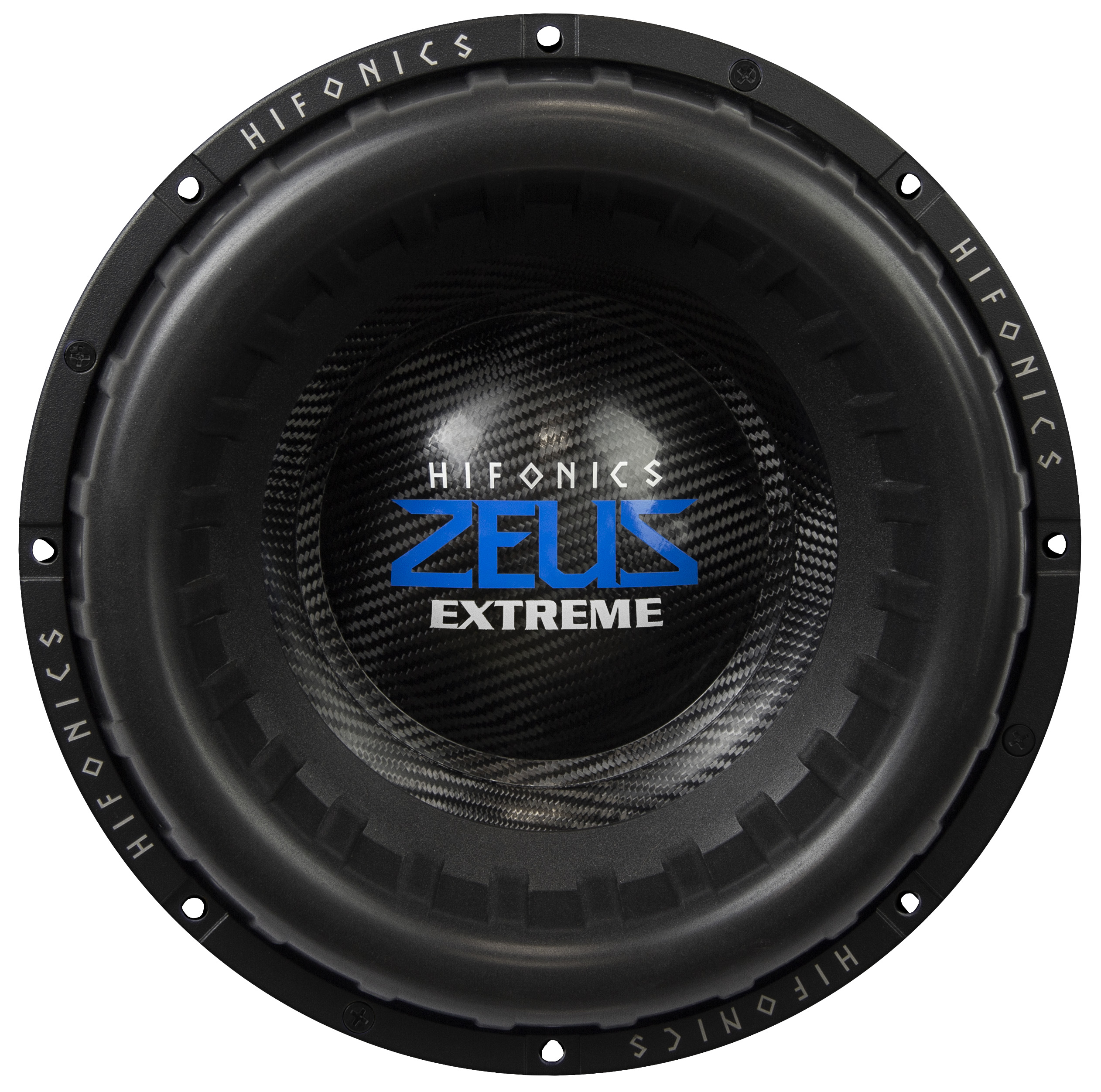

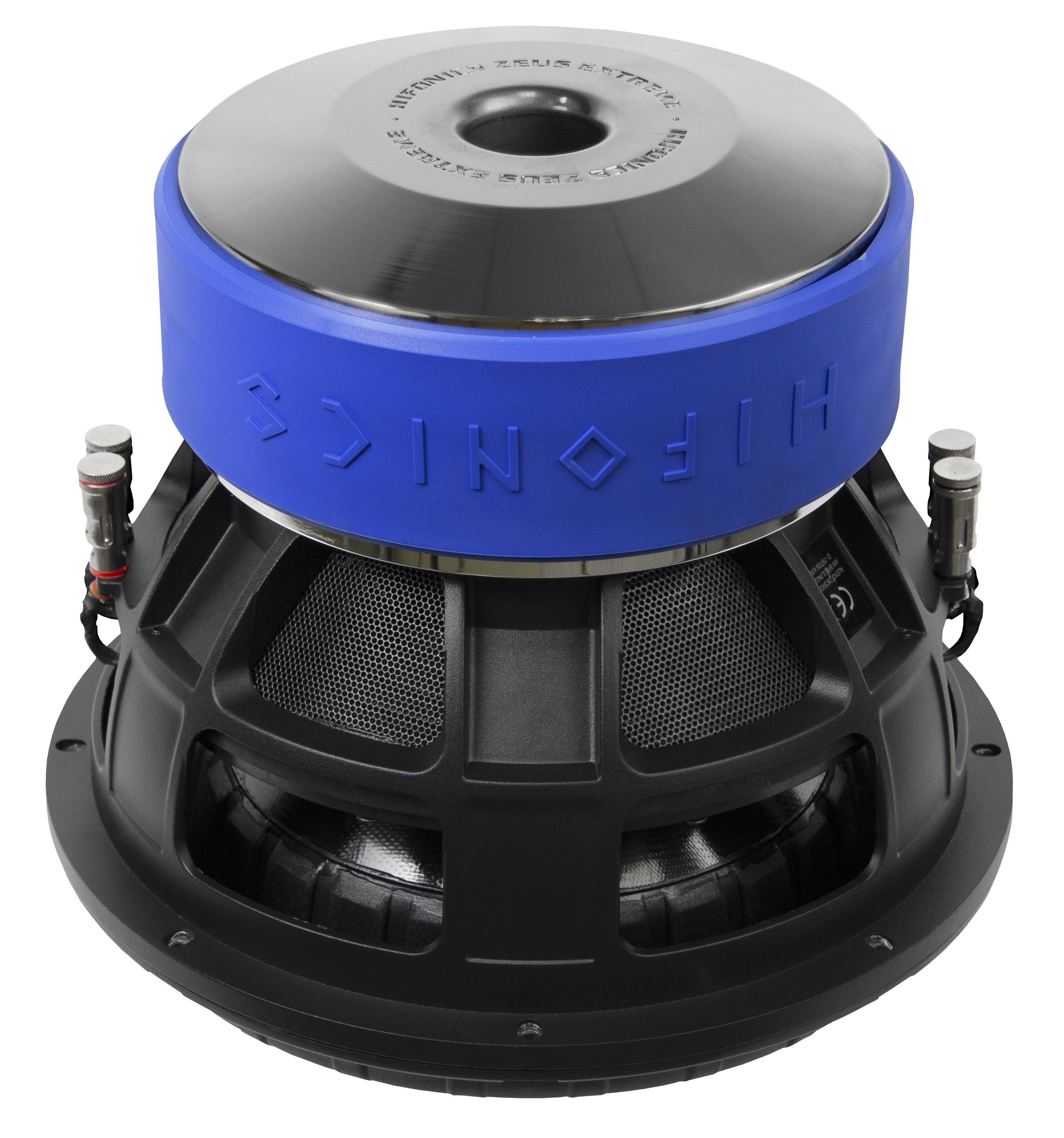

HiFonics ZEUS EXTREME ZXT12D2
2x2Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 39 Hz |
| Q factor | 0.58 |
| Sensitivity | 83.8 dB |
| Linear excursion | ± 23 mm |
| Program Power | 6000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.8dB
Thiele & Small parameters
- Resonance frequency (free air) fS 39Hz
- Mechanical quality factor QMS 4.28
- Electrical quality factor QES 0.67
- Total quality factor QTS 0.58
Large signal parameters
- Maximum linear excursion (one way) xmax 23mm
- Maximum excursion before damage xlim 30mm
- Air volume displaced at xmax VD 1086cm³
- Power handling P 3000W
- Program power Pmax 6000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.1Ω
- Inductance (1kHz, in series) LE 2.15mH
- VC Diameter 100mm
- Winding height HVC 57.5mm
- Former material BASV
Magnet
- Force factor (in series) Bl 22N/A
- Motor constant Bl/√RE 10.9N/√W
- Diameter 220mm
- Height 60mm
- Weight 8.505kg
Diaphragm
- Effective diameter 245mm
- Effective area SD 472cm²
- Moving mass MMS 325g
- Moving mass (without air load) MMD 317g
- Material Carbon Composite
Suspensions
- Stiffness KMS 19.6N/mm
- Compliance CMS 51µm/N
- Equivalent volume to the compliance VAS 16L
- Mechanical resistance RMS 18.6N·s/m
- Surround material Foam
- Spider material Nomex
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 314mm
- Baffle cutout diameter 284mm
- Mounting depth 222mm
- Volume occupied by the driver (estimated) 2.6L
- Frame material Diecast Aluminium
