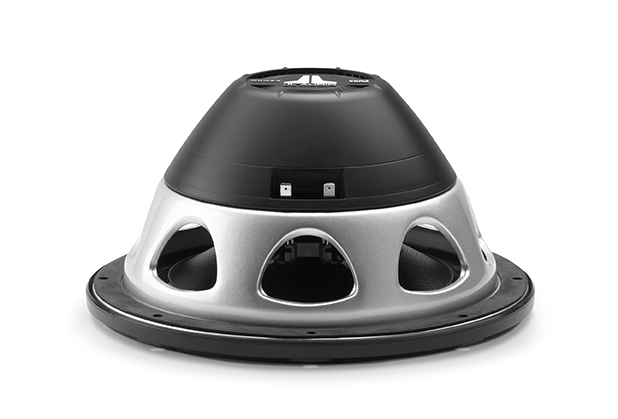

JL Audio 10WXv2-4
4Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 29.4 Hz |
| Q factor | 0.45 |
| Sensitivity | 85.8 dB |
| Linear excursion | ± 10 mm |
| Program power | 400 W |
Discontinued
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.8dB
Thiele & Small parameters
- Resonance frequency (free air) fS 29.4Hz
- Mechanical quality factor QMS 10.02
- Electrical quality factor QES 0.47
- Total quality factor QTS 0.45
Large signal parameters
- Maximum linear excursion (one way) xmax 10mm
- Air volume displaced at xmax VD 327cm³
- Power handling P 200W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.5Ω
- Inductance (1kHz, estimated) LE 1.61mH
Magnet
- Force factor Bl 11.4N/A
- Motor constant Bl/√RE 6.08N/√W
- Diameter 105mm
Diaphragm
- Effective diameter 204mm
- Effective area SD 327cm²
- Moving mass (including air load) MMS 94.7g
- Moving mass MMD 90.2g
Suspensions
- Stiffness KMS 3.23N/mm
- Compliance CMS 310µm/N
- Equivalent volume to the compliance VAS 47L
- Mechanical resistance RMS 1.74N·s/m
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 267mm
- Baffle cutout diameter 230mm
- Mounting depth 122mm
- Volume occupied by the driver 0.91L
- Net weight 2.4kg
