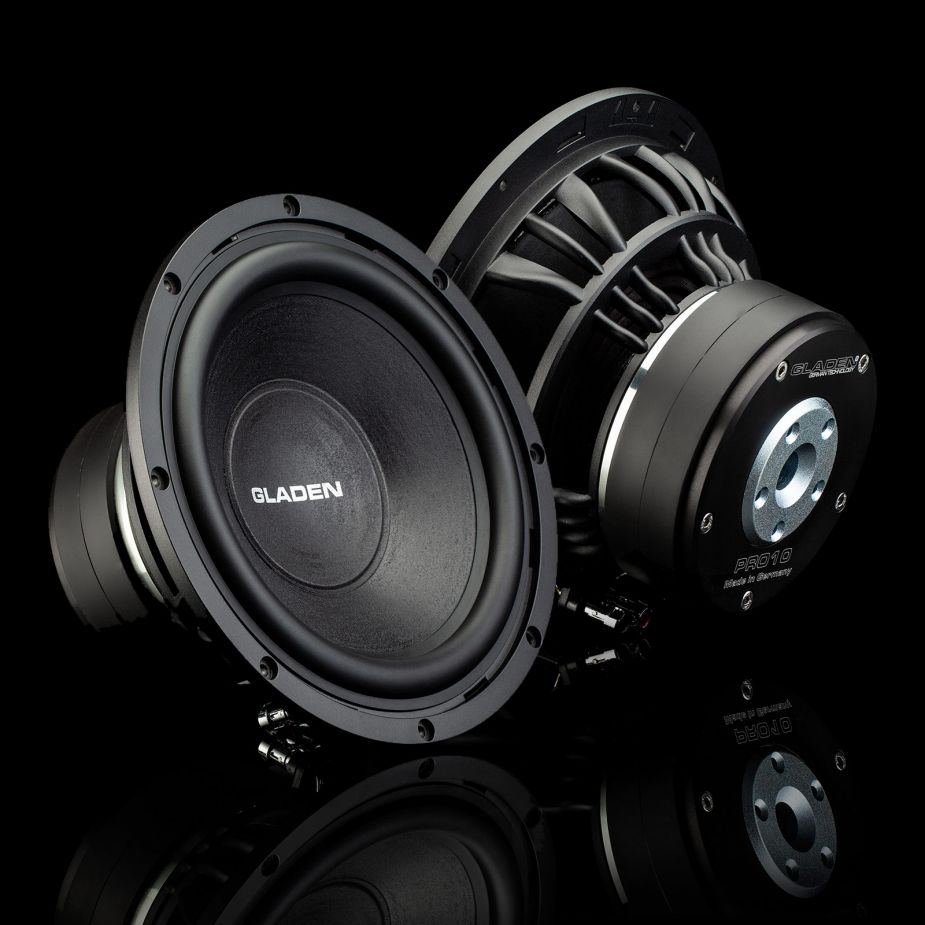

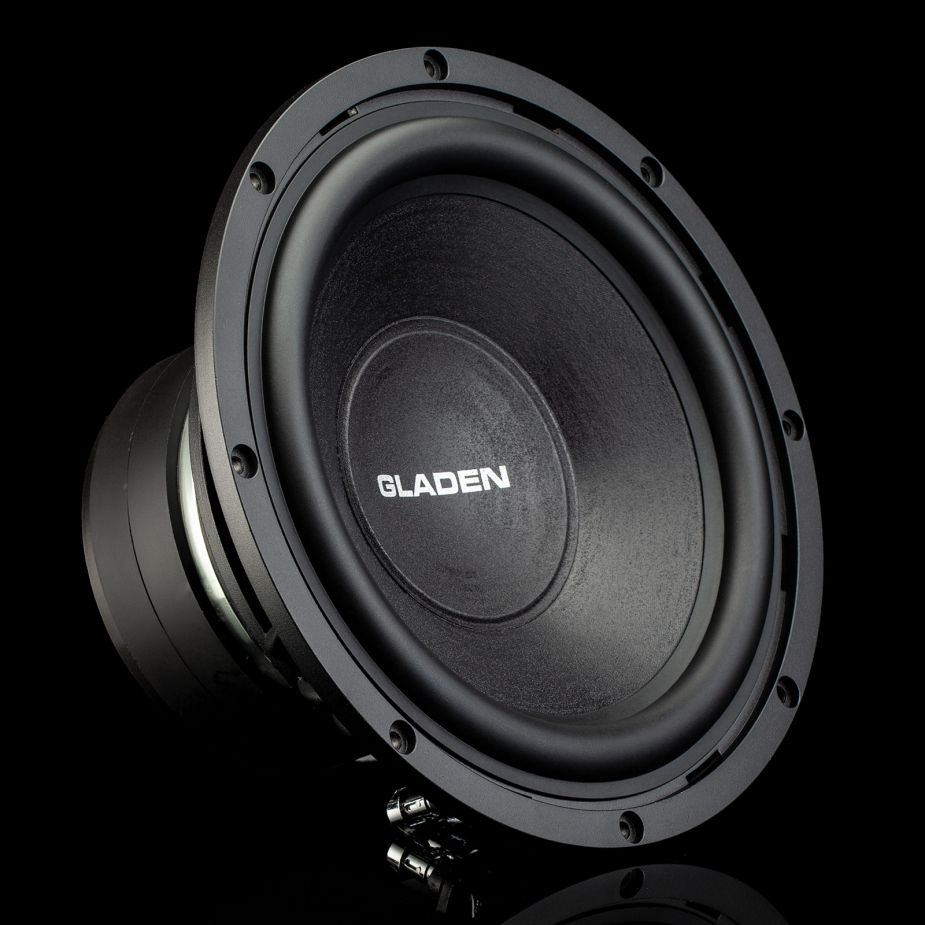

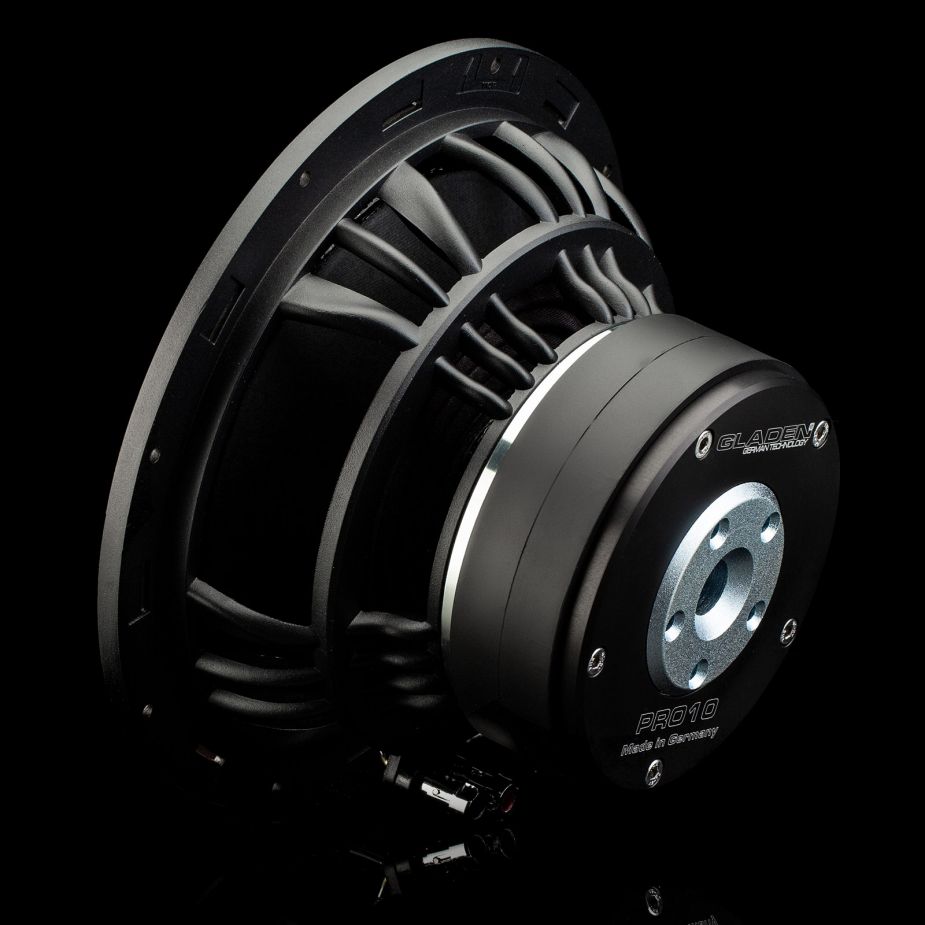

GLADEN PRO 10
4Ω
Subwoofer
| Nominal diameter | 10″ / 280 mm |
| Resonance | 31.4 Hz |
| Q factor | 0.51 |
| Sensitivity | 85.6 dB |
| Linear excursion | ± 15 mm |
| Program power | 750 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.6dB
Thiele & Small parameters
- Resonance frequency (free air) fS 31.4Hz
- Mechanical quality factor QMS 8.13
- Electrical quality factor QES 0.55
- Total quality factor QTS 0.51
Large signal parameters
- Maximum linear excursion (one way) xmax 15mm
- Maximum excursion before damage xlim 25mm
- Air volume displaced at xmax VD 519cm³
- Power handling P 500W
- Program power Pmax 750W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.4Ω
- Inductance (1kHz, estimated) LE 1.71mH
- VC Diameter 65mm
- Winding height HVC 38mm
Magnet
- Force factor Bl 11.5N/A
- Motor constant Bl/√RE 6.26N/√W
- Diameter 143mm
Diaphragm
- Effective diameter 210mm
- Effective area SD 346cm²
- Moving mass (including air load) MMS 109g
- Moving mass MMD 104g
- Material Paper / Fibreglass / Paper
Suspensions
- Stiffness KMS 4.17N/mm
- Compliance CMS 240µm/N
- Equivalent volume to the compliance VAS 34.2L
- Mechanical resistance RMS 2.65N·s/m
- Spider material Nomex
Dimensions
- Nominal diameter 10″
- 280mm
- Overall diameter 279mm
- Baffle cutout diameter 236mm
- Overall depth 142mm
- Flange thickness 0mm
- Mounting depth 142mm
- Volume occupied by the driver (estimated) 2.1L
