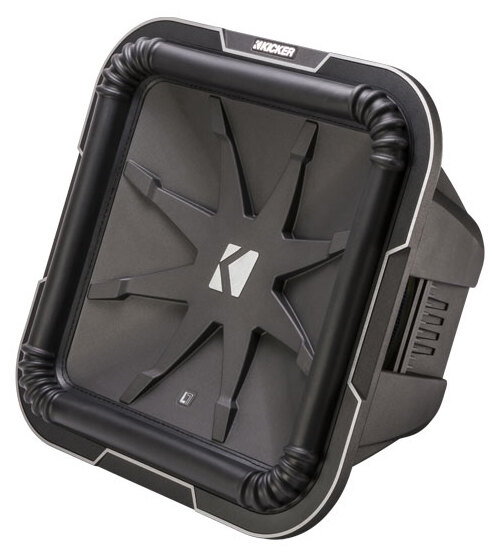

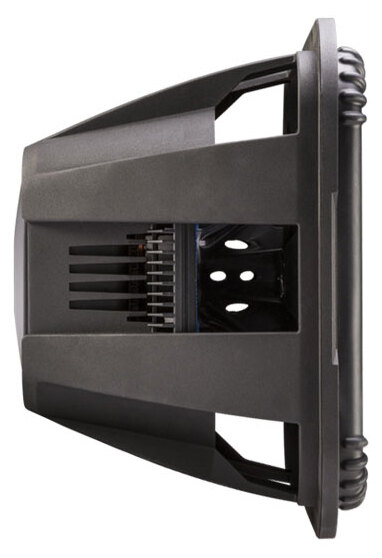

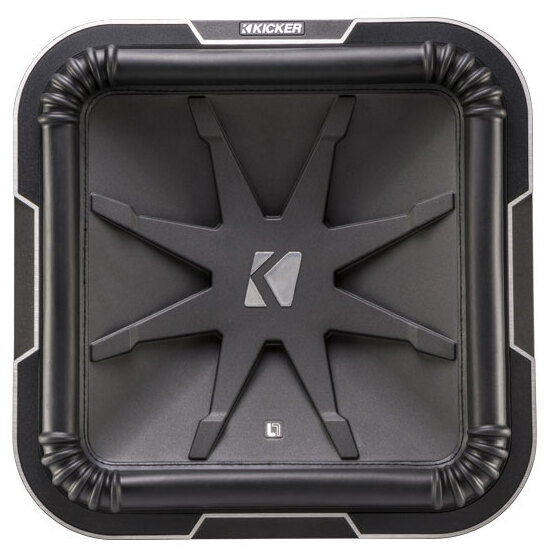

KICKER L7 41L7154
2x2Ω
2x4Ω
Subwoofer
| Nominal size | 15x15″ / 396x396 mm |
| Resonance | 33.2 Hz |
| Q factor | 0.77 |
| Sensitivity | 88 dB |
| Linear excursion | ± 21.5 mm |
| Program power | 2400 W |
Discontinued
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88dB
- Frequency response 18 - 100Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 33.2Hz
- Mechanical quality factor QMS 11.55
- Electrical quality factor QES 0.83
- Total quality factor QTS 0.77
Large signal parameters
- Maximum linear excursion (one way) xmax 21.5mm
- Air volume displaced at xmax VD 2215cm³
- Power handling P 1200W
- Program power Pmax 2400W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 5.8Ω
- Inductance (1kHz, in series) LE 4.83mH
Magnet
- Force factor (in series) Bl 26.3N/A
- Motor constant Bl/√RE 11N/√W
Diaphragm
- Effective diameter 362mm
- Effective area SD 1030cm²
- Moving mass (including air load) MMS 476g
- Moving mass MMD 454g
Suspensions
- Stiffness KMS 20.7N/mm
- Compliance CMS 48.5µm/N
- Equivalent volume to the compliance VAS 72.6L
- Mechanical resistance RMS 8.59N·s/m
Dimensions
- Nominal size 15 x 15″
- 396 x 396mm
- Overall size 396 x 396mm
- Mounting baffle cutout 349 x 349mm
- Mounting depth 239mm
- Volume occupied by the driver (estimated) 4.8L
