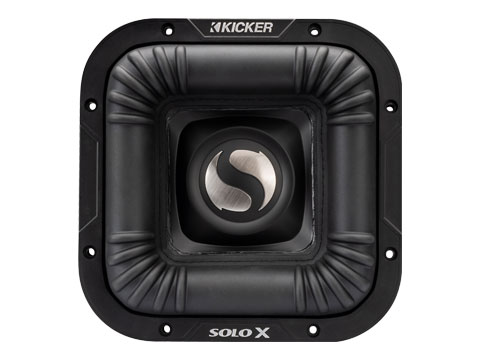

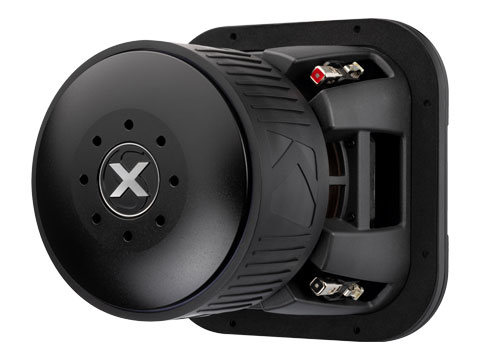

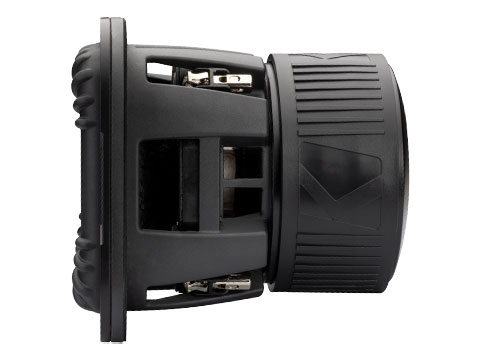

KICKER SoloX 49L7X81
2x1Ω
2x2ΩSubwoofer
| Nominal size | 8x8″ / 200x200 mm |
| Resonance | 48 Hz |
| Q factor | 0.63 |
| Sensitivity | 80.5 dB |
| Linear excursion | ± 24 mm |
| Program Power | 1600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 80.5dB
- Frequency response 30 - 100Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 48Hz
- Mechanical quality factor QMS 4.43
- Electrical quality factor QES 0.74
- Total quality factor QTS 0.63
Large signal parameters
- Maximum linear excursion (one way) xmax 24mm
- Air volume displaced at xmax VD 599cm³
- Power handling P 800W
- Program power Pmax 1600W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 1.9Ω
- Inductance (1kHz, in series) LE 1.91mH
- VC Diameter 62.5mm
- Winding height HVC 48mm
Magnet
- Force factor (in series) Bl 14.3N/A
- Motor constant Bl/√RE 10.3N/√W
- Diameter 176mm
- Weight 6.4kg
Diaphragm
- Effective diameter 178mm
- Effective area SD 250cm²
- Moving mass MMS 253g
- Moving mass (without air load) MMD 251g
Suspensions
- Stiffness KMS 23.5N/mm
- Compliance CMS 42.5µm/N
- Equivalent volume to the compliance VAS 3.75L
- Mechanical resistance RMS 17.4N·s/m

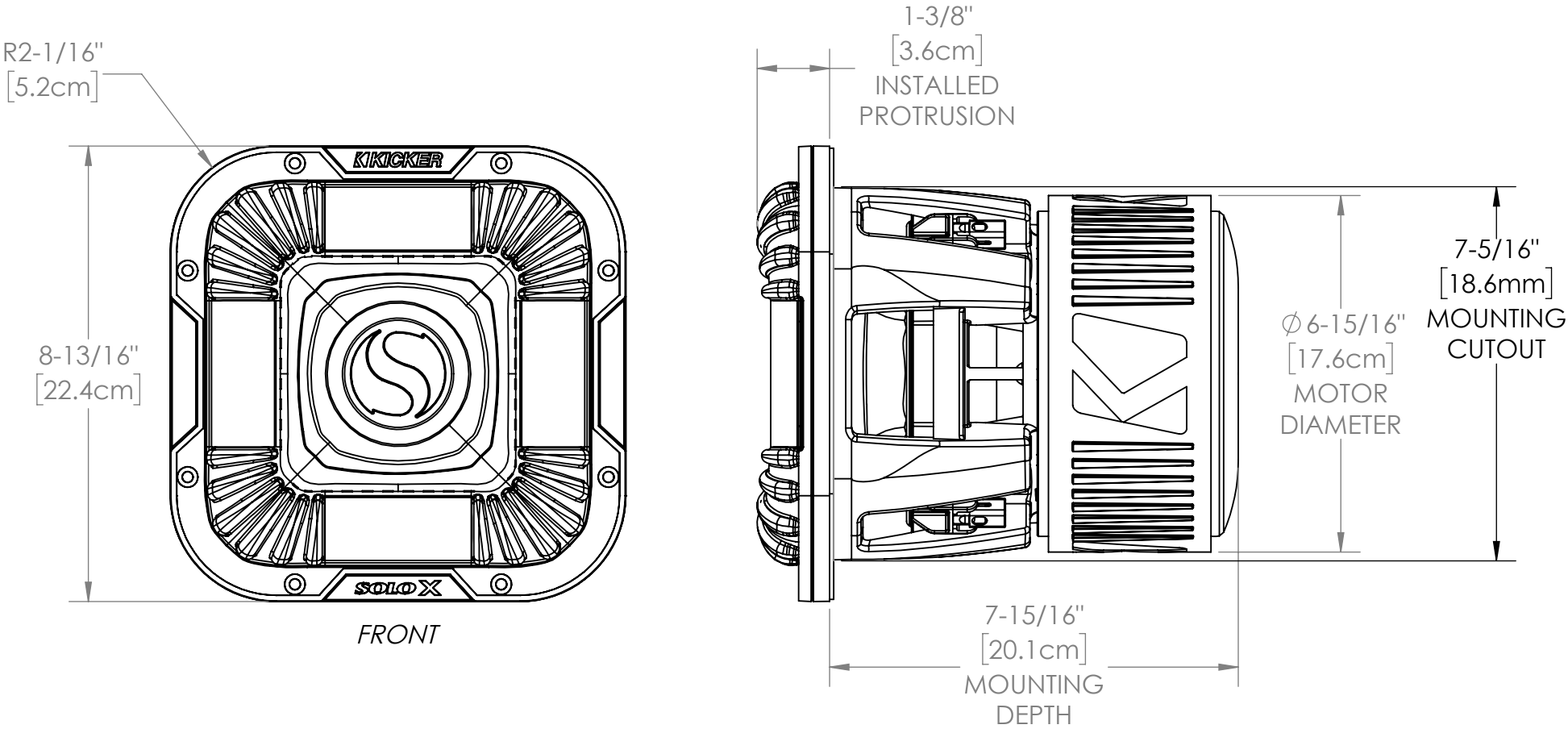

Dimensions
- Nominal size 8 x 8″
- 200 x 200mm
- Mounting baffle cutout 186 x 186mm
- Overall depth 209mm
- Flange thickness 8mm
- Mounting depth 201mm
- Volume occupied by the driver (estimated) 6.3L
- Net weight 6.4kg
.png)
