KICKER CompVX 50CVX122
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 32.2 Hz |
| Q factor | 0.39 |
| Sensitivity | 87.4 dB |
| Linear excursion | ± 19.3 mm |
| Program Power | 1500 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.4dB
- Frequency response 20 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 32.2Hz
- Mechanical quality factor QMS 11.20
- Electrical quality factor QES 0.41
- Total quality factor QTS 0.39
Large signal parameters
- Maximum linear excursion xmax 19.3mm
- Air volume displaced at xmax VD 1006cm³
- Power handling P 750W
- Program power Pmax 1500W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.5Ω
- Inductance (1kHz, in series) LE 4.51mH
Magnet
- Force factor (in series) Bl 20.5N/A
- Motor constant Bl/√RE 11N/√W
Diaphragm
- Effective diameter 258mm
- Effective area SD 523cm²
- Moving mass MMS 242g
- Moving mass (without air load) MMD 234g
Suspensions
- Stiffness KMS 9.93N/mm
- Compliance CMS 101µm/N
- Equivalent volume to the compliance VAS 39L
- Mechanical resistance RMS 4.38N·s/m

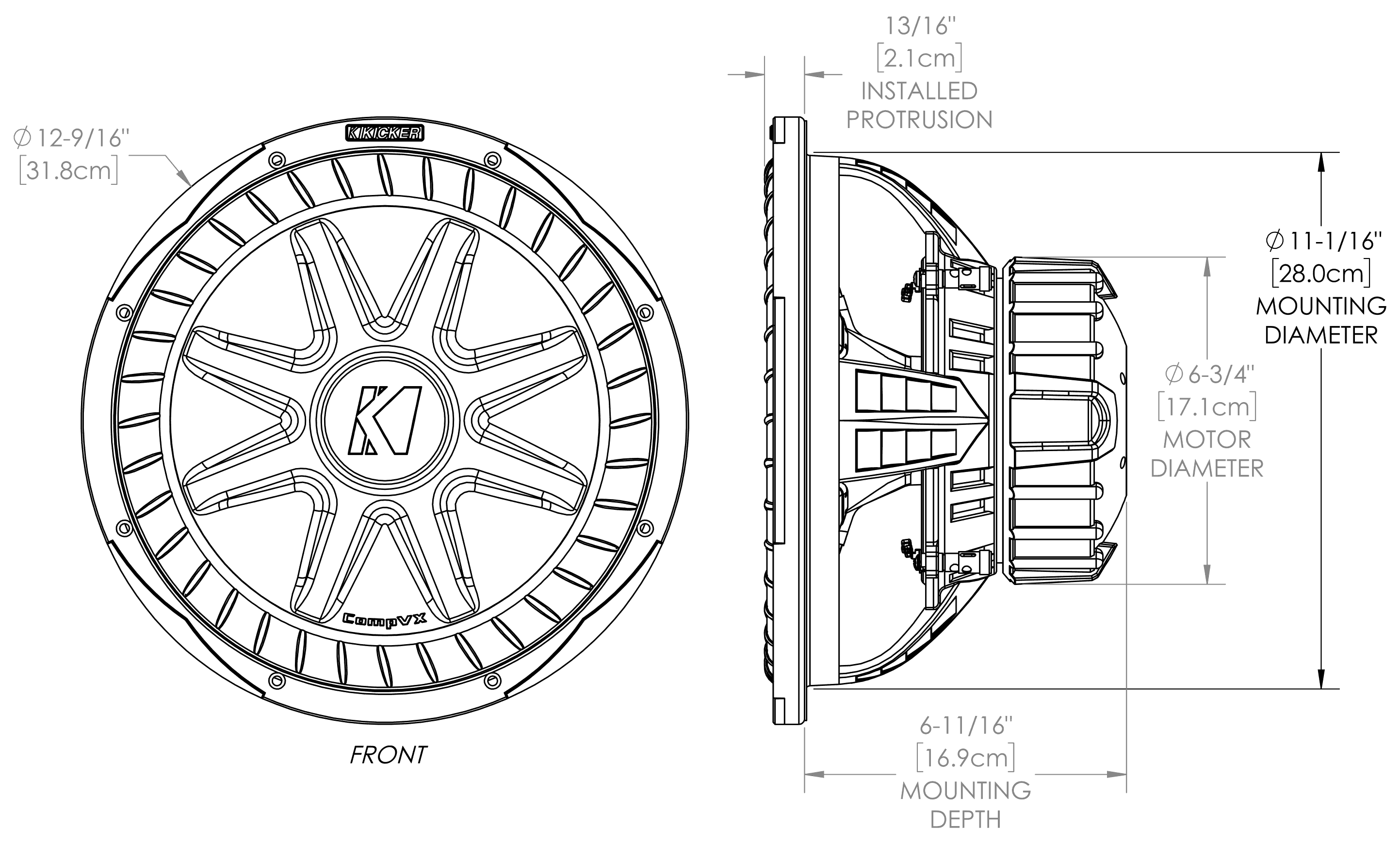

Dimensions
- Nominal diameter 12″
- 300mm
- Baffle cutout diameter 280mm
- Mounting depth 169mm
- Volume occupied by the driver (estimated) 2.3L
.png)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
