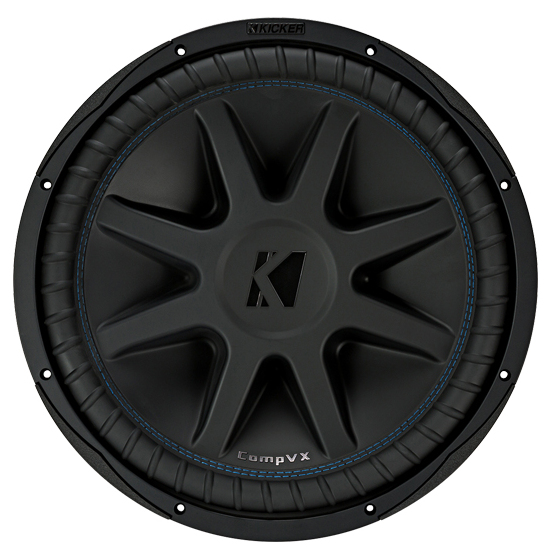

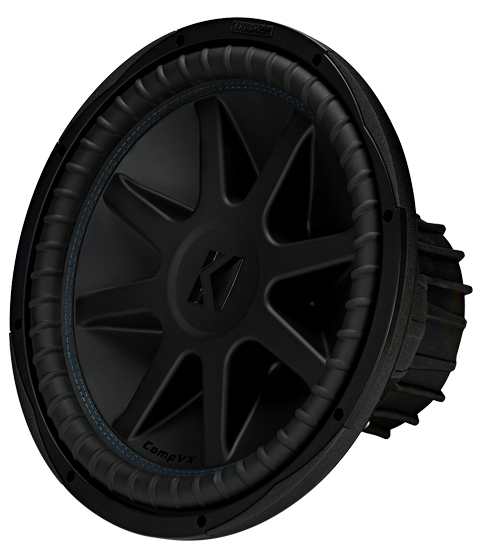

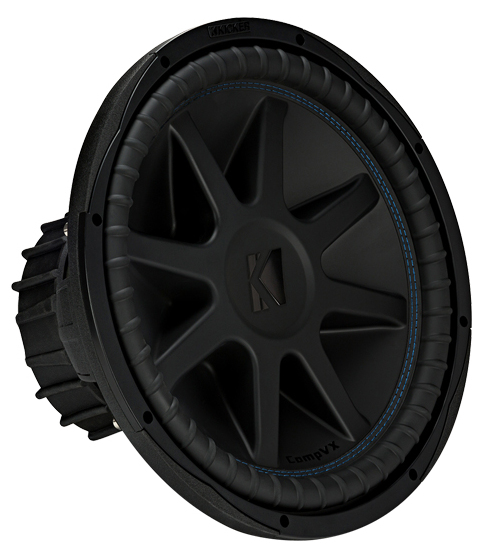

KICKER CompVX 50CVX152
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 26 Hz |
| Q factor | 0.32 |
| Sensitivity | 89.8 dB |
| Linear excursion | ± 20.7 mm |
| Program Power | 2000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 89.8dB
- Frequency response 18 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 26Hz
- Mechanical quality factor QMS 13.47
- Electrical quality factor QES 0.33
- Total quality factor QTS 0.32
Large signal parameters
- Maximum linear excursion xmax 20.7mm
- Air volume displaced at xmax VD 1745cm³
- Power handling P 1000W
- Program power Pmax 2000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.2Ω
- Inductance (1kHz, in series) LE 5.92mH
Magnet
- Force factor (in series) Bl 26.5N/A
- Motor constant Bl/√RE 12.9N/√W
Diaphragm
- Effective diameter 328mm
- Effective area SD 845cm²
- Moving mass MMS 335g
- Moving mass (without air load) MMD 318g
Suspensions
- Stiffness KMS 8.94N/mm
- Compliance CMS 112µm/N
- Equivalent volume to the compliance VAS 113L
- Mechanical resistance RMS 4.06N·s/m

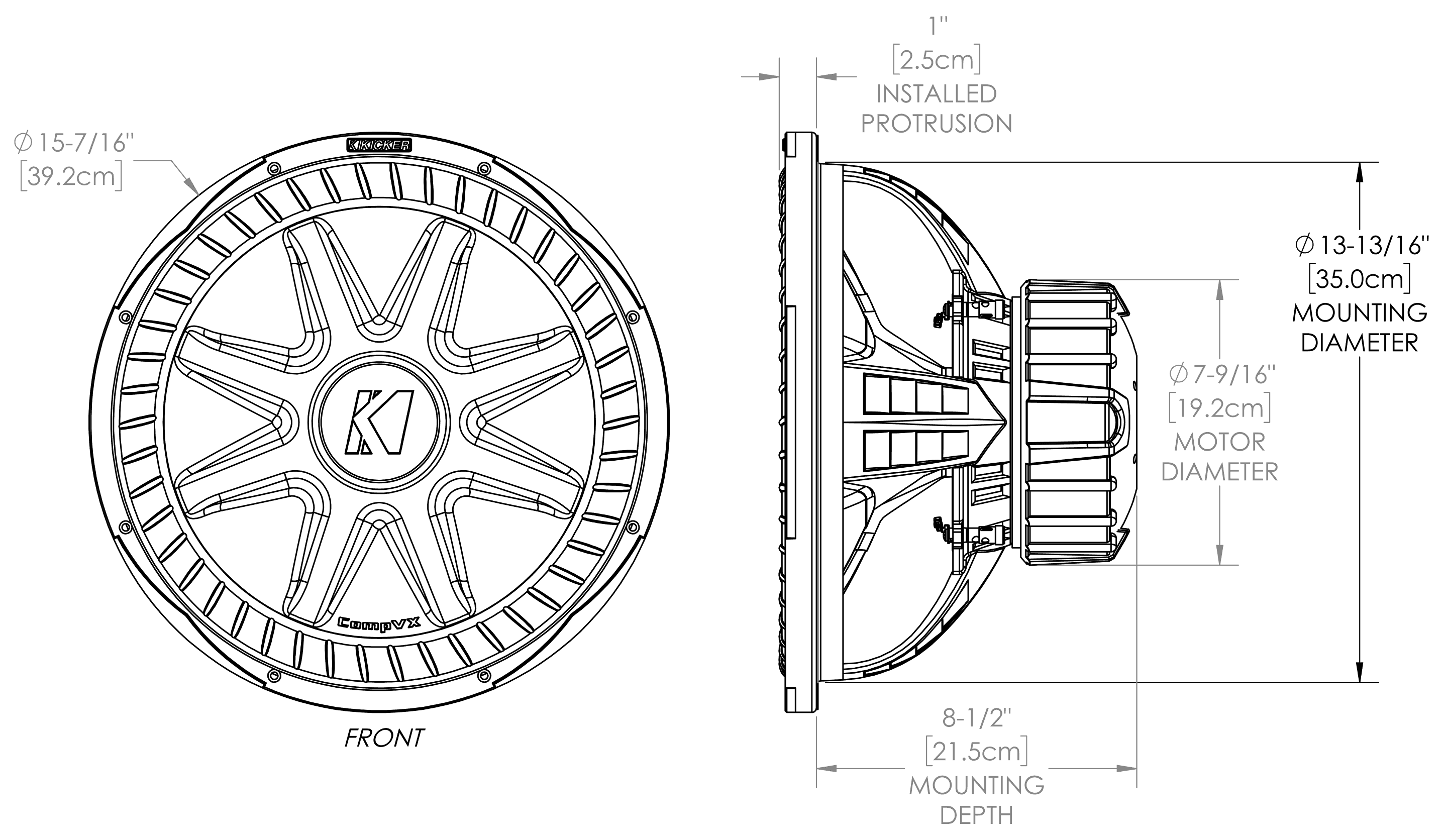

Dimensions
- Nominal diameter 15″
- 380mm
- Baffle cutout diameter 350mm
- Mounting depth 215mm
- Volume occupied by the driver (estimated) 4.3L
