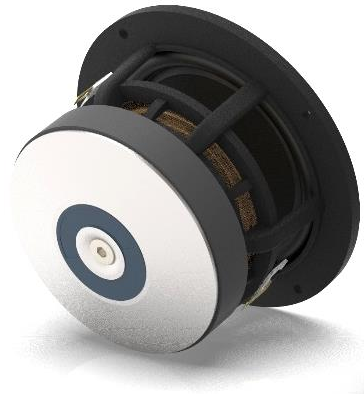

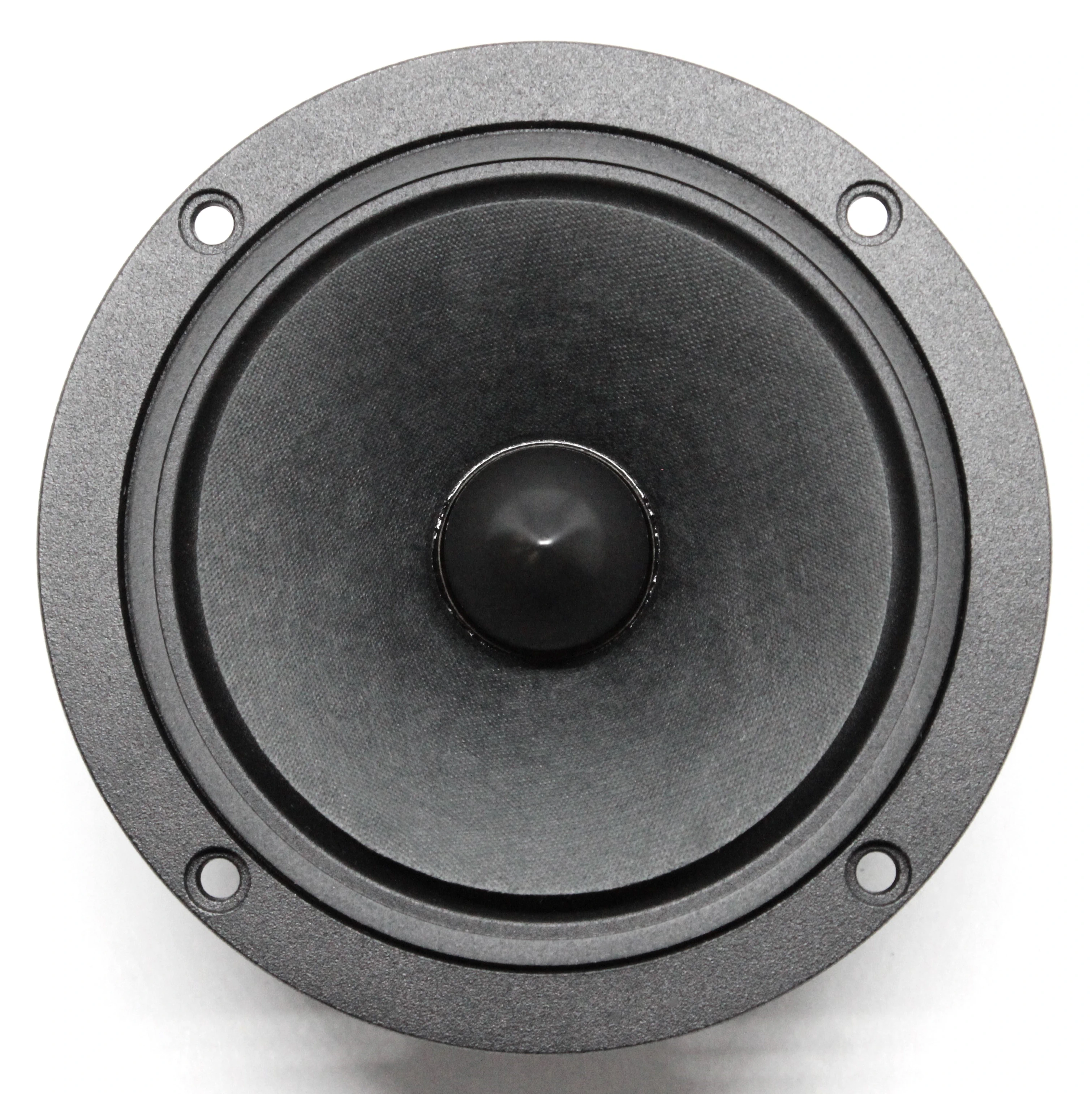

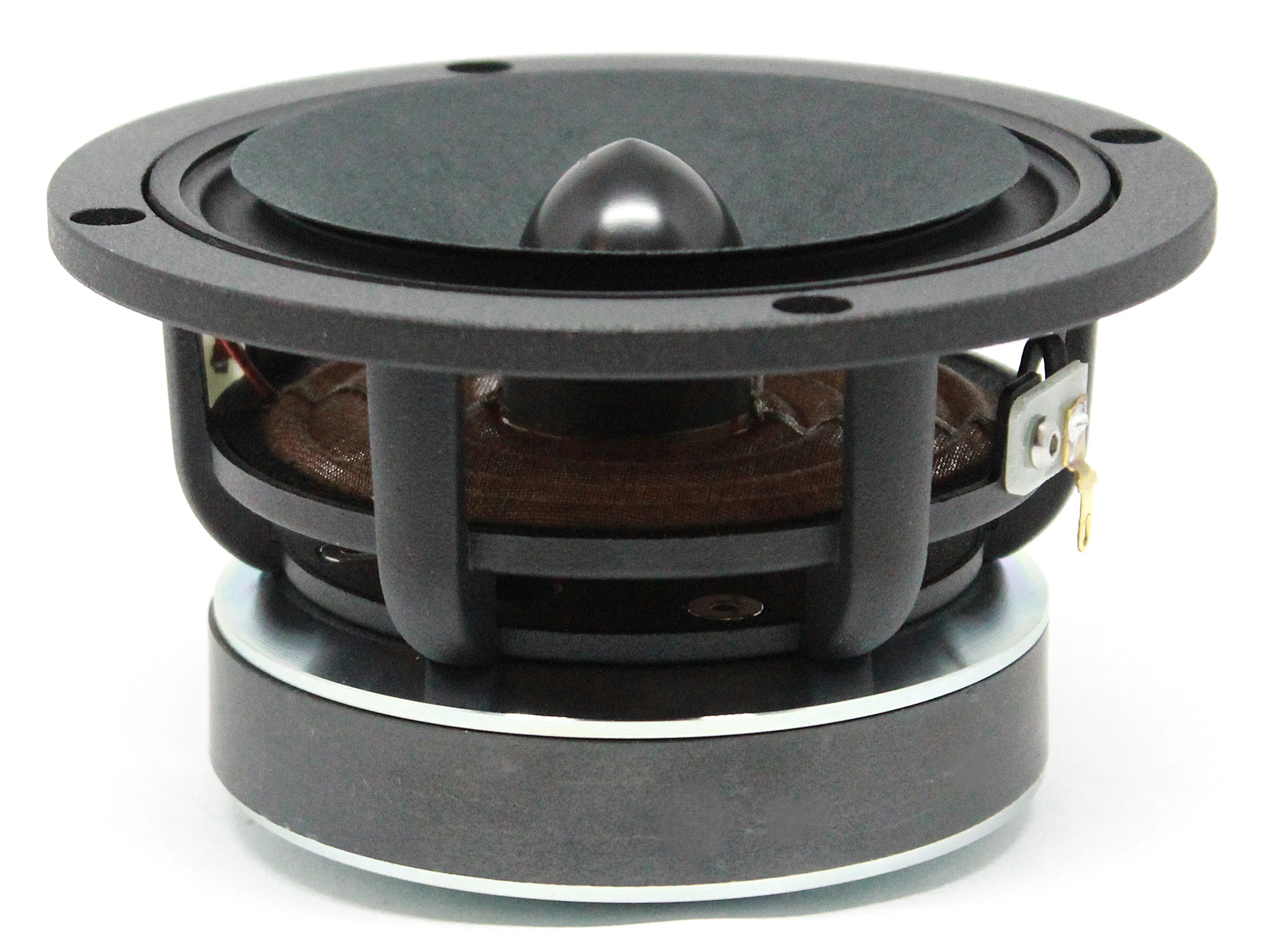

Kartesian Lom120_vMS

Mid Bass

Nominal diameter4.5″ / 120 mm
Resonance72 Hz
Q factor0.35
Sensitivity87.2 dB
Linear excursion± 4 mm
Program Power100 W
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply
  • Sensitivity (1W, 1m, infinite baffle) SPL1W 87.2dB
  • Frequency response 80 - 4000Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 72Hz
  • Mechanical quality factor QMS 7.50
  • Electrical quality factor QES 0.37
  • Total quality factor QTS 0.35

Large signal parameters

  • Maximum linear excursion xmax 4mm
  • Air volume displaced at xmax VD 21cm³
  • Power handling P 60W
  • Program power Pmax 100W

Voice Coil

  • Nominal impedance Z 4Ω
  • DC resistance RE 4.0Ω
  • Inductance (1kHz) LE 0.15mH
  • VC Diameter 26mm
  • Winding material CCA wire
  • Former material Non-inductive Polyimide

Magnet

  • Force factor Bl 5.2N/A
  • Motor constant Bl/√RE 2.6N/√W
  • Diameter 90mm
  • Height 28mm

Diaphragm

  • Effective diameter 82mm
  • Effective area SD 52.8cm²
  • Moving mass MMS 5.5g
  • Moving mass (without air load) MMD 5.2g
  • Material Damped hexaKone paper

Suspensions

  • Stiffness KMS 1.13N/mm
  • Compliance CMS 888µm/N
  • Equivalent volume to the compliance VAS 3.51L
  • Mechanical resistance RMS 0.33N·s/m
  • Surround material Low lost NBR

Dimensions

  • Nominal diameter 4.5
  • 120mm
  • Overall size 106 x 106mm
  • Baffle cutout diameter 98mm
  • Overall depth 69mm
  • Flange thickness 5mm
  • Mounting depth 64mm
  • Volume occupied by the driver (estimated) 0.22L

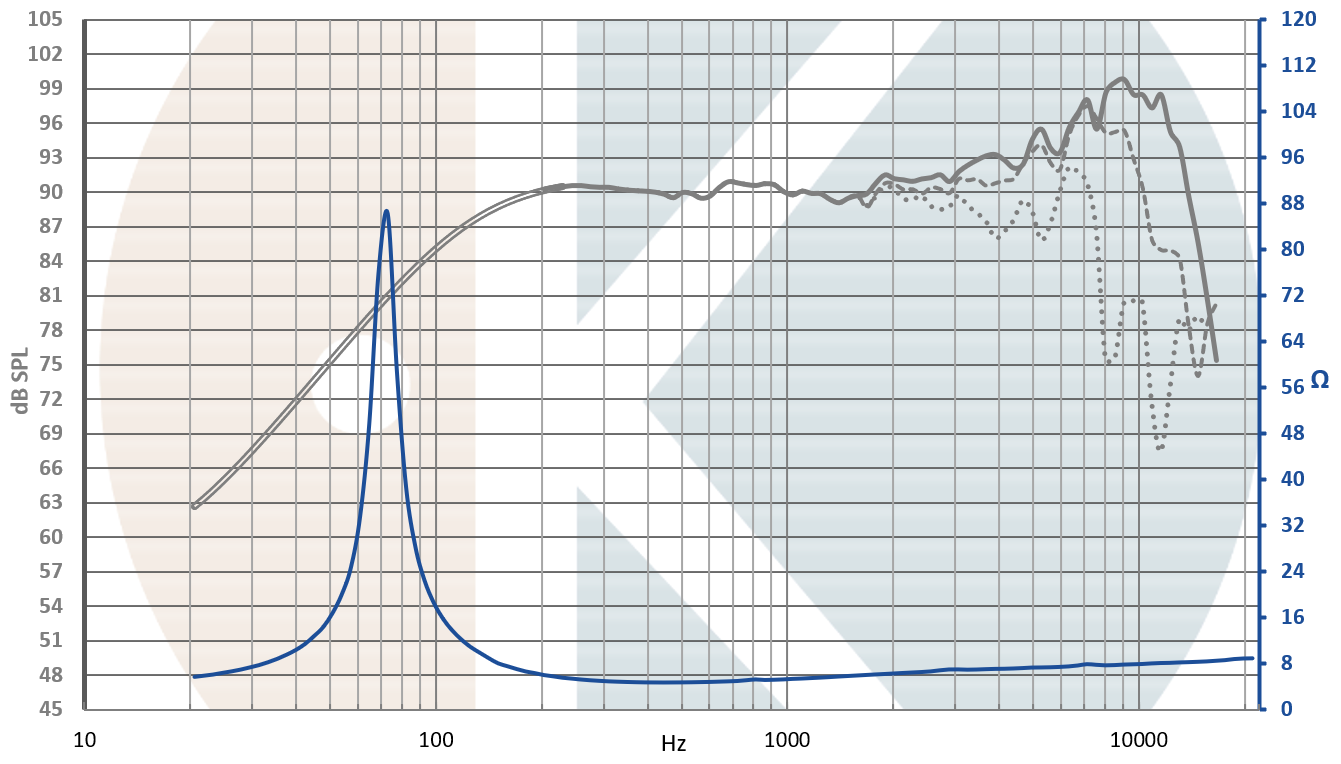

Kartesian Lom120_vMS SPL & Impedance

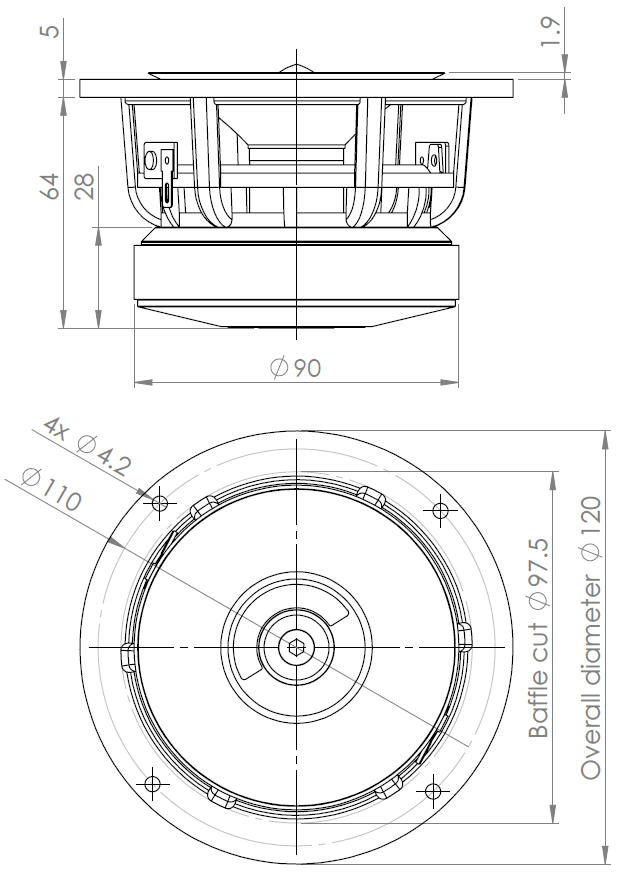

Kartesian Lom120_vMS Dimensions
