36 results
Brand
ATOHMAcoustic EleganceAudesAurum CantusB&C SpeakerBMSBRAXBeymaBlack HydraCT SoundsCelestionCerwin VegaCiareD.A.S. AudioDB DriveDayton AudioESXETONEighteen SoundEminenceFaitalPROFaneFi Car AudioFocalFostexFountekGRSGoldwoodHELIXHertzJL AudioJensenKICKERKICXKartesianLaVoceLowtherMATCHMD LabMONACORMTX AudioMicro-PrecisionMorelObertonP.AudioPHL audioPRV AudioPUNKTKILDEPeerlessPioneerPowerBassPrecision DevicesPrideRCFRadianReckhornRockford FosgateSB AcousticsSEASSICASUPRAVOXScan-SpeakSkar AudioTang BandVISATONVOLTWVLWavecoraccutonmivoc
Type
SubwooferWooferMid BassMid-rangeFull-rangeCoaxial2 Way2 Way Kit3 WayBass Guitar SpeakerGuitar SpeakerLow frequencyMiniatureShallow SubwooferShallow WooferShallow Mid-WooferTriaxial
Available on
Amazon.comParts Express
•
Nominal diameter
″
•
SensitivitySPL1W
dB

Thiele & Small parameters

•
Resonance frequencyfS
Hz
•
Mechanical quality factorQMS
•
Electrical quality factorQES
•
Total quality factorQTS

Large signal parameters

•
Maximum linear excursionxmax
mm
•
Air volume displaced at xmaxVD
cm³
•
Program powerPmax
W

Voice Coil & Magnet

•
Nominal impedanceZ
Ω
•
DC resistanceRE
Ω
•
Force factorBl
N/A
•
Motor constantBl/√RE
N/√W
•
InductanceLE
mH
•
VC Diameter
mm

Diaphragm

•
Effective diameter
mm
•
Effective areaSD
cm²
•
Moving massMMS
g

Suspensions

•
StiffnessKMS
N/mm
•
ComplianceCMS
µm/N
•
Equivalent volume to CMSVAS
L
•
Mechanical resistanceRMS
N·s/m

Dimensions

•
Overall size
mm
•
Baffle cutout diameter
mm
•
Overall depth
mm
•
Mounting depth
mm
•
Volume occupied
L
•
Net weight
kg
Kartesian Wom265_vKi-6 Woofer

Kartesian Wom265_vKi-6

6 Ω
10.5″ Woofer
fS30 Hz
SD390 cm²
35 - 1500 Hz
QTS0.34
xmax10 mm
SPL1W91.7 dB
Bl/√RE5.2
Pmax350 W
Kartesian Wom180_vMS Mid Bass

Kartesian Wom180_vMS

8 Ω
7″ Mid Bass
fS46 Hz
SD137 cm²
40 - 2500 Hz
QTS0.38
xmax8 mm
SPL1W88.8 dB
Bl/√RE3.18
Pmax160 W
Kartesian Wom165_vHE-e2 Woofer

Kartesian Wom165_vHE-e2

8 Ω
6.5″ Woofer
fS38 Hz
SD123 cm²
40 - 3000 Hz
QTS0.38
xmax6 mm
SPL1W88.2 dB
Bl/√RE2.74
Pmax150 W
Kartesian Wom155_vKi-C Woofer

Kartesian Wom155_vKi-C

6 Ω
6″ Woofer
fS38 Hz
SD113 cm²
40 - 3000 Hz
QTS0.37
xmax10 mm
SPL1W86.1 dB
Bl/√RE3.31
Pmax150 W
Kartesian Sub265_vKi-S Subwoofer

Kartesian Sub265_vKi-S

4 Ω
10″ Subwoofer
fS22 Hz
SD346 cm²
25 - 500 Hz
QTS0.46
xmax16 mm
SPL1W85.2 dB
Bl/√RE4.92
Pmax500 W
Kartesian Sub180_vMS Subwoofer

Kartesian Sub180_vMS

8 Ω
8″ Subwoofer
fS31 Hz
SD123 cm²
30 - 700 Hz
QTS0.33
xmax11 mm
SPL1W84 dB
Bl/√RE3.55
Pmax300 W
Kartesian Sub265_vKi-V Subwoofer

Kartesian Sub265_vKi-V

8 Ω
10″ Subwoofer
fS24 Hz
SD346 cm²
25 - 400 Hz
QTS0.40
xmax16 mm
SPL1W86.4 dB
Bl/√RE5.41
Pmax600 W

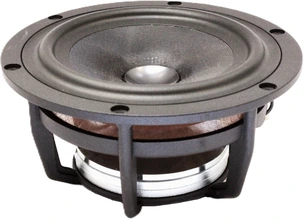

Kartesian Wib145_vHE Full-range

Kartesian Wib145_vHE

8 Ω
5.5″ Full-range
fS56 Hz
SD85 cm²
45 - 20000 Hz
QTS0.52
xmax6 mm
SPL1W87.1 dB
Bl/√RE2.28
Pmax100 W

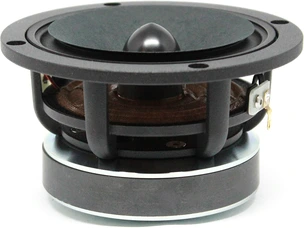

Kartesian Lom120_vMS Mid Bass

Kartesian Lom120_vMS

4 Ω
4.5″ Mid Bass
fS72 Hz
SD52.8 cm²
80 - 4000 Hz
QTS0.35
xmax4 mm
SPL1W87.2 dB
Bl/√RE2.6
Pmax100 W

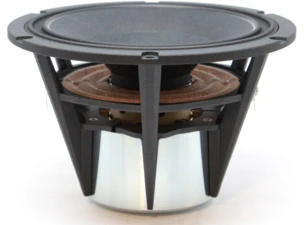

Kartesian Lom155_vKi Mid Bass

Kartesian Lom155_vKi

4 Ω
6″ Mid Bass
fS48 Hz
SD125 cm²
55 - 3500 Hz
QTS0.33
xmax6 mm
SPL1W89.1 dB
Bl/√RE3.52
Pmax150 W
Kartesian Lom185_vKi Mid Bass

Kartesian Lom185_vKi

4 Ω
8″ Mid Bass
fS40 Hz
SD194 cm²
55 - 3000 Hz
QTS0.25
xmax8 mm
SPL1W90.6 dB
Bl/√RE5.29
Pmax300 W
Kartesian Bom185_vKi Mid Bass

Kartesian Bom185_vKi

8 Ω
8″ Mid Bass
fS38 Hz
SD194 cm²
40 - 2000 Hz
QTS0.32
xmax10 mm
SPL1W89.5 dB
Bl/√RE4.52
Pmax250 W
Discontinued
Kartesian Wom250_vPA Subwoofer

Kartesian Wom250_vPA

8 Ω
10″ Subwoofer
fS45 Hz
SD347 cm²
45 - 500 Hz
QTS0.49
xmax4 mm
SPL1W89.8 dB
Bl/√RE5.48
Pmax450 W
Kartesian Wom200_vPA-S Woofer

Kartesian Wom200_vPA-S

8 Ω
8″ Woofer
fS53 Hz
SD214 cm²
48 - 2000 Hz
QTS0.35
xmax6 mm
SPL1W91 dB
Bl/√RE5.03
Pmax250 W
Kartesian Wom185_vKi Woofer

Kartesian Wom185_vKi

8 Ω
8″ Woofer
fS36 Hz
SD194 cm²
35 - 2200 Hz
QTS0.29
xmax10 mm
SPL1W89.7 dB
Bl/√RE4.57
Pmax250 W
Kartesian Wom165_vMS Woofer

Kartesian Wom165_vMS

8 Ω
6.5″ Woofer
fS42 Hz
SD125 cm²
45 - 2500 Hz
QTS0.27
xmax4.5 mm
SPL1W89.1 dB
Bl/√RE3.53
Pmax150 W
Kartesian Wom165_vHE Woofer

Kartesian Wom165_vHE

8 Ω
6.5″ Woofer
fS36 Hz
SD123 cm²
36 - 2500 Hz
QTS0.37
xmax6.5 mm
SPL1W87.6 dB
Bl/√RE2.78
Kartesian Wom145_vMS Woofer

Kartesian Wom145_vMS

8 Ω
5.5″ Woofer
fS48 Hz
SD78.5 cm²
48 - 3500 Hz
QTS0.36
xmax4.5 mm
SPL1W85.8 dB
Bl/√RE2.65
Pmax100 W
Kartesian Wom145_vHE Woofer

Kartesian Wom145_vHE

8 Ω
5.5″ Woofer
fS44 Hz
SD85 cm²
43 - 3500 Hz
QTS0.42
xmax6 mm
SPL1W86.1 dB
Bl/√RE2.25
Pmax120 W
Kartesian Wom135_vPA-S Woofer

Kartesian Wom135_vPA-S

8 Ω
5.5″ Woofer
fS68 Hz
SD86.6 cm²
60 - 3500 Hz
QTS0.45
xmax4.5 mm
SPL1W86.6 dB
Bl/√RE3.35
Pmax150 W
Kartesian Wom120_vMS Woofer

Kartesian Wom120_vMS

8 Ω
4.5″ Woofer
fS62 Hz
SD52.6 cm²
60 - 5500 Hz
QTS0.36
xmax4.5 mm
SPL1W86.1 dB
Bl/√RE2.57
Pmax80 W
Kartesian Wib70_vPA Full-range

Kartesian Wib70_vPA

8 Ω
3″ Full-range
fS215 Hz
SD21.2 cm²
150 - 22000 Hz
QTS0.69
xmax2.5 mm
SPL1W86.3 dB
Bl/√RE1.64
Pmax50 W
Kartesian Wib50_vHP Full-range

Kartesian Wib50_vHP

8 Ω
2″ Full-range
fS155 Hz
SD14.5 cm²
120 - 22000 Hz
QTS0.46
xmax2.5 mm
SPL1W82.7 dB
Bl/√RE1.94
Pmax40 W
Kartesian Wib120_vHE Full-range

Kartesian Wib120_vHE

8 Ω
4.5″ Full-range
fS68 Hz
SD52.8 cm²
60 - 20000 Hz
QTS0.56
xmax4 mm
SPL1W84.6 dB
Bl/√RE1.68
Pmax60 W
Kartesian Wib100_vPA-S Full-range

Kartesian Wib100_vPA-S

8 Ω
4″ Full-range
fS94 Hz
SD50.3 cm²
80 - 18000 Hz
QTS0.27
xmax3 mm
SPL1W87.7 dB
Bl/√RE3.8
Pmax150 W
Kartesian Sub250_vHE Subwoofer

Kartesian Sub250_vHE

4 Ω
10″ Subwoofer
fS26 Hz
SD338 cm²
25 - 500 Hz
QTS0.31
xmax10 mm
SPL1W86.6 dB
Bl/√RE7.27
Pmax450 W
Kartesian Sub185_vKi Subwoofer

Kartesian Sub185_vKi

8 Ω
8″ Subwoofer
fS28 Hz
SD179 cm²
25 - 1500 Hz
QTS0.32
xmax15 mm
SPL1W85.9 dB
Bl/√RE4.43
Pmax250 W
Kartesian Sub120_vHP Subwoofer

Kartesian Sub120_vHP

8 Ω
4.5″ Subwoofer
fS46 Hz
SD53.5 cm²
48 - 3000 Hz
QTS0.33
xmax6 mm
SPL1W81 dB
Bl/√RE3.3
Pmax150 W
Kartesian Sub120_vHE Subwoofer

Kartesian Sub120_vHE

8 Ω
4.5″ Subwoofer
fS46 Hz
SD54 cm²
45 - 3500 Hz
QTS0.42
xmax6.5 mm
SPL1W81.1 dB
Bl/√RE2.84
Pmax100 W
Kartesian Mid120_vHE Mid-range

Kartesian Mid120_vHE

8 Ω
4.5″ Mid-range
fS104 Hz
SD54.4 cm²
180 - 3000 Hz
QTS0.41
xmax2 mm
SPL1W90 dB
Bl/√RE2.16
Pmax100 W
Kartesian Lom165_vPA-H Mid Bass

Kartesian Lom165_vPA-H

8 Ω
6.5″ Mid Bass
fS52 Hz
SD121 cm²
60 - 2000 Hz
QTS0.26
xmax3.5 mm
SPL1W91.6 dB
Bl/√RE3.7
Pmax200 W
Kartesian Lom135_vPA-S Mid Bass

Kartesian Lom135_vPA-S

8 Ω
5.5″ Mid Bass
fS115 Hz
SD95.4 cm²
150 - 2500 Hz
QTS0.54
xmax2.5 mm
SPL1W89.2 dB
Bl/√RE3.37
Pmax150 W
Kartesian Lom120_vPA Mid Bass

Kartesian Lom120_vPA

8 Ω
4.5″ Mid Bass
fS120 Hz
SD55.4 cm²
100 - 3000 Hz
QTS0.39
xmax2.5 mm
SPL1W88.7 dB
Bl/√RE3.47
Pmax150 W
Kartesian Cox165_vPA Coaxial

Kartesian Cox165_vPA

8 Ω
6.5″ Coaxial
fS61 Hz
SD118 cm²
65 - 20000 Hz
QTS0.26
xmax3 mm
SPL1W92.6 dB
Bl/√RE3.75
Pmax250 W
Kartesian Cox135_vPA-S Coaxial

Kartesian Cox135_vPA-S

8 Ω
5.5″ Coaxial
fS158 Hz
SD95 cm²
160 - 20000 Hz
QTS0.59
xmax3 mm
SPL1W90.1 dB
Bl/√RE3.44
Pmax180 W
Kartesian Cox120_vHP Coaxial

Kartesian Cox120_vHP

8 Ω
4.5″ Coaxial
fS68 Hz
SD47.8 cm²
60 - 22000 Hz
QTS0.34
xmax3.5 mm
SPL1W86 dB
Bl/√RE2.57
Pmax100 W
