Kartesian Wom155_vKi-C

• Sensitivity (1W, 1m, infinite baffle) SPL1W 86.1dB

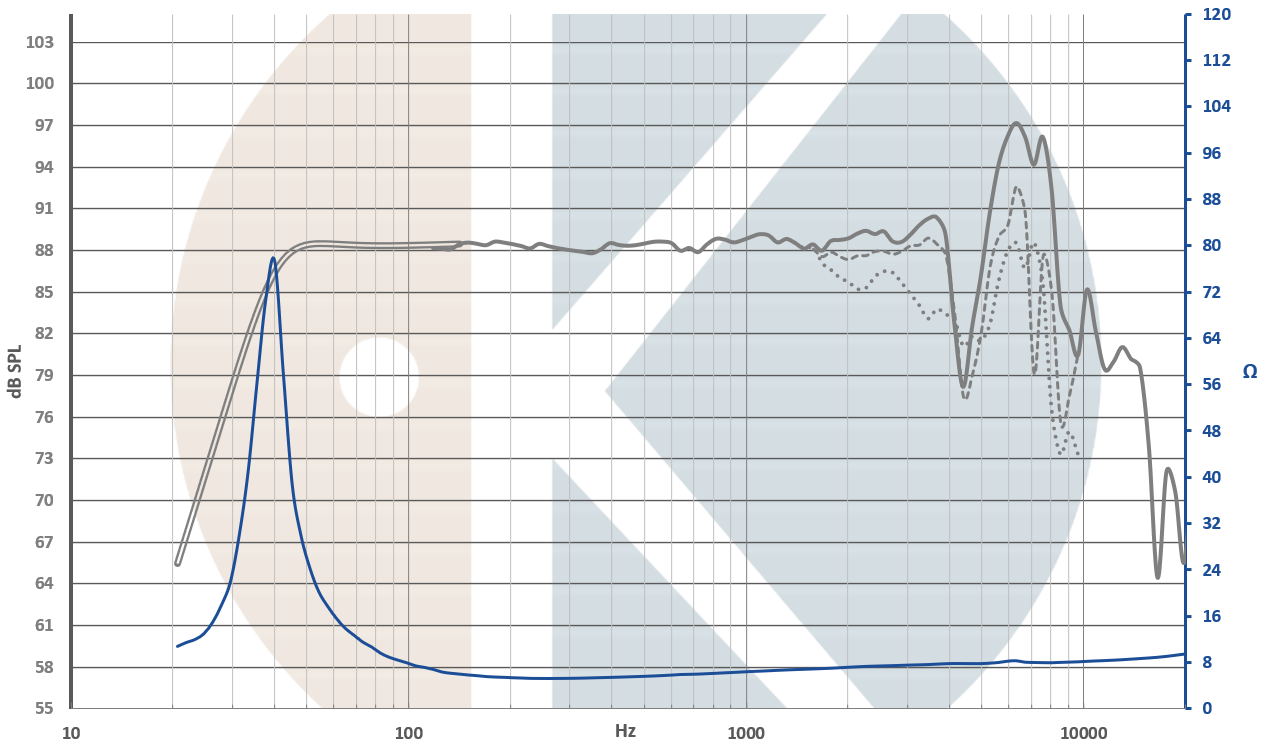

• Frequency response 40 - 3000Hz

Thiele & Small parameters

• Resonance frequency (free air) fS 38Hz
• Mechanical quality factor QMS 7.30
• Electrical quality factor QES 0.39
• Total quality factor QTS 0.37

Large signal parameters

• Maximum linear excursion xmax 10mm
• Air volume displaced at xmax VD 113cm³
• Power handling P 75W
• Program power Pmax 150W

Voice Coil

• Nominal impedance Z 6Ω
• DC resistance RE 4.6Ω

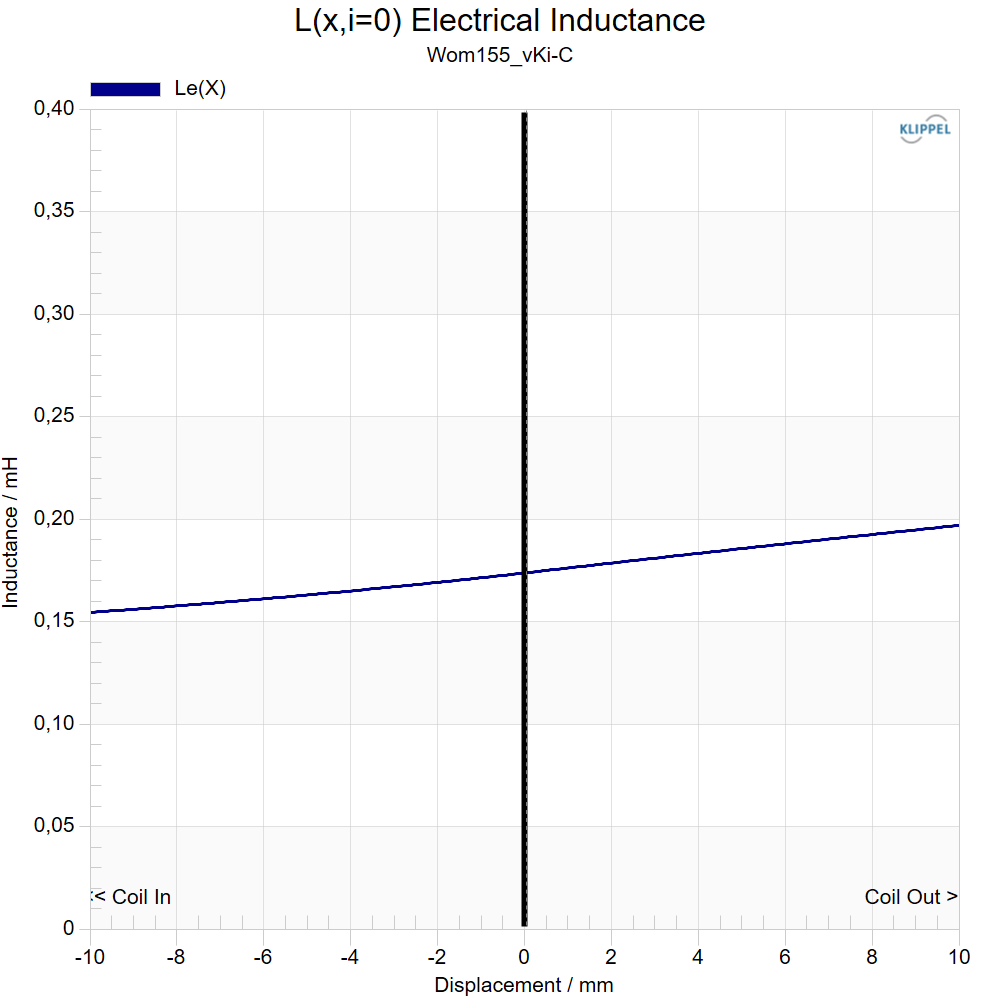

• Inductance (1kHz) LE 0.08mH
• VC Diameter 45mm
• Winding material CCA ribbon wire
• Former material Vented Titanium / GF former

Magnet

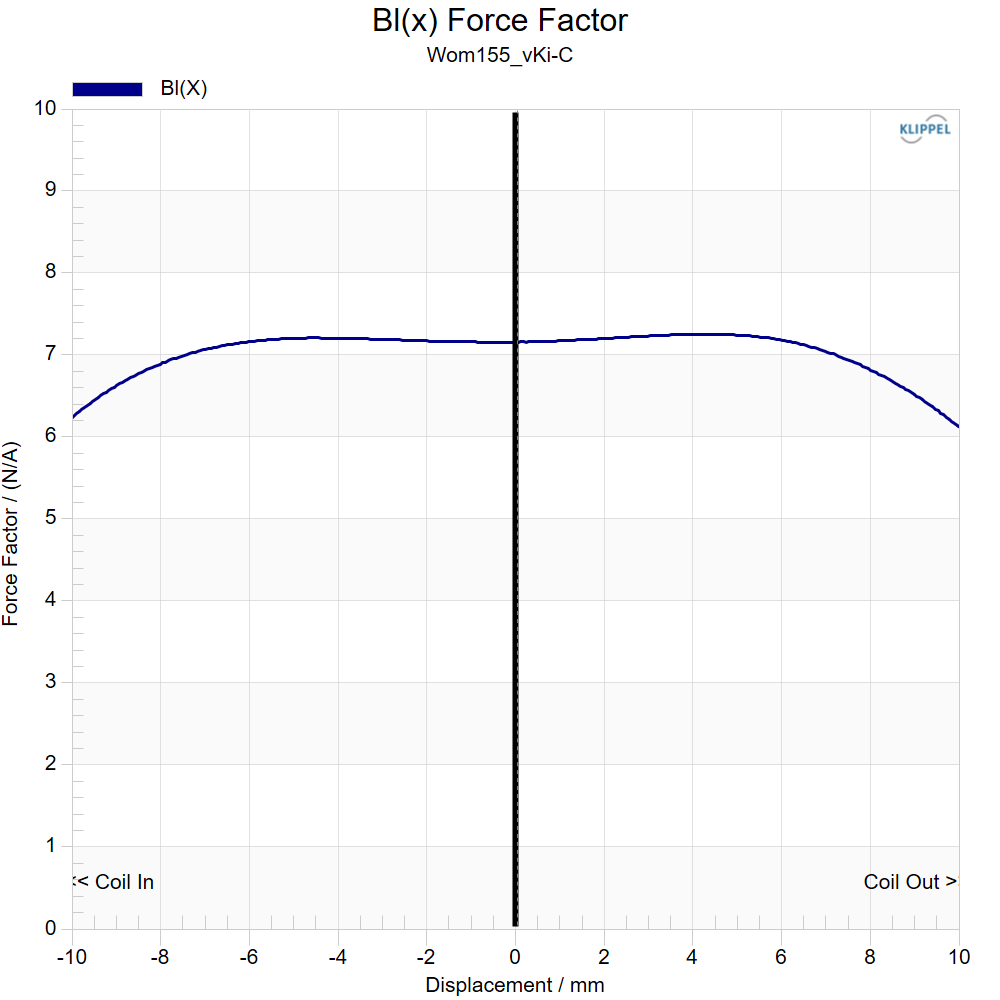

• Force factor Bl 7.1N/A
• Motor constant Bl/√RE 3.31N/√W
• Diameter 76mm
• Height 47mm
• Material NdFeB (grade N40H)

Diaphragm

• Effective diameter 120mm
• Effective area SD 113cm²
• Moving mass MMS 17.7g
• Moving mass (without air load) MMD 16.8g
• Material Paper with hexaKone structure

Suspensions

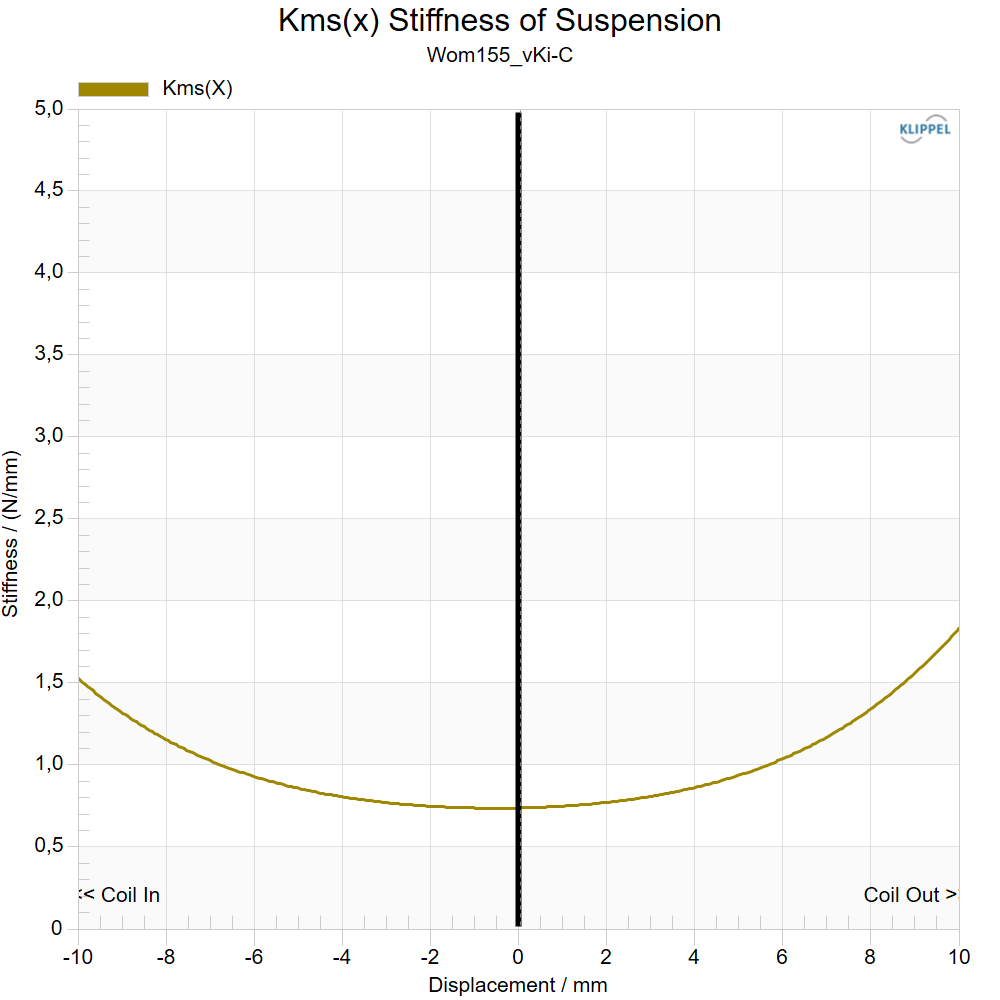

• Stiffness KMS 1.02N/mm
• Compliance CMS 980µm/N
• Equivalent volume to the compliance VAS 17.9L
• Mechanical resistance RMS 0.85N·s/m
• Surround material Low lost SBR material
• Spider material pumaX spider

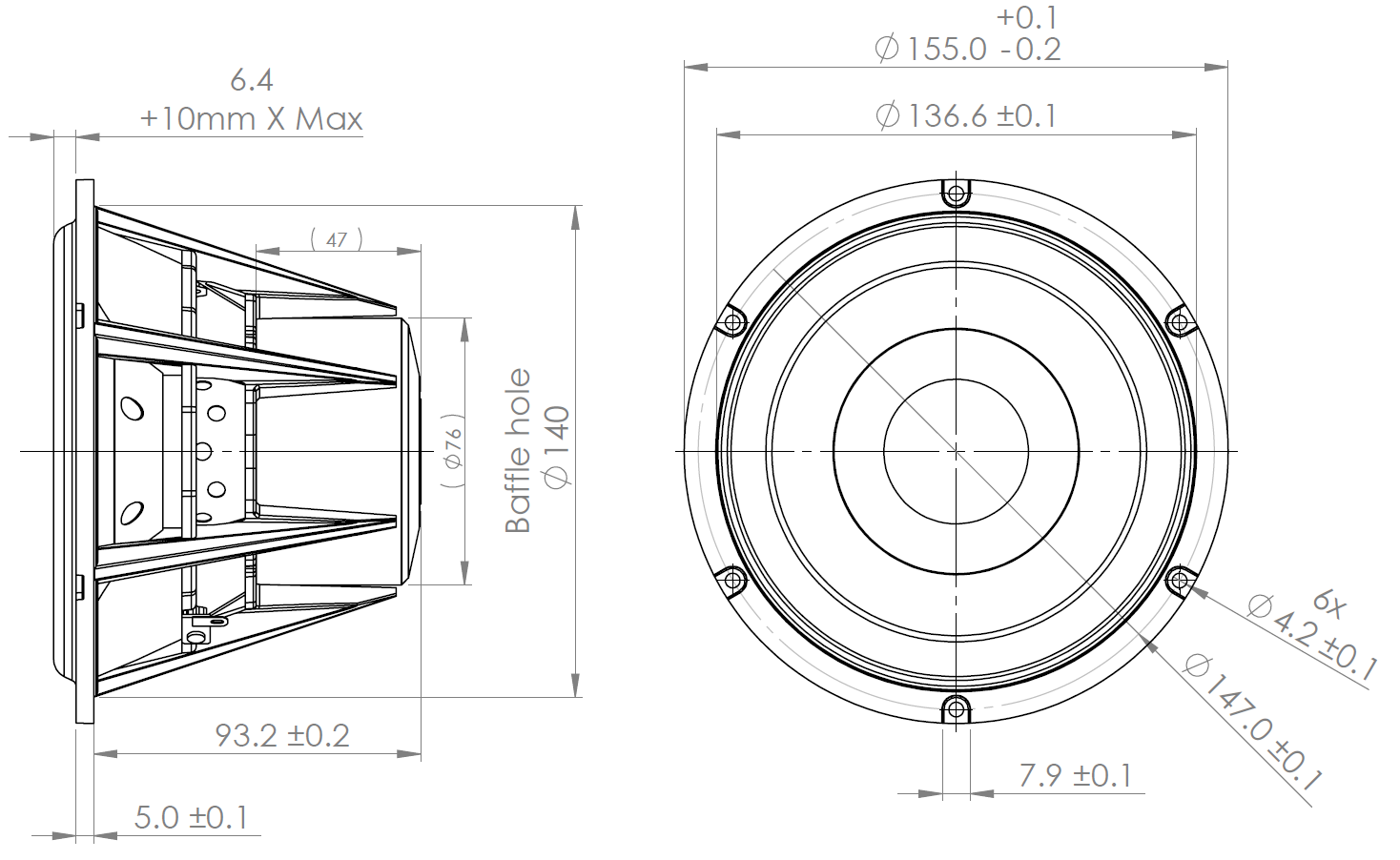

Dimensions

• Nominal diameter 6″
• 155mm
• Overall diameter 155mm
• Baffle cutout diameter 140mm
• Overall depth 98mm
• Flange thickness 5mm
• Mounting depth 93mm
• Volume occupied by the driver (estimated) 0.54L
• Net weight 1.5kg
• Frame material Injected aluminium (ACD12)
