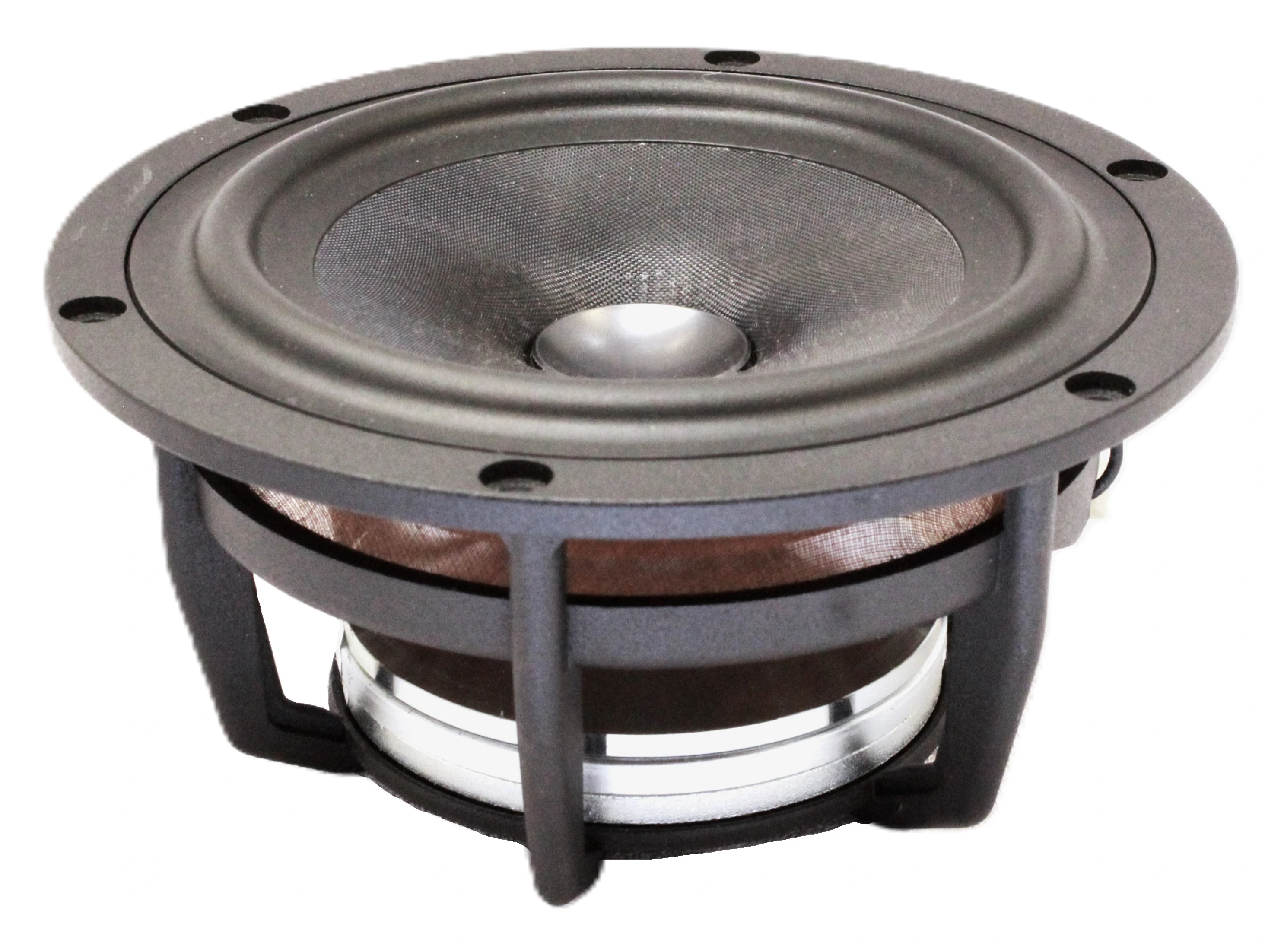

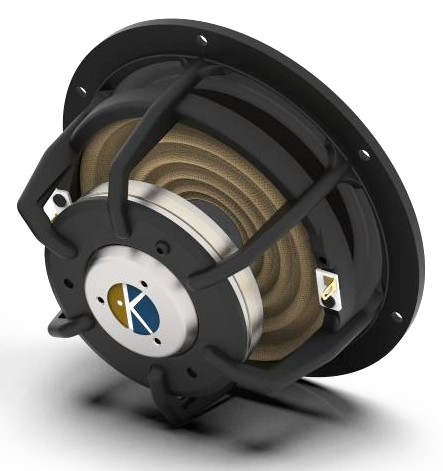

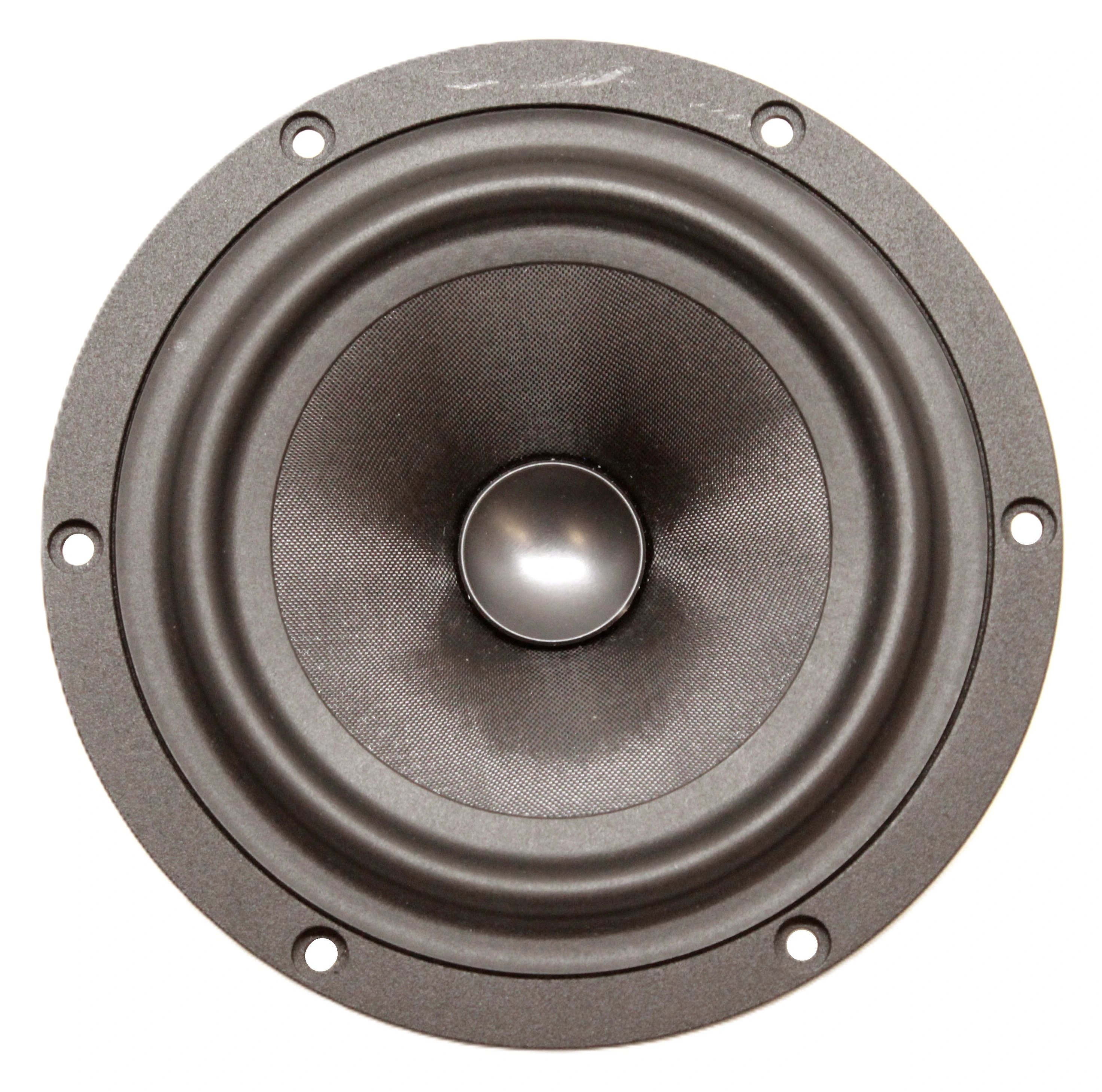

Kartesian Wib145_vHE

Full-range

Nominal diameter5.5″ / 145 mm
Resonance56 Hz
Q factor0.52
Sensitivity87.1 dB
Linear excursion± 6 mm
Program Power100 W
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply
  • Sensitivity (1W, 1m, infinite baffle) SPL1W 87.1dB
  • Frequency response 45 - 20000Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 56Hz
  • Mechanical quality factor QMS 5.60
  • Electrical quality factor QES 0.57
  • Total quality factor QTS 0.52

Large signal parameters

  • Maximum linear excursion xmax 6mm
  • Air volume displaced at xmax VD 51cm³
  • Power handling P 60W
  • Program power Pmax 100W

Voice Coil

  • Nominal impedance Z 8Ω
  • DC resistance RE 4.8Ω
  • Inductance (1kHz) LE 0.04mH
  • VC Diameter 26mm
  • Winding material Cu ribbon
  • Former material Titanium

Magnet

  • Force factor Bl 5N/A
  • Motor constant Bl/√RE 2.28N/√W
  • Material 2x high grade NdFeB

Diaphragm

  • Effective diameter 104mm
  • Effective area SD 85cm²
  • Moving mass MMS 8.5g
  • Moving mass (without air load) MMD 7.9g
  • Material CGF

Suspensions

  • Stiffness KMS 1.06N/mm
  • Compliance CMS 947µm/N
  • Equivalent volume to the compliance VAS 9.7L
  • Mechanical resistance RMS 0.53N·s/m
  • Surround material Low lost NBR

Dimensions

  • Nominal diameter 5.5
  • 145mm
  • Overall diameter 144mm
  • Baffle cutout diameter 123mm
  • Overall depth 68mm
  • Flange thickness 4mm
  • Mounting depth 64mm
  • Volume occupied by the driver (estimated) 0.32L
  • Frame material Injected aluminum

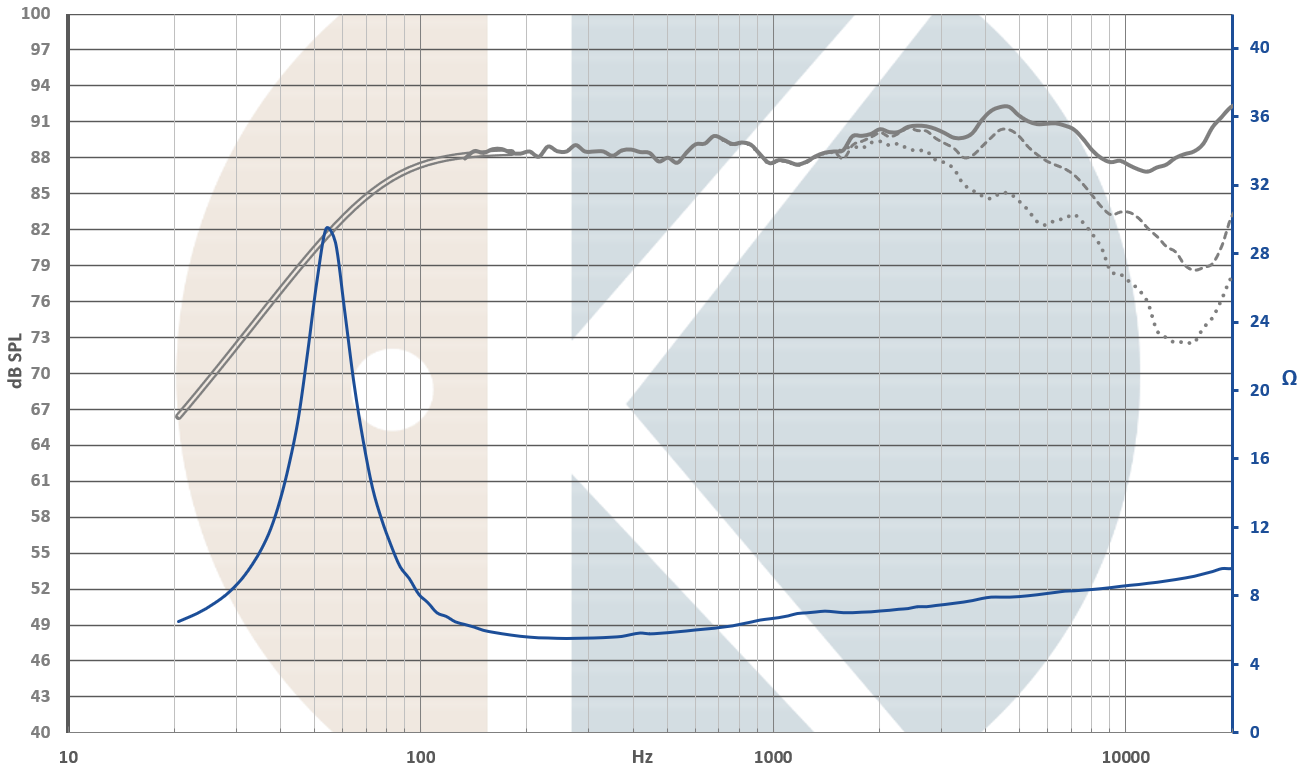

Kartesian Wib145_vHE SPL & Impedance

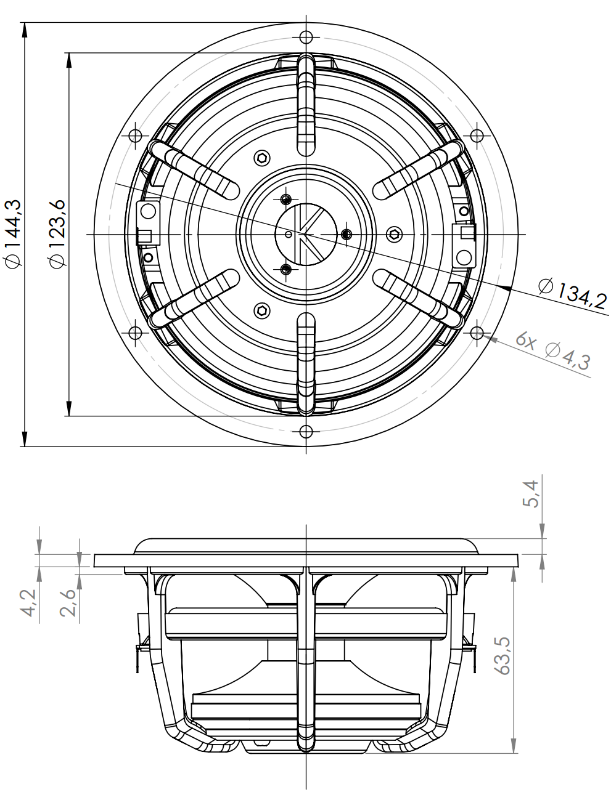

Kartesian Wib145_vHE Dimensions

Similar speaker drivers to Kartesian Wib145_vHE

Wavecor WF146WA02

Wavecor WF146WA02

8 Ω
5.75
fS58 Hz
SD95 cm²
58 - 3500 Hz
QTS0.51
SPL1W87.2 dB
Bl/√RE2.55
Pmax110 W
MONACOR SPH-145HQ Mid-range

MONACOR SPH-145HQ

8 Ω
5.5 Mid-range
fS52 Hz
SD80 cm²
52 - 6000 Hz
QTS0.44
xmax3.5 mm
SPL1W86.6 dB
Bl/√RE2.21
Pmax100 W
mivoc WPT 138 Mid Bass

mivoc WPT 138

8 Ω
5.25 Mid Bass
fS51 Hz
SD82 cm²
51 - 3500 Hz
QTS0.45
xmax3.5 mm
SPL1W86.4 dB
Bl/√RE2.19
Pmax180 W
