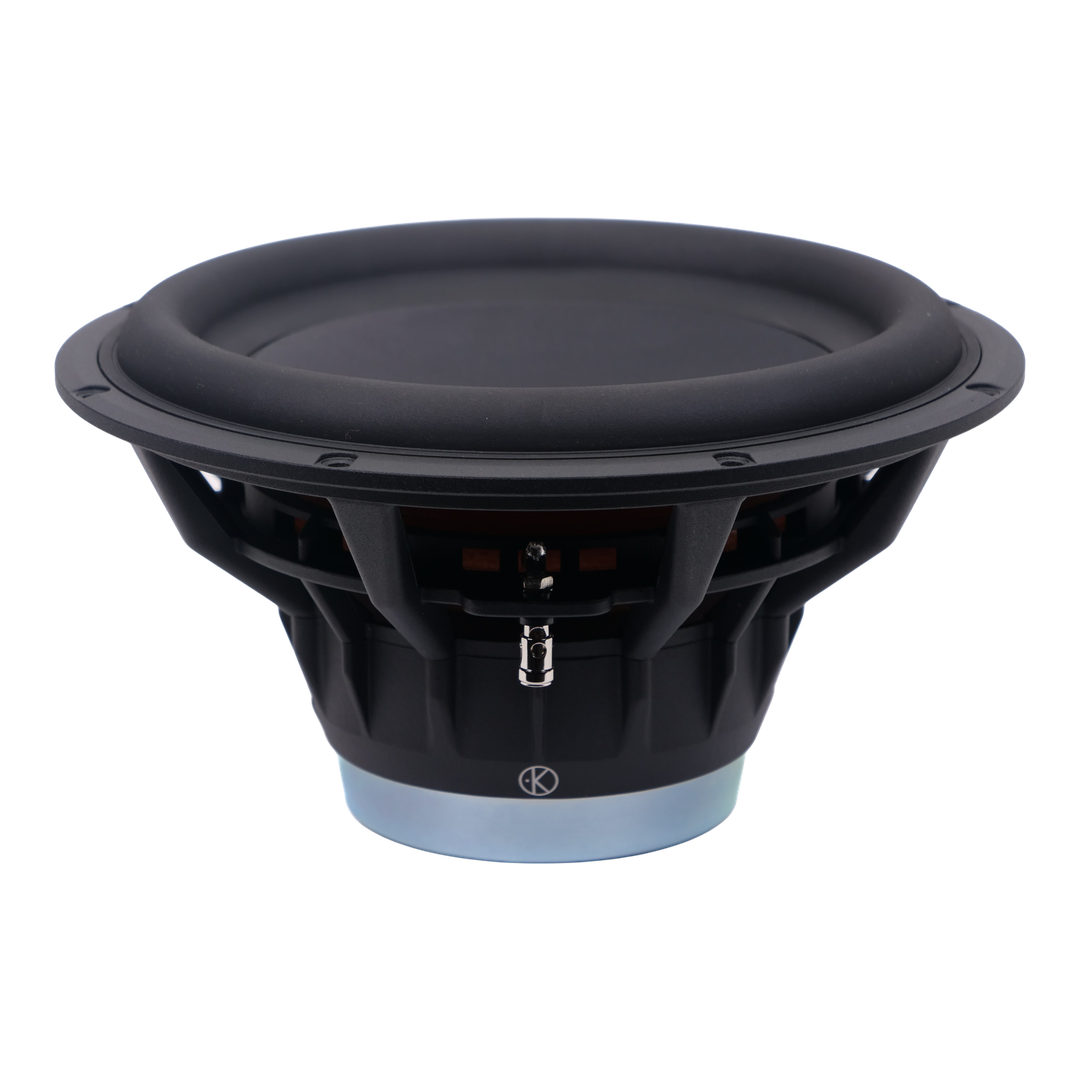

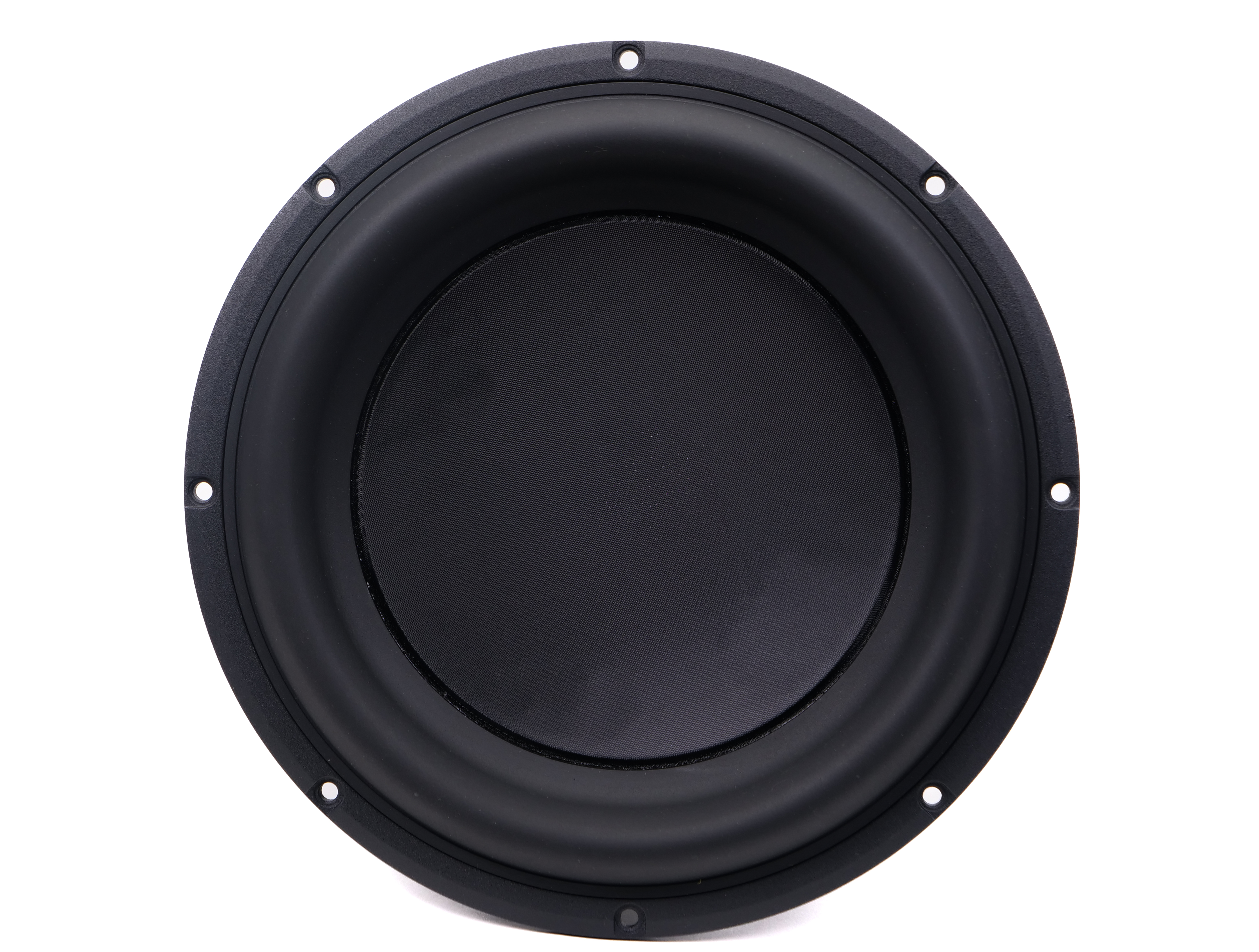

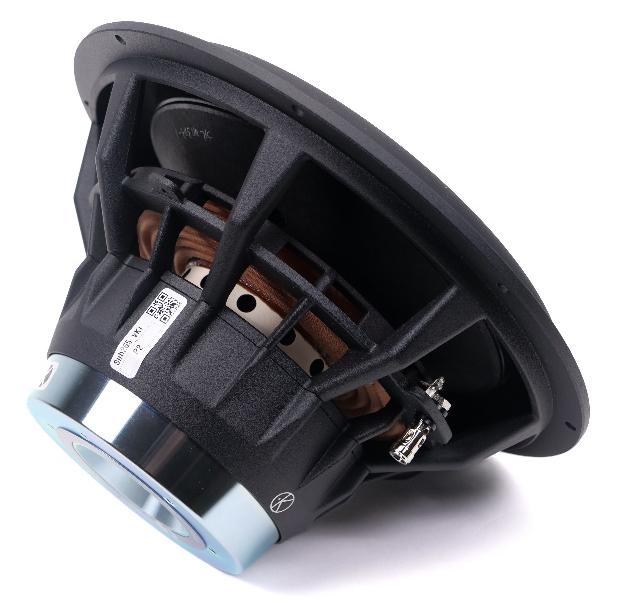

Kartesian Sub265_vKi-V
S
V
Subwoofer
| Nominal diameter | 10″ / 265 mm |
| Resonance | 24 Hz |
| Q factor | 0.40 |
| Sensitivity | 86.4 dB |
| Linear excursion | ± 16 mm |
| Program Power | 600 W |
.png)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.4dB

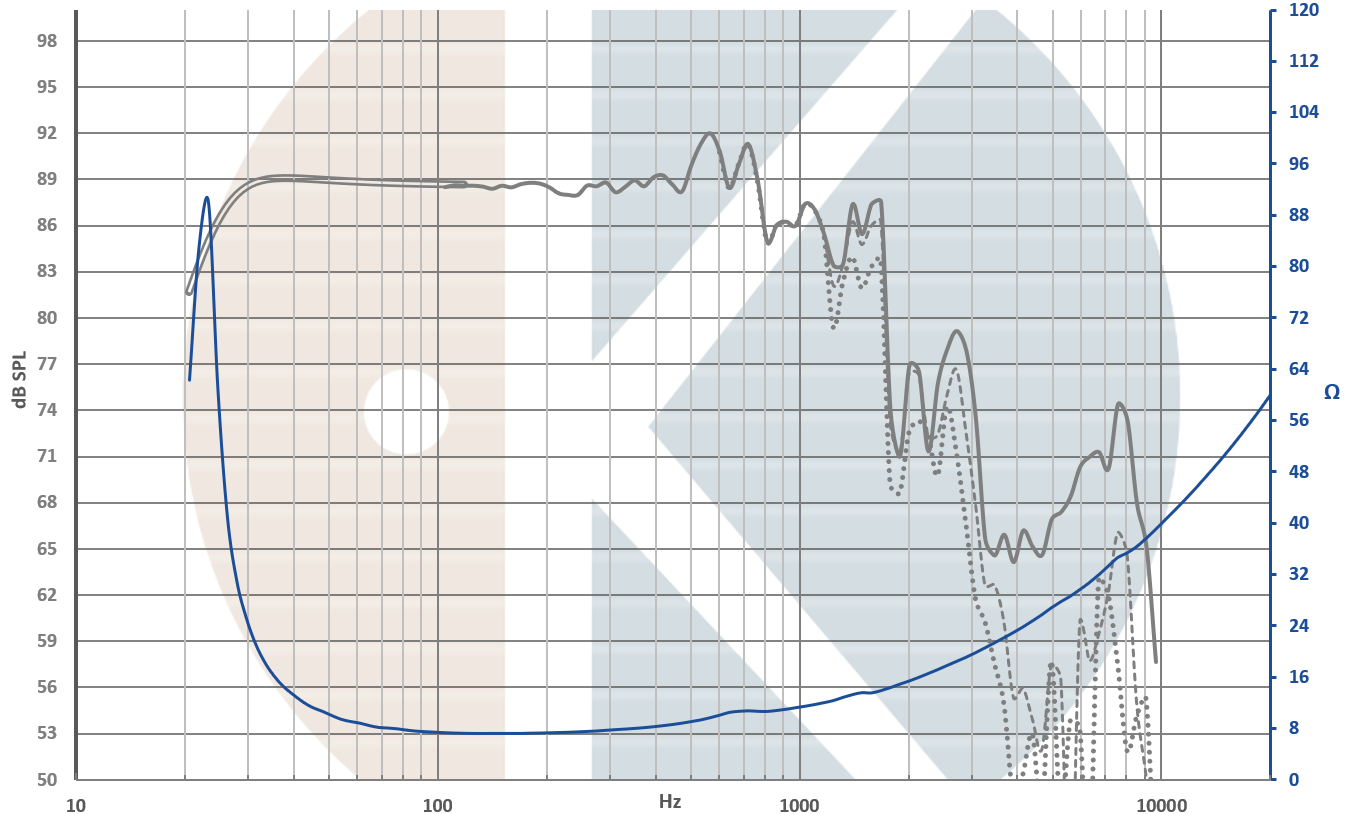

- Frequency response 25 - 400Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 24Hz
- Mechanical quality factor QMS 7.80
- Electrical quality factor QES 0.42
- Total quality factor QTS 0.40
Large signal parameters
- Maximum linear excursion (one way) xmax 16mm
- Air volume displaced at xmax VD 554cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.5Ω

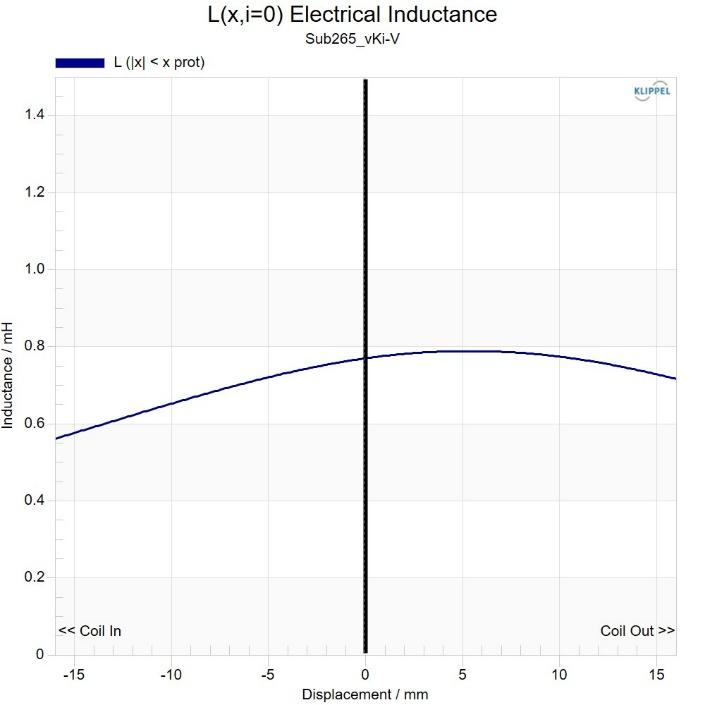

- Inductance (1kHz) LE 0.7mH
- VC Diameter 78.5mm
- Former material Vented Titanium / Glass fiber
Magnet

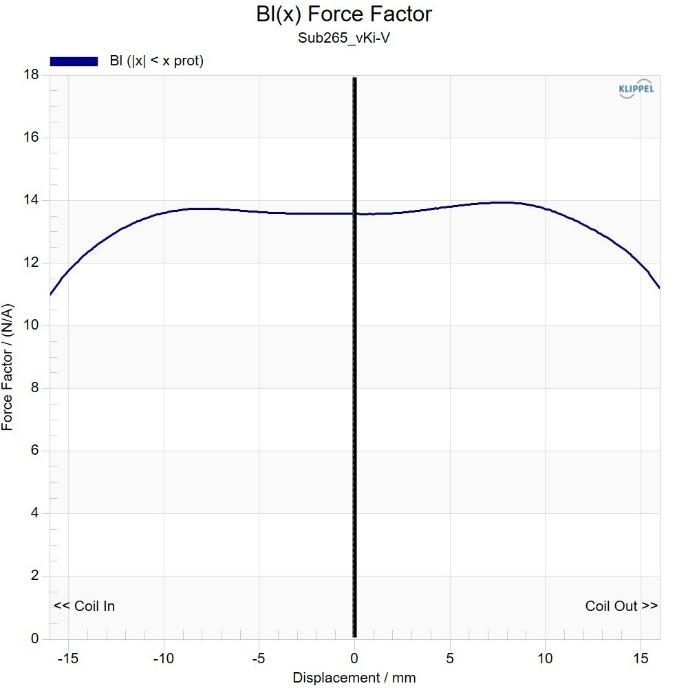

- Force factor Bl 13.8N/A
- Motor constant Bl/√RE 5.41N/√W
- Material NdFeB (grade N40H)
Diaphragm
- Effective diameter 210mm
- Effective area SD 346cm²
- Moving mass MMS 82g
- Moving mass (without air load) MMD 77.2g
- Material 4 layers - vented paper
Suspensions

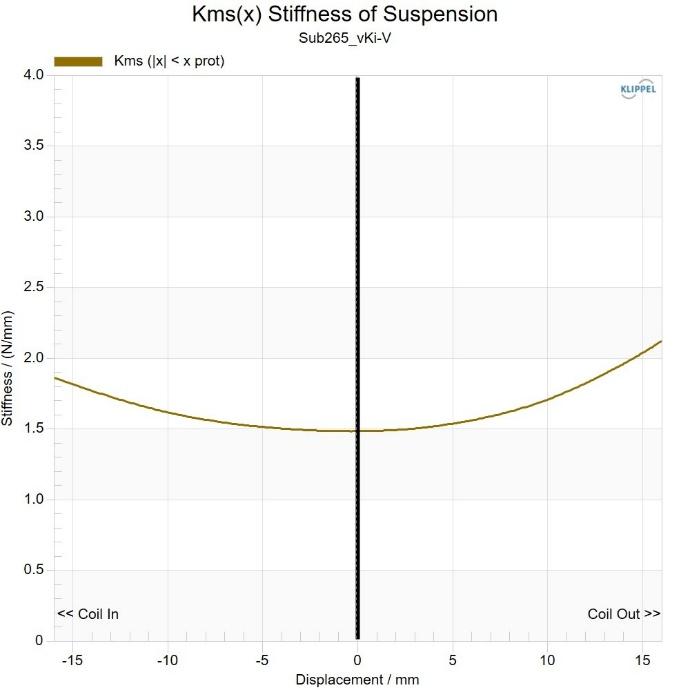

- Stiffness KMS 1.87N/mm
- Compliance CMS 536µm/N
- Equivalent volume to the compliance VAS 91.1L
- Mechanical resistance RMS 1.58N·s/m
- Surround material Low lost NBR
- Spider material 2x progressiF

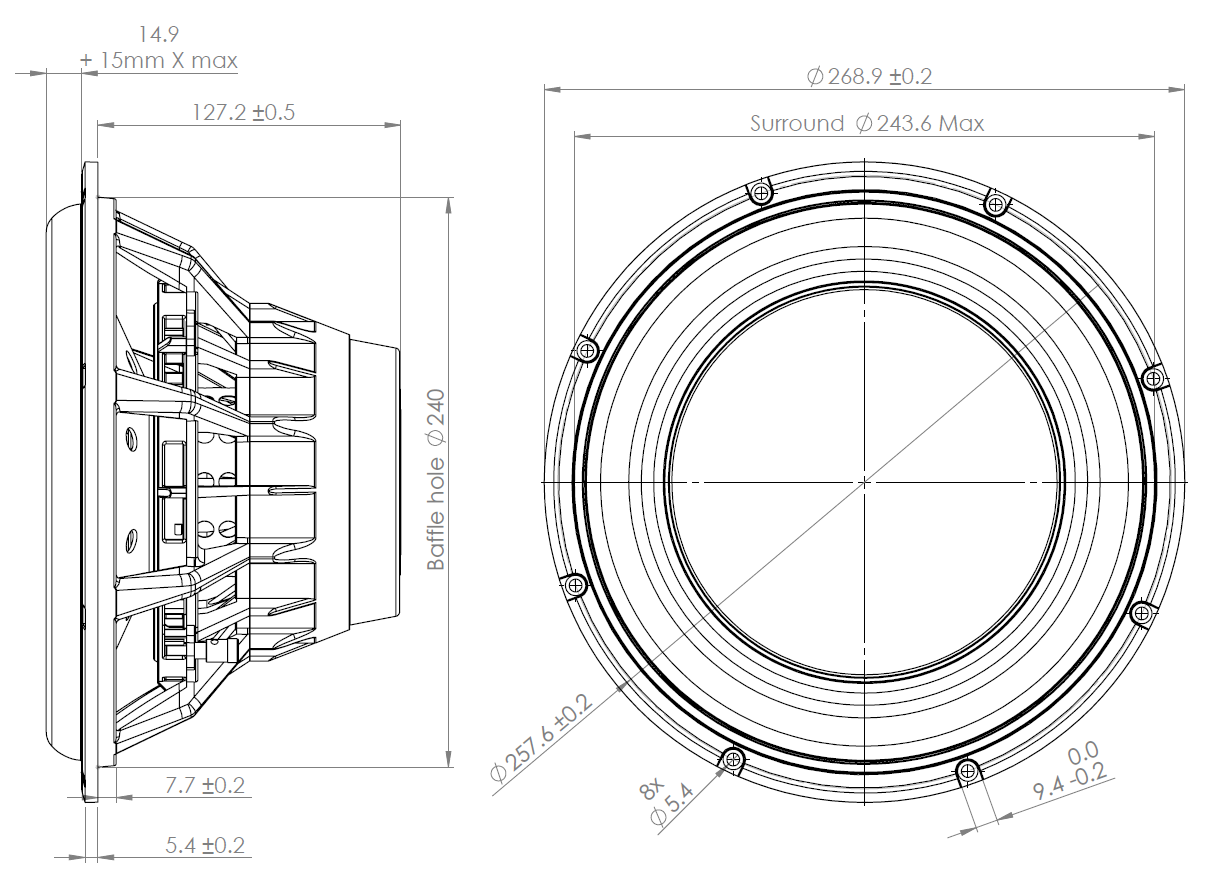

Dimensions
- Nominal diameter 10″
- 265mm
- Overall diameter 269mm
- Baffle cutout diameter 240mm
- Overall depth 132mm
- Flange thickness 5mm
- Mounting depth 127mm
- Volume occupied by the driver (estimated) 2L
- Net weight 4.92kg
- Frame material Injected aluminium (ACD12)
.png)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.png)
