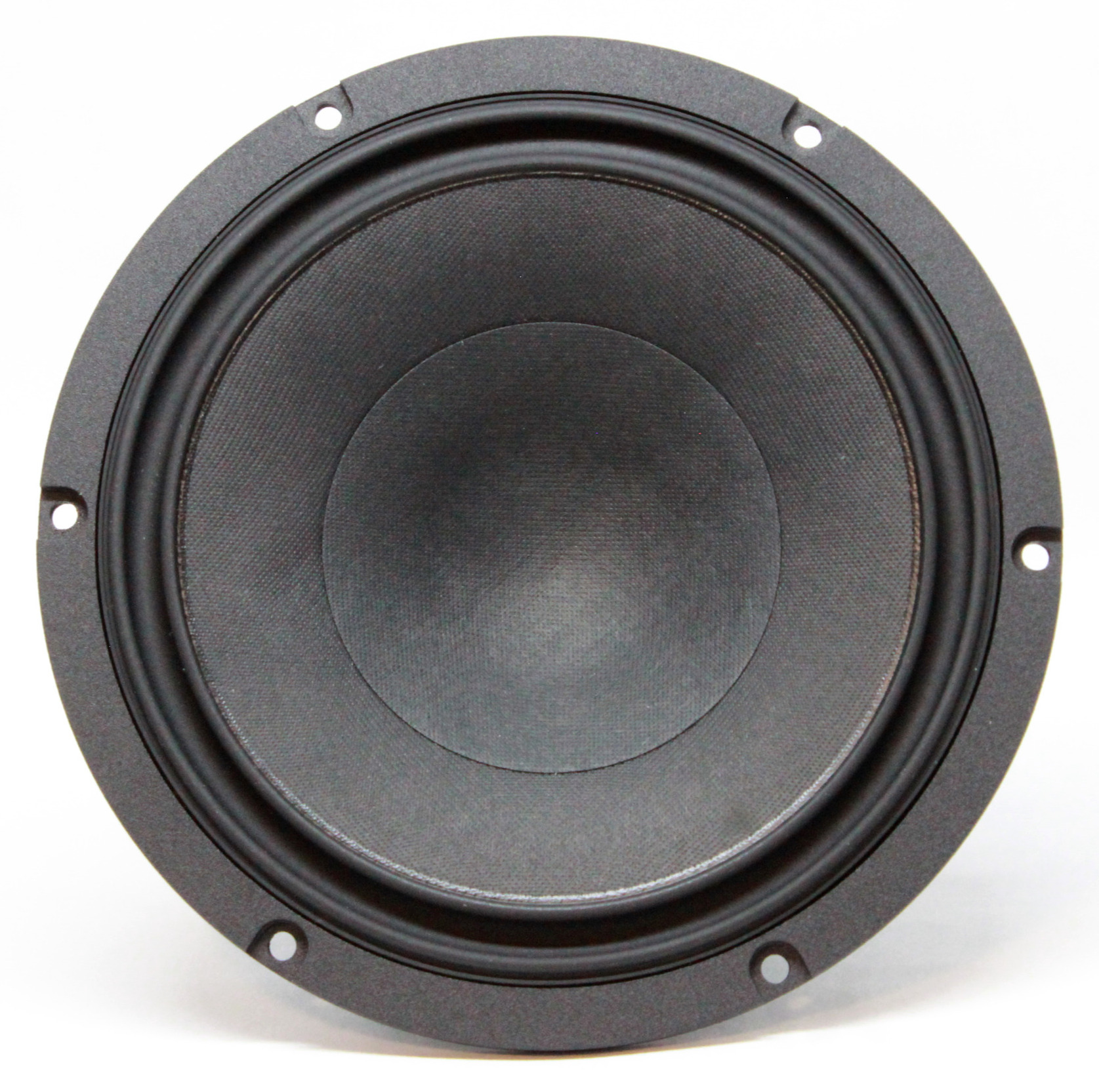

Kartesian Lom155_vKi

Mid Bass

Nominal diameter6″ / 155 mm
Resonance48 Hz
Q factor0.33
Sensitivity89.1 dB
Linear excursion± 6 mm
Program Power150 W
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply
  • Sensitivity (1W, 1m, infinite baffle) SPL1W 89.1dB
  • Frequency response 55 - 3500Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 48Hz
  • Mechanical quality factor QMS 3.80
  • Electrical quality factor QES 0.36
  • Total quality factor QTS 0.33

Large signal parameters

  • Maximum linear excursion xmax 6mm
  • Air volume displaced at xmax VD 75cm³
  • Power handling P 75W
  • Program power Pmax 150W

Voice Coil

  • Nominal impedance Z 4Ω
  • DC resistance RE 3.3Ω
  • Inductance (1kHz) LE 0.08mH
  • VC Diameter 45mm
  • Winding material CCAW

Magnet

  • Force factor Bl 6.35N/A
  • Motor constant Bl/√RE 3.52N/√W
  • Diameter 76mm
  • Height 47mm
  • Material NdFeB (grade N40H)

Diaphragm

  • Effective diameter 126mm
  • Effective area SD 125cm²
  • Moving mass MMS 14.7g
  • Moving mass (without air load) MMD 13.7g
  • Material Paper with hexaKone

Suspensions

  • Stiffness KMS 1.35N/mm
  • Compliance CMS 742µm/N
  • Equivalent volume to the compliance VAS 16.6L
  • Mechanical resistance RMS 1.17N·s/m
  • Surround material Isobutylene-Isoprene-Rubber

Dimensions

  • Nominal diameter 6
  • 155mm
  • Overall diameter 155mm
  • Baffle cutout diameter 140mm
  • Overall depth 101mm
  • Flange thickness 8mm
  • Mounting depth 93mm
  • Volume occupied by the driver (estimated) 0.56L
  • Net weight 1.5kg
  • Frame material Injected aluminium (ACD12)

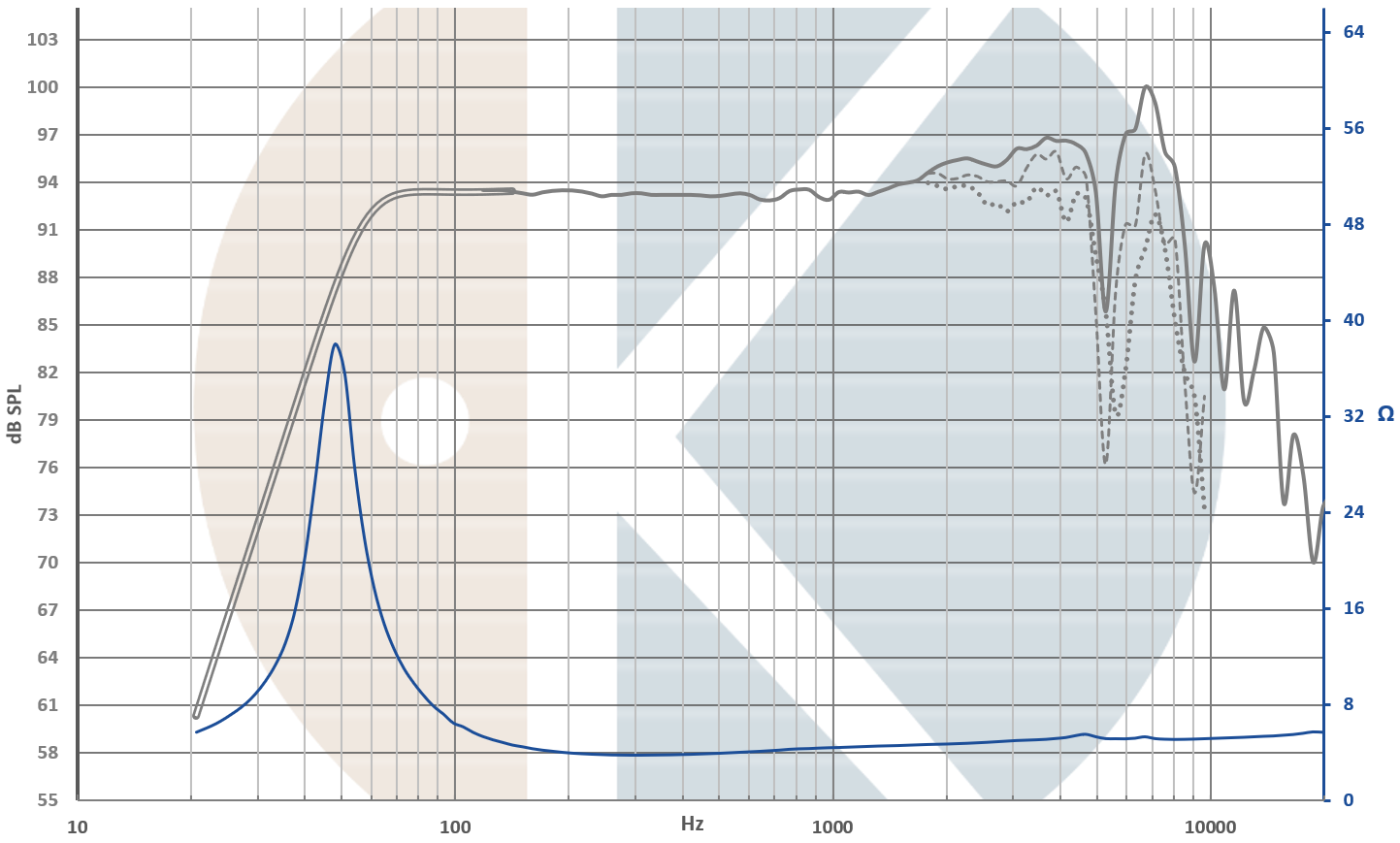

Kartesian Lom155_vKi SPL & Impedance

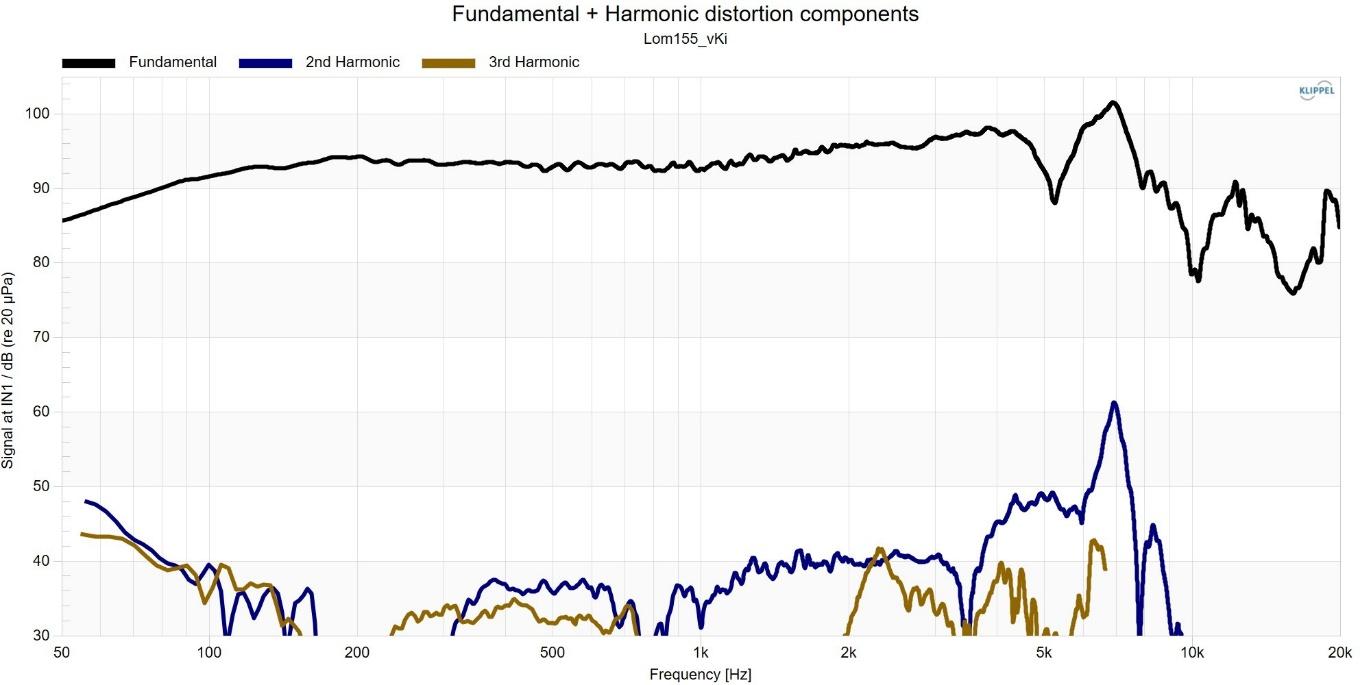

Kartesian Lom155_vKi Distortion

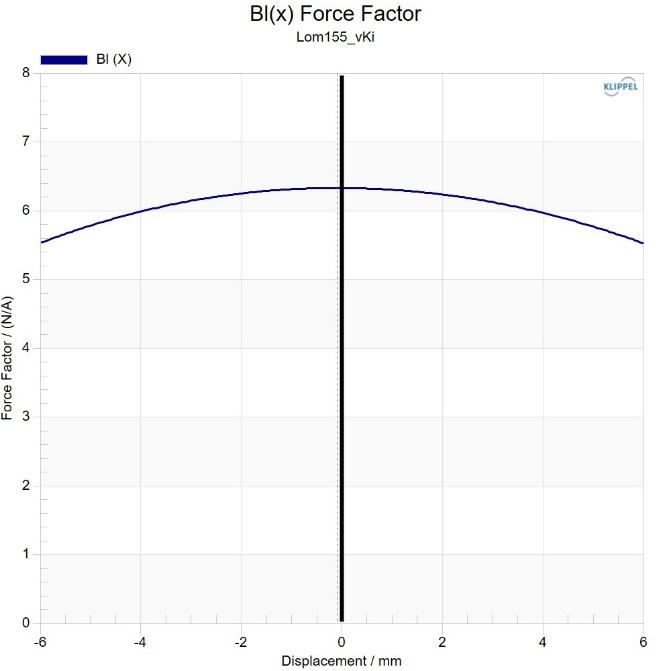

Kartesian Lom155_vKi Force factor

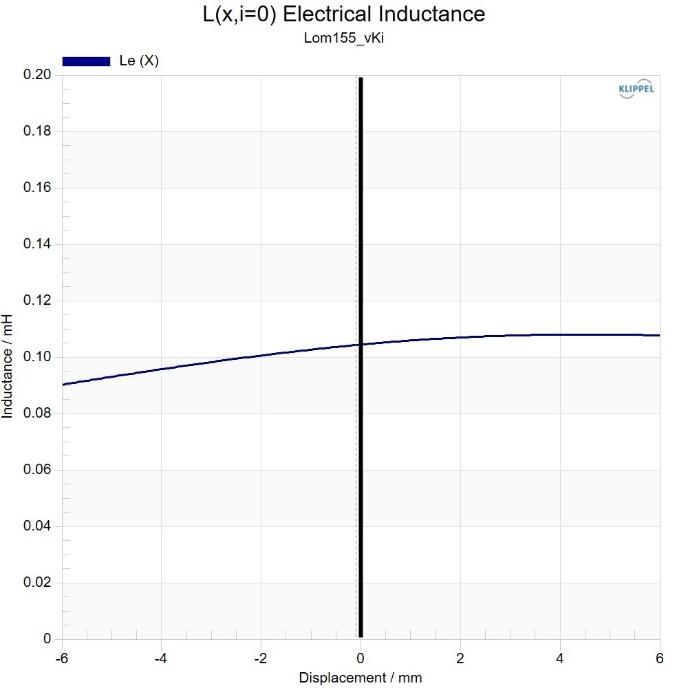

Kartesian Lom155_vKi Inductance

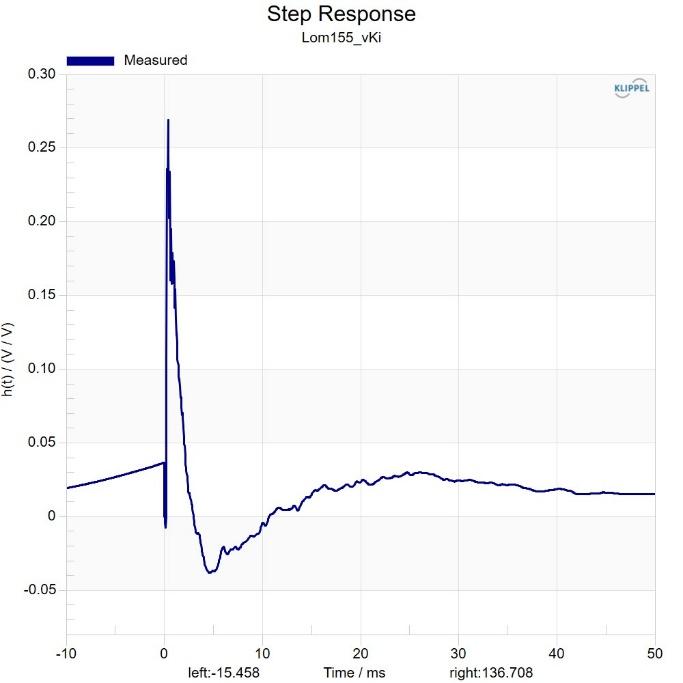

Kartesian Lom155_vKi Step response

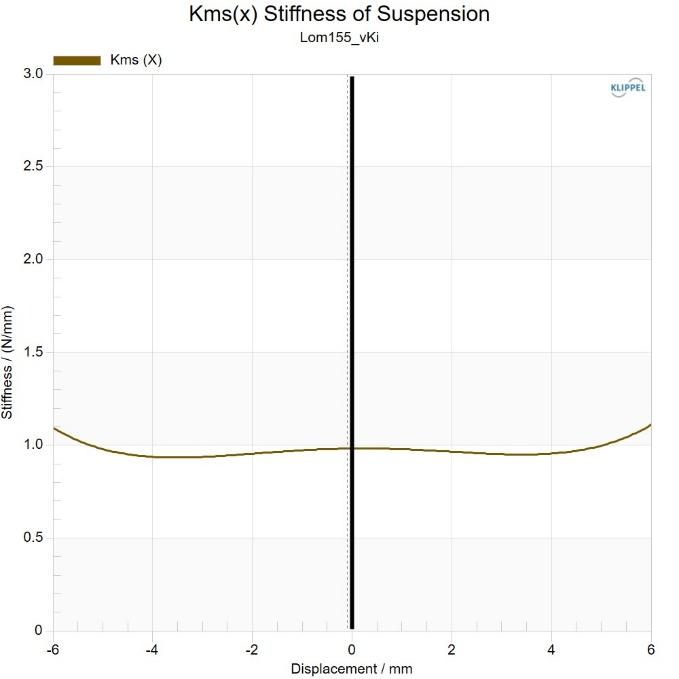

Kartesian Lom155_vKi Stiffness

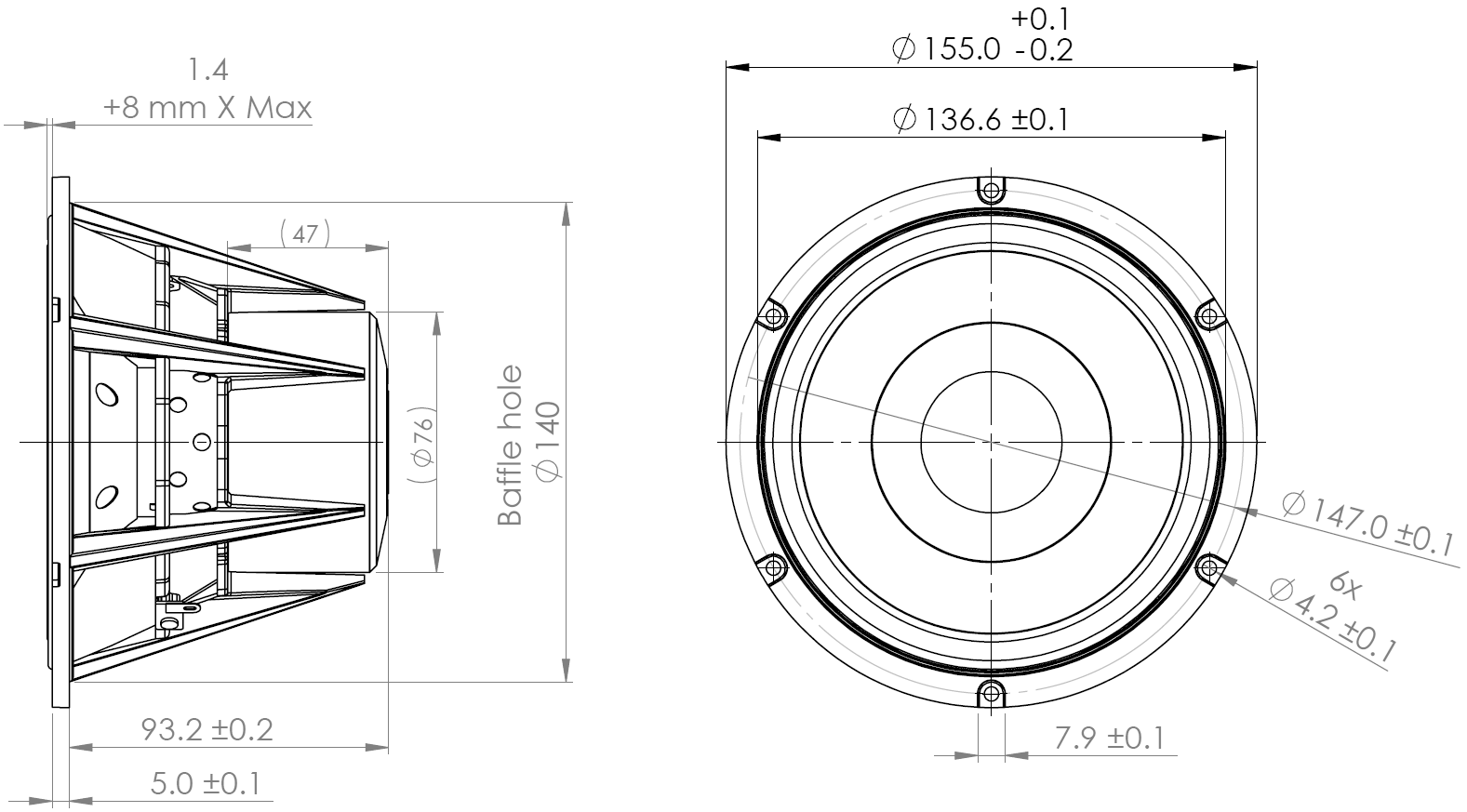

Kartesian Lom155_vKi Dimensions
