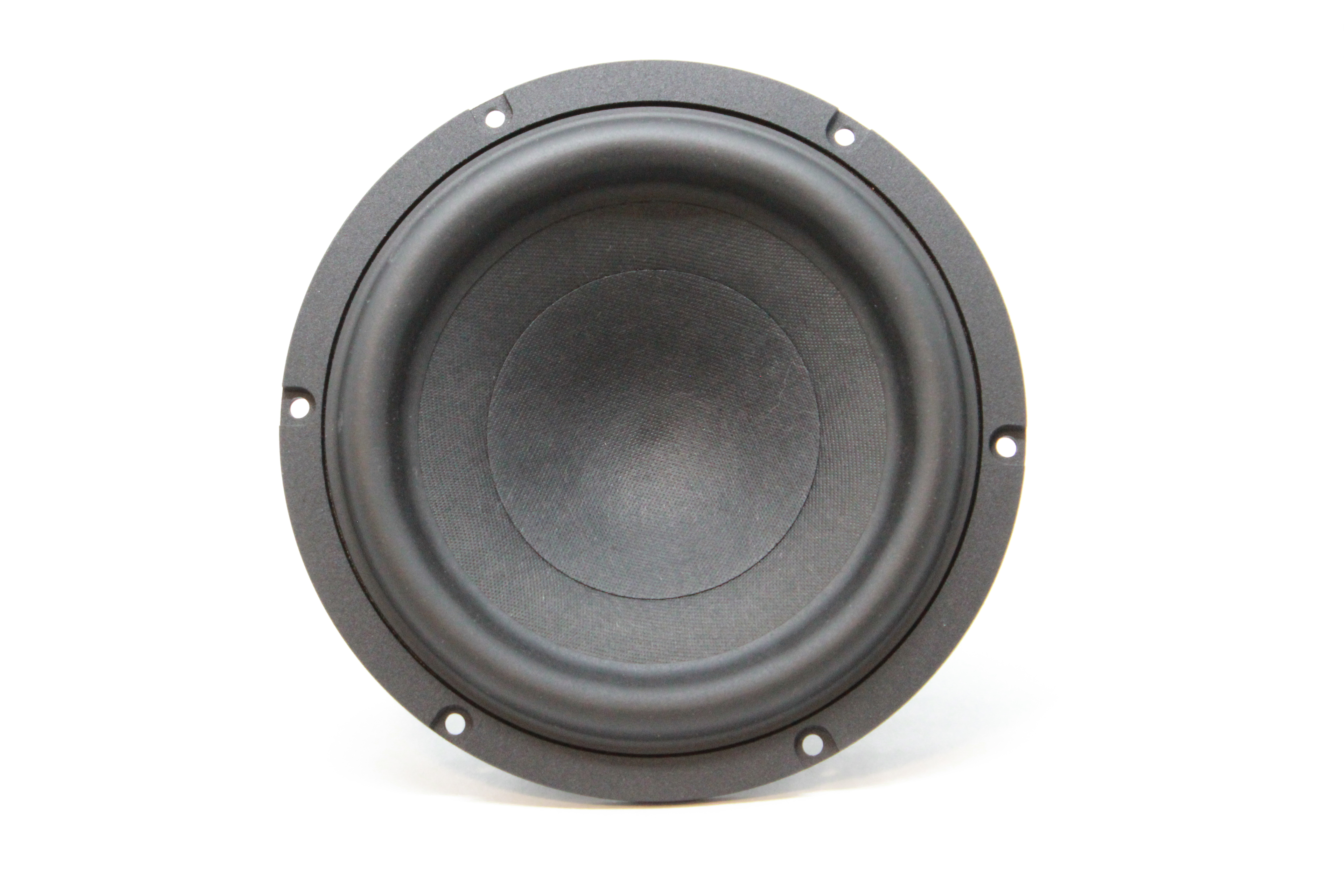

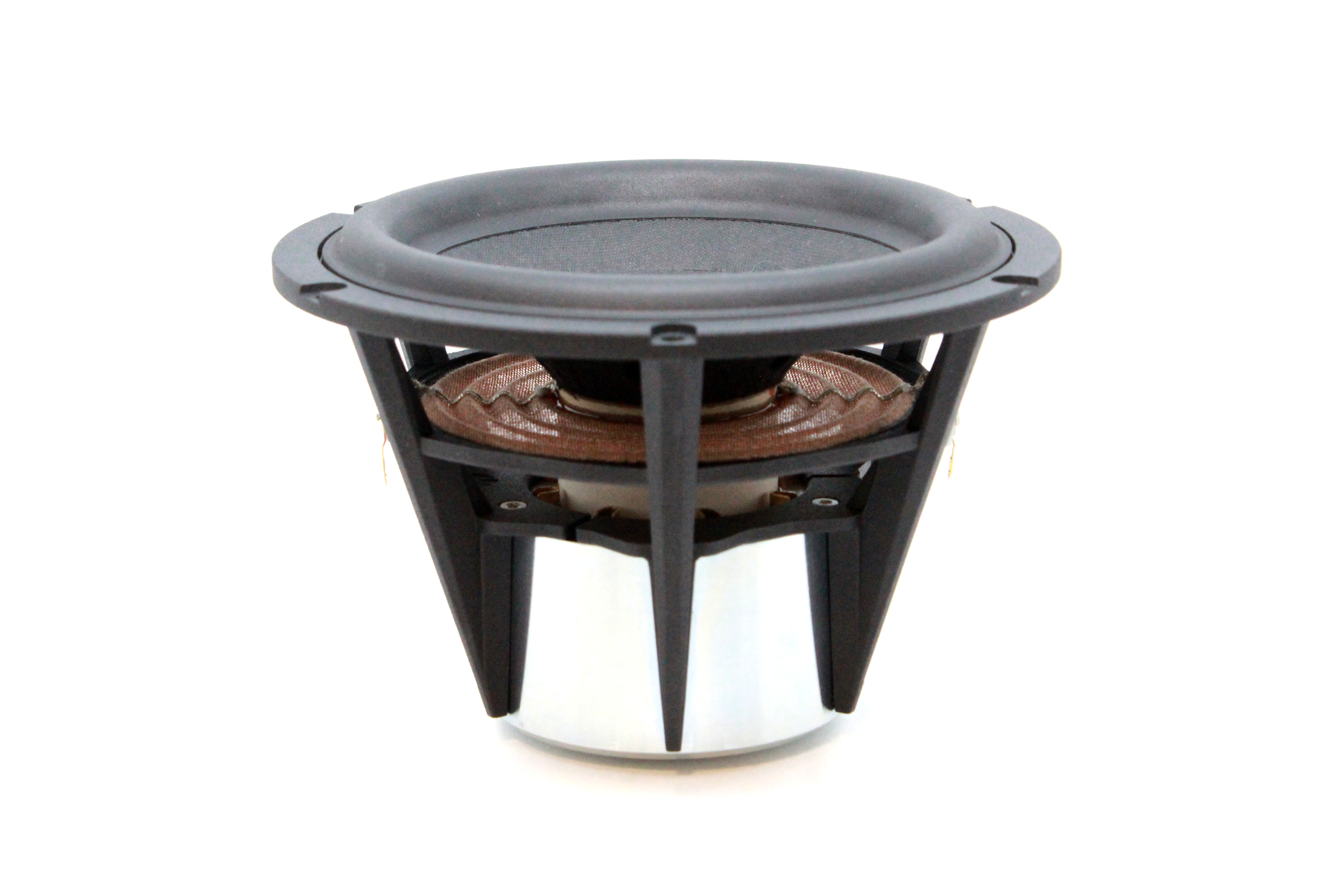

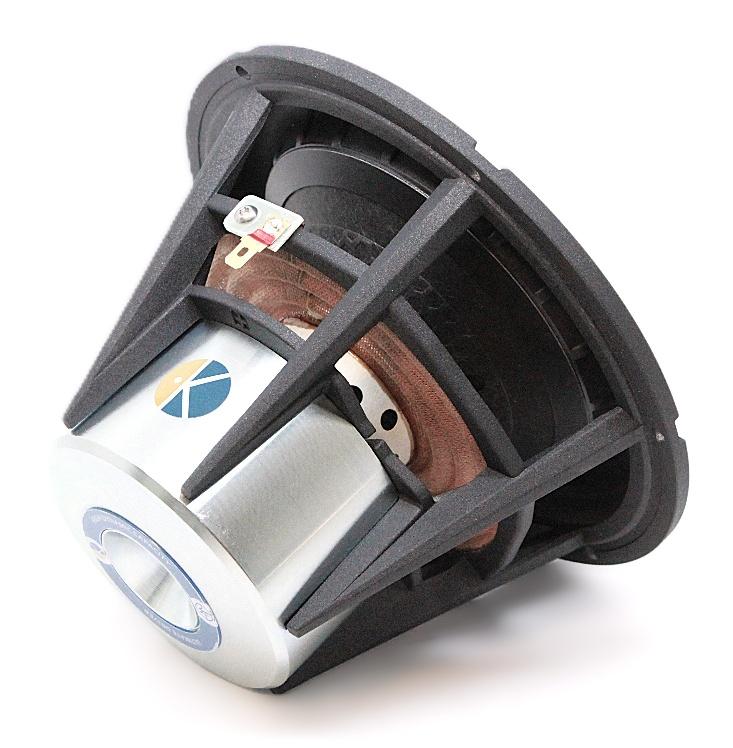

Kartesian Wom155_vKi-S
C
S
Woofer
| Nominal diameter | 6″ / 155 mm |
| Resonance | 34 Hz |
| Q factor | 0.40 |
| Sensitivity | 85.1 dB |
| Linear excursion | ± 12 mm |
| Program power | 150 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.1dB

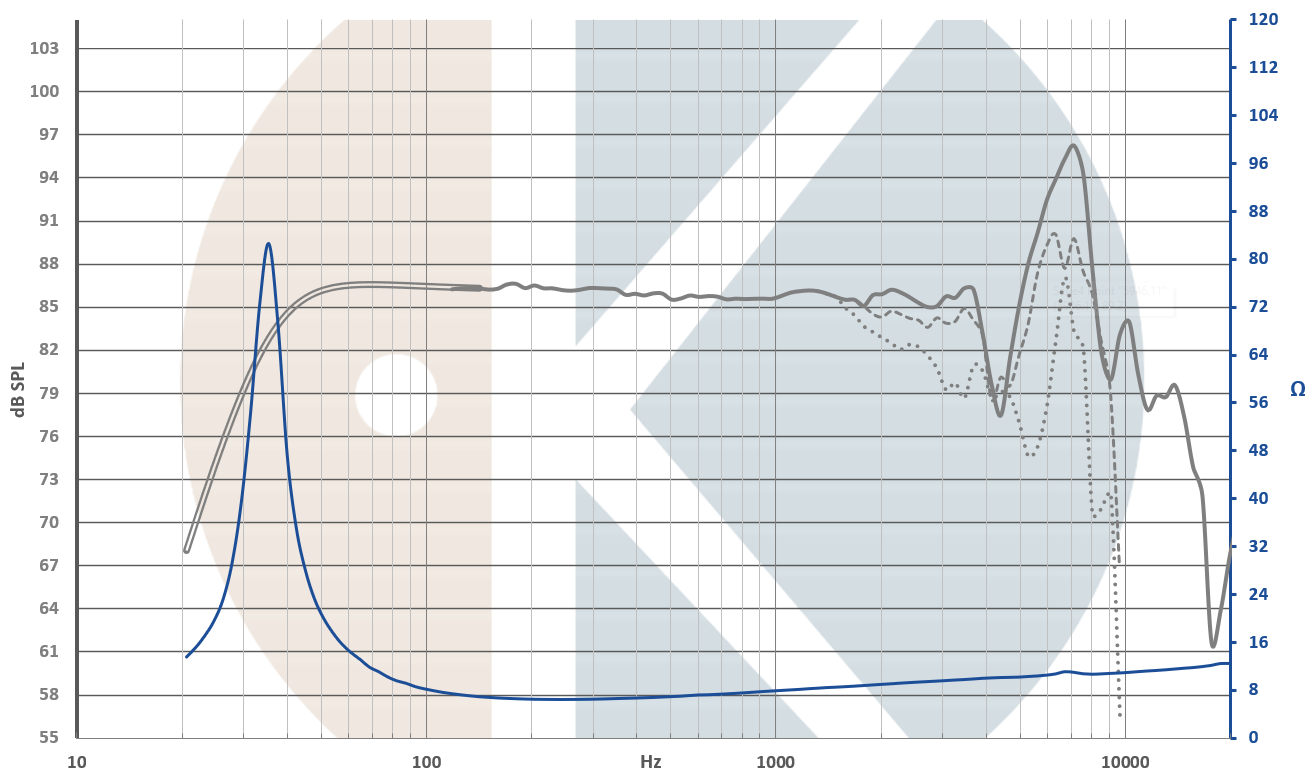

- Frequency response 35 - 3000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 34Hz
- Mechanical quality factor QMS 6.10
- Electrical quality factor QES 0.43
- Total quality factor QTS 0.40
Large signal parameters
- Maximum linear excursion (one way) xmax 12mm
- Air volume displaced at xmax VD 136cm³
- Power handling P 75W
- Program power Pmax 150W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.8Ω

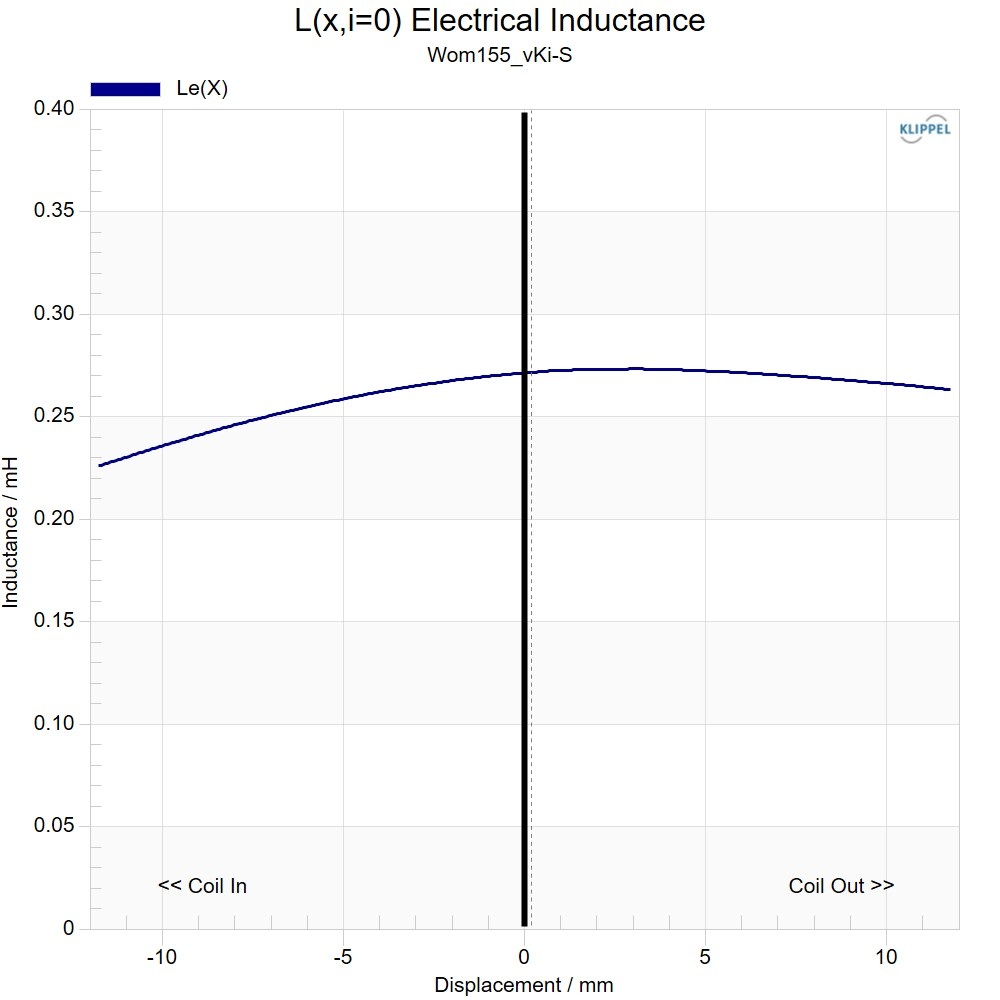

- Inductance (1kHz) LE 0.12mH
- VC Diameter 45mm
- Winding material Copper wire
- Former material Vented Titanium / GF
Magnet

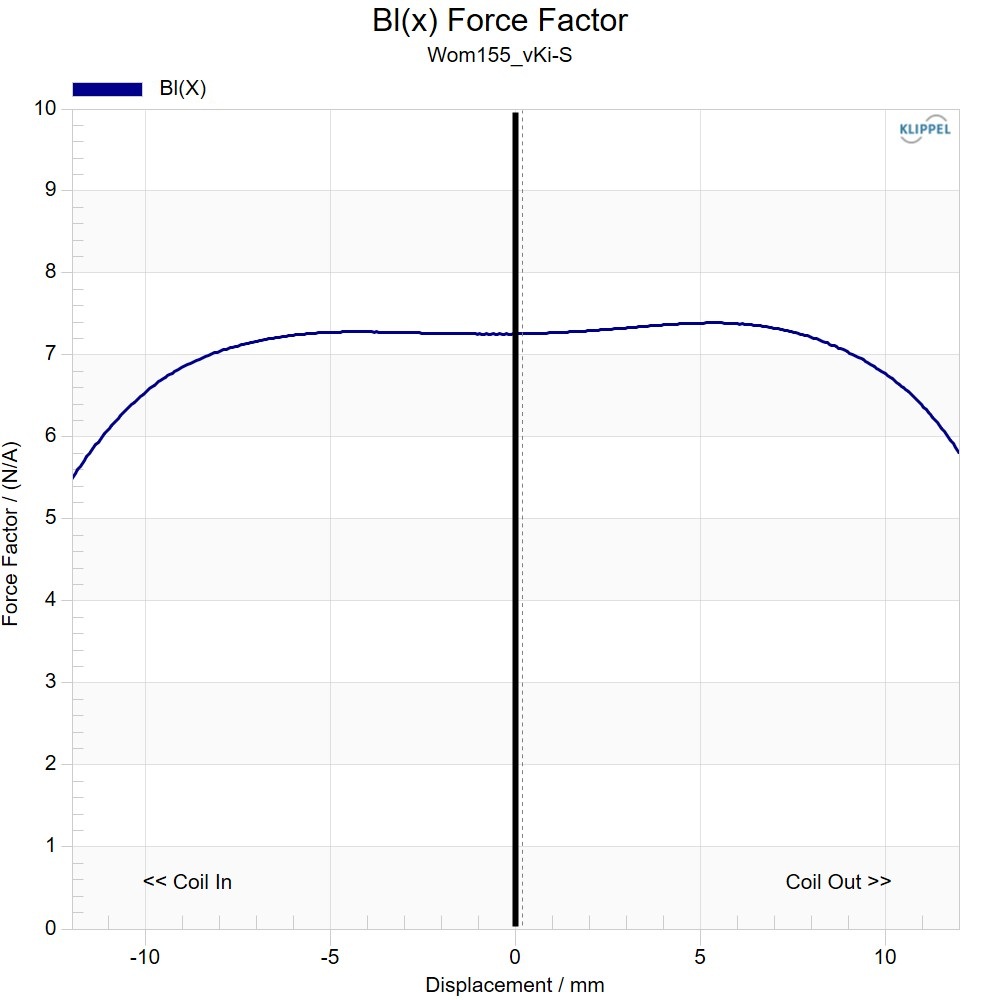

- Force factor Bl 7.2N/A
- Motor constant Bl/√RE 2.99N/√W
- Diameter 76mm
- Height 47mm
- Material NdFeB (grade N40H)
Diaphragm
- Effective diameter 120mm
- Effective area SD 113cm²
- Moving mass (including air load) MMS 17.8g
- Moving mass MMD 16.9g
- Material Paper with hexaKone structure
Suspensions

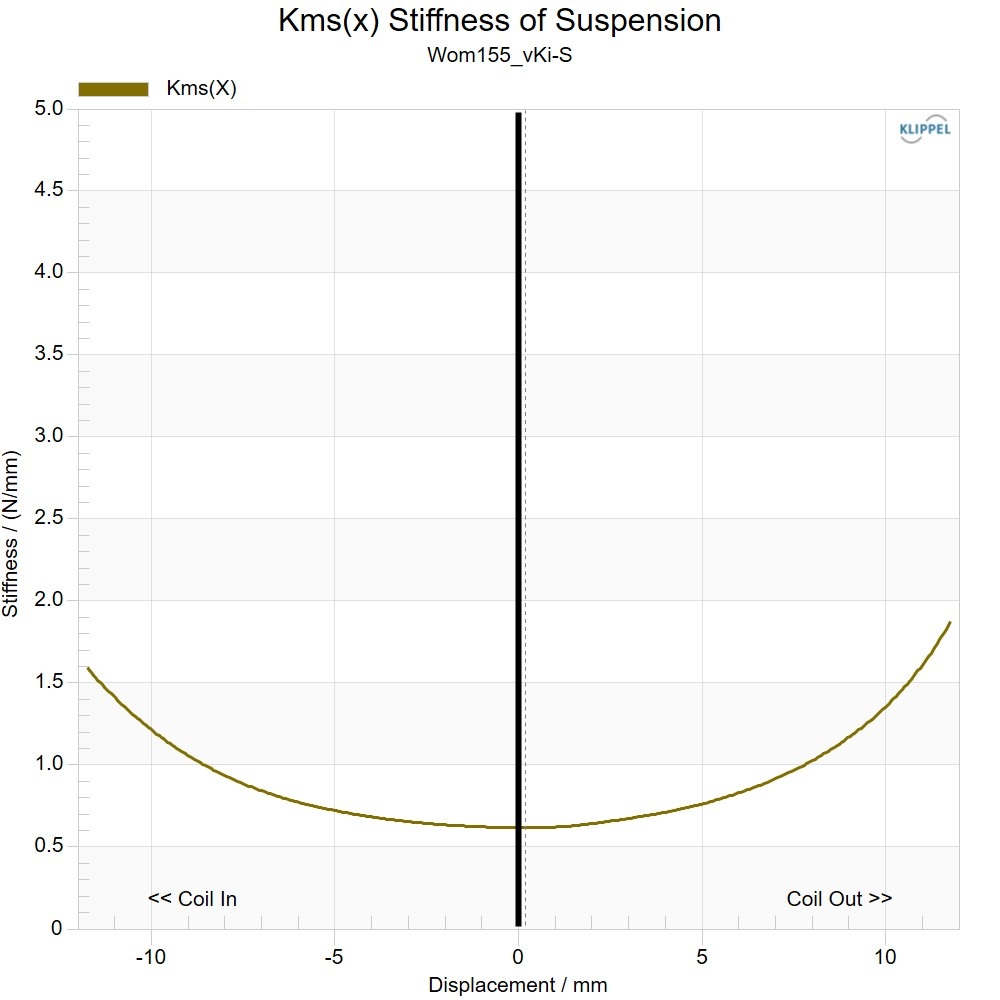

- Stiffness KMS 0.812N/mm
- Compliance CMS 1232µm/N
- Equivalent volume to the compliance VAS 22.3L
- Mechanical resistance RMS 0.62N·s/m
- Surround material Low lost SBR
- Spider material pumaX

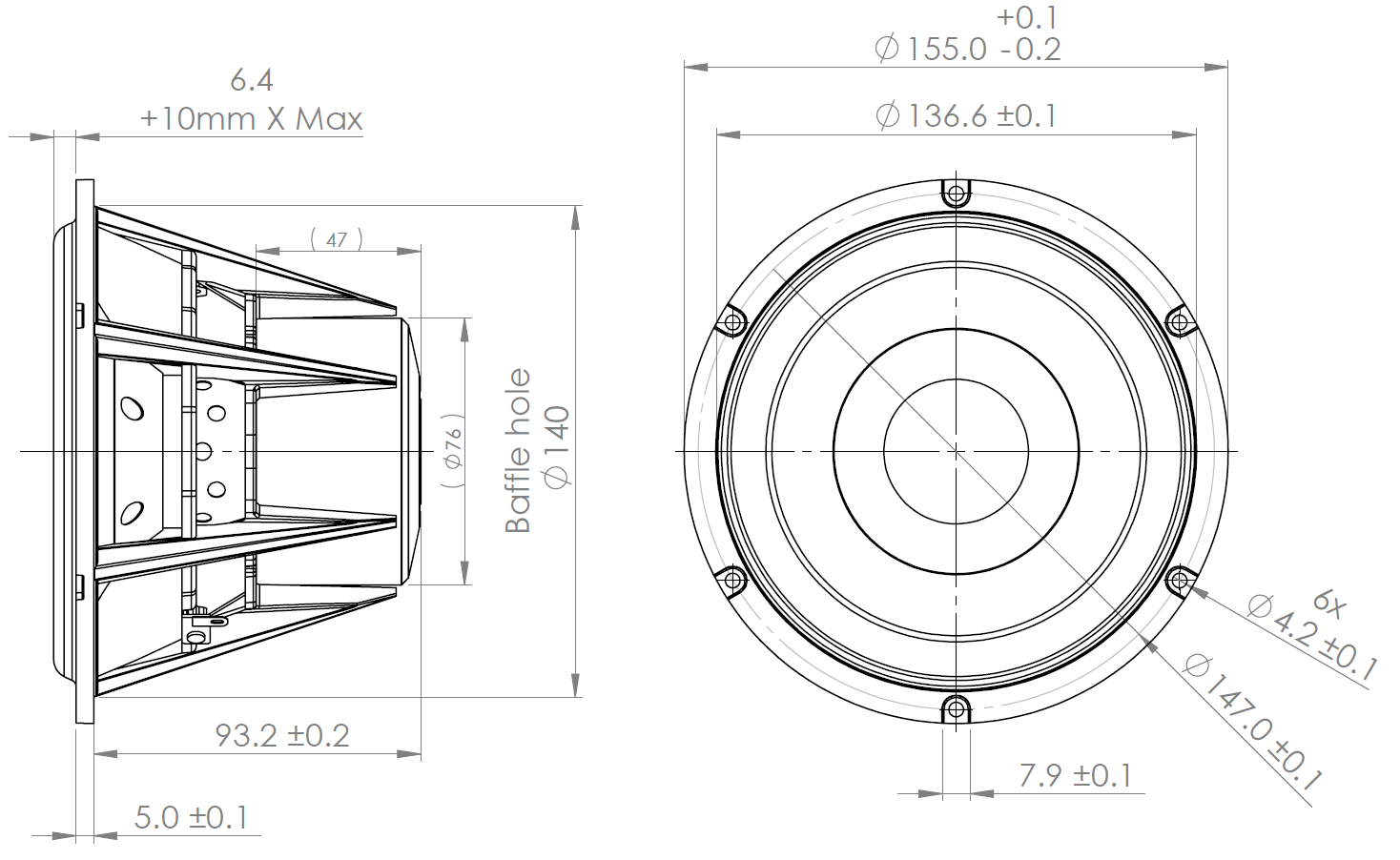

Dimensions
- Nominal diameter 6″
- 155mm
- Overall diameter 155mm
- Baffle cutout diameter 140mm
- Overall depth 98mm
- Flange thickness 5mm
- Mounting depth 93mm
- Volume occupied by the driver (estimated) 0.54L
- Net weight 1.5kg
- Frame material Injected aluminium (ACD12)
.png)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.png)
