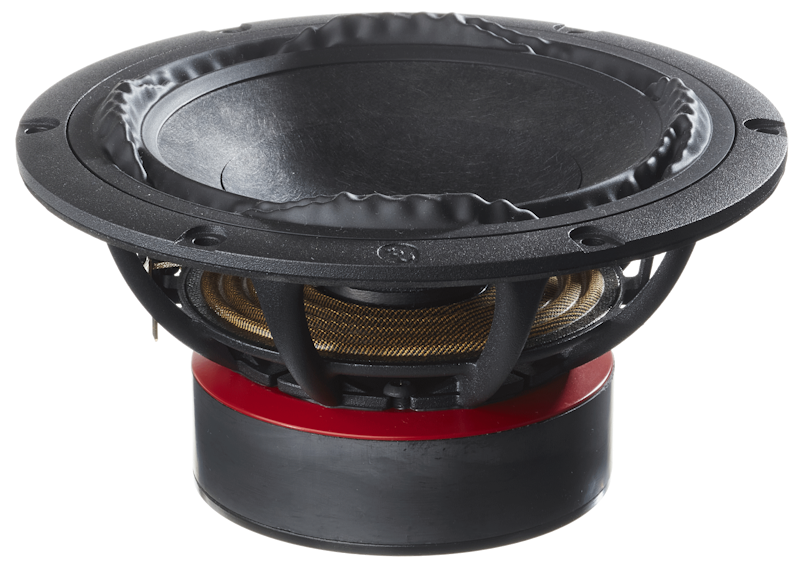

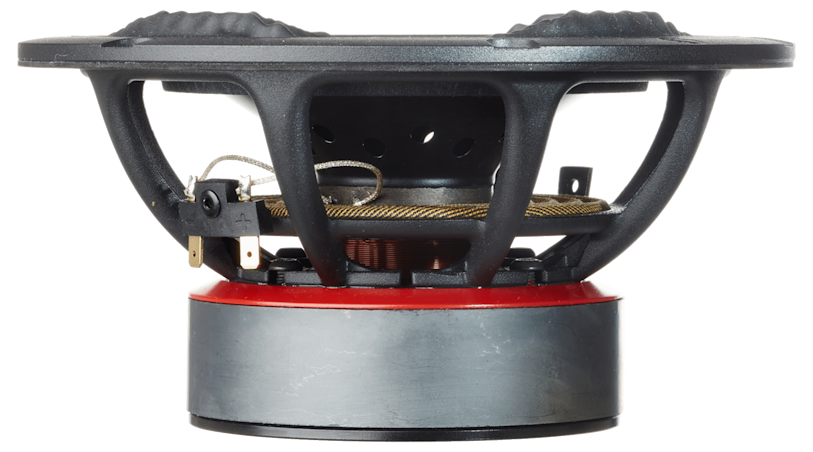

PURIFI PTT6.5X08-NFA-06
8Ω
Subwoofer
| Nominal diameter | 6.5″ / 176 mm |
| Resonance | 31 Hz |
| Q factor | 0.34 |
| Sensitivity | 85.1 dB |
| Linear excursion | ± 9.8 mm |
| Program Power | 250 W |
.webp)
.webp)
.webp)
Specifications

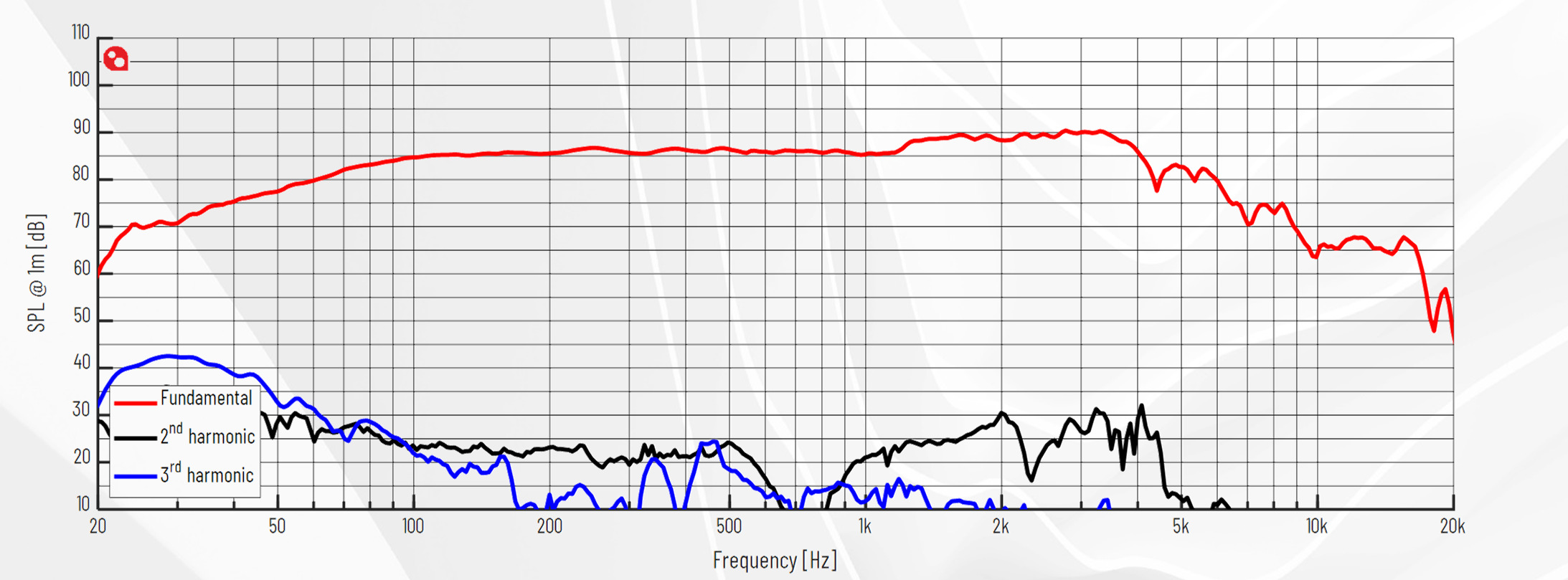

- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.1dB
Thiele & Small parameters
- Resonance frequency (free air) fS 31Hz
- Mechanical quality factor QMS 5.60
- Electrical quality factor QES 0.36
- Total quality factor QTS 0.34
Large signal parameters
- Maximum linear excursion (one way) xmax 9.8mm
- Maximum excursion before damage xlim 14.5mm
- Air volume displaced at xmax VD 130cm³
- Power handling P 80W
- Program power Pmax 250W
Voice Coil

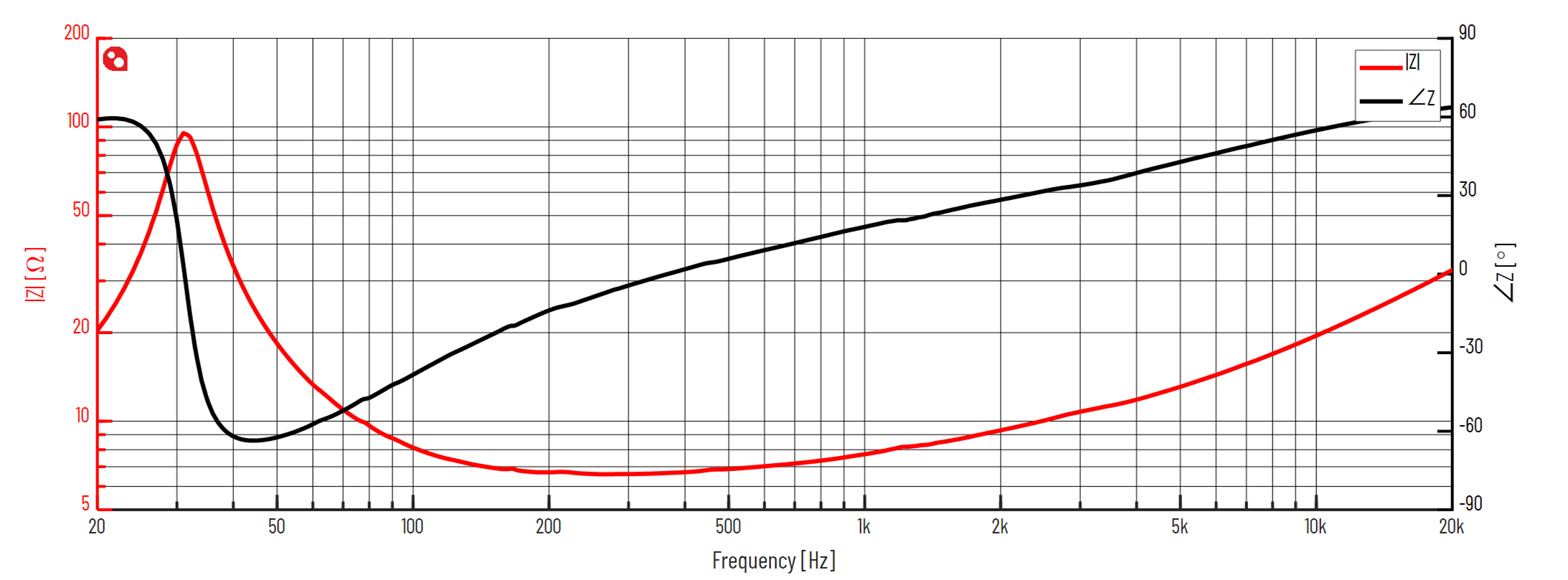

- Nominal impedance Z 8Ω
- DC resistance RE 5.9Ω
- Inductance (1kHz) LE 0.52mH
- VC Diameter 39mm
- Winding height HVC 23.6mm
- Winding material Copper Clad Aluminum
Magnet

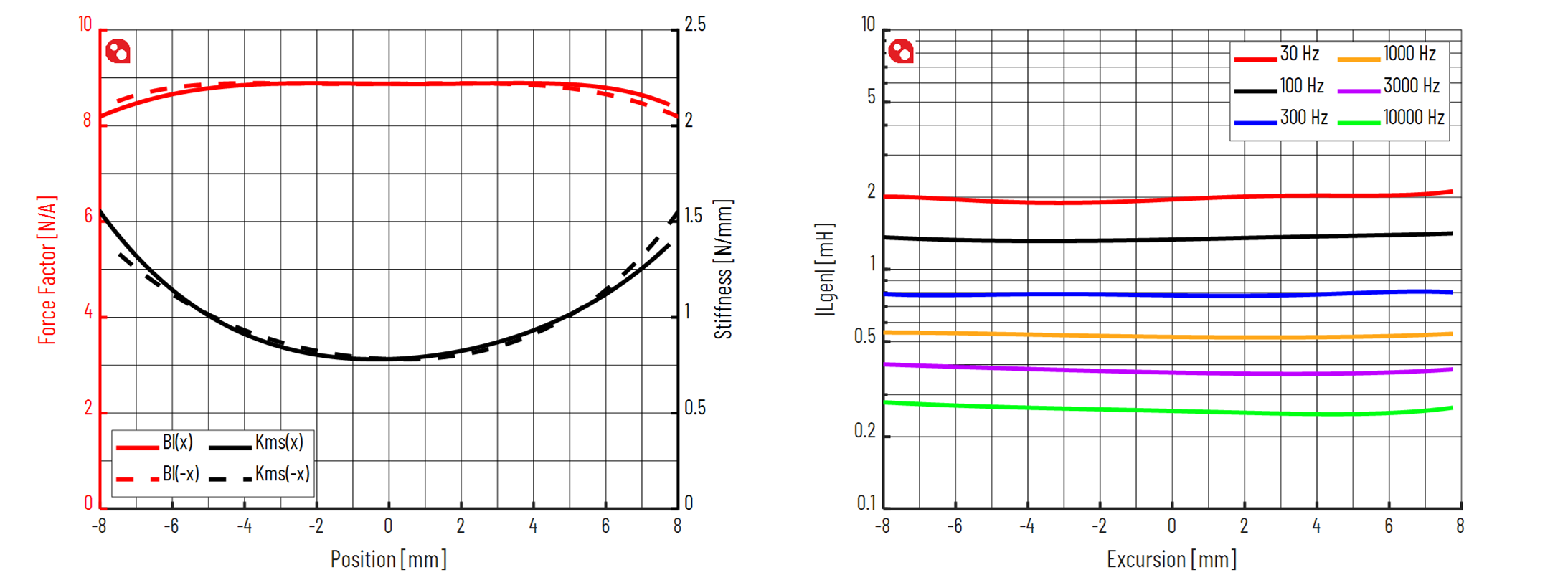

- Force factor Bl 8.9N/A
- Motor constant Bl/√RE 3.66N/√W
- Air gap height HAG 4mm
- Diameter 100mm
Diaphragm
- Effective diameter 130mm
- Effective area SD 133cm²
- Moving mass MMS 24.9g
- Moving mass (without air load) MMD 23.7g
- Material Proprietary Fiber Mix
Suspensions
- Stiffness KMS 0.962N/mm
- Compliance CMS 1040µm/N
- Equivalent volume to the compliance VAS 26L
- Mechanical resistance RMS 0.88N·s/m

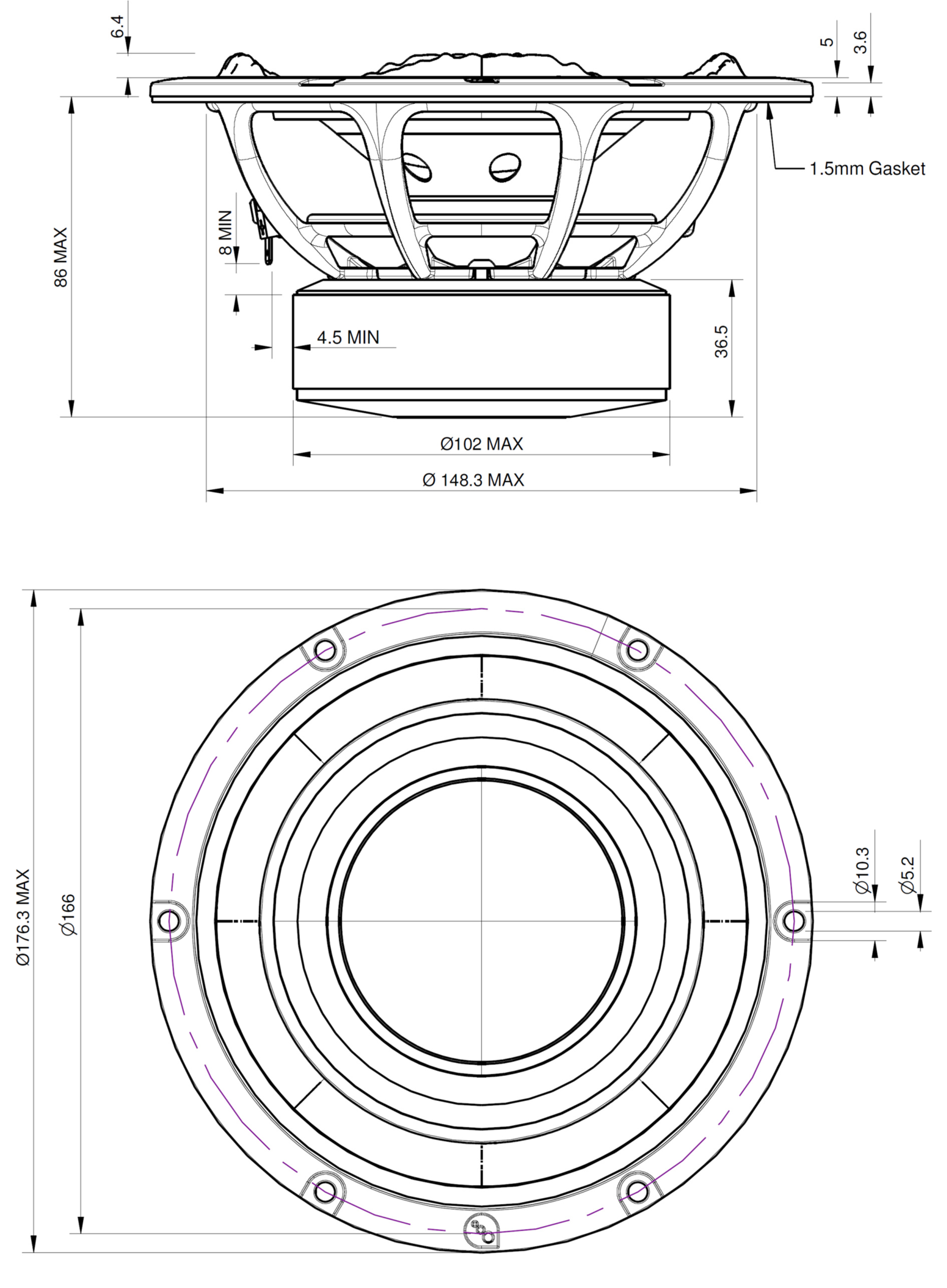

Dimensions
- Nominal diameter 6.5″
- 176mm
- Overall diameter 176mm
- Baffle cutout diameter 148mm
- Overall depth 89mm
- Flange thickness 4mm
- Mounting depth 85mm
- Volume occupied by the driver 0.31L
- Net weight 1.75kg
.png)
.png)
.png)
.png)
