.webp.webp)
PURIFI PTT8.0X08-NAB-018 Ω | |
|---|---|
| 8″ Subwoofer | |
| fS | 24 Hz |
| SD | 235 cm² |
| QTS | 0.35 |
| xmax | 9.3 mm |
| SPL1W | 86 dB |
| Bl/√RE | 4.37 |
30 results
Brand
Type
Available on
•
Nominal diameter
″
•
SensitivitySPL1W
dB
Thiele & Small parameters
•
Resonance frequencyfS
Hz
•
Mechanical quality factorQMS
•
Electrical quality factorQES
•
Total quality factorQTS
Large signal parameters
•
Maximum linear excursionxmax
mm
•
Air volume displaced at xmaxVD
cm³
•
Program powerPmax
W
Voice Coil & Magnet
•
Nominal impedanceZ
Ω
•
DC resistanceRE
Ω
•
Force factorBl
N/A
•
Motor constantBl/√RE
N/√W
•
InductanceLE
mH
•
VC Diameter
mm
Diaphragm
•
Effective diameter
mm
•
Effective areaSD
cm²
•
Moving massMMS
g
Suspensions
•
StiffnessKMS
N/mm
•
ComplianceCMS
µm/N
•
Equivalent volume to CMSVAS
L
•
Mechanical resistanceRMS
N·s/m
Dimensions
•
Overall size
mm
•
Baffle cutout diameter
mm
•
Overall depth
mm
•
Mounting depth
mm
•
Volume occupied
L
•
Net weight
kg
.webp.webp)
PURIFI PTT8.0X04-NAB-014 Ω | |
|---|---|
| 8″ Subwoofer | |
| fS | 26 Hz |
| SD | 235 cm² |
| QTS | 0.36 |
| xmax | 9.3 mm |
| SPL1W | 86.6 dB |
| Bl/√RE | 4.28 |
| Pmax | 350 W |
.webp.webp)
PURIFI PTT6.5X08-NFA-068 Ω | |
|---|---|
| 6.5″ Subwoofer | |
| fS | 31 Hz |
| SD | 133 cm² |
| QTS | 0.34 |
| xmax | 9.8 mm |
| SPL1W | 85.1 dB |
| Bl/√RE | 3.66 |
| Pmax | 250 W |
.webp.webp)
PURIFI PTT6.5X08-NAA-088 Ω | |
|---|---|
| 6.5″ Subwoofer | |
| fS | 34 Hz |
| SD | 133 cm² |
| QTS | 0.40 |
| xmax | 9.8 mm |
| SPL1W | 84.5 dB |
| Bl/√RE | 3.71 |
| Pmax | 250 W |
.webp.webp)
PURIFI PTT6.5X04-NFA-014 Ω | |
|---|---|
| 6.5″ Subwoofer | |
| fS | 30 Hz |
| SD | 133 cm² |
| QTS | 0.27 |
| xmax | 9.8 mm |
| SPL1W | 85.7 dB |
| Bl/√RE | 4.21 |
| Pmax | 250 W |
.webp.webp)
PURIFI PTT6.5X04-NAA-084 Ω | |
|---|---|
| 6.5″ Subwoofer | |
| fS | 32 Hz |
| SD | 133 cm² |
| QTS | 0.35 |
| xmax | 9.8 mm |
| SPL1W | 84.5 dB |
| Bl/√RE | 4.06 |
| Pmax | 250 W |
.webp.webp)

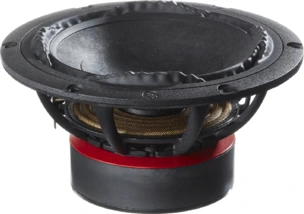

PURIFI PTT6.5W08-NFA-018 Ω | |
|---|---|
| 6.5″ Woofer | |
| fS | 39 Hz |
| SD | 133 cm² |
| QTS | 0.33 |
| xmax | 5.9 mm |
| SPL1W | 87.2 dB |
| Bl/√RE | 3.65 |
| Pmax | 250 W |
.webp.webp)
PURIFI PTT6.5W08-NAA-088 Ω | |
|---|---|
| 6.5″ Woofer | |
| fS | 35 Hz |
| SD | 133 cm² |
| QTS | 0.35 |
| xmax | 5.9 mm |
| SPL1W | 85.9 dB |
| Bl/√RE | 3.6 |
| Pmax | 250 W |
.webp.webp)
PURIFI PTT6.5W04-NFA-014 Ω | |
|---|---|
| 6.5″ Woofer | |
| fS | 33 Hz |
| SD | 133 cm² |
| QTS | 0.26 |
| xmax | 5.9 mm |
| SPL1W | 87.3 dB |
| Bl/√RE | 4 |
| Pmax | 250 W |
.webp.webp)
PURIFI PTT6.5W04-NAA-084 Ω | |
|---|---|
| 6.5″ Woofer | |
| fS | 33 Hz |
| SD | 133 cm² |
| QTS | 0.30 |
| xmax | 5.9 mm |
| SPL1W | 86.1 dB |
| Bl/√RE | 4.06 |
| Pmax | 250 W |
.webp.webp)
PURIFI PTT6.5M08-NFA-018 Ω | |
|---|---|
| 6.5″ Mid-range | |
| fS | 52 Hz |
| SD | 133 cm² |
| QTS | 0.34 |
| xmax | 2.9 mm |
| SPL1W | 88.6 dB |
| Bl/√RE | 3.94 |
| Pmax | 200 W |
.webp.webp)

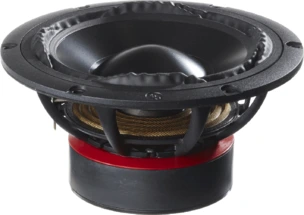

PURIFI PTT6.5M08-NAA-088 Ω | |
|---|---|
| 6.5″ Mid-range | |
| fS | 38 Hz |
| SD | 133 cm² |
| QTS | 0.31 |
| xmax | 2.9 mm |
| SPL1W | 87.1 dB |
| Bl/√RE | 3.86 |
| Pmax | 200 W |
.webp.webp)
PURIFI PTT6.5M04-NFA-014 Ω | |
|---|---|
| 6.5″ Mid-range | |
| fS | 55 Hz |
| SD | 133 cm² |
| QTS | 0.33 |
| xmax | 2.9 mm |
| SPL1W | 89 dB |
| Bl/√RE | 4.1 |
| Pmax | 250 W |
.webp.webp)
PURIFI PTT6.5M04-NAA-084 Ω | |
|---|---|
| 6.5″ Mid-range | |
| fS | 36 Hz |
| SD | 133 cm² |
| QTS | 0.27 |
| xmax | 2.9 mm |
| SPL1W | 87.4 dB |
| Bl/√RE | 4.15 |
| Pmax | 200 W |
.webp.webp)

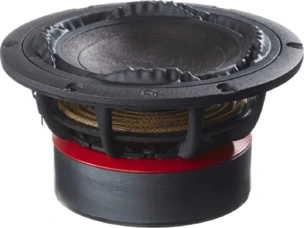

PURIFI PTT5.25X08-NFA-018 Ω | |
|---|---|
| 5.25″ Subwoofer | |
| fS | 32 Hz |
| SD | 84.9 cm² |
| QTS | 0.27 |
| xmax | 9.8 mm |
| SPL1W | 83.5 dB |
| Bl/√RE | 3.71 |
| Pmax | 250 W |
.webp.webp)
PURIFI PTT5.25X08-NAA-058 Ω | |
|---|---|
| 5.25″ Subwoofer | |
| fS | 30 Hz |
| SD | 84.9 cm² |
| QTS | 0.30 |
| xmax | 9.8 mm |
| SPL1W | 82 dB |
| Bl/√RE | 3.75 |
| Pmax | 250 W |
.webp.webp)
PURIFI PTT5.25X04-NFA-014 Ω | |
|---|---|
| 5.25″ Subwoofer | |
| fS | 29 Hz |
| SD | 84.9 cm² |
| QTS | 0.24 |
| xmax | 9.8 mm |
| SPL1W | 83 dB |
| Bl/√RE | 4.16 |
| Pmax | 250 W |
.webp.webp)
PURIFI PTT5.25X04-NAA-054 Ω | |
|---|---|
| 5.25″ Subwoofer | |
| fS | 29 Hz |
| SD | 84.9 cm² |
| QTS | 0.27 |
| xmax | 9.8 mm |
| SPL1W | 82.1 dB |
| Bl/√RE | 4.16 |
| Pmax | 250 W |
.webp.webp)
PURIFI PTT5.25M08-NAA-058 Ω | |
|---|---|
| 5.25″ Mid-range | |
| fS | 41 Hz |
| SD | 84.9 cm² |
| QTS | 0.29 |
| xmax | 2.9 mm |
| SPL1W | 85 dB |
| Bl/√RE | 3.78 |
| Pmax | 200 W |
.webp.webp)

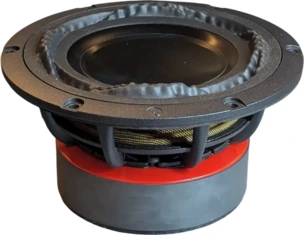

PURIFI PTT5.25M04-NAA-054 Ω | |
|---|---|
| 5.25″ Mid-range | |
| fS | 39 Hz |
| SD | 84.9 cm² |
| QTS | 0.24 |
| xmax | 2.9 mm |
| SPL1W | 85.4 dB |
| Bl/√RE | 4.1 |
| Pmax | 200 W |
.webp.webp)

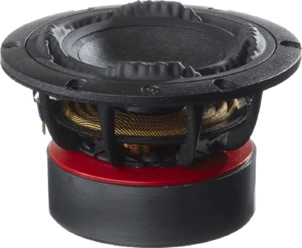

PURIFI PTT4.0X08-NFC-018 Ω | |
|---|---|
| 4″ Subwoofer | |
| fS | 41 Hz |
| SD | 56.7 cm² |
| QTS | 0.37 |
| xmax | 8.8 mm |
| SPL1W | 81.8 dB |
| Bl/√RE | 2.73 |
| Pmax | 200 W |
.webp.webp)

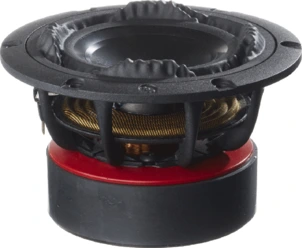

PURIFI PTT4.0X08-NAC-038 Ω | |
|---|---|
| 4″ Subwoofer | |
| fS | 43 Hz |
| SD | 56.7 cm² |
| QTS | 0.39 |
| xmax | 8.8 mm |
| SPL1W | 81.7 dB |
| Bl/√RE | 2.75 |
| Pmax | 200 W |
.webp.webp)
PURIFI PTT4.0X04-NFC-014 Ω | |
|---|---|
| 4″ Subwoofer | |
| fS | 38 Hz |
| SD | 56.7 cm² |
| QTS | 0.30 |
| xmax | 8.8 mm |
| SPL1W | 82 dB |
| Bl/√RE | 3.08 |
| Pmax | 200 W |
.webp.webp)
PURIFI PTT4.0X04-NAC-034 Ω | |
|---|---|
| 4″ Subwoofer | |
| fS | 40 Hz |
| SD | 56.7 cm² |
| QTS | 0.31 |
| xmax | 8.8 mm |
| SPL1W | 82 dB |
| Bl/√RE | 3.13 |
| Pmax | 200 W |
.webp.webp)
PURIFI PTT4.0M08-NFC-018 Ω | |
|---|---|
| 4″ Mid-range | |
| fS | 48 Hz |
| SD | 56.7 cm² |
| QTS | 0.31 |
| xmax | 2.9 mm |
| SPL1W | 84.2 dB |
| Bl/√RE | 2.91 |
.webp.webp)

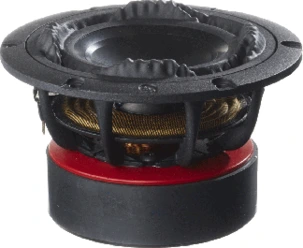

PURIFI PTT4.0M08-NAC-038 Ω | |
|---|---|
| 4″ Mid-range | |
| fS | 50 Hz |
| SD | 56.7 cm² |
| QTS | 0.32 |
| xmax | 2.9 mm |
| SPL1W | 84.1 dB |
| Bl/√RE | 2.96 |
.webp.webp)

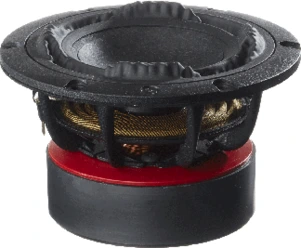

PURIFI PTT4.0M04-NFC-014 Ω | |
|---|---|
| 4″ Mid-range | |
| fS | 46 Hz |
| SD | 56.7 cm² |
| QTS | 0.25 |
| xmax | 2.9 mm |
| SPL1W | 84.7 dB |
| Bl/√RE | 3.25 |
.webp.webp)
PURIFI PTT4.0M04-NAC-034 Ω | |
|---|---|
| 4″ Mid-range | |
| fS | 48 Hz |
| SD | 56.7 cm² |
| QTS | 0.28 |
| xmax | 2.9 mm |
| SPL1W | 84.4 dB |
| Bl/√RE | 3.2 |
.webp.webp)

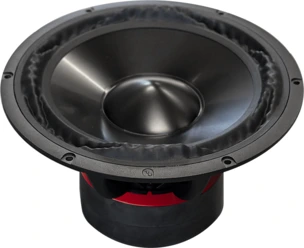

PURIFI PTT10.0X08-NAB-018 Ω | |
|---|---|
| 10″ Subwoofer | |
| fS | 22 Hz |
| SD | 360 cm² |
| QTS | 0.40 |
| xmax | 14.8 mm |
| SPL1W | 84.8 dB |
| Bl/√RE | 6.21 |
.webp.webp)
PURIFI PTT10.0X04-NAB-014 Ω | |
|---|---|
| 10″ Subwoofer | |
| fS | 24 Hz |
| SD | 360 cm² |
| QTS | 0.33 |
| xmax | 14.8 mm |
| SPL1W | 86.8 dB |
| Bl/√RE | 6.48 |
