PURIFI PTT5.25X08-NAA-05
4Ω
8Ω
Subwoofer
| Nominal diameter | 5.25″ / 147 mm |
| Resonance | 30 Hz |
| Q factor | 0.30 |
| Sensitivity | 82 dB |
| Linear excursion | ± 9.8 mm |
| Program Power | 250 W |
.webp)
.webp)
.webp)
Specifications

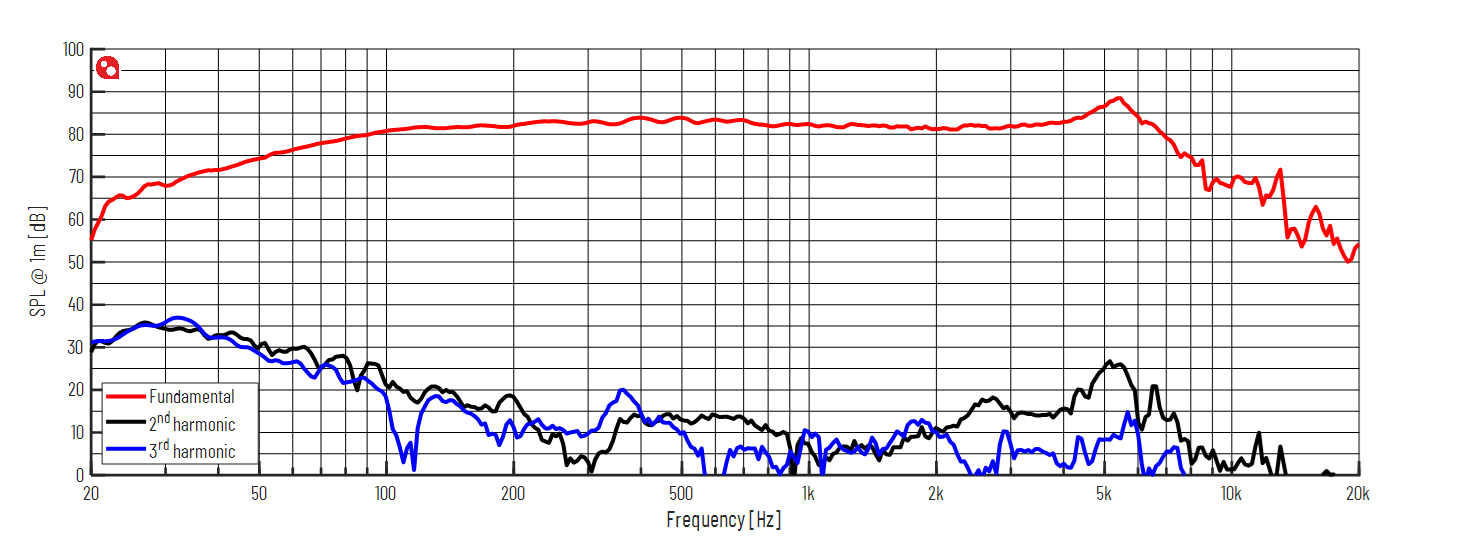

- Sensitivity (1W, 1m, infinite baffle) SPL1W 82dB
Thiele & Small parameters
- Resonance frequency (free air) fS 30Hz
- Mechanical quality factor QMS 5.80
- Electrical quality factor QES 0.32
- Total quality factor QTS 0.30
Large signal parameters
- Maximum linear excursion (one way) xmax 9.8mm
- Maximum excursion before damage xlim 14mm
- Air volume displaced at xmax VD 83cm³
- Power handling P 70W
- Program power Pmax 250W
Voice Coil

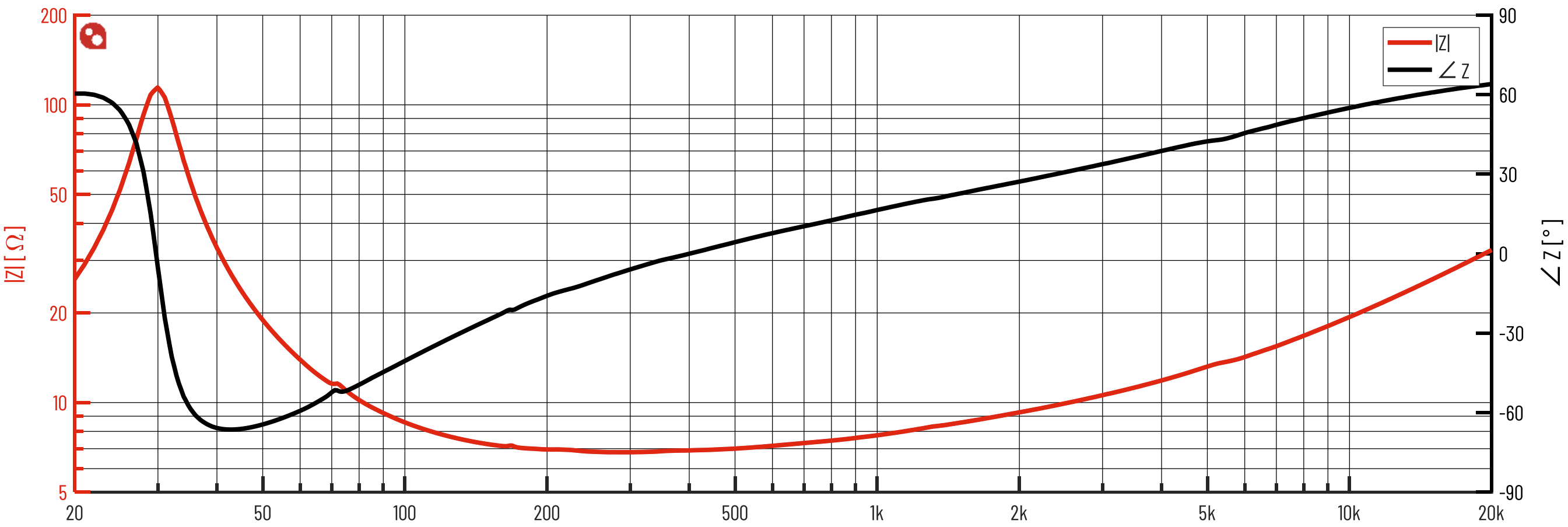

- Nominal impedance Z 8Ω
- DC resistance RE 5.9Ω
- Inductance (1kHz) LE 0.5mH
- VC Diameter 39mm
- Winding height HVC 23.6mm
- Winding material Copper Clad Aluminum
Magnet

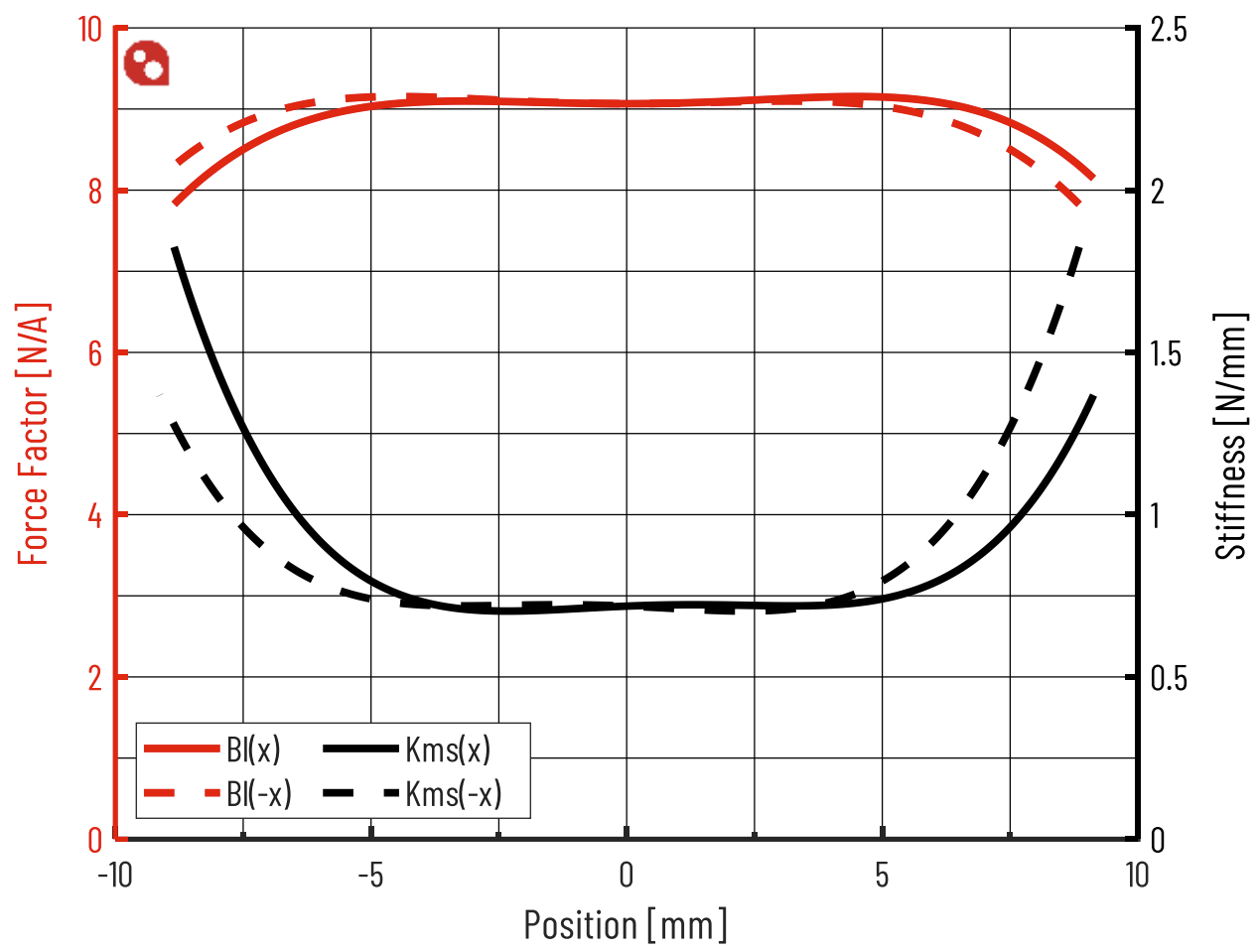

- Force factor Bl 9.1N/A
- Motor constant Bl/√RE 3.75N/√W
- Air gap height HAG 4mm
- Diameter 100mm
Diaphragm
- Effective diameter 104mm
- Effective area SD 84.9cm²
- Moving mass MMS 23.5g
- Moving mass (without air load) MMD 22.9g
- Material Black Anodized Aluminum
Suspensions
- Stiffness KMS 0.82N/mm
- Compliance CMS 1220µm/N
- Equivalent volume to the compliance VAS 12.4L
- Mechanical resistance RMS 0.76N·s/m

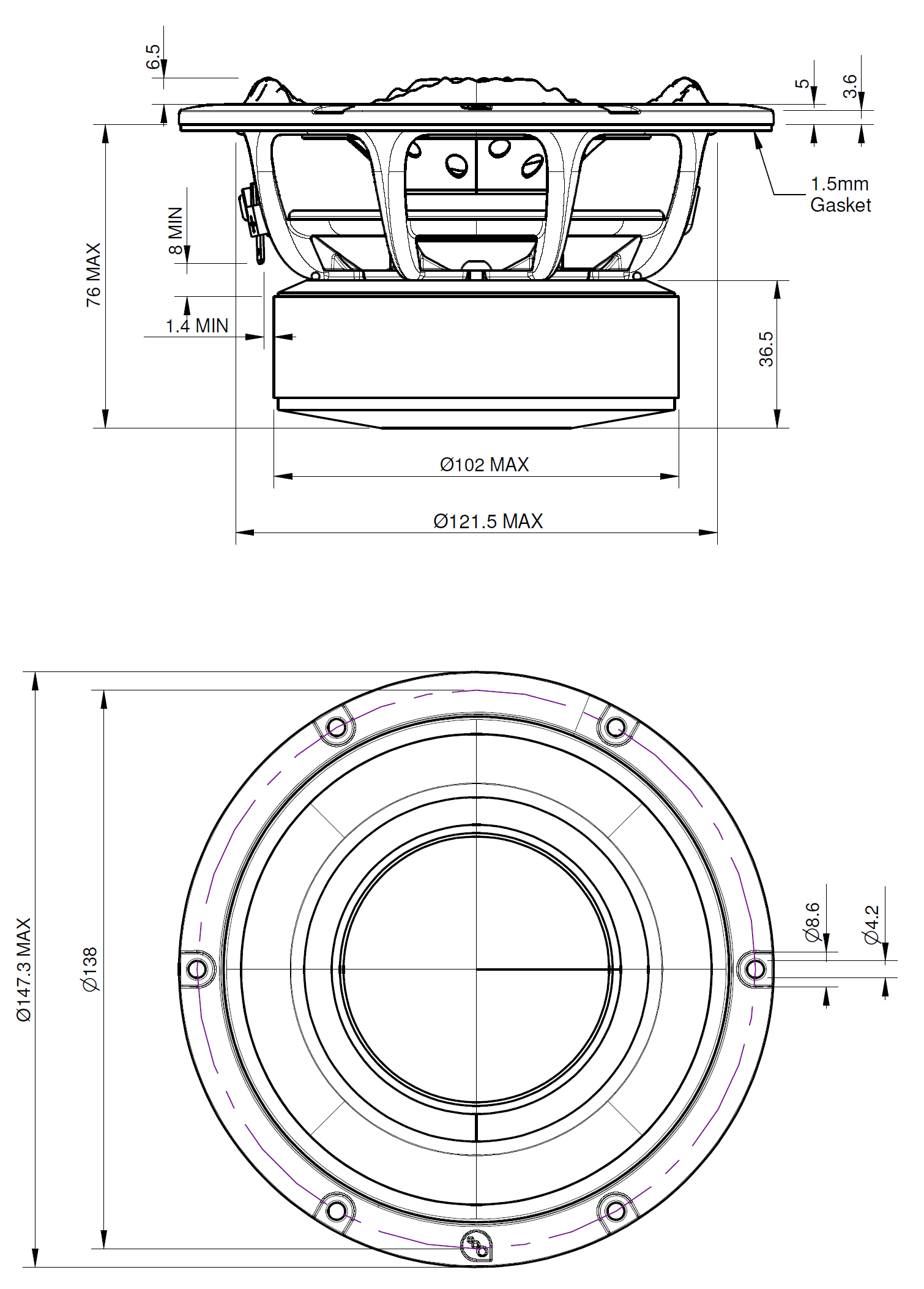

Dimensions
- Nominal diameter 5.25″
- 147mm
- Overall diameter 147mm
- Baffle cutout diameter 121mm
- Overall depth 79mm
- Flange thickness 4mm
- Mounting depth 75mm
- Volume occupied by the driver 0.3L
- Net weight 1.75kg
.png)
.png)
.png)
.png)
