Kartesian Wom265_vKi-6
6Ω
Woofer
| Nominal diameter | 10.5″ / 265 mm |
| Resonance | 30 Hz |
| Q factor | 0.34 |
| Sensitivity | 91.7 dB |
| Linear excursion | ± 10 mm |
| Program Power | 350 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 91.7dB

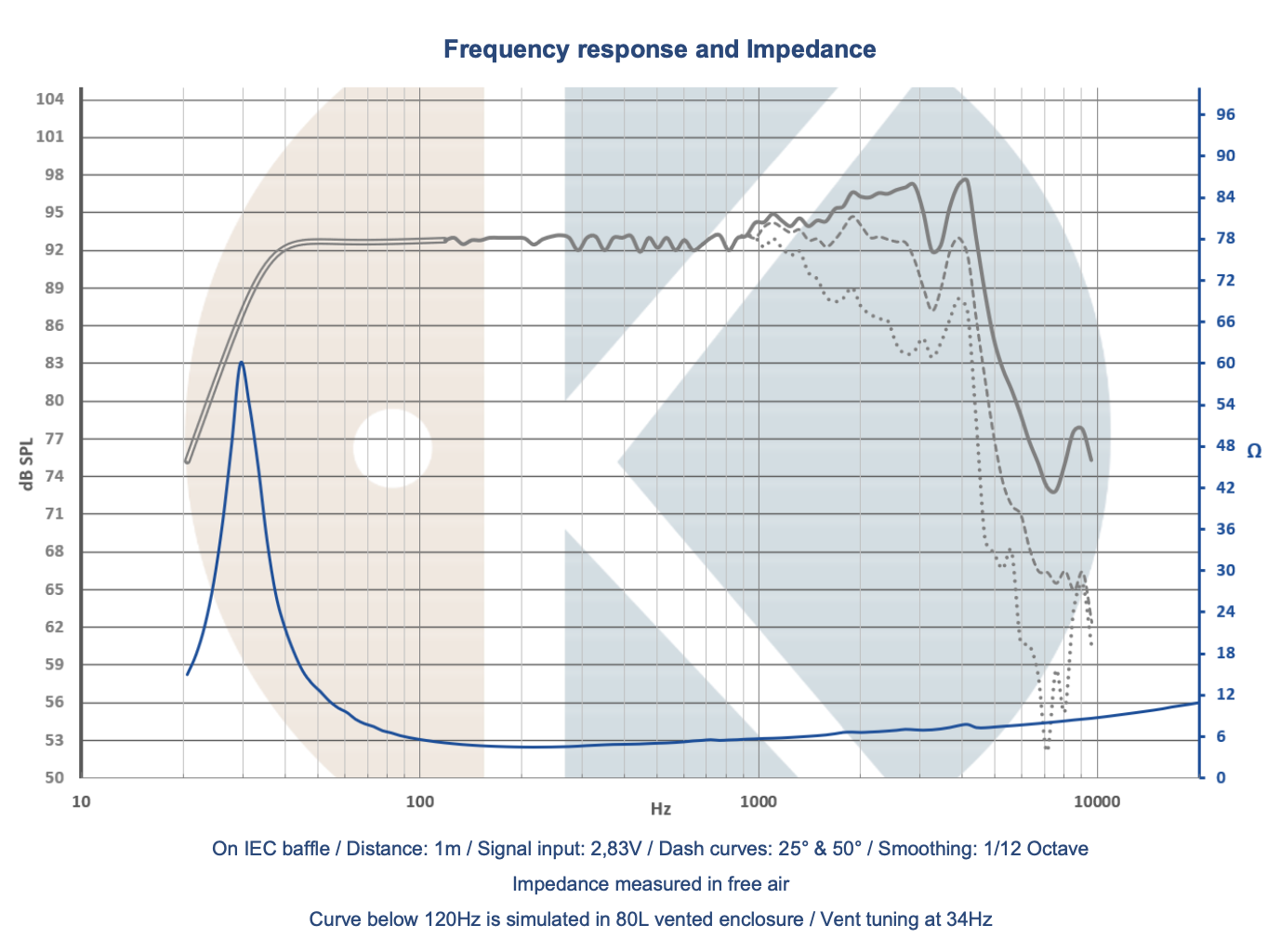

- Frequency response 35 - 1500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 30Hz
- Mechanical quality factor QMS 4.80
- Electrical quality factor QES 0.37
- Total quality factor QTS 0.34
Large signal parameters
- Maximum linear excursion (one way) xmax 10mm
- Air volume displaced at xmax VD 390cm³
- Power handling P 175W
- Program power Pmax 350W
Voice Coil
- Nominal impedance Z 6Ω
- DC resistance RE 4.0Ω

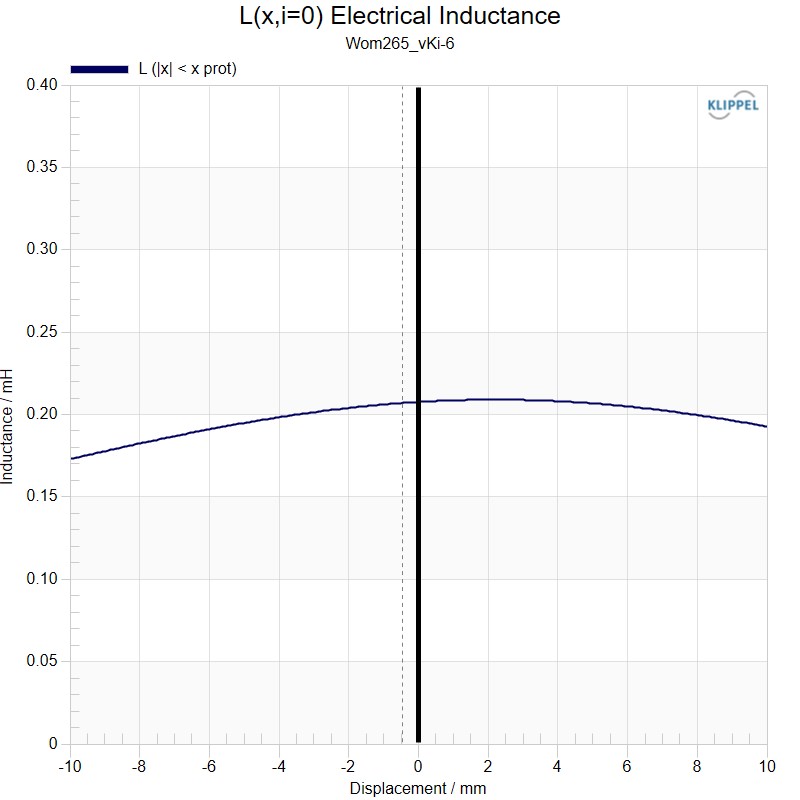

- Inductance (1kHz) LE 0.11mH
- VC Diameter 78.5mm
- Winding material Copper
- Former material Titanium / Glass Fiber
Magnet

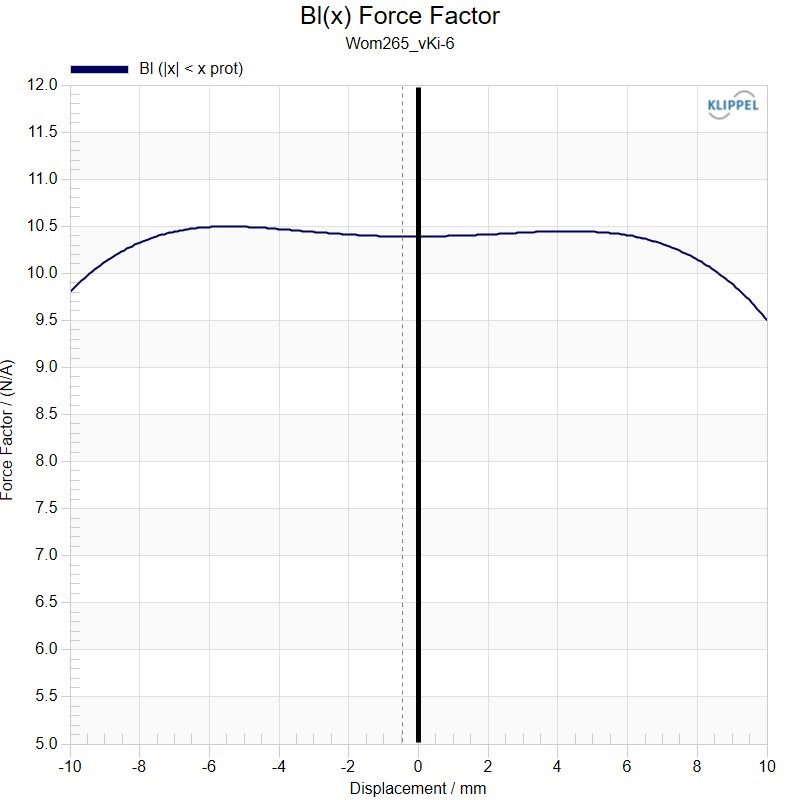

- Force factor Bl 10.4N/A
- Motor constant Bl/√RE 5.2N/√W
- Material NdFeB (grade N40H)
Diaphragm
- Effective diameter 223mm
- Effective area SD 390cm²
- Moving mass MMS 53g
- Moving mass (without air load) MMD 47.5g
- Material hexaKone damped paper
Suspensions

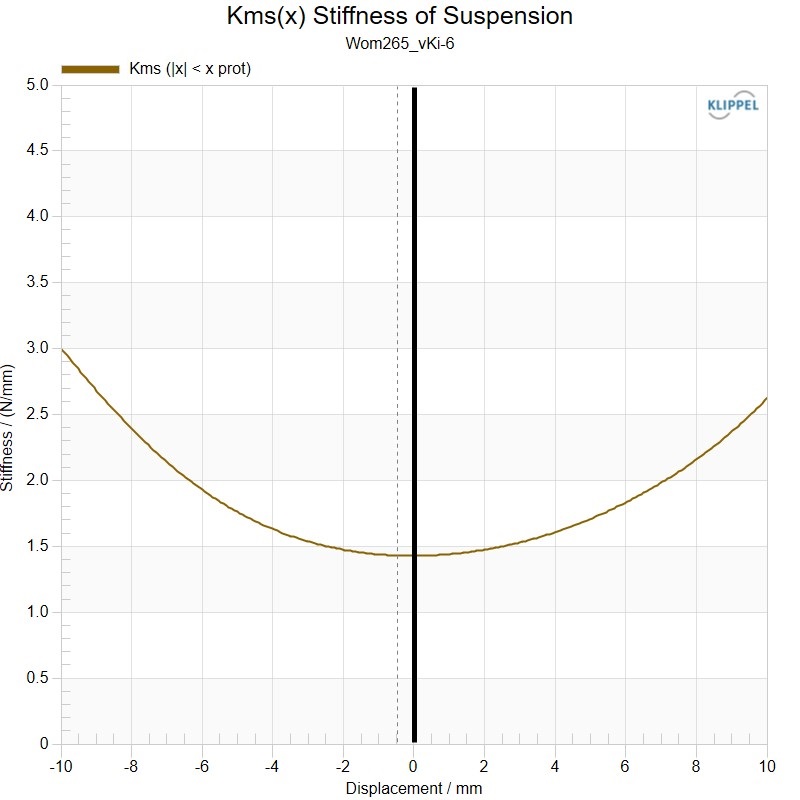

- Stiffness KMS 1.89N/mm
- Compliance CMS 530µm/N
- Equivalent volume to the compliance VAS 115L
- Mechanical resistance RMS 2.08N·s/m
- Surround material Nitrile Butadiene Rubber
- Spider material progressiF

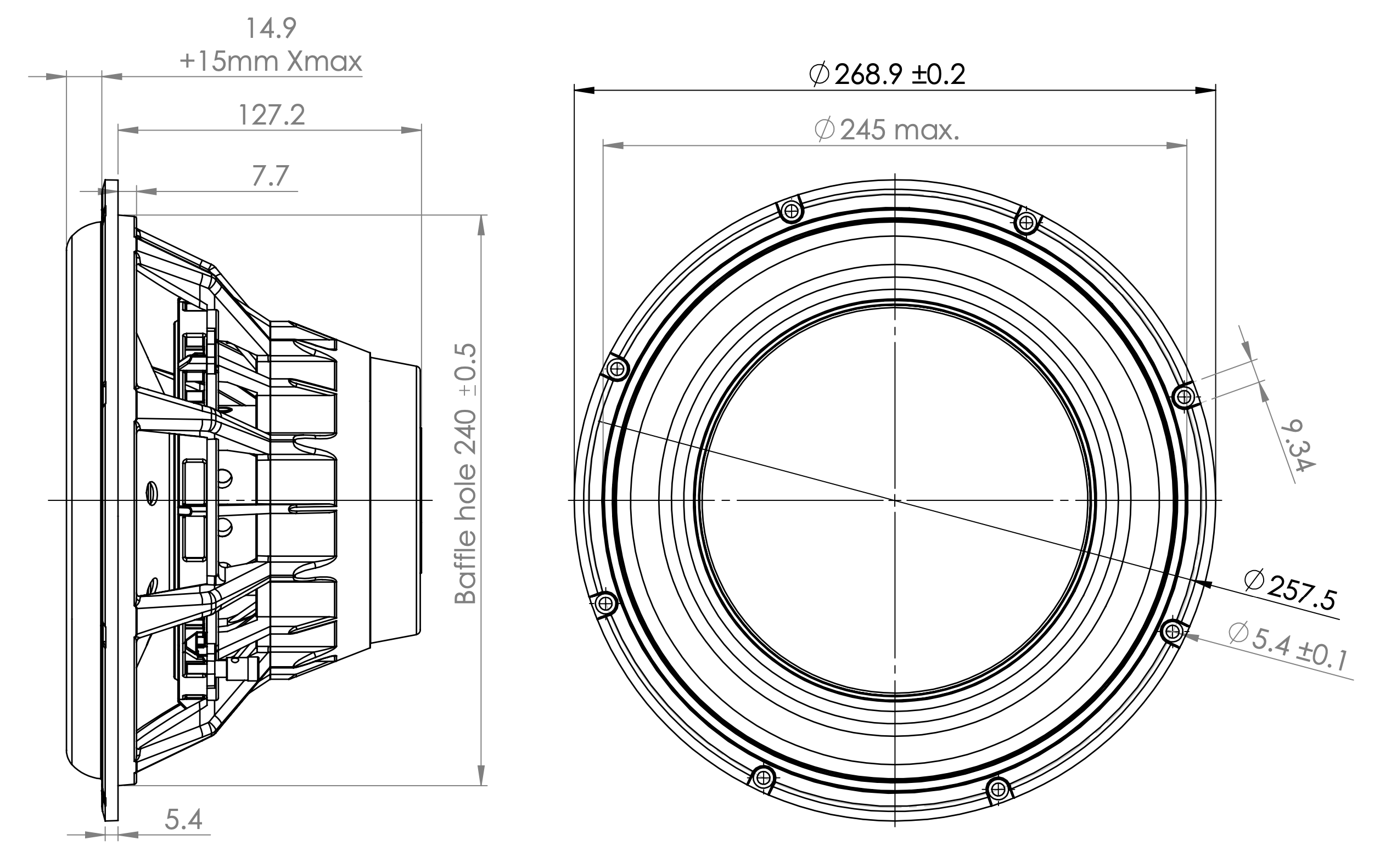

Dimensions
- Nominal diameter 10.5″
- 265mm
- Overall diameter 269mm
- Baffle cutout diameter 240mm
- Overall depth 133mm
- Flange thickness 5mm
- Mounting depth 127mm
- Volume occupied by the driver (estimated) 2L
- Net weight 4.8kg
- Frame material Injected aluminium (ACD12)
.png)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.png)
