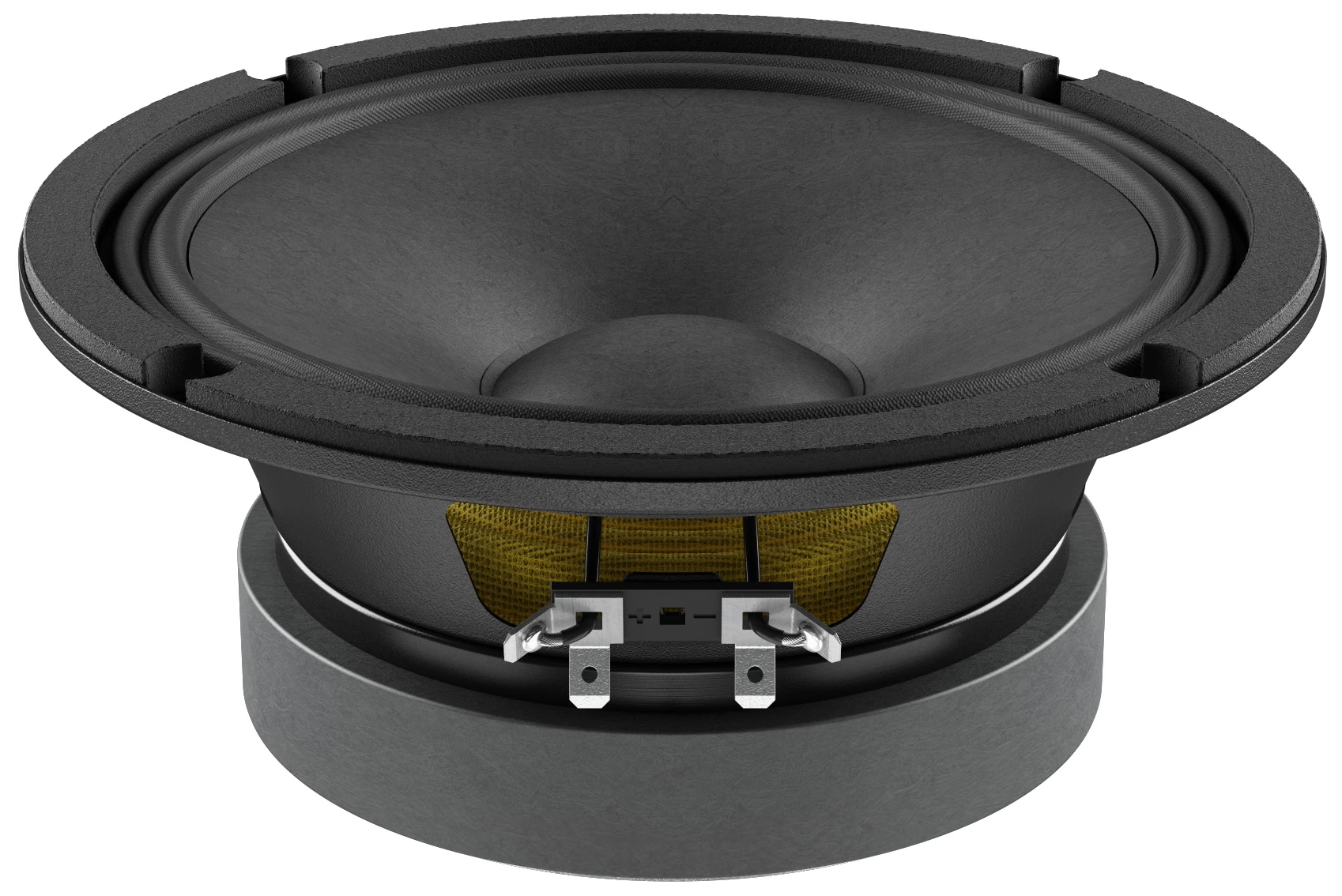

LaVoce WSF061.52-16
8Ω
16Ω
Woofer
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 93 Hz |
| Q factor | 0.42 |
| Sensitivity | 92.4 dB |
| Linear excursion | ± 3.7 mm |
| Program Power | 250 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92.4dB

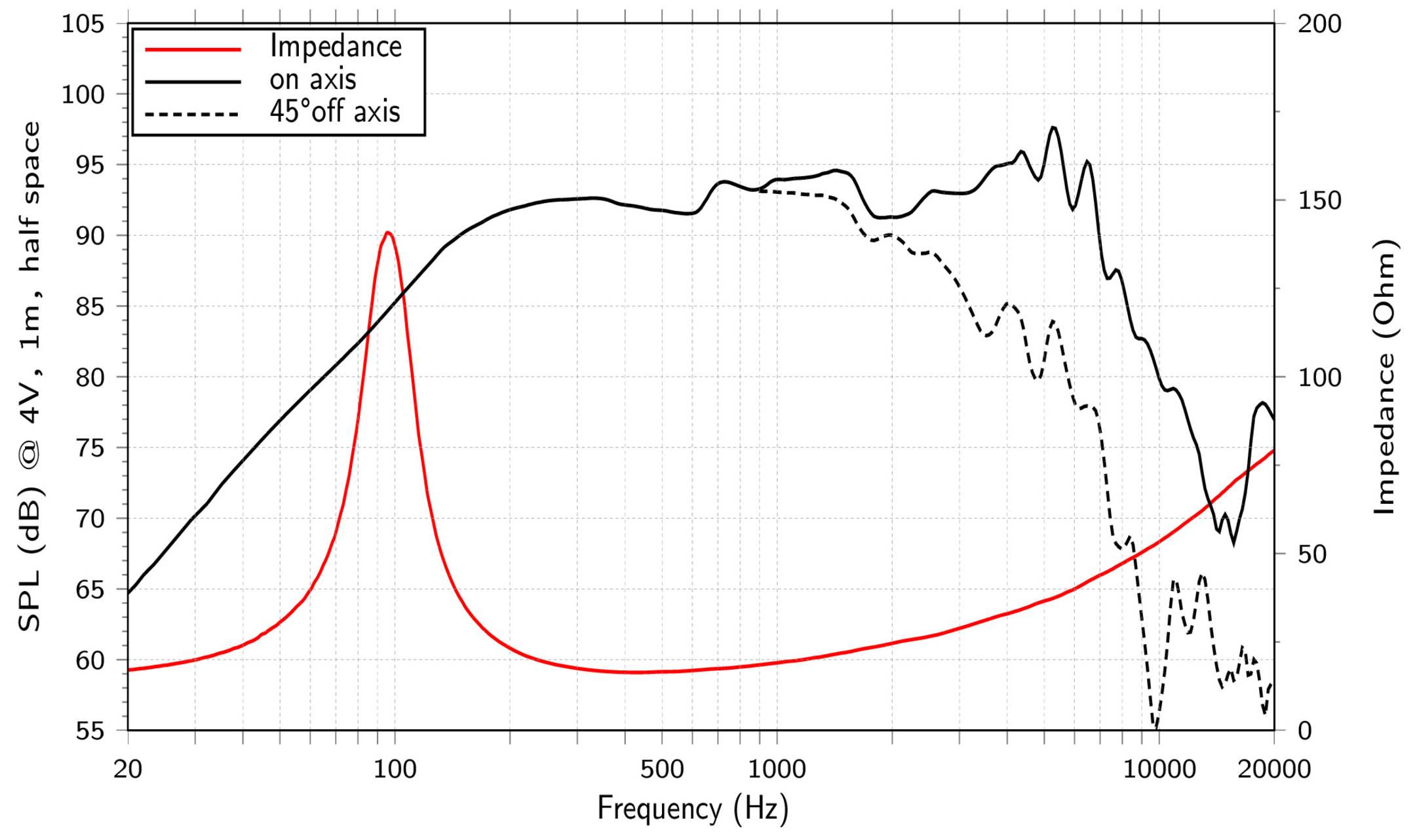

- Frequency response 90 - 5000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 93Hz
- Mechanical quality factor QMS 4.88
- Electrical quality factor QES 0.46
- Total quality factor QTS 0.42
Large signal parameters
- Maximum linear excursion (one way) xmax 3.7mm
- Maximum excursion before damage xlim 6.2mm
- Air volume displaced at xmax VD 53cm³
- Power handling P 125W
- Program power Pmax 250W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 14.5Ω
- Inductance (1kHz) LE 0.86mH
- VC Diameter 38mm
- Winding height HVC 10.4mm
- Winding material Copper
- Former material Polyimide
Magnet
- Force factor Bl 15N/A
- Motor constant Bl/√RE 3.94N/√W
- Air gap height HAG 6mm
- Diameter 115mm
- Height 20mm
- Material Ferrite
Diaphragm
- Effective diameter 135mm
- Effective area SD 143cm²
- Moving mass MMS 12.2g
- Moving mass (without air load) MMD 11g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 4.18N/mm
- Compliance CMS 239µm/N
- Equivalent volume to the compliance VAS 6.92L
- Mechanical resistance RMS 1.46N·s/m
- Surround material Polycotton
Dimensions
- Nominal diameter 6.5″
- 165mm
- Volume occupied by the driver 0.5L
- Net weight 2.0kg
- Frame material Steel
