LaVoce WSN061.52-16

4Ω8Ω
16Ω

Woofer

Nominal diameter6.5″ / 165 mm
Resonance108 Hz
Q factor0.53
Sensitivity91.3 dB
Linear excursion± 3.7 mm
Program Power250 W

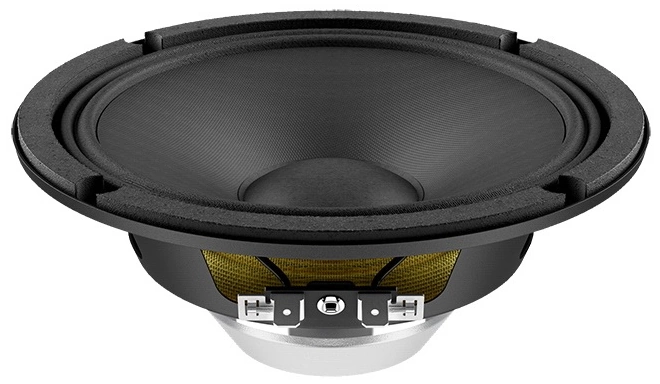

LaVoce WSN061.52-16 Woofer
Impedance
Excursion
Velocity
SPL
Phase
Group delay
Step response
Tone Burst
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply

Specifications

  • Sensitivity (1W, 1m, infinite baffle) SPL1W 91.3dB
  • Frequency response 90 - 6000Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 108Hz
  • Mechanical quality factor QMS 3.94
  • Electrical quality factor QES 0.61
  • Total quality factor QTS 0.53

Large signal parameters

  • Maximum linear excursion (one way) xmax 3.7mm
  • Maximum excursion before damage xlim 6.2mm
  • Air volume displaced at xmax VD 49cm³
  • Power handling P 125W
  • Program power Pmax 250W

Voice Coil

  • Nominal impedance Z 16Ω
  • DC resistance RE 11.8Ω
  • Inductance (1kHz) LE 0.66mH
  • VC Diameter 38mm
  • Winding height HVC 10.3mm
  • Winding material Copper
  • Former material Polyimide

Magnet

  • Force factor Bl 12.6N/A
  • Motor constant Bl/√RE 3.66N/√W
  • Air gap height HAG 6mm
  • Diameter 75mm
  • Height 4mm
  • Material Neodymium

Diaphragm

  • Effective diameter 130mm
  • Effective area SD 132cm²
  • Moving mass MMS 12g
  • Moving mass (without air load) MMD 10.9g
  • Material Water resistant treated paper

Suspensions

  • Stiffness KMS 5.53N/mm
  • Compliance CMS 181µm/N
  • Equivalent volume to the compliance VAS 4.46L
  • Mechanical resistance RMS 2.07N·s/m
  • Surround material Polycotton

Dimensions

  • Nominal diameter 6.5″
  • 165mm
  • Volume occupied by the driver 0.3L
  • Net weight 0.9kg
  • Frame material Steel

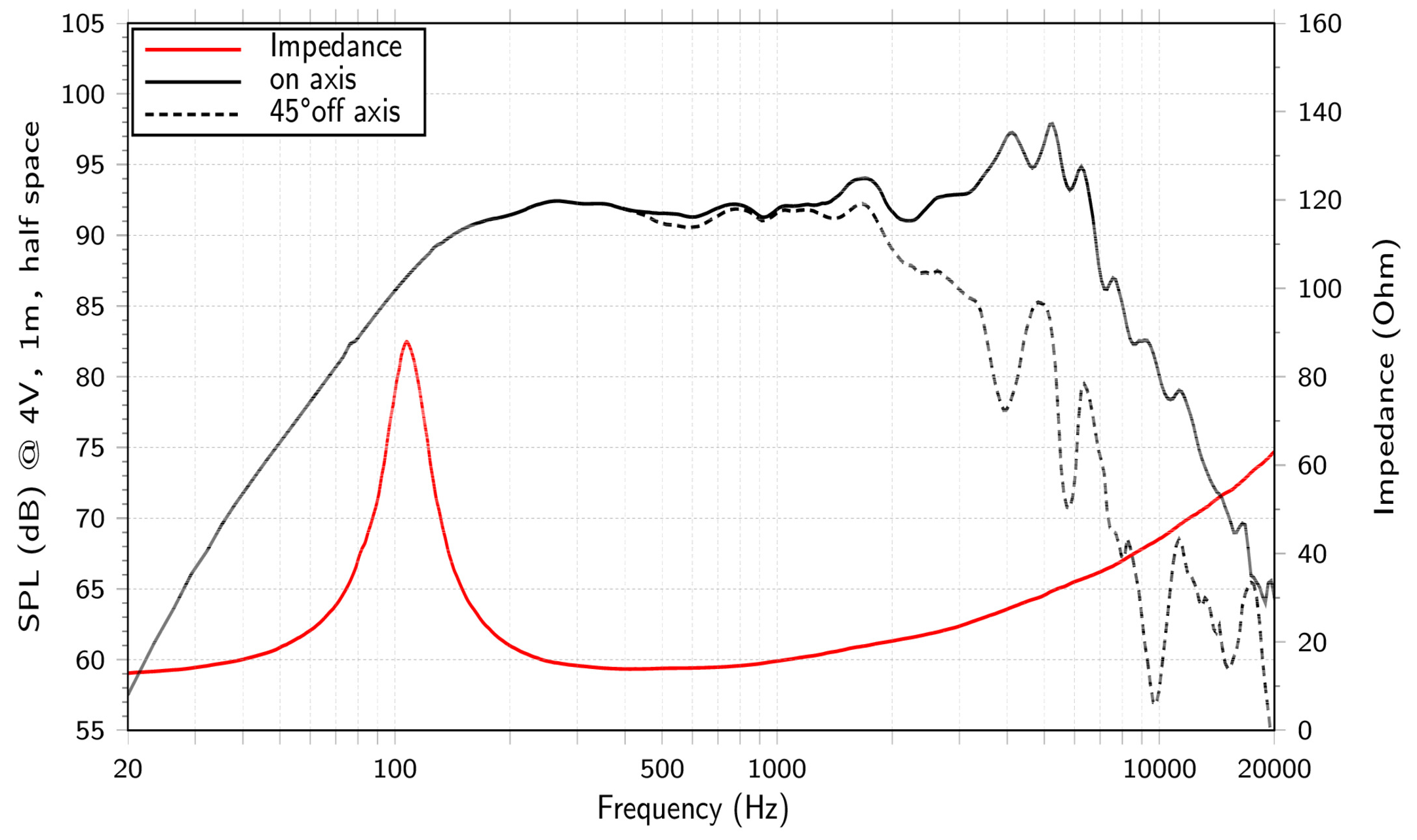

SPL & Impedance
LaVoce WSN061.52-16 SPL & Impedance

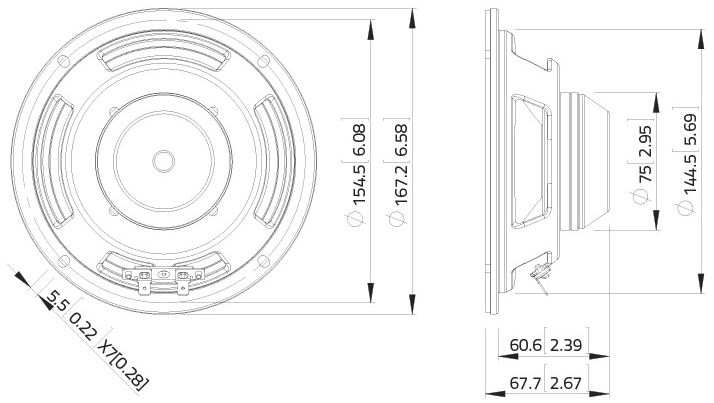

LaVoce WSN061.52-16 Dimensions
PDF fileDatasheet
