LaVoce WSN061.52-4

4Ω

Woofer

Nominal diameter	6.5″ / 165 mm
Resonance	90 Hz
Q factor	0.37
Sensitivity	91.4 dB
Linear excursion	± 4 mm
Program Power	250 W

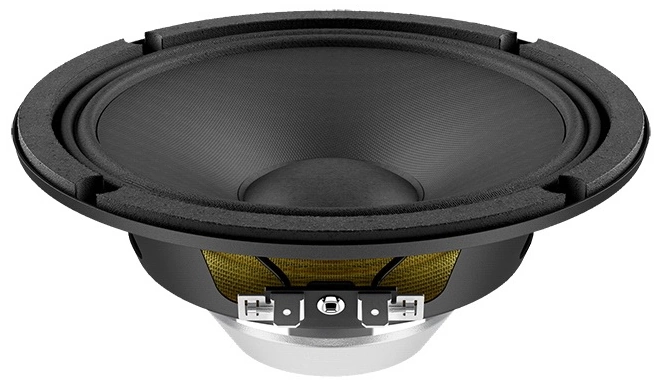

LaVoce WSN061.52-4 Woofer

Specifications

Sensitivity (1W, 1m, infinite baffle) SPL1W 91.4dB
Frequency response 90 - 6000Hz

Thiele & Small parameters

Resonance frequency (free air) fS 90Hz
Mechanical quality factor QMS 5.49
Electrical quality factor QES 0.39
Total quality factor QTS 0.37

Large signal parameters

Maximum linear excursion (one way) xmax 4mm
Maximum excursion before damage xlim 6.5mm
Air volume displaced at xmax VD 53cm³
Power handling P 125W
Program power Pmax 250W

Voice Coil

Nominal impedance Z 4Ω
DC resistance RE 3.5Ω
Inductance (1kHz) LE 0.33mH
VC Diameter 38mm
Winding height HVC 10.9mm
Winding material Copper
Former material Polyimide

Magnet

Force factor Bl 8.65N/A
Motor constant Bl/√RE 4.62N/√W
Air gap height HAG 6mm
Diameter 75mm
Height 4mm
Material Neodymium

Diaphragm

Effective diameter 130mm
Effective area SD 132cm²
Moving mass MMS 14.9g
Moving mass (without air load) MMD 13.8g
Material Water resistant treated paper

Suspensions

Stiffness KMS 4.79N/mm
Compliance CMS 209µm/N
Equivalent volume to the compliance VAS 5.15L
Mechanical resistance RMS 1.53N·s/m
Surround material Polycotton

Dimensions

Nominal diameter 6.5″
165mm
Volume occupied by the driver 0.3L
Net weight 0.9kg
Frame material Steel

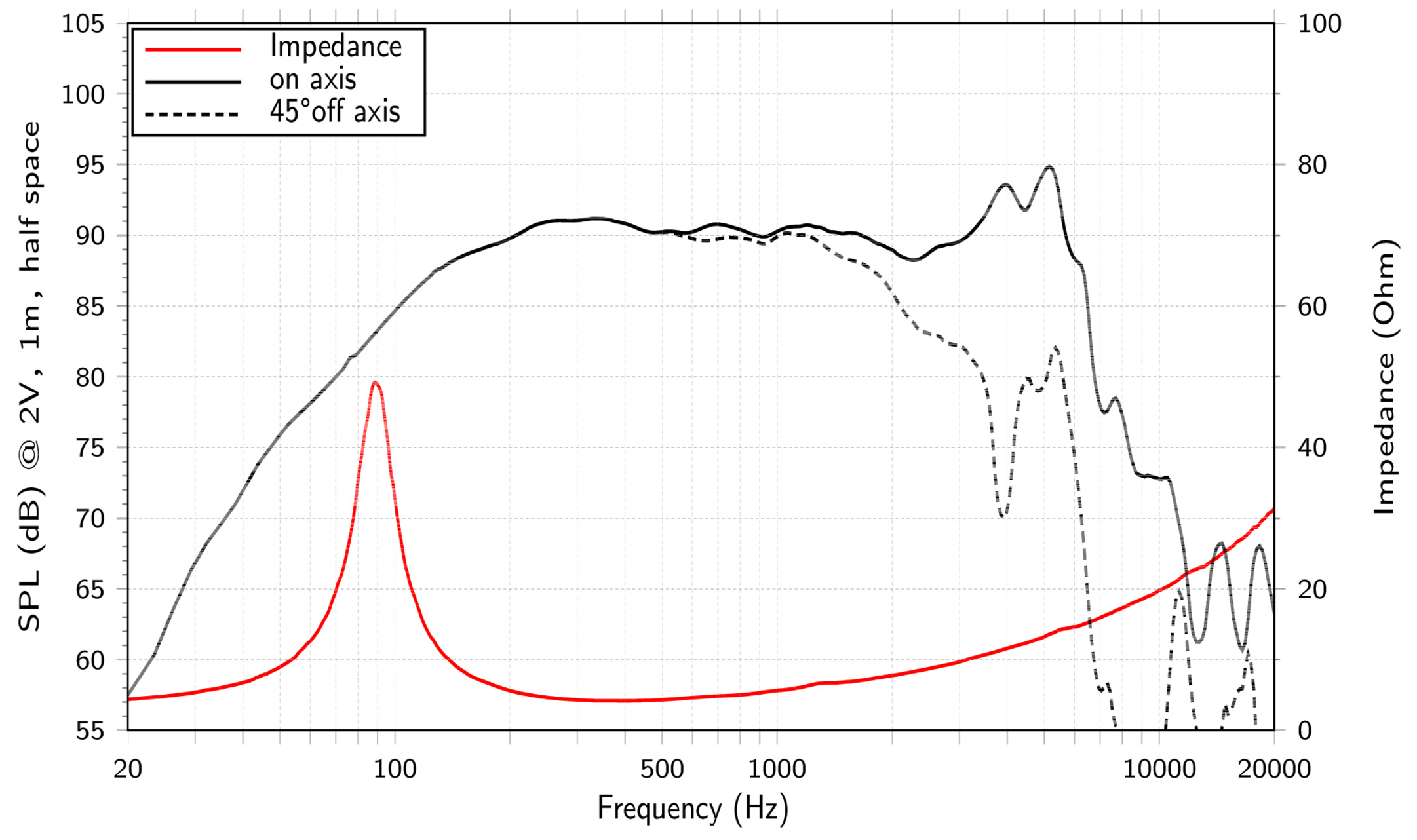

LaVoce WSN061.52-4 SPL & Impedance

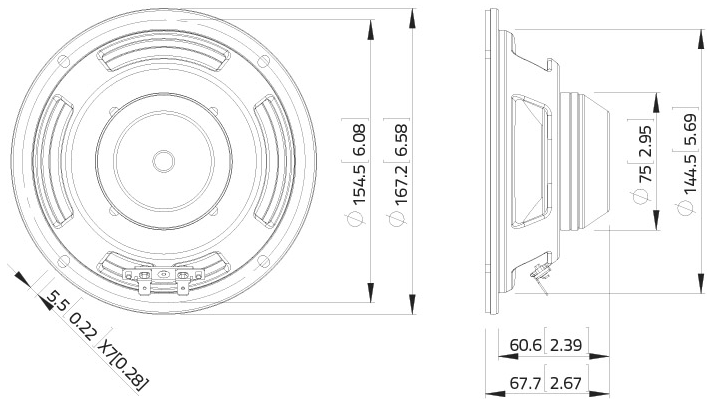

LaVoce WSN061.52-4 Dimensions
