LaVoce WSN122.50-16

4Ω8Ω
16Ω

Woofer

Nominal diameter12″ / 300 mm
Resonance53 Hz
Q factor0.40
Sensitivity94.9 dB
Linear excursion± 4.6 mm
Program Power500 W

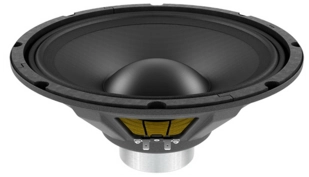

LaVoce WSN122.50-16 Woofer
Impedance
Excursion
Velocity
SPL
Phase
Group delay
Step response
Tone Burst
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply

Specifications

  • Sensitivity (1W, 1m, infinite baffle) SPL1W 94.9dB
  • Frequency response 50 - 3000Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 53Hz
  • Mechanical quality factor QMS 3.88
  • Electrical quality factor QES 0.45
  • Total quality factor QTS 0.40

Large signal parameters

  • Maximum linear excursion (one way) xmax 4.6mm
  • Maximum excursion before damage xlim 8.7mm
  • Air volume displaced at xmax VD 244cm³
  • Power handling P 250W
  • Program power Pmax 500W

Voice Coil

  • Nominal impedance Z 16Ω
  • DC resistance RE 13.1Ω
  • Inductance (1kHz) LE 1.4mH
  • VC Diameter 65mm
  • Winding height HVC 13.2mm
  • Winding material Copper
  • Former material Glass fiber

Magnet

  • Force factor Bl 23N/A
  • Motor constant Bl/√RE 6.36N/√W
  • Air gap height HAG 8.2mm
  • Diameter 64mm
  • Height 8mm
  • Material Neodymium

Diaphragm

  • Effective diameter 260mm
  • Effective area SD 531cm²
  • Moving mass MMS 54.7g
  • Moving mass (without air load) MMD 46.3g
  • Material Water resistant treated paper

Suspensions

  • Stiffness KMS 6.06N/mm
  • Compliance CMS 165µm/N
  • Equivalent volume to the compliance VAS 65.8L
  • Mechanical resistance RMS 4.69N·s/m
  • Surround material Polycotton

Dimensions

  • Nominal diameter 12″
  • 300mm
  • Volume occupied by the driver 1.6L
  • Net weight 2.1kg
  • Frame material Steel

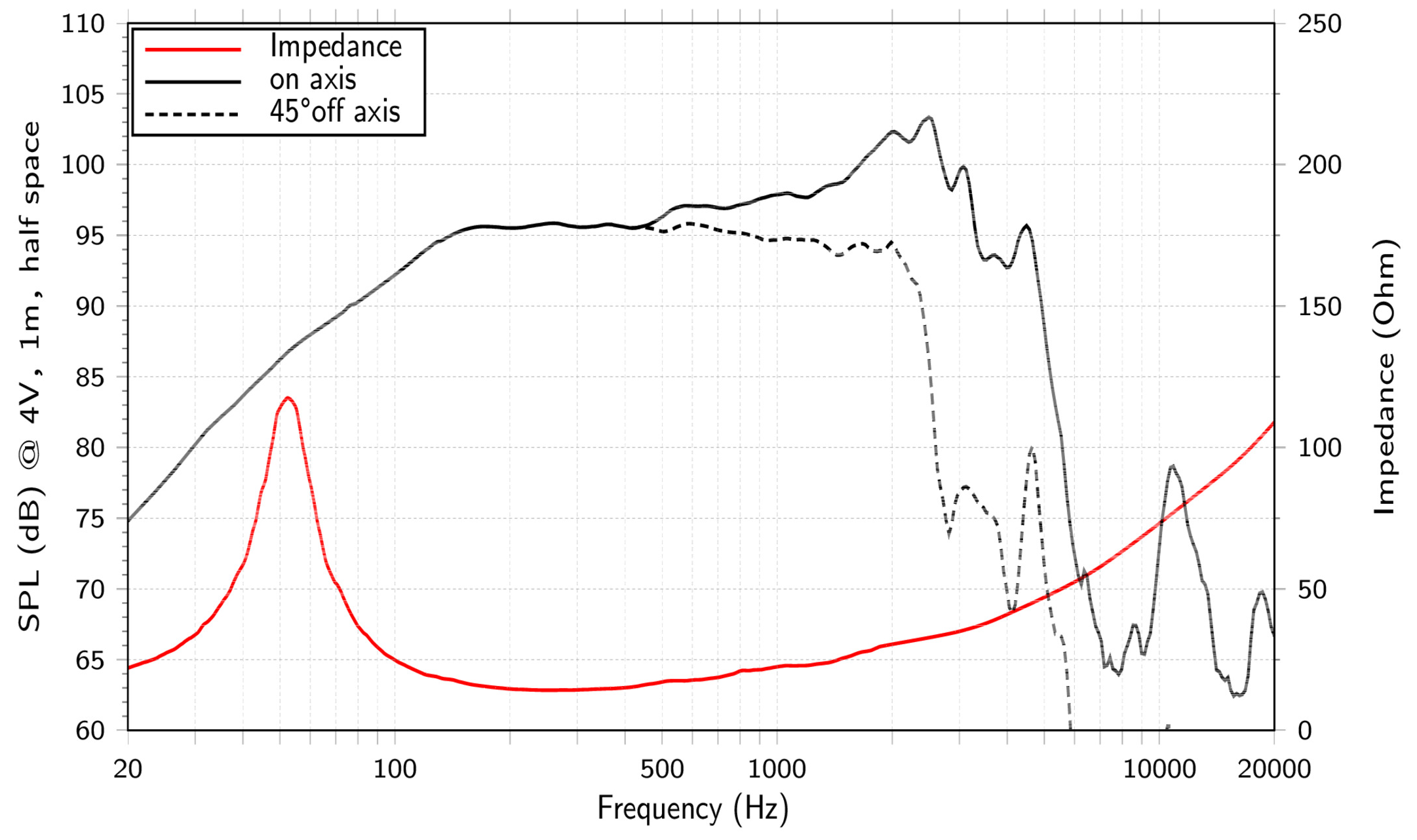

SPL & Impedance
LaVoce WSN122.50-16 SPL & Impedance

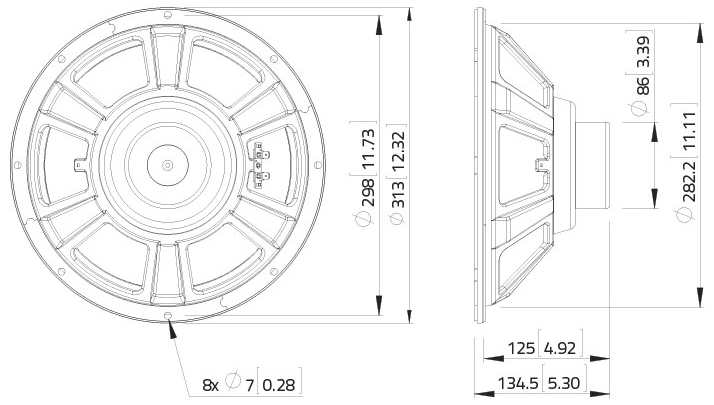

LaVoce WSN122.50-16 Dimensions
PDF fileDatasheet

Export this driver to a simulation software:

Closed Box Simulator·Speakerbench logoSpeakerbenchWinISD logoWinISDBasta! logoBasta!Hornresp logoHornrespQSpeakers logoQSpeakersSpeakerSim logoSpeakerSimMfbLabs logoMfbLabsAmplion logoAmplion
