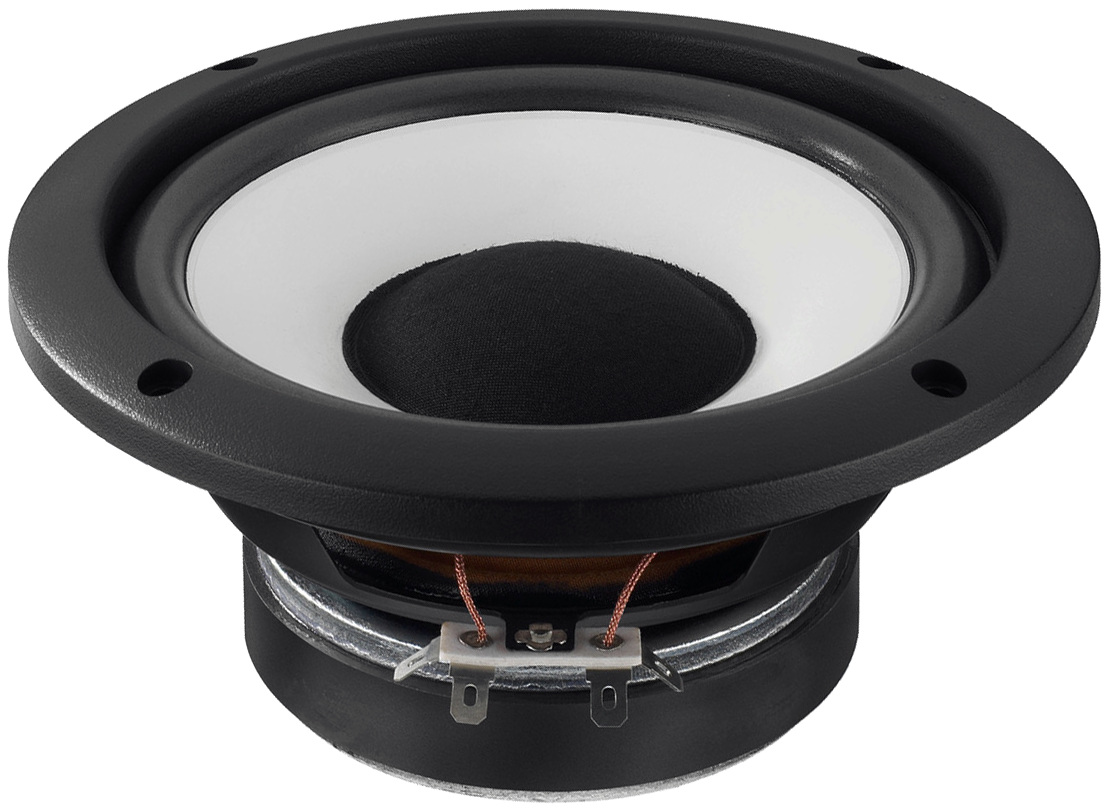

MONACOR SP-150
8Ω
Mid-range
| Nominal diameter | 6″ / 170 mm |
| Resonance | 35 Hz |
| Q factor | 0.50 |
| Sensitivity | 90.2 dB |
| Linear excursion | ± 2.5 mm |
| Program Power | 60 W |
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 90.2dB

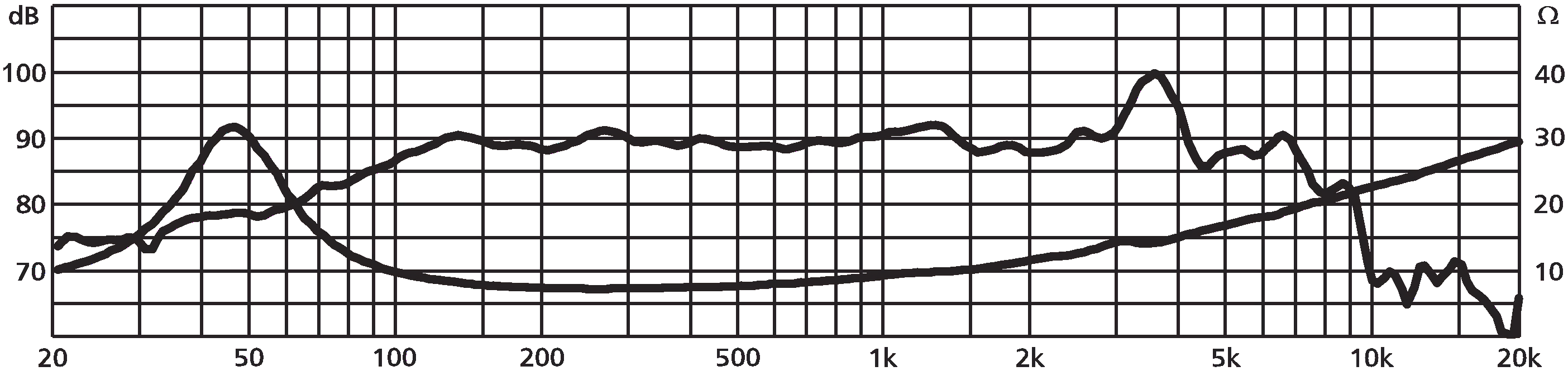

- Frequency response 35 - 4000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 35Hz
- Mechanical quality factor QMS 2.83
- Electrical quality factor QES 0.61
- Total quality factor QTS 0.50
Large signal parameters
- Maximum linear excursion (one way) xmax 2.5mm
- Air volume displaced at xmax VD 32cm³
- Power handling P 30W
- Program power Pmax 60W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.5Ω
- Inductance (1kHz) LE 0.45mH
- VC Diameter 25.5mm
- Winding material Aluminium
Magnet
- Force factor Bl 7.5N/A
- Motor constant Bl/√RE 2.94N/√W
- Diameter 100mm
- Weight 0.38kg
Diaphragm
- Effective diameter 127mm
- Effective area SD 127cm²
- Moving mass MMS 10.4g
- Moving mass (without air load) MMD 9.3g
Suspensions
- Stiffness KMS 0.641N/mm
- Compliance CMS 1560µm/N
- Equivalent volume to the compliance VAS 35L
- Mechanical resistance RMS 0.81N·s/m

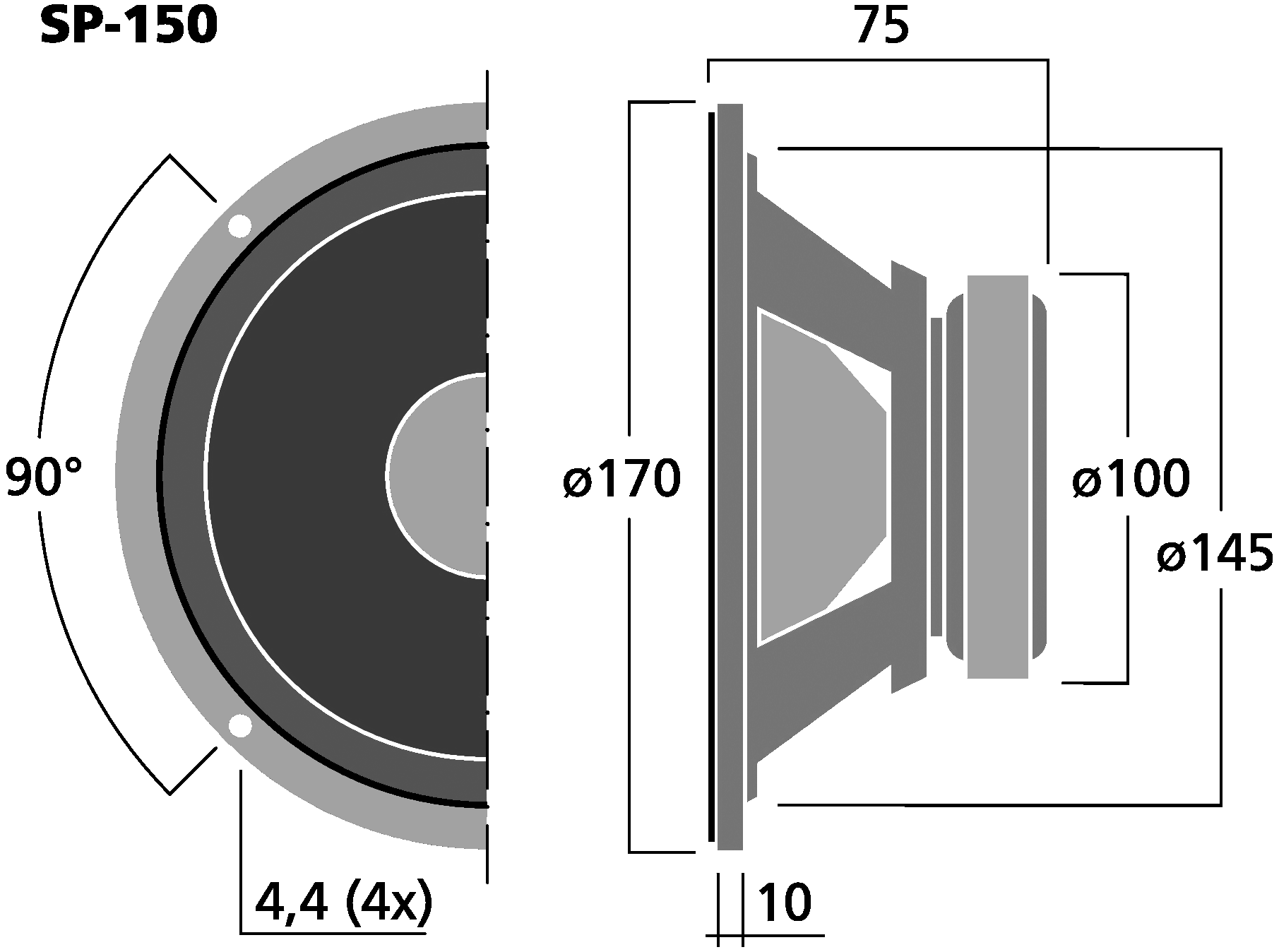

Dimensions
- Nominal diameter 6″
- 170mm
- Overall diameter 170mm
- Baffle cutout diameter 145mm
- Overall depth 75mm
- Flange thickness 10mm
- Mounting depth 65mm
- Volume occupied by the driver (estimated) 0.42L
- Net weight 1.215kg
.png)
.png)
