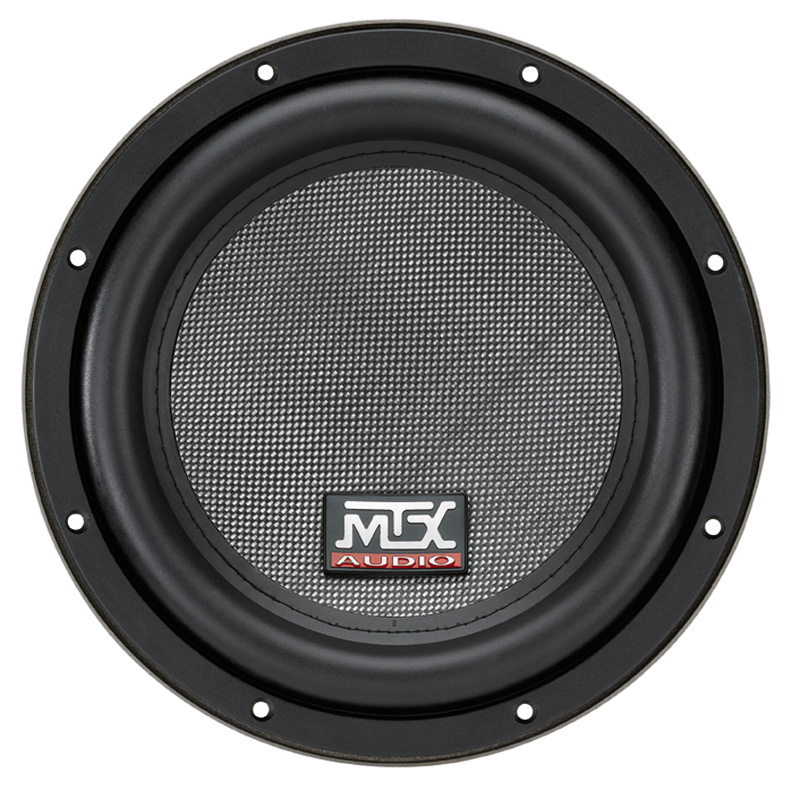

MTX Audio T610-44
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 28.4 Hz |
| Q factor | 0.48 |
| Sensitivity | 83.3 dB |
| Linear excursion | ± 16 mm |
| Program Power | 900 W |
Discontinued
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.3dB
- Frequency response 28 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 28.4Hz
- Mechanical quality factor QMS 6.94
- Electrical quality factor QES 0.52
- Total quality factor QTS 0.48
Large signal parameters
- Maximum linear excursion xmax 16mm
- Air volume displaced at xmax VD 565cm³
- Power handling P 300W
- Program power Pmax 900W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.9Ω
- Inductance (1kHz, in series, estimated) LE 4.75mH
Magnet
- Force factor (in series) Bl 20.4N/A
- Motor constant Bl/√RE 7.78N/√W
Diaphragm
- Effective diameter 212mm
- Effective area SD 353cm²
- Moving mass MMS 175g
- Moving mass (without air load) MMD 171g
Suspensions
- Stiffness KMS 5.56N/mm
- Compliance CMS 180µm/N
- Equivalent volume to the compliance VAS 31.7L
- Mechanical resistance RMS 4.5N·s/m
Dimensions
- Nominal diameter 10″
- 250mm
- Volume occupied by the driver (estimated) 1.5L
