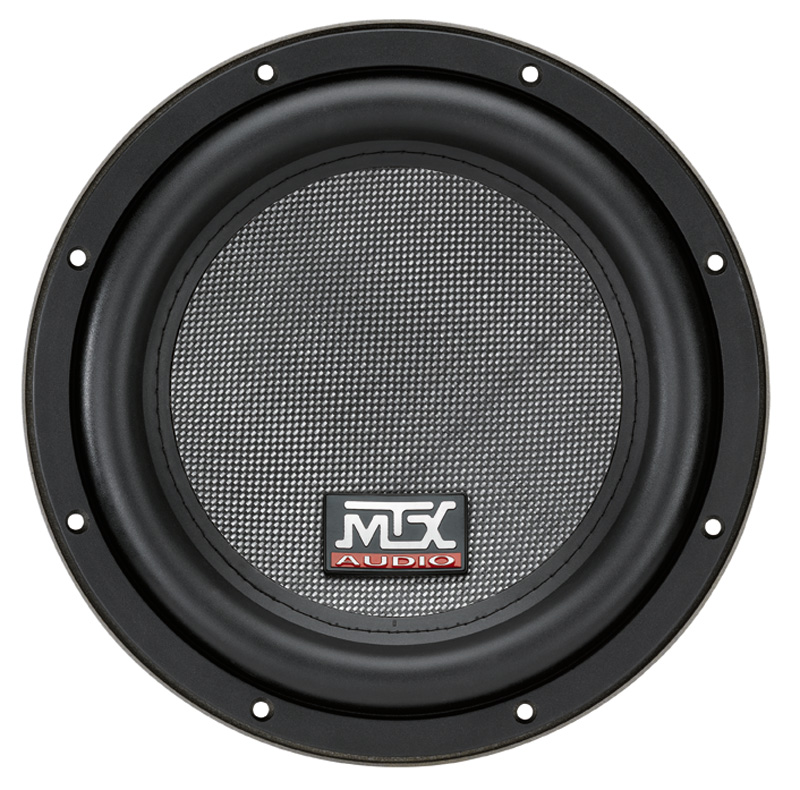

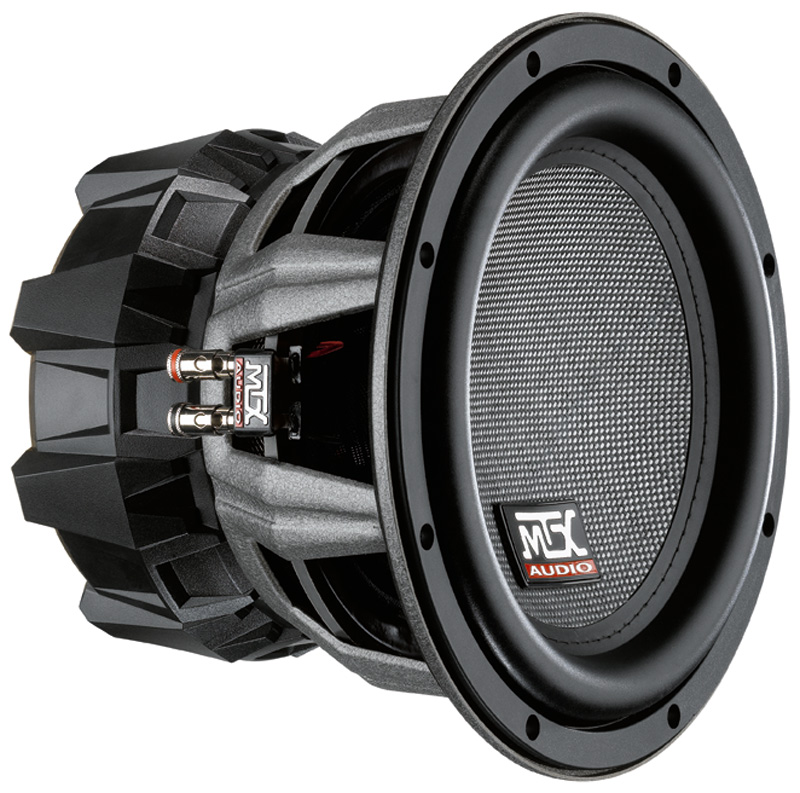

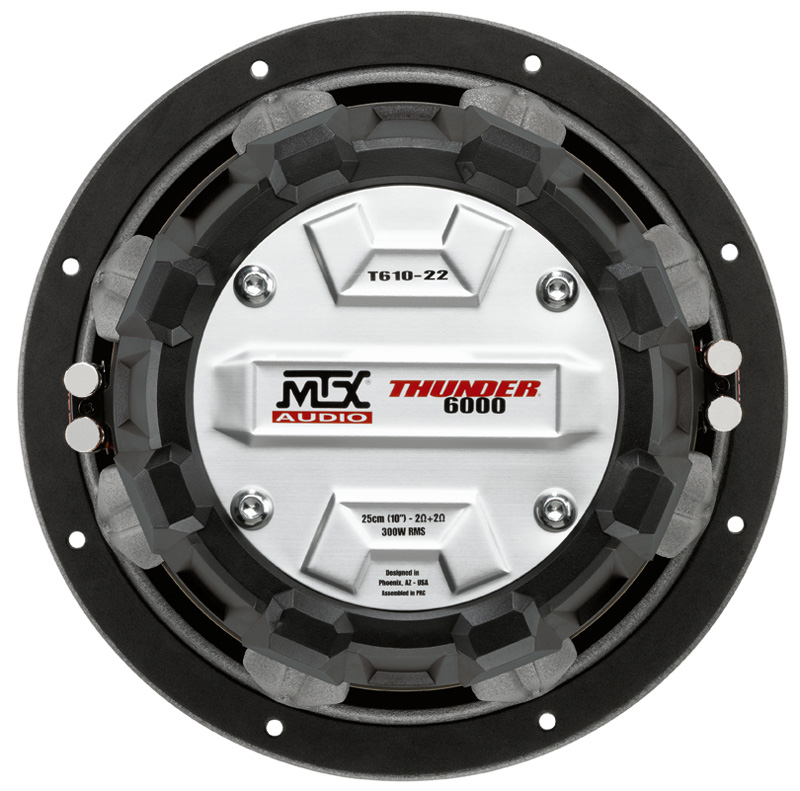

MTX Audio T610-22

• Sensitivity (1W, 1m, infinite baffle) SPL1W 83.6dB
• Frequency response 27 - 200Hz

Thiele & Small parameters

• Resonance frequency (free air) fS 27.1Hz
• Mechanical quality factor QMS 6.20
• Electrical quality factor QES 0.43
• Total quality factor QTS 0.40

Large signal parameters

• Maximum linear excursion xmax 16mm
• Air volume displaced at xmax VD 565cm³
• Power handling P 300W
• Program power Pmax 900W

Voice Coil

• Nominal impedance Z 2 x 2Ω
• DC resistance (in series) RE 3.5Ω
• Inductance (1kHz, in series, estimated) LE 2.55mH

Magnet

• Force factor (in series) Bl 16.3N/A
• Motor constant Bl/√RE 8.71N/√W

Diaphragm

• Effective diameter 212mm
• Effective area SD 353cm²
• Moving mass MMS 190g
• Moving mass (without air load) MMD 186g

Suspensions

• Stiffness KMS 5.5N/mm
• Compliance CMS 182µm/N
• Equivalent volume to the compliance VAS 32.1L
• Mechanical resistance RMS 5.22N·s/m

Dimensions

• Nominal diameter 10″
• 250mm
• Volume occupied by the driver (estimated) 1.5L
