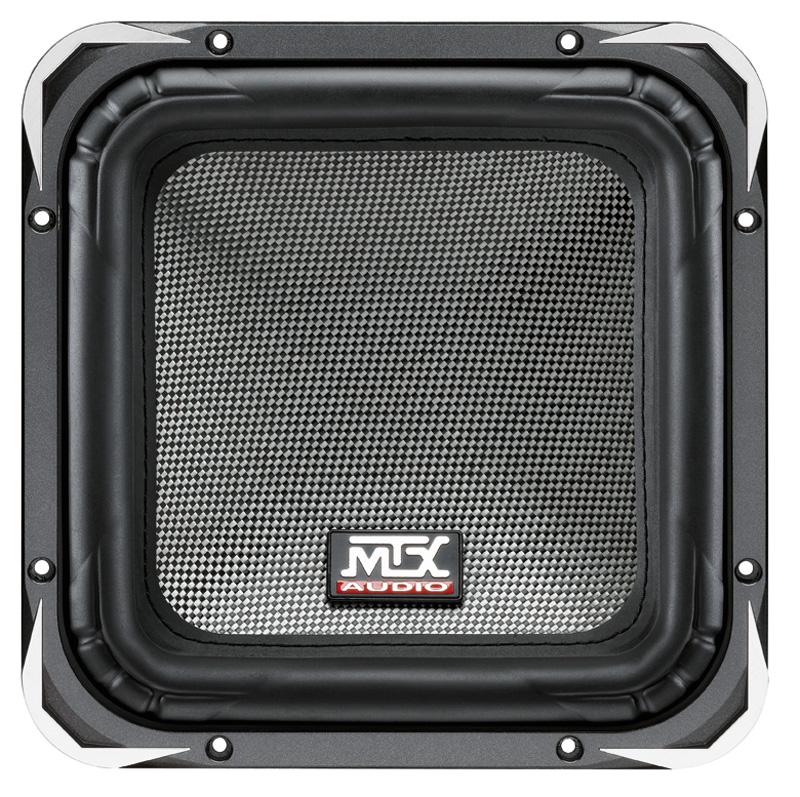

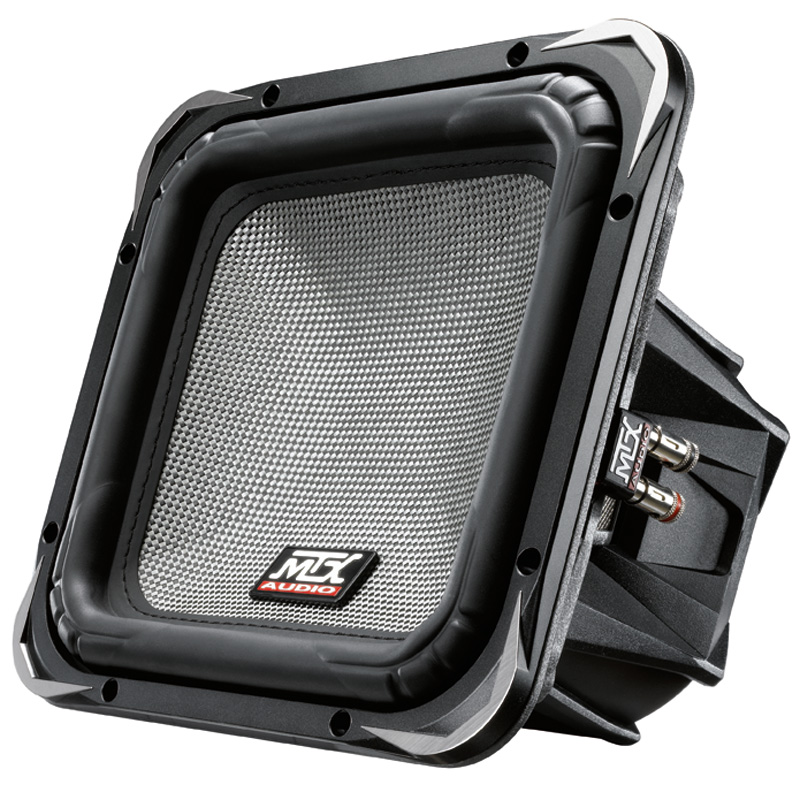

MTX Audio T610S-22

• Sensitivity (1W, 1m, infinite baffle) SPL1W 84.8dB
• Frequency response 36 - 200Hz

Thiele & Small parameters

• Resonance frequency (free air) fS 36.6Hz
• Mechanical quality factor QMS 9.68
• Electrical quality factor QES 0.83
• Total quality factor QTS 0.76

Large signal parameters

• Maximum linear excursion xmax 15mm
• Air volume displaced at xmax VD 726cm³
• Power handling P 450W
• Program power Pmax 1350W

Voice Coil

• Nominal impedance Z 2 x 2Ω
• DC resistance (in series) RE 3.3Ω
• Inductance (1kHz, in series, estimated) LE 2.62mH

Magnet

• Force factor (in series) Bl 14.1N/A
• Motor constant Bl/√RE 7.76N/√W

Diaphragm

• Effective diameter 248mm
• Effective area SD 484cm²
• Moving mass MMS 216g
• Moving mass (without air load) MMD 210g

Suspensions

• Stiffness KMS 11.4N/mm
• Compliance CMS 88µm/N
• Equivalent volume to the compliance VAS 28.9L
• Mechanical resistance RMS 5.13N·s/m

Dimensions

• Nominal size 10 x 10″
• 250 x 250mm
• Volume occupied by the driver (estimated) 1.5L
