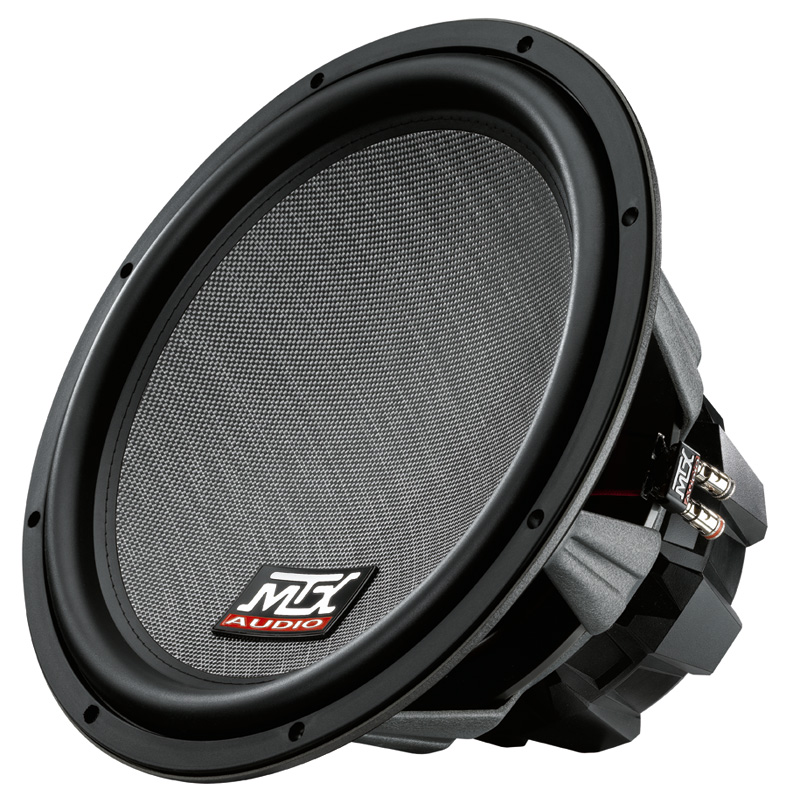

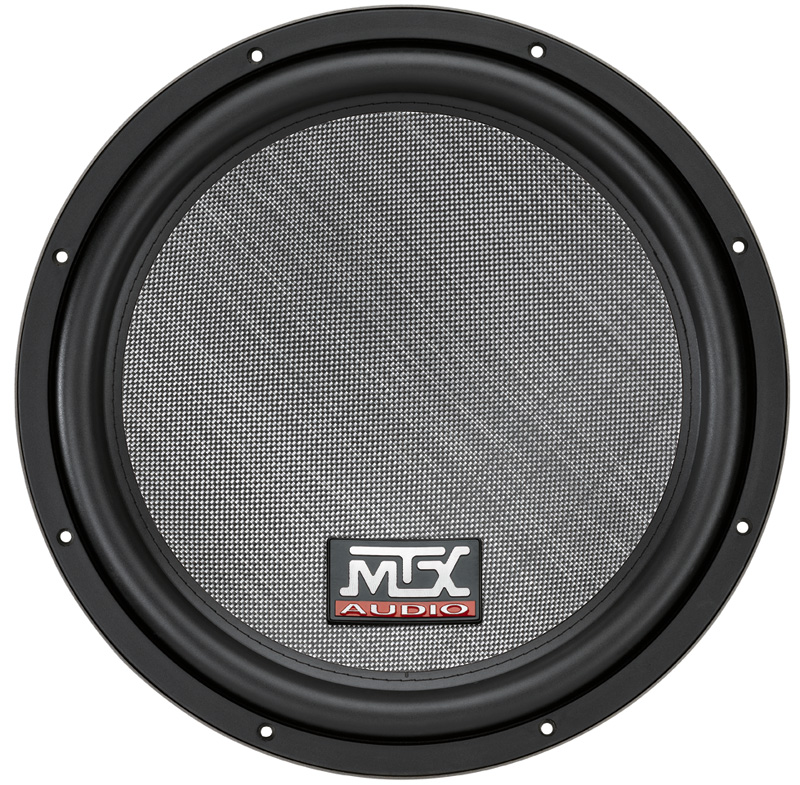

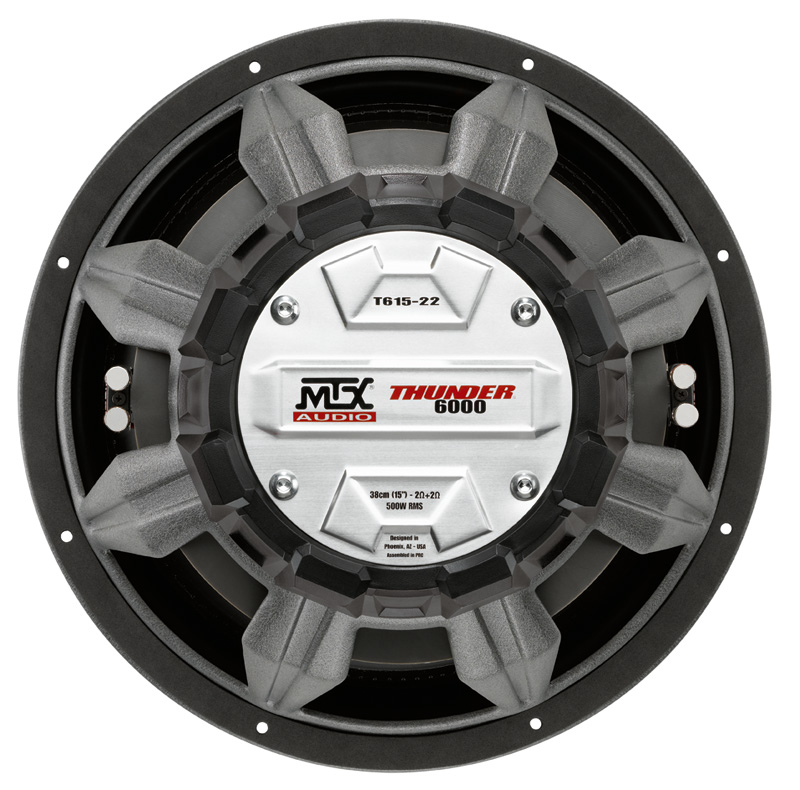

MTX Audio T615-22
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 25.7 Hz |
| Q factor | 0.44 |
| Sensitivity | 87.8 dB |
| Linear excursion | ± 16 mm |
| Program Power | 1500 W |
Discontinued
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.8dB
- Frequency response 25 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 25.7Hz
- Mechanical quality factor QMS 5.20
- Electrical quality factor QES 0.47
- Total quality factor QTS 0.44
Large signal parameters
- Maximum linear excursion (one way) xmax 16mm
- Air volume displaced at xmax VD 1402cm³
- Power handling P 500W
- Program power Pmax 1500W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.1Ω
- Inductance (1kHz, in series, estimated) LE 3.54mH
Magnet
- Force factor (in series) Bl 19.9N/A
- Motor constant Bl/√RE 11.4N/√W
Diaphragm
- Effective diameter 334mm
- Effective area SD 876cm²
- Moving mass MMS 378g
- Moving mass (without air load) MMD 360g
Suspensions
- Stiffness KMS 9.9N/mm
- Compliance CMS 101µm/N
- Equivalent volume to the compliance VAS 110L
- Mechanical resistance RMS 11.7N·s/m
Dimensions
- Nominal diameter 15″
- 380mm
- Volume occupied by the driver (estimated) 4.3L
