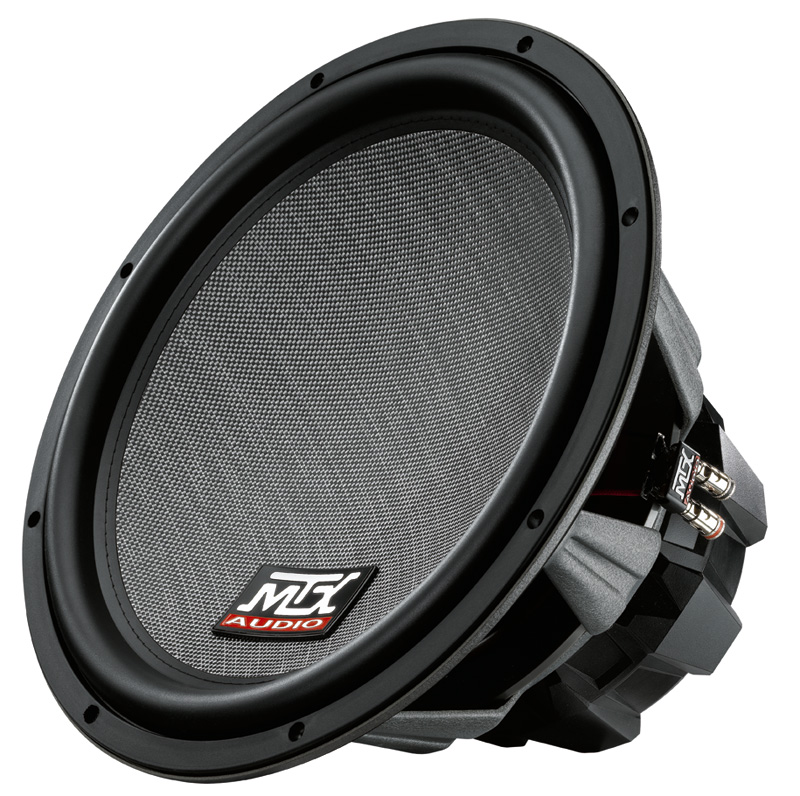

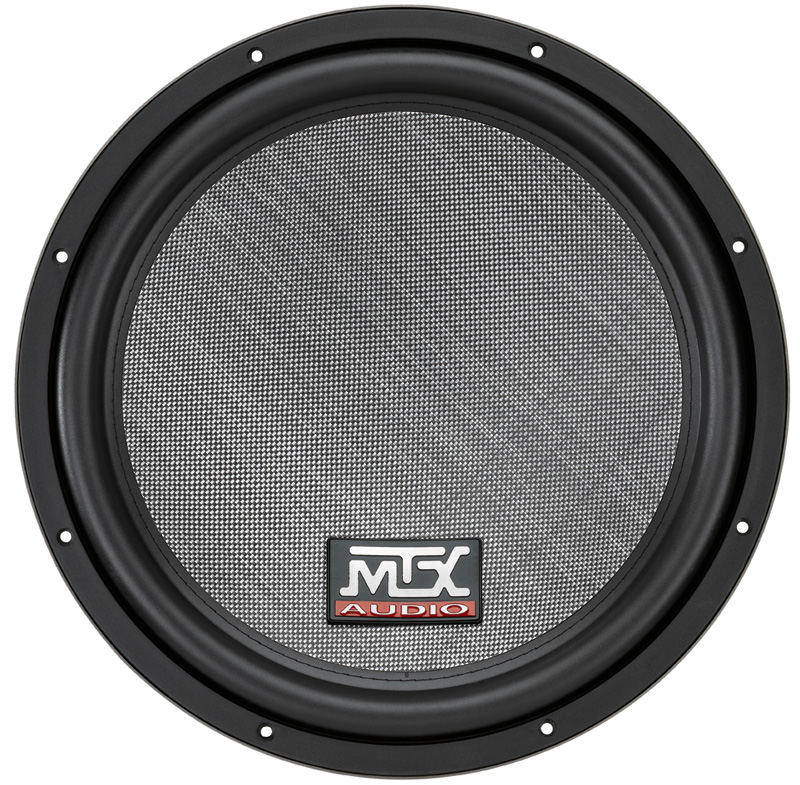

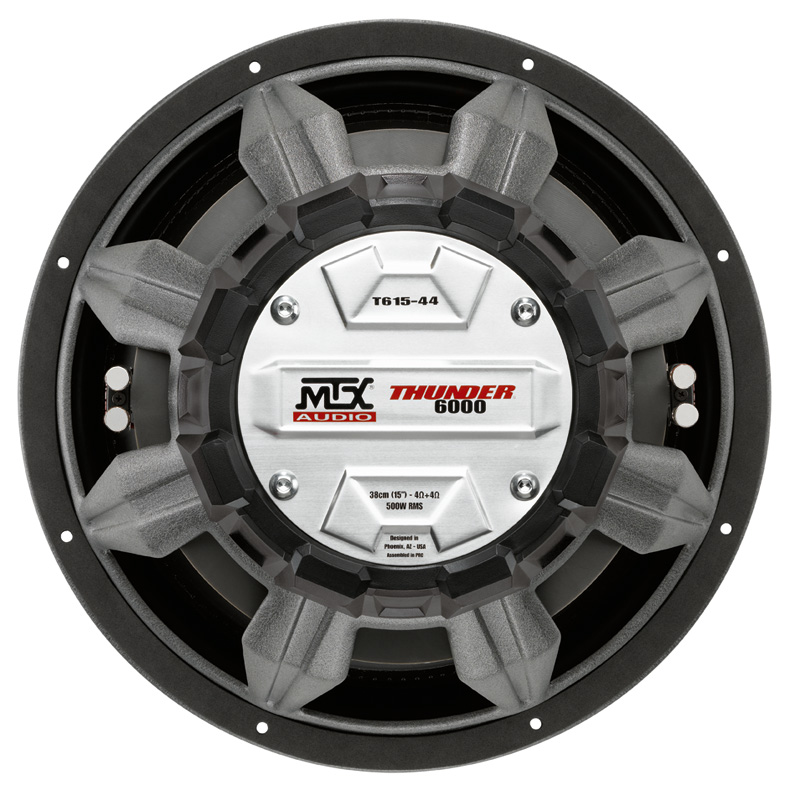

MTX Audio T615-44
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 26.2 Hz |
| Q factor | 0.50 |
| Sensitivity | 87.4 dB |
| Linear excursion | ± 16 mm |
| Program Power | 1500 W |
Discontinued
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.4dB
- Frequency response 26 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 26.2Hz
- Mechanical quality factor QMS 5.20
- Electrical quality factor QES 0.55
- Total quality factor QTS 0.50
Large signal parameters
- Maximum linear excursion xmax 16mm
- Air volume displaced at xmax VD 1402cm³
- Power handling P 500W
- Program power Pmax 1500W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.1Ω
- Inductance (1kHz, in series, estimated) LE 6.77mH
Magnet
- Force factor (in series) Bl 25.4N/A
- Motor constant Bl/√RE 10.3N/√W
Diaphragm
- Effective diameter 334mm
- Effective area SD 876cm²
- Moving mass MMS 355g
- Moving mass (without air load) MMD 338g
Suspensions
- Stiffness KMS 9.62N/mm
- Compliance CMS 104µm/N
- Equivalent volume to the compliance VAS 113L
- Mechanical resistance RMS 11.2N·s/m
Dimensions
- Nominal diameter 15″
- 380mm
- Volume occupied by the driver (estimated) 4.3L
