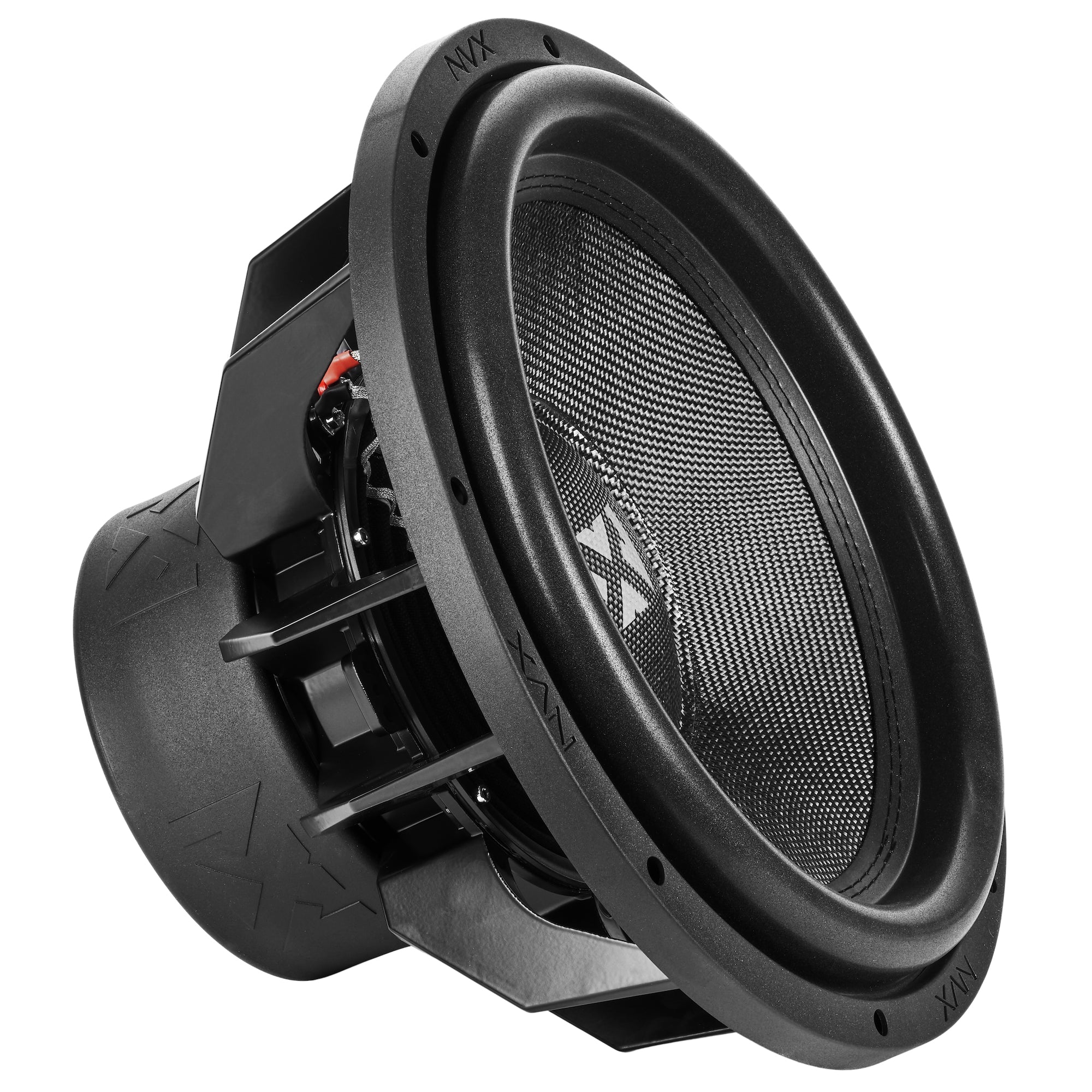

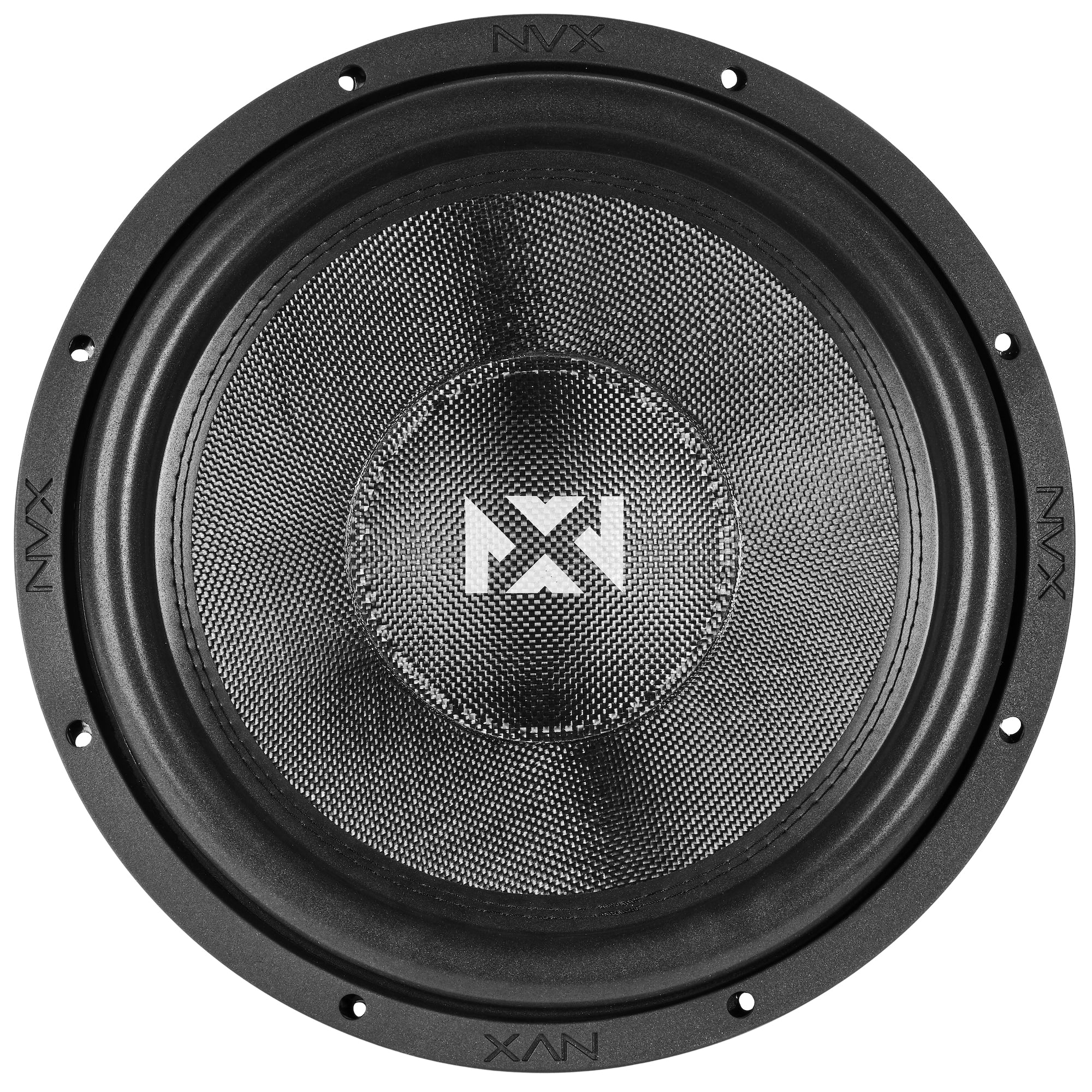

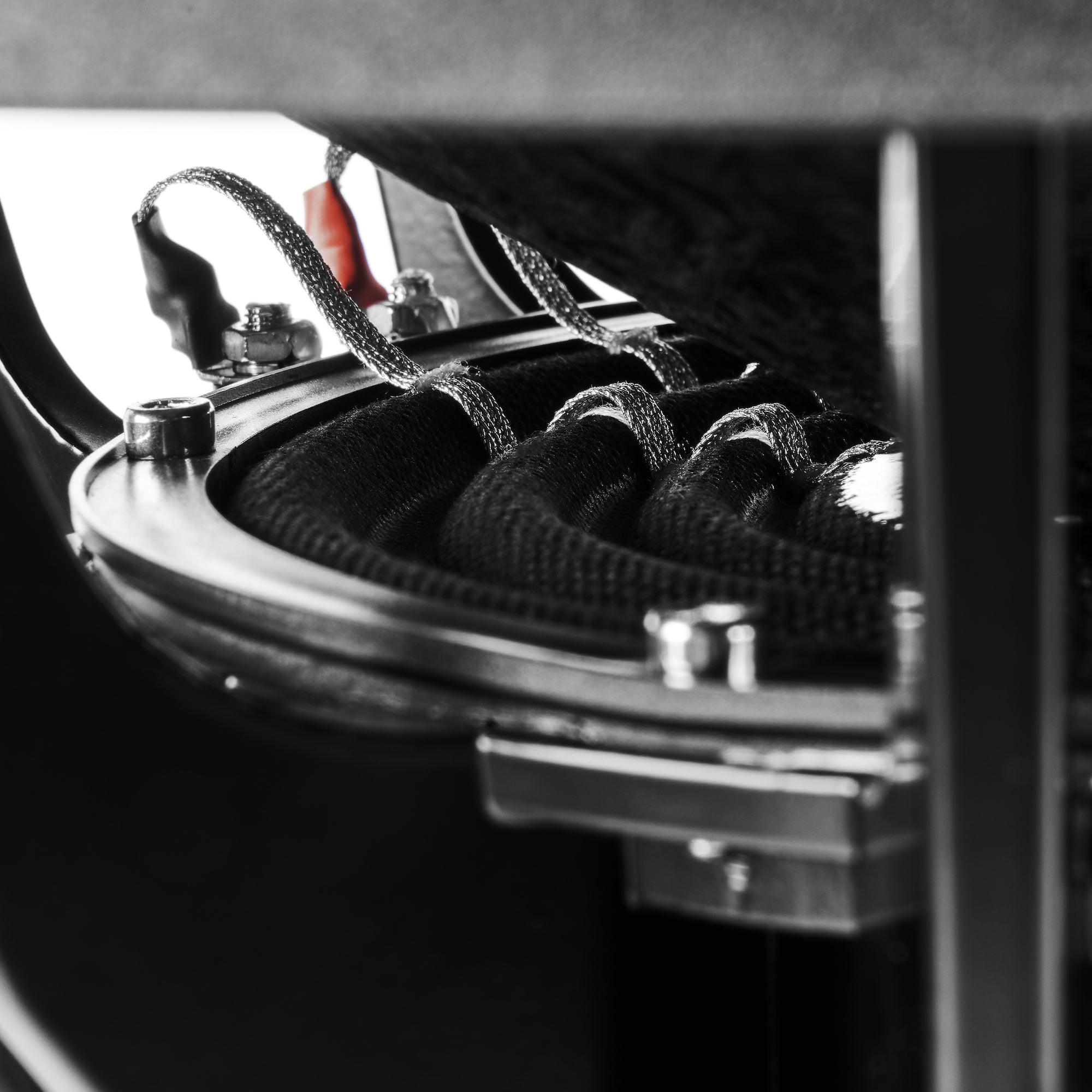

NVX VCW154v3
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 15″ / 396 mm |
| Resonance | 31.3 Hz |
| Q factor | 0.45 |
| Sensitivity | 87.5 dB |
| Linear excursion | ± 23 mm |
| Program power | 3000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.5dB
Thiele & Small parameters
- Resonance frequency (free air) fS 31.3Hz
- Mechanical quality factor QMS 1.68
- Electrical quality factor QES 0.62
- Total quality factor QTS 0.45
Large signal parameters
- Maximum linear excursion (one way) xmax 23mm
- Air volume displaced at xmax VD 1850cm³
- Power handling P 1500W
- Program power Pmax 3000W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series, estimated) LE 6.15mH
Magnet
- Force factor (in series) Bl 24.2N/A
- Motor constant Bl/√RE 9.57N/√W
Diaphragm
- Effective diameter 320mm
- Effective area SD 804cm²
- Moving mass (including air load) MMS 287g
- Moving mass MMD 271g
Suspensions
- Stiffness KMS 11.1N/mm
- Compliance CMS 90µm/N
- Equivalent volume to the compliance VAS 82.9L
- Mechanical resistance RMS 33.6N·s/m
Dimensions
- Nominal diameter 15″
- 396mm
- Overall diameter 396mm
- Baffle cutout diameter 358mm
- Mounting depth 208mm
- Volume occupied by the driver 3.68L
- Net weight 14.0kg
