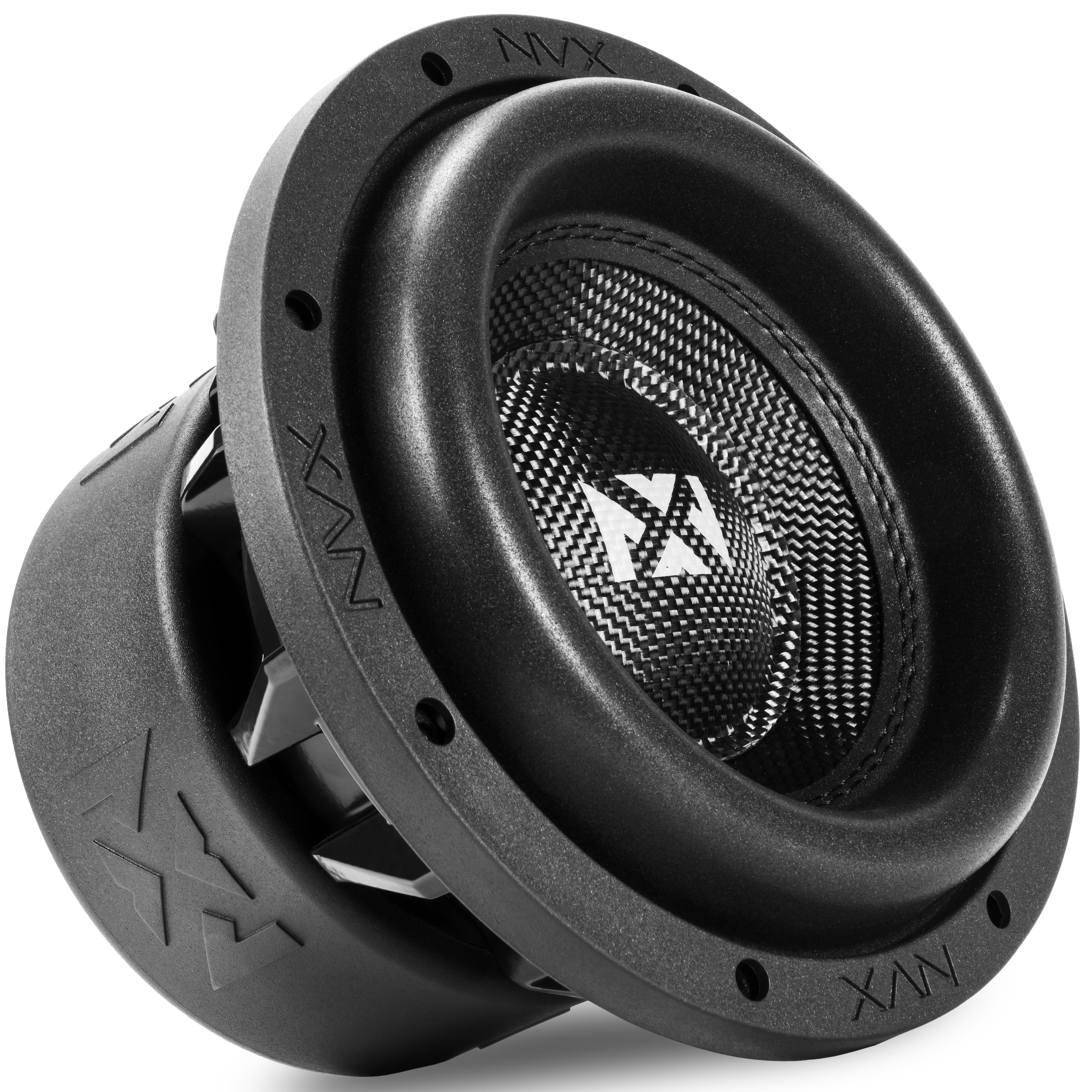

NVX VCW84v3
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 8″ / 218 mm |
| Resonance | 47.6 Hz |
| Q factor | 0.53 |
| Sensitivity | 80.7 dB |
| Linear excursion | ± 14 mm |
| Program power | 1300 W |
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 80.7dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 47.6Hz
- Mechanical quality factor QMS 2.79
- Electrical quality factor QES 0.65
- Total quality factor QTS 0.53
Large signal parameters
- Maximum linear excursion (one way) xmax 14mm
- Air volume displaced at xmax VD 282cm³
- Power handling P 650W
- Program power Pmax 1300W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series, estimated) LE 3.97mH
Magnet
- Force factor (in series) Bl 21N/A
- Motor constant Bl/√RE 8.3N/√W
Diaphragm
- Effective diameter 160mm
- Effective area SD 201cm²
- Moving mass (including air load) MMS 149g
- Moving mass MMD 147g
Suspensions
- Stiffness KMS 13.3N/mm
- Compliance CMS 75µm/N
- Equivalent volume to the compliance VAS 4.28L
- Mechanical resistance RMS 16N·s/m
Dimensions
- Nominal diameter 8″
- 218mm
- Overall diameter 218mm
- Baffle cutout diameter 188mm
- Mounting depth 135mm
- Volume occupied by the driver 1.7L
- Net weight 8.0kg
