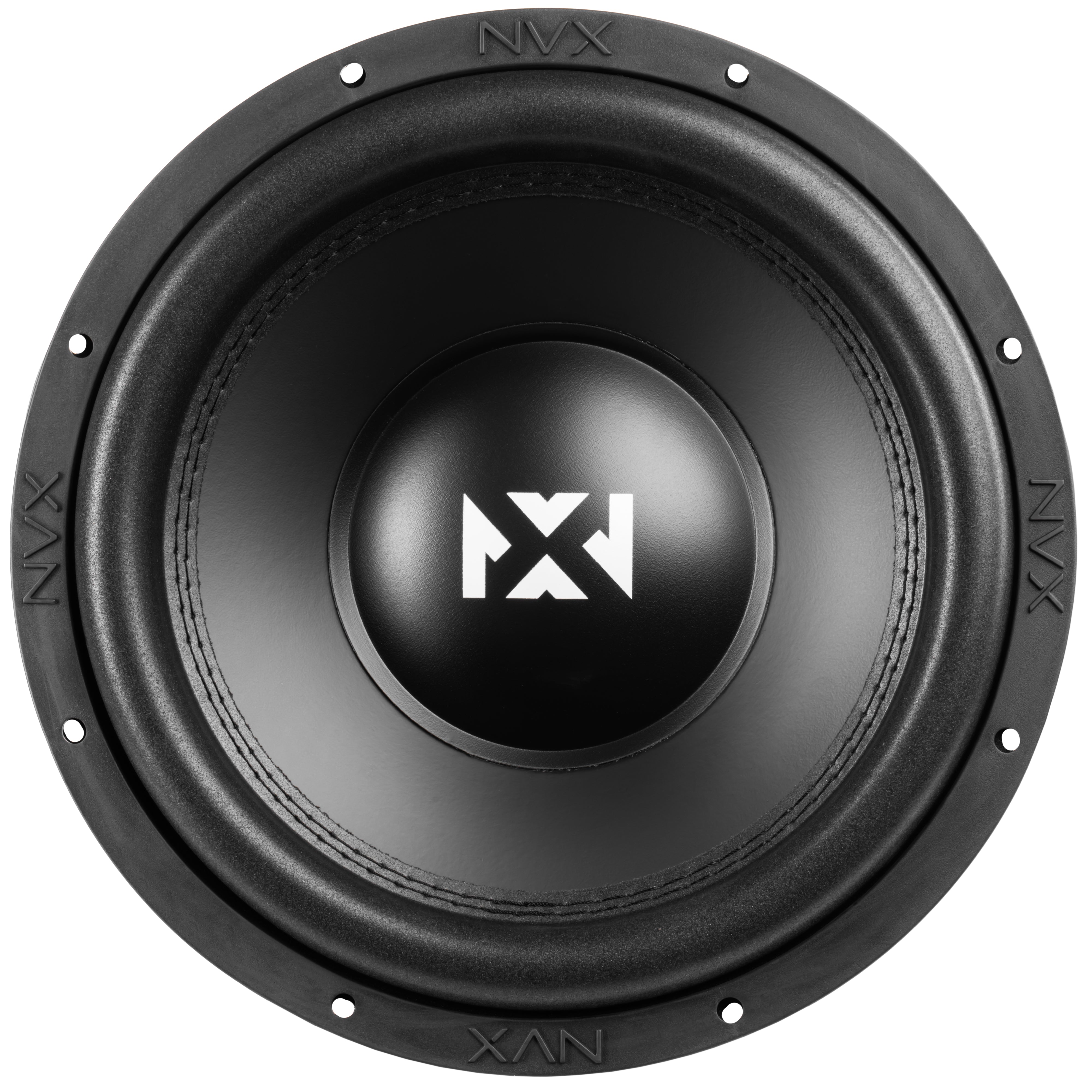

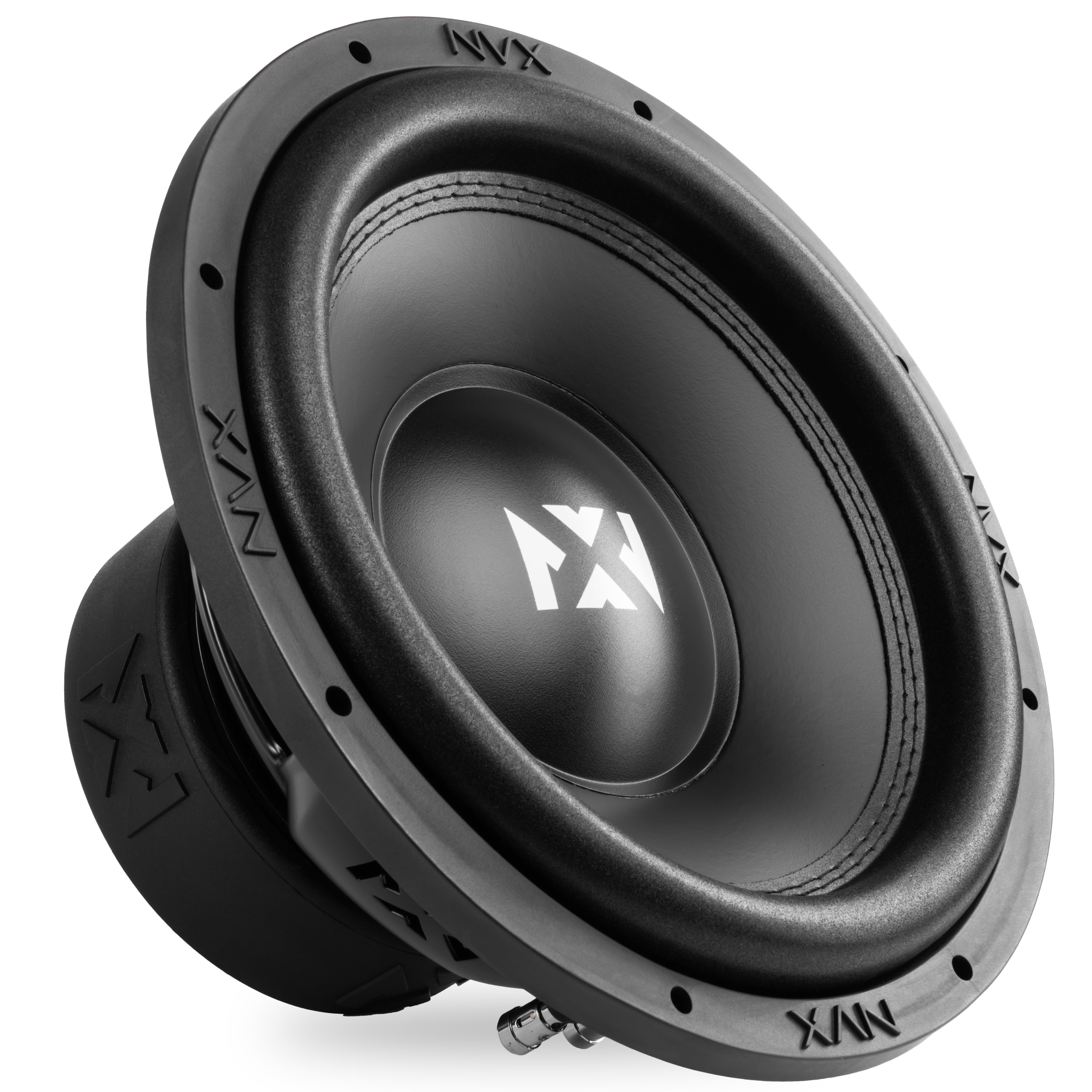

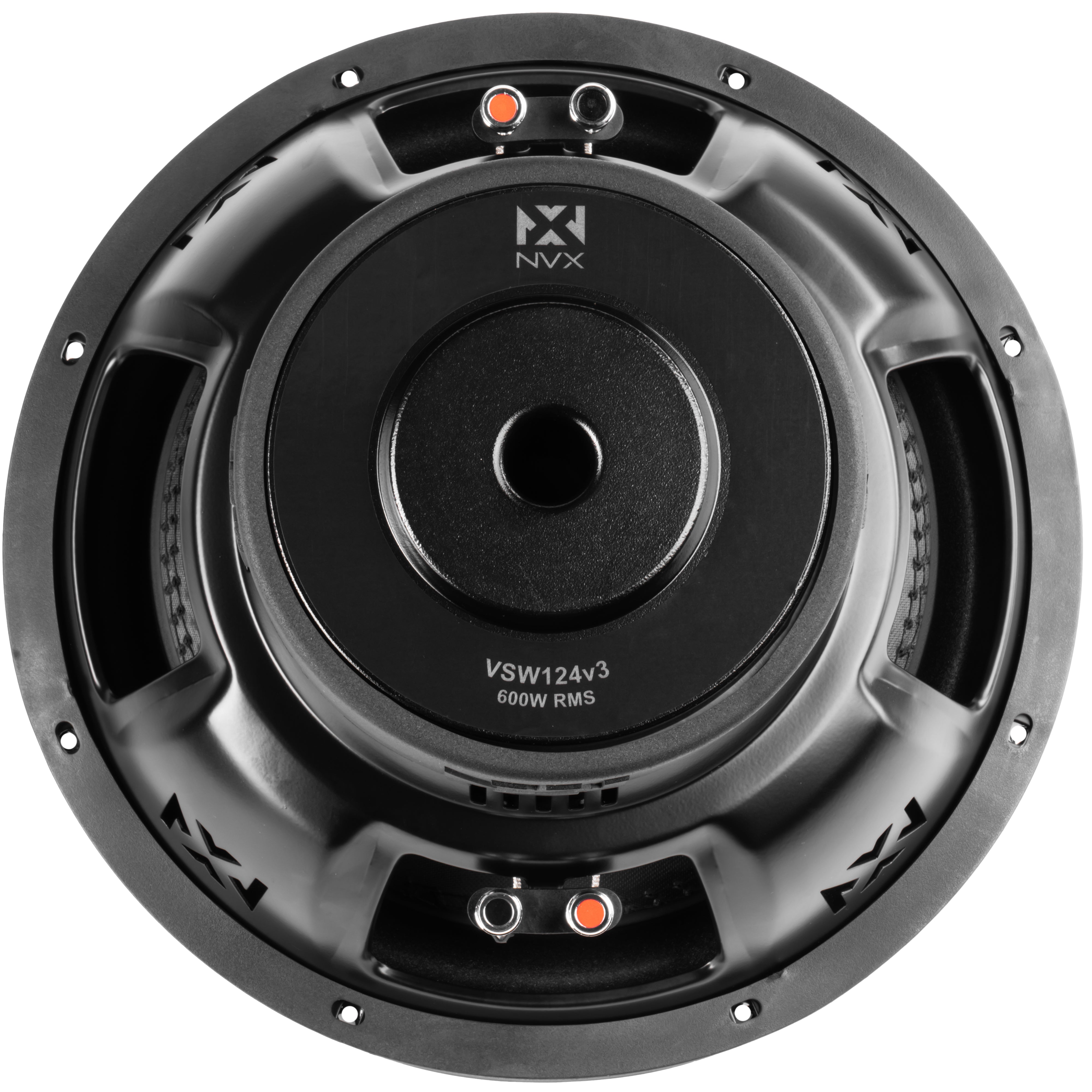

NVX VSW124v3
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 12″ / 316 mm |
| Resonance | 37.4 Hz |
| Q factor | 0.56 |
| Sensitivity | 86 dB |
| Linear excursion | ± 13.5 mm |
| Program power | 1200 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 37.4Hz
- Mechanical quality factor QMS 5.05
- Electrical quality factor QES 0.64
- Total quality factor QTS 0.56
Large signal parameters
- Maximum linear excursion (one way) xmax 13.5mm
- Air volume displaced at xmax VD 689cm³
- Power handling P 600W
- Program power Pmax 1200W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series, estimated) LE 5.43mH
Magnet
- Force factor (in series) Bl 23.8N/A
- Motor constant Bl/√RE 9.41N/√W
Diaphragm
- Effective diameter 255mm
- Effective area SD 511cm²
- Moving mass (including air load) MMS 239g
- Moving mass MMD 231g
Suspensions
- Stiffness KMS 13.2N/mm
- Compliance CMS 76µm/N
- Equivalent volume to the compliance VAS 28L
- Mechanical resistance RMS 11.1N·s/m
Dimensions
- Nominal diameter 12″
- 316mm
- Overall diameter 316mm
- Baffle cutout diameter 285mm
- Mounting depth 164mm
- Volume occupied by the driver 2.55L
- Net weight 7.9kg
