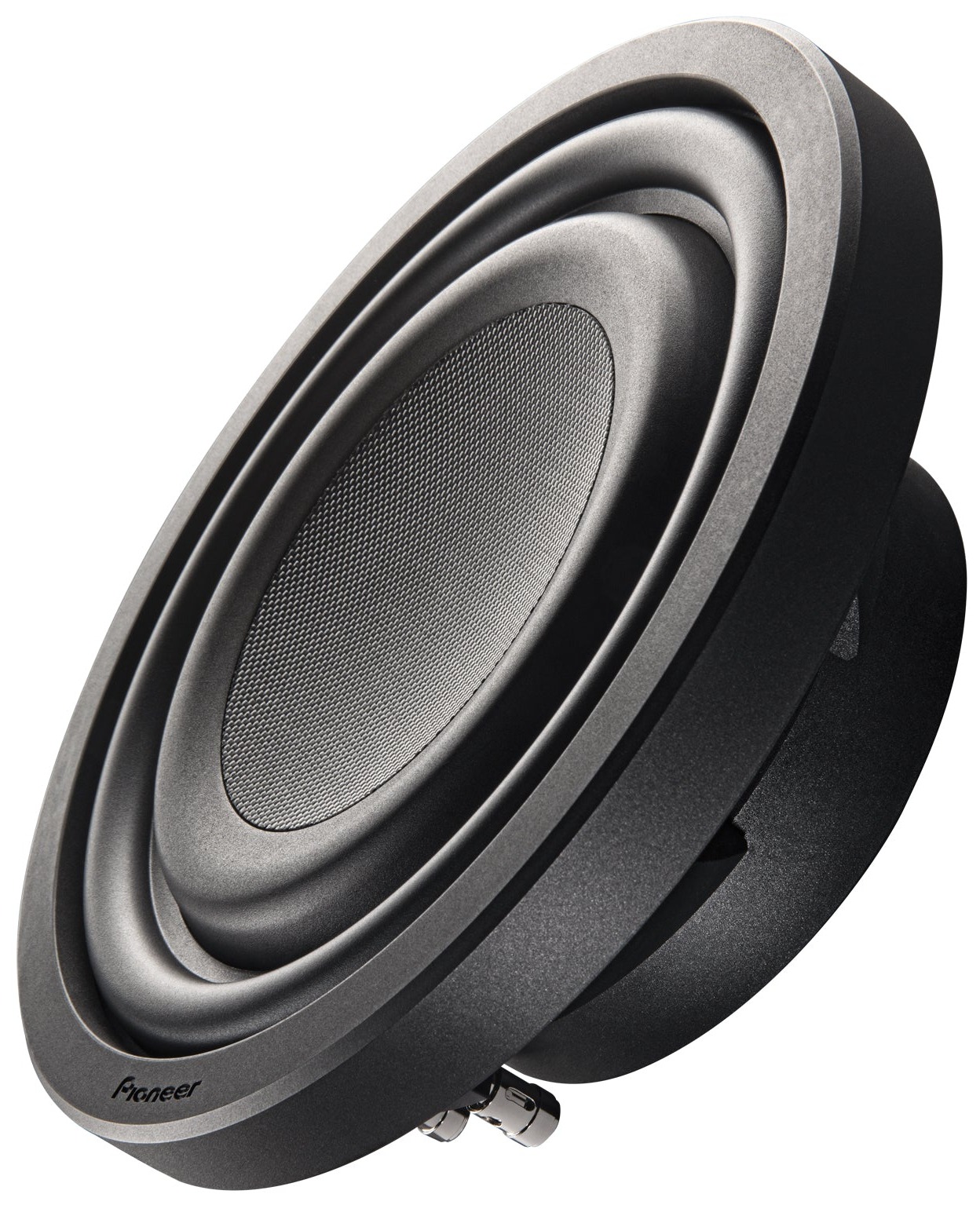

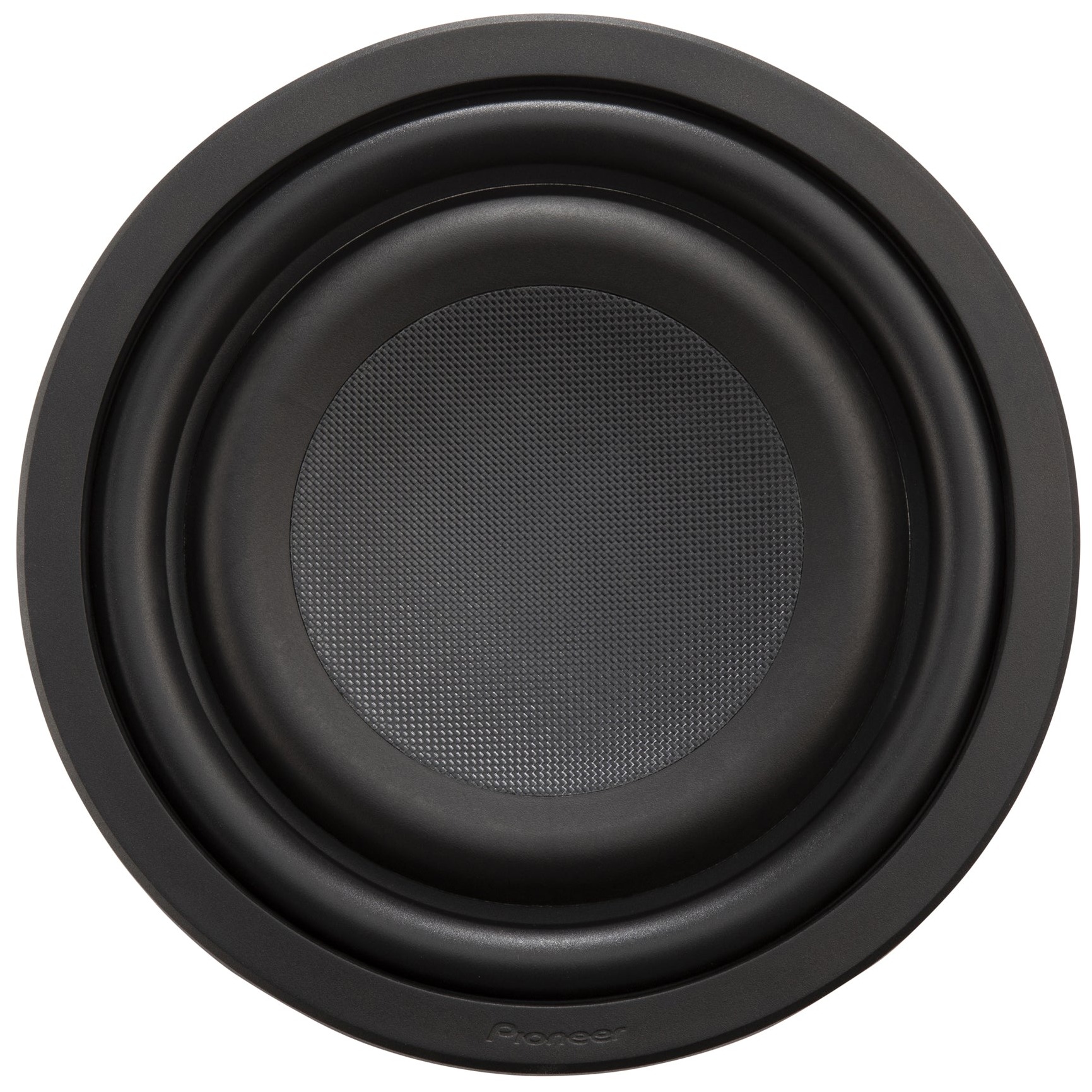

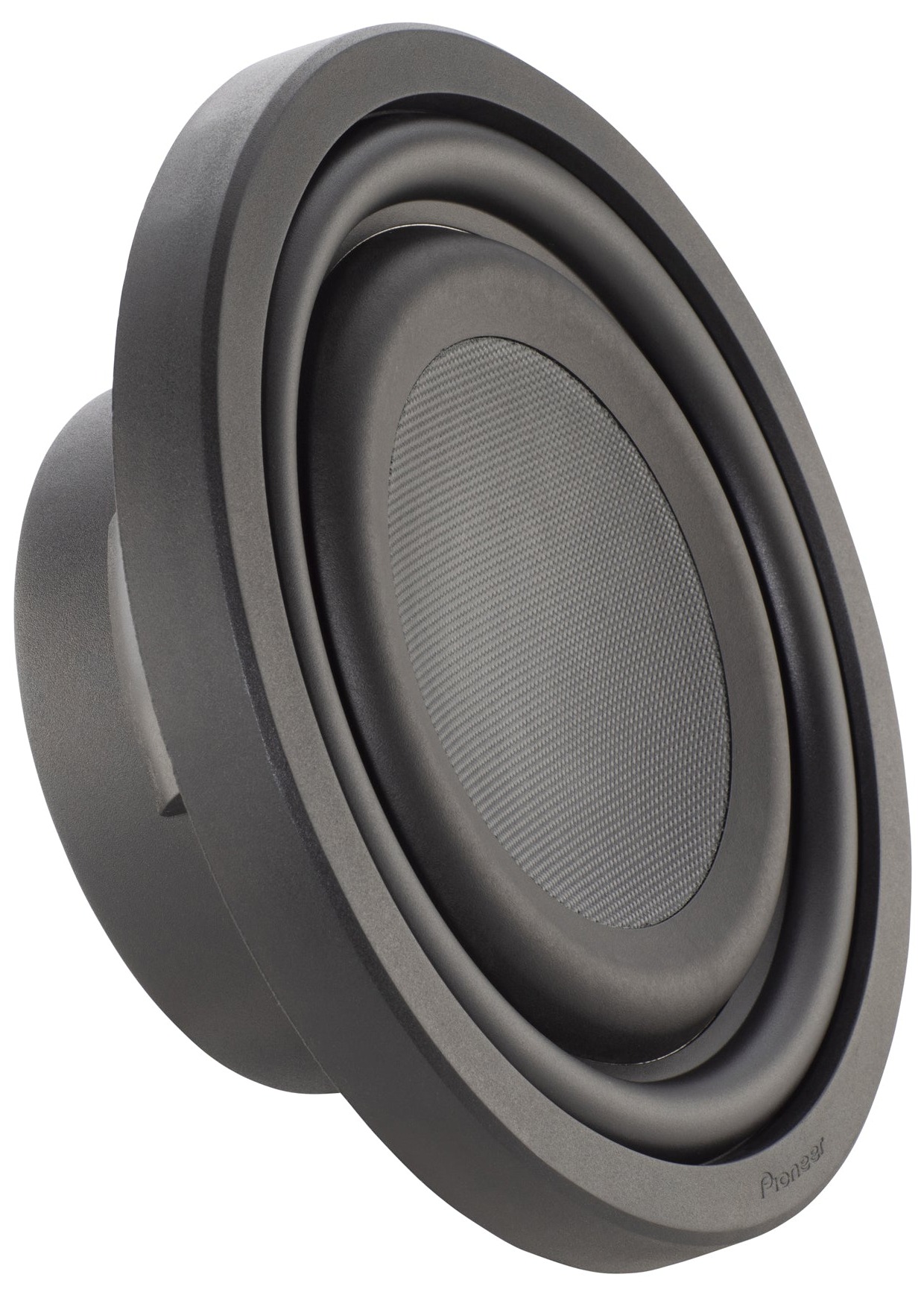

Pioneer TS-Z10LS2
2Ω
4ΩSubwoofer
| Nominal diameter | 10″ / 232 mm |
| Resonance | 34 Hz |
| Q factor | 0.48 |
| Sensitivity | 85.5 dB |
| Linear excursion | ± 9.4 mm |
| Program Power | 800 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.5dB
- Frequency response 20 - 3800Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 34Hz
- Mechanical quality factor QMS 10.80
- Electrical quality factor QES 0.50
- Total quality factor QTS 0.48
Large signal parameters
- Maximum linear excursion xmax 9.4mm
- Air volume displaced at xmax VD 362cm³
- Power handling P 400W
- Program power Pmax 800W
- Peak power Ppeak 1300W
Voice Coil
- Nominal impedance Z 2Ω
- DC resistance RE 1.7Ω
- Inductance (1kHz) LE 1.74mH
- Winding material Copper
- Former material Glass imide
Magnet
- Force factor Bl 13.2N/A
- Motor constant Bl/√RE 10.1N/√W
- Weight 1.928kg
- Material Ferrite
Diaphragm
- Effective diameter 221mm
- Effective area SD 385cm²
- Moving mass MMS 204g
- Moving mass (without air load) MMD 199g
- Material Twaron Aramid Fiber
Suspensions
- Stiffness KMS 9.09N/mm
- Compliance CMS 110µm/N
- Equivalent volume to the compliance VAS 23.1L
- Mechanical resistance RMS 4.06N·s/m
- Surround material Rolled Rubber
- Spider material Poly cotton
Dimensions
- Nominal diameter 10″
- 232mm
- Overall diameter 232mm
- Baffle cutout diameter 232mm
- Mounting depth 83mm
- Volume occupied by the driver 0.45L
