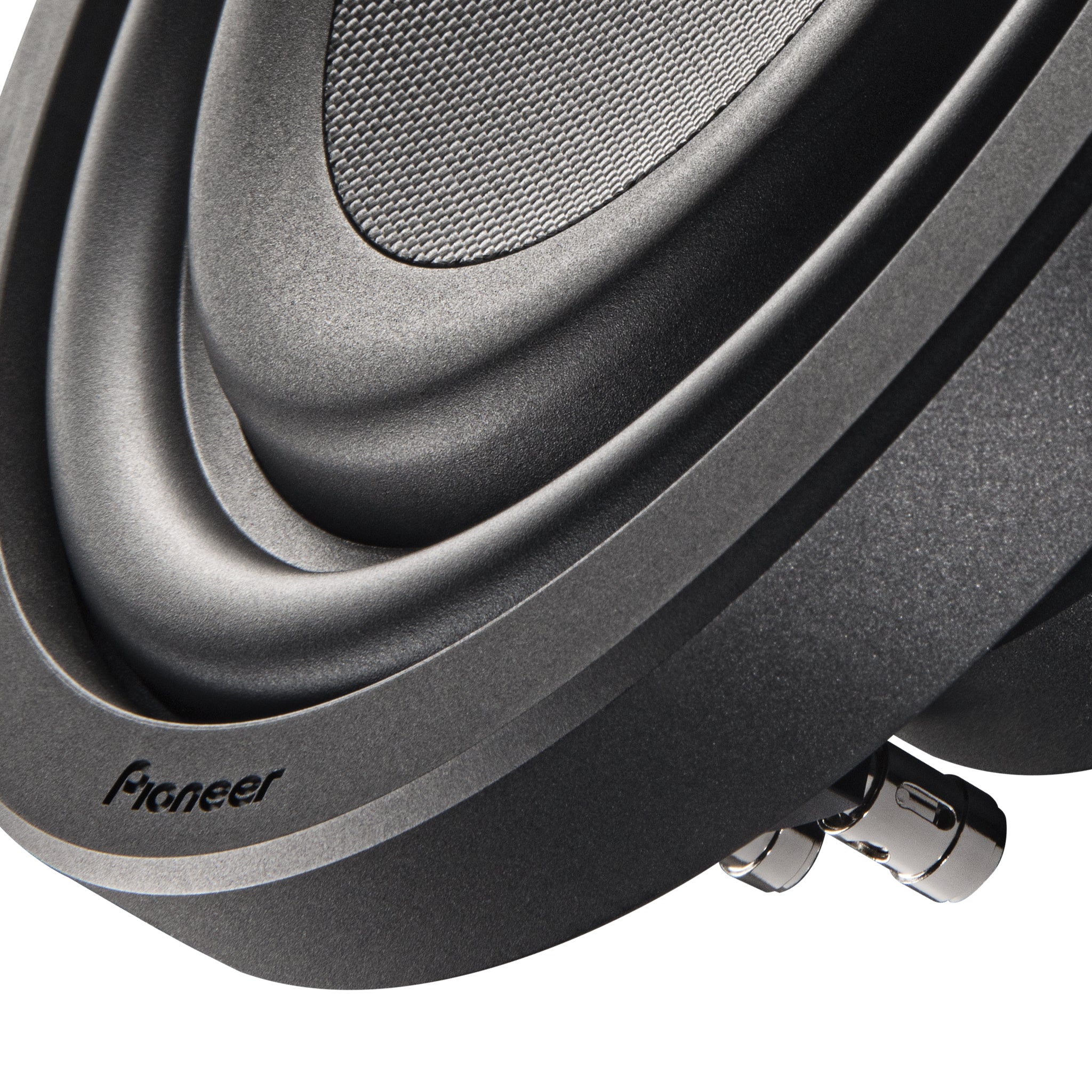

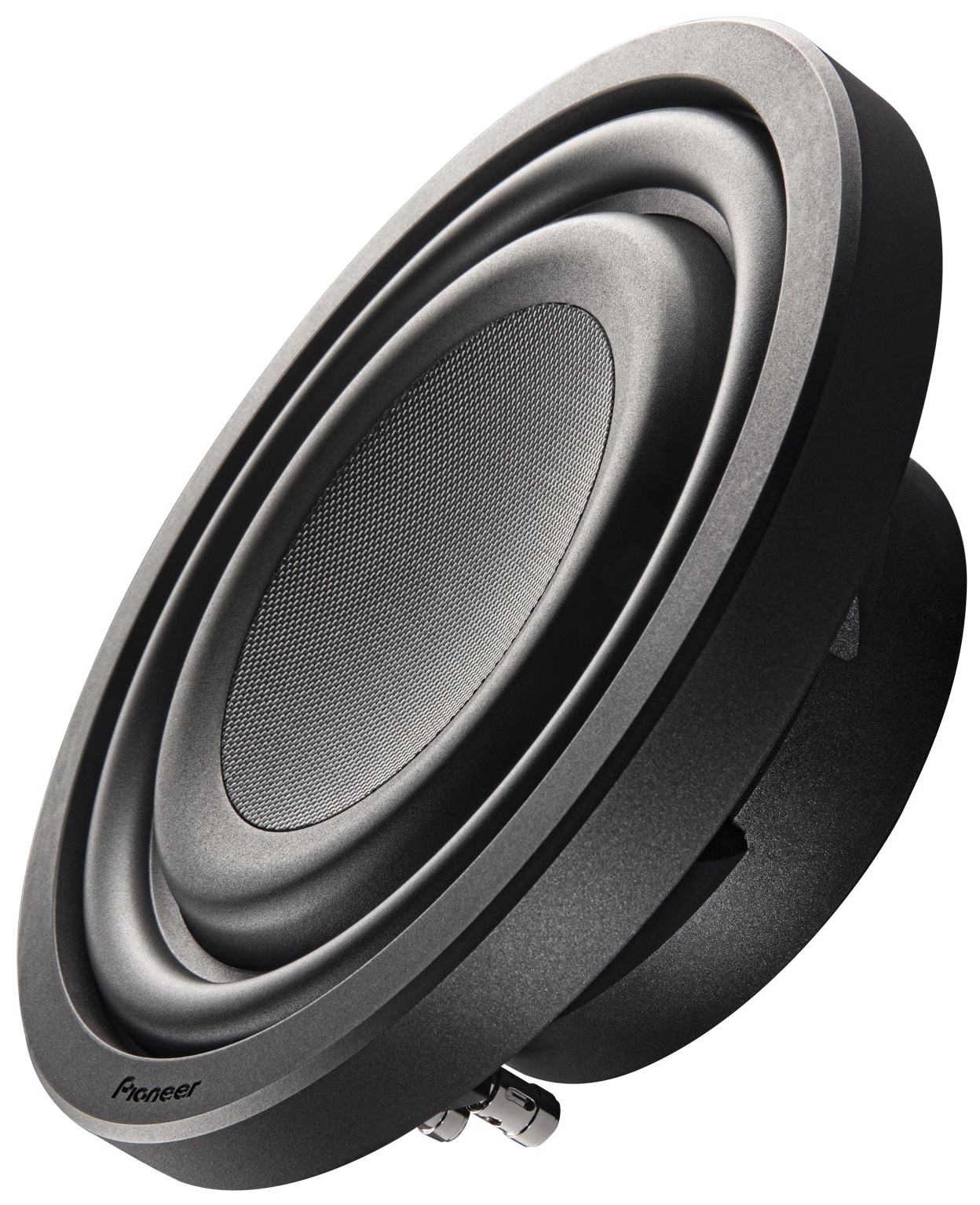

Pioneer TS-Z10LS4
2Ω
4Ω
Subwoofer
| Nominal diameter | 10″ / 232 mm |
| Resonance | 35 Hz |
| Q factor | 0.52 |
| Sensitivity | 85.4 dB |
| Linear excursion | ± 9.5 mm |
| Program Power | 800 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.4dB
- Frequency response 20 - 3800Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 35Hz
- Mechanical quality factor QMS 11.37
- Electrical quality factor QES 0.55
- Total quality factor QTS 0.52
Large signal parameters
- Maximum linear excursion xmax 9.5mm
- Air volume displaced at xmax VD 370cm³
- Power handling P 400W
- Program power Pmax 800W
- Peak power Ppeak 1300W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.3Ω
- Inductance (1kHz) LE 2.85mH
- Winding material Copper
- Former material Glass imide
Magnet
- Force factor Bl 16.7N/A
- Motor constant Bl/√RE 9.19N/√W
- Weight 1.928kg
- Material Ferrite
Diaphragm
- Effective diameter 223mm
- Effective area SD 390cm²
- Moving mass MMS 190g
- Moving mass (without air load) MMD 185g
- Material Twaron Aramid Fiber
Suspensions
- Stiffness KMS 9.09N/mm
- Compliance CMS 110µm/N
- Equivalent volume to the compliance VAS 23.7L
- Mechanical resistance RMS 3.66N·s/m
- Surround material Rolled Rubber
- Spider material Poly cotton
Dimensions
- Nominal diameter 10″
- 232mm
- Overall diameter 232mm
- Baffle cutout diameter 232mm
- Mounting depth 83mm
- Volume occupied by the driver 0.45L
