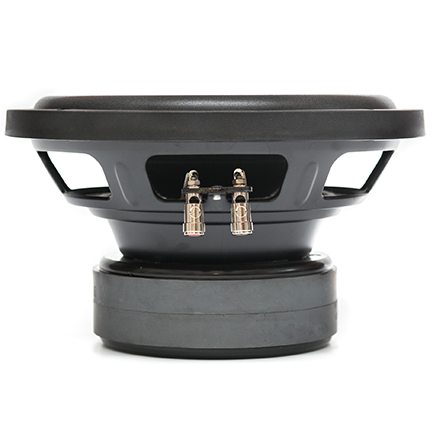

Pride LP 10

• Sensitivity (1W, 1m, infinite baffle) SPL1W 84.7dB

Thiele & Small parameters

• Resonance frequency (free air) fS 38.2Hz
• Mechanical quality factor QMS 5.93
• Electrical quality factor QES 0.55
• Total quality factor QTS 0.50

Large signal parameters

• Maximum linear excursion xmax 16mm
• Air volume displaced at xmax VD 539cm³
• Power handling P 450W
• Program power Pmax 900W

Voice Coil

• Nominal impedance Z 4Ω
• DC resistance RE 3.3Ω
• Inductance (1kHz, estimated) LE 2.1mH
• VC Diameter 63.5mm

Magnet

• Force factor Bl 15N/A
• Motor constant Bl/√RE 8.26N/√W
• Weight 2.65kg
• Material Ferrite

Diaphragm

• Effective diameter 207mm
• Effective area SD 337cm²
• Moving mass MMS 155g
• Moving mass (without air load) MMD 151g

Suspensions

• Stiffness KMS 8.93N/mm
• Compliance CMS 112µm/N
• Equivalent volume to the compliance VAS 18L
• Mechanical resistance RMS 6.27N·s/m

Dimensions

• Nominal diameter 10″
• 254mm
• Baffle cutout diameter 236mm
• Overall depth 131mm
• Volume occupied by the driver (estimated) 1.9L
• Net weight 6.3kg
• Frame material Steel
