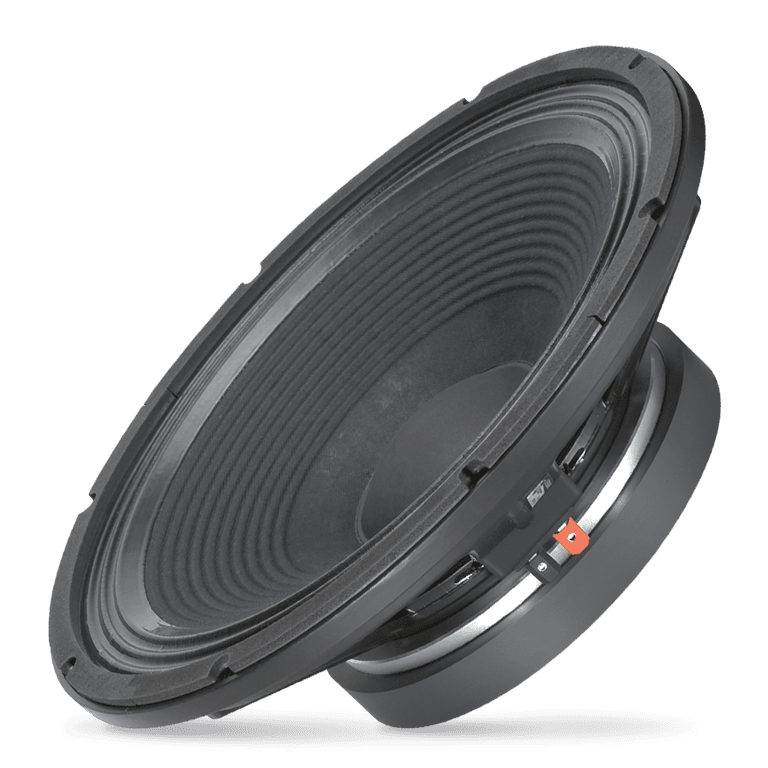

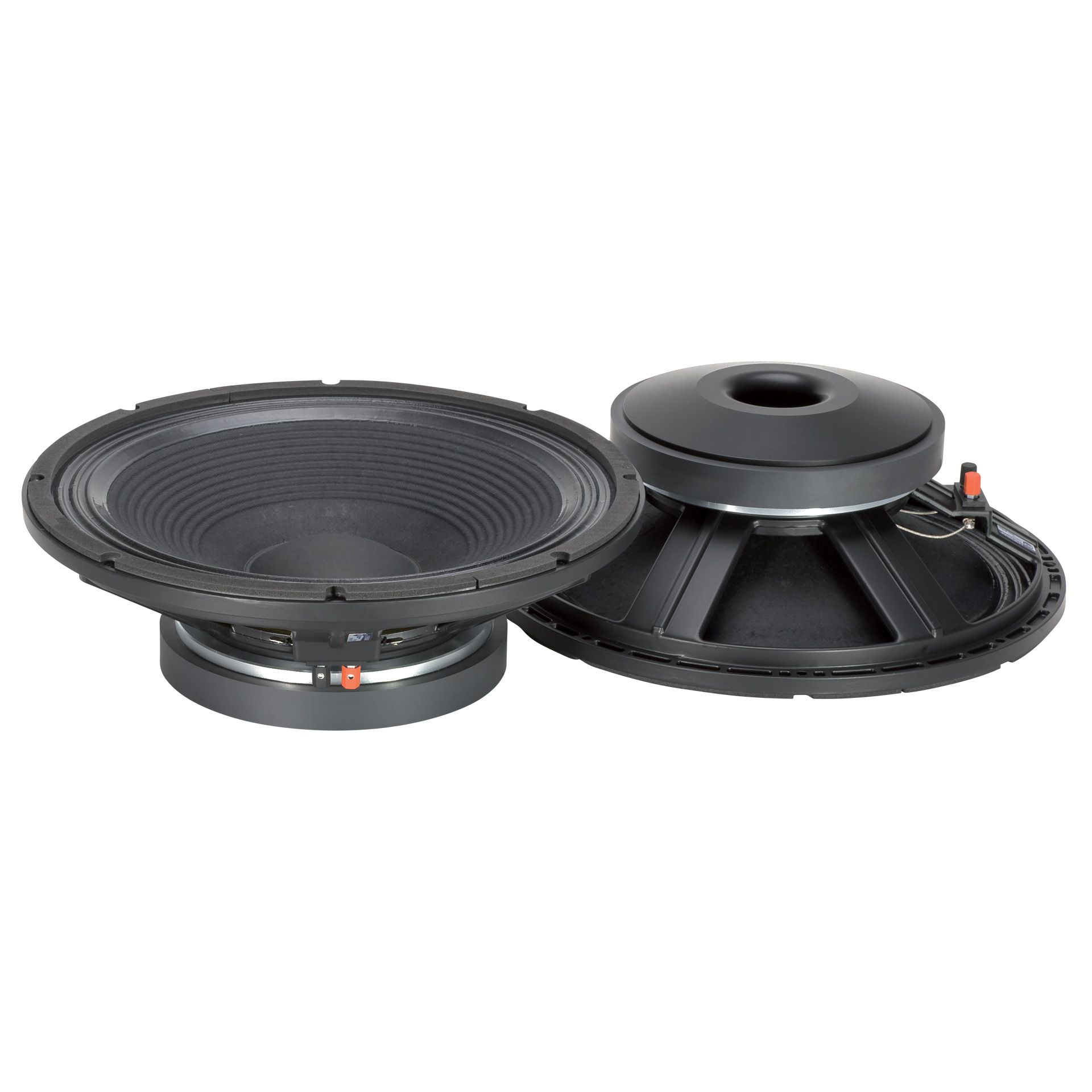

RCF L15P200 AK-II
8Ω
Woofer
| Nominal diameter | 15″ / 381 mm |
| Resonance | 38 Hz |
| Q factor | 0.34 |
| Sensitivity | 94.5 dB |
| Linear excursion | ± 10 mm |
| Program Power | 1600 W |
Discontinued
.png)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.5dB
- Frequency response 35 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 38Hz
- Mechanical quality factor QMS 8.10
- Electrical quality factor QES 0.35
- Total quality factor QTS 0.34
Large signal parameters
- Maximum linear excursion xmax 10mm
- Maximum excursion before damage xlim 18mm
- Air volume displaced at xmax VD 800cm³
- Power handling P 800W
- Program power Pmax 1600W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.5Ω
- Inductance (1kHz) LE 1.5mH
- VC Diameter 102mm
- Winding height HVC 24mm
- Winding material Copper
Magnet
- Force factor Bl 25.8N/A
- Motor constant Bl/√RE 10.1N/√W
- Material Ceramic
Diaphragm
- Effective diameter 325mm
- Effective area SD 800cm²
- Moving mass MMS 134g
- Moving mass (without air load) MMD 118g
Suspensions
- Stiffness KMS 6.54N/mm
- Compliance CMS 153µm/N
- Equivalent volume to the compliance VAS 139L
- Mechanical resistance RMS 3.95N·s/m
- Surround material Polycotton
Dimensions
- Nominal diameter 15″
- 381mm
- Overall diameter 387mm
- Baffle cutout diameter 362mm
- Overall depth 136mm
- Flange thickness 9mm
- Mounting depth 127mm
- Volume occupied by the driver 3.4L
- Net weight 11.0kg
