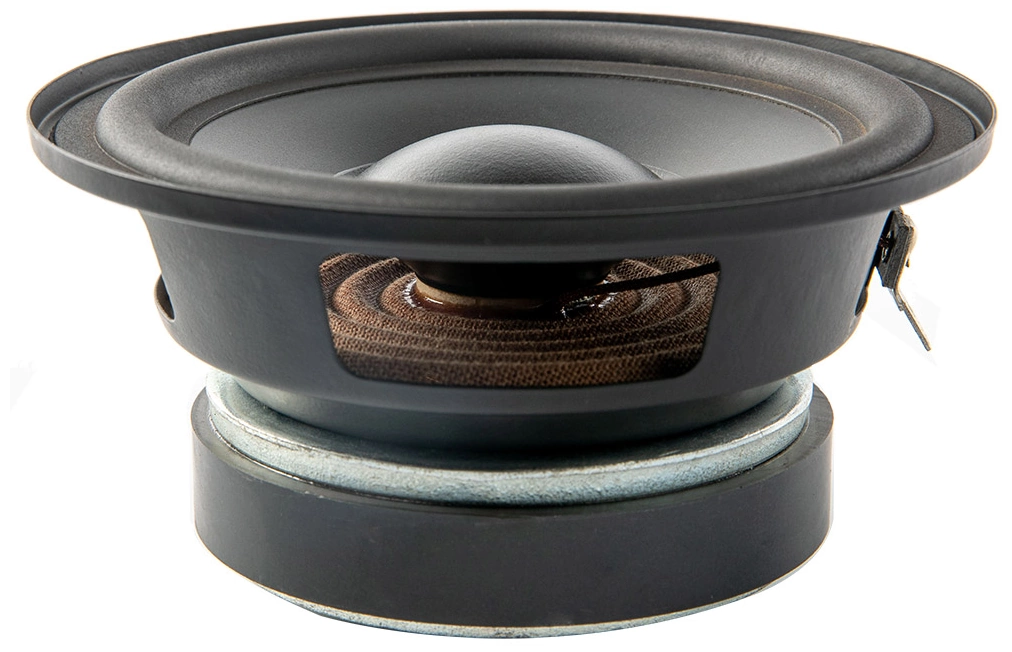

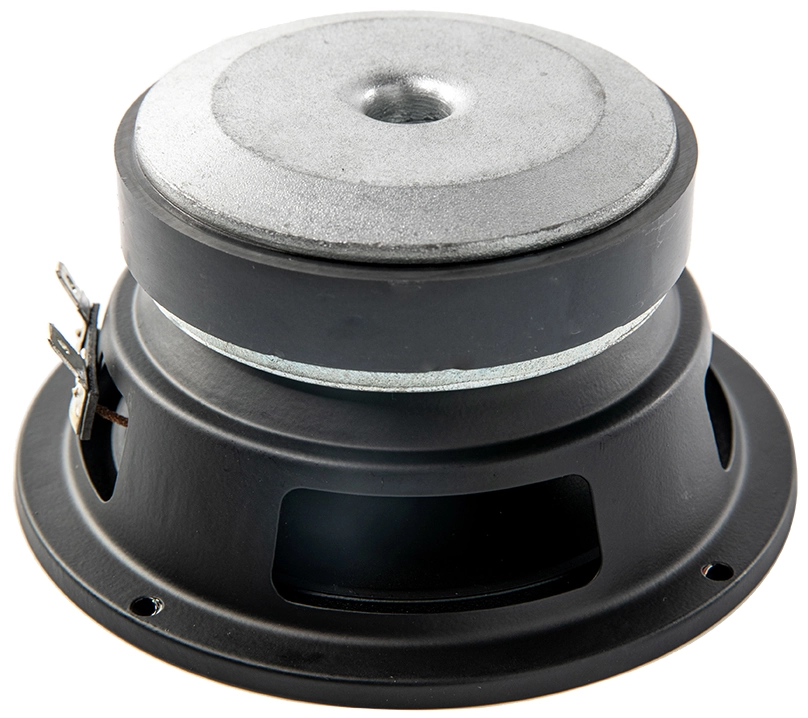

REDCATT 5FHW
4Ω
Woofer
| Nominal diameter | 5″ / 131 mm |
| Resonance | 50 Hz |
| Q factor | 0.35 |
| Sensitivity | 85.4 dB |
| Linear excursion | ± 5.6 mm |
| Program Power | 60 W |

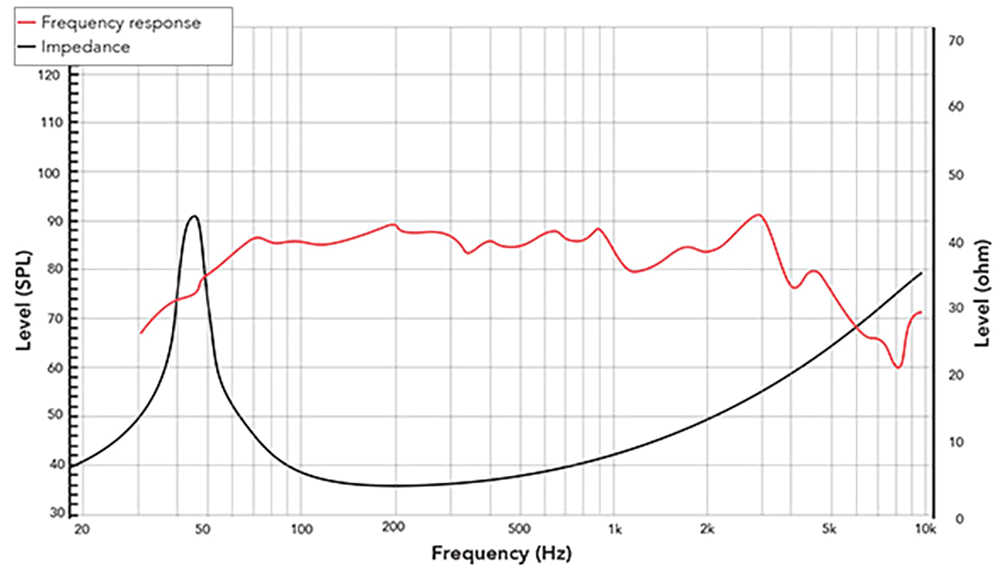

.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.4dB
Thiele & Small parameters
- Resonance frequency (free air) fS 50Hz
- Mechanical quality factor QMS 4.94
- Electrical quality factor QES 0.38
- Total quality factor QTS 0.35
Large signal parameters
- Maximum linear excursion (one way) xmax 5.6mm
- Air volume displaced at xmax VD 49cm³
- Power handling P 30W
- Program power Pmax 60W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.2Ω
- Inductance (1kHz) LE 0.66mH
- VC Diameter 25.4mm
- Winding height HVC 12.4mm
- Winding material Copper
- Former material Aluminum
Magnet
- Force factor Bl 6.55N/A
- Motor constant Bl/√RE 3.66N/√W
- Air gap height HAG 6mm
- Material Ferrite
Diaphragm
- Effective diameter 105mm
- Effective area SD 86.6cm²
- Moving mass MMS 15.8g
- Moving mass (without air load) MMD 15.2g
- Material Polypropylene
Suspensions
- Stiffness KMS 1.6N/mm
- Compliance CMS 625µm/N
- Equivalent volume to the compliance VAS 6.55L
- Mechanical resistance RMS 1N·s/m
- Surround material Rubber
- Spider material Conex
Dimensions
- Nominal diameter 5″
- 131mm
- Overall diameter 131mm
- Baffle cutout diameter 112mm
- Mounting depth 60mm
- Volume occupied by the driver (estimated) 0.49L
- Net weight 1.23kg
