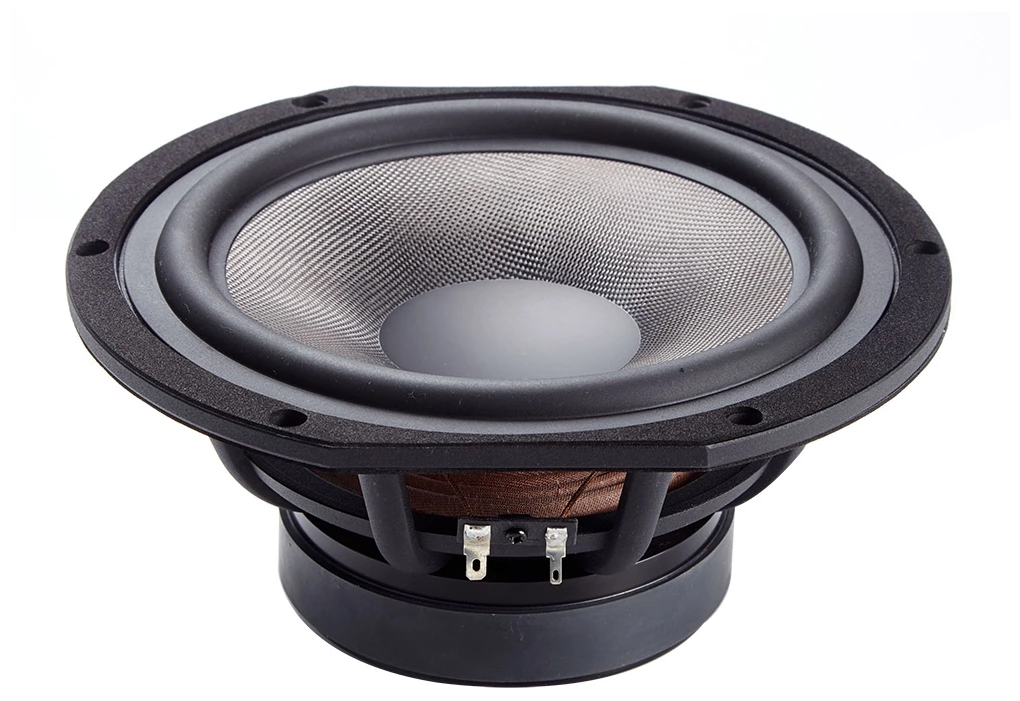

REDCATT 8FHM
4Ω
Woofer
| Nominal diameter | 8″ / 224 mm |
| Resonance | 38 Hz |
| Q factor | 0.39 |
| Sensitivity | 88.3 dB |
| Linear excursion | ± 9.1 mm |
| Program Power | 100 W |
.webp)

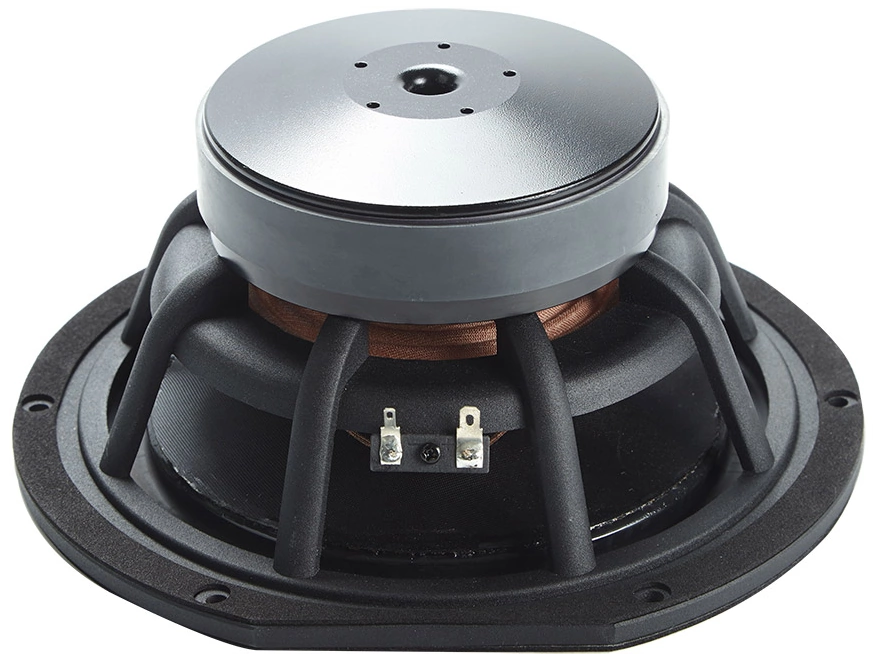

.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.3dB
Thiele & Small parameters
- Resonance frequency (free air) fS 38Hz
- Mechanical quality factor QMS 12.90
- Electrical quality factor QES 0.41
- Total quality factor QTS 0.39
Large signal parameters
- Maximum linear excursion (one way) xmax 9.1mm
- Air volume displaced at xmax VD 188cm³
- Power handling P 50W
- Program power Pmax 100W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.6Ω
- Inductance (1kHz) LE 0.46mH
- VC Diameter 35.6mm
- Winding height HVC 18mm
- Winding material Copper Clad Aluminium
- Former material kapton
Magnet
- Force factor Bl 8.19N/A
- Motor constant Bl/√RE 4.32N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 162mm
- Effective area SD 206cm²
- Moving mass MMS 31.5g
- Moving mass (without air load) MMD 29.2g
- Material CF Honeycomb
Suspensions
- Stiffness KMS 1.83N/mm
- Compliance CMS 548µm/N
- Equivalent volume to the compliance VAS 32.1L
- Mechanical resistance RMS 0.58N·s/m
- Surround material Rubber
- Spider material Nomex
Dimensions
- Nominal diameter 8″
- 224mm
- Overall diameter 224mm
- Baffle cutout diameter 189mm
- Mounting depth 95mm
- Volume occupied by the driver (estimated) 1.2L
- Net weight 2.8kg

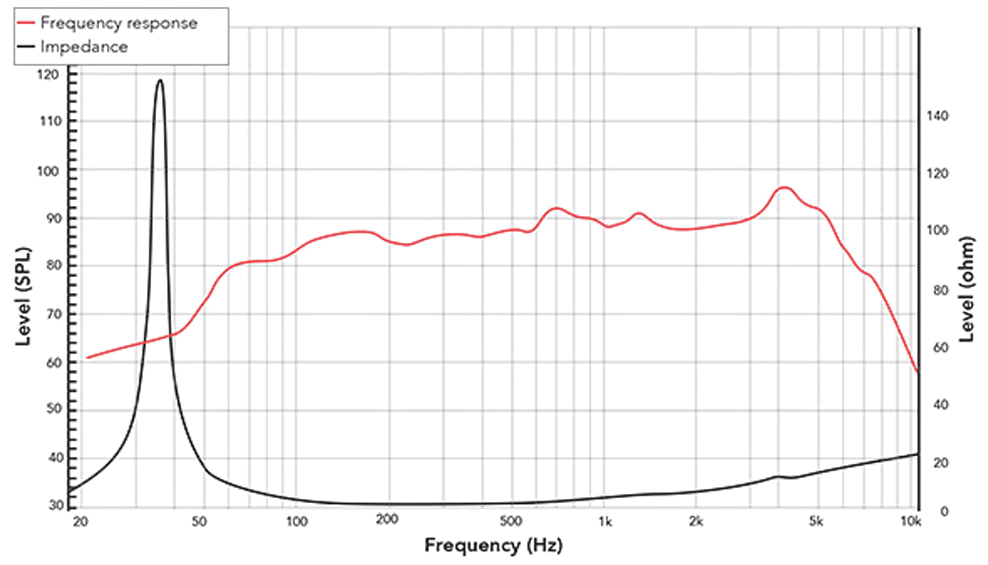

.webp)
.webp)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
MfbLabs
