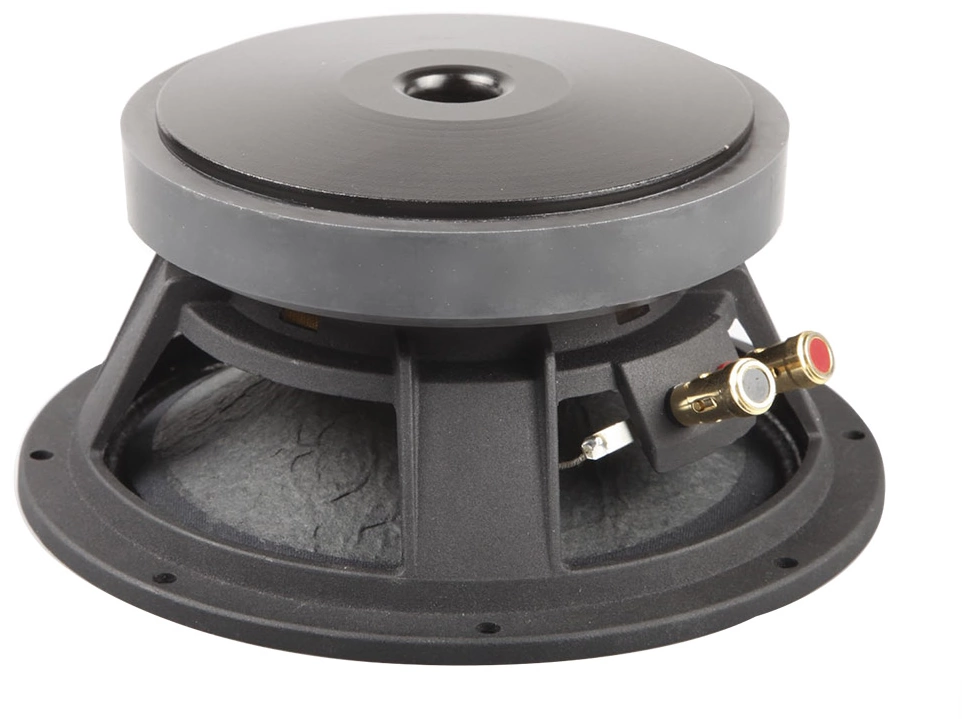

REDCATT 8FIND
8Ω
Mid Bass
| Nominal diameter | 8″ / 210 mm |
| Resonance | 70 Hz |
| Q factor | 0.25 |
| Sensitivity | 95.5 dB |
| Linear excursion | ± 4.7 mm |
| Program Power | 400 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.5dB
Thiele & Small parameters
- Resonance frequency (free air) fS 70Hz
- Mechanical quality factor QMS 6.40
- Electrical quality factor QES 0.25
- Total quality factor QTS 0.25
Large signal parameters
- Maximum linear excursion (one way) xmax 4.7mm
- Air volume displaced at xmax VD 107cm³
- Power handling P 200W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.7Ω
- Inductance (1kHz) LE 0.48mH
- VC Diameter 50.8mm
- Winding height HVC 12.4mm
- Winding material Copper Clad Aluminium
- Former material kapton
Magnet
- Force factor Bl 14.3N/A
- Motor constant Bl/√RE 5.99N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 170mm
- Effective area SD 227cm²
- Moving mass MMS 20.7g
- Moving mass (without air load) MMD 18.2g
- Material Paper
Suspensions
- Stiffness KMS 3.94N/mm
- Compliance CMS 254µm/N
- Equivalent volume to the compliance VAS 18.2L
- Mechanical resistance RMS 1.42N·s/m
- Surround material Fabric
- Spider material Nomex
Dimensions
- Nominal diameter 8″
- 210mm
- Overall diameter 210mm
- Baffle cutout diameter 185mm
- Mounting depth 92mm
- Volume occupied by the driver (estimated) 1.6L
- Net weight 3.73kg
