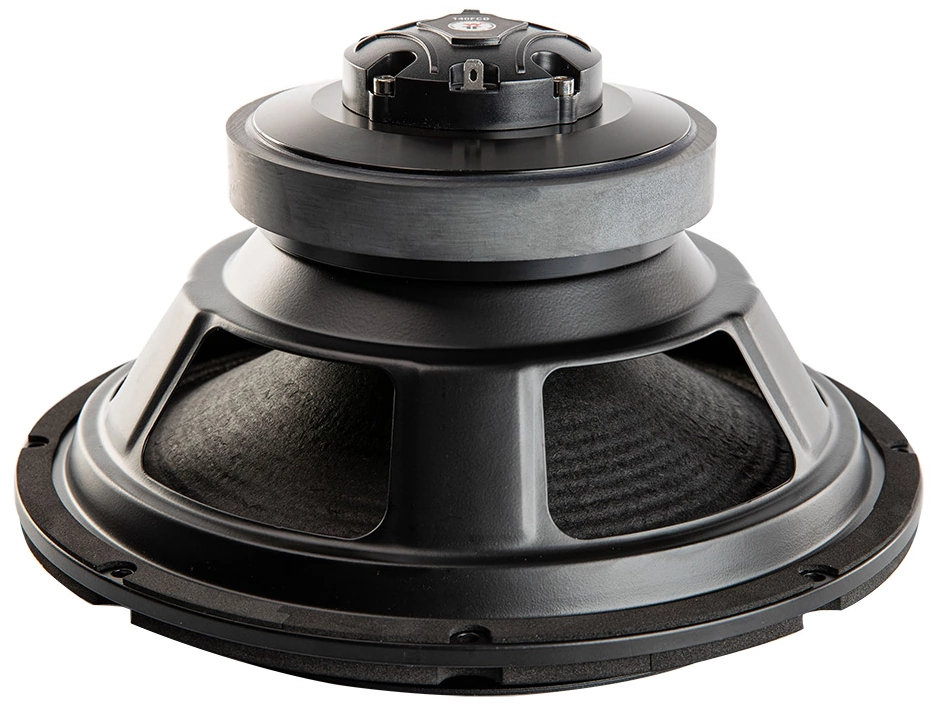

REDCATT CX10F140
8Ω
Coaxial
| Nominal diameter | 10″ / 256 mm |
| Resonance | 75 Hz |
| Q factor | 0.65 |
| Sensitivity | 92.9 dB |
| Linear excursion | ± 5.8 mm |
| Program Power | 400 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92.9dB
Thiele & Small parameters
- Resonance frequency (free air) fS 75Hz
- Mechanical quality factor QMS 5.03
- Electrical quality factor QES 0.75
- Total quality factor QTS 0.65
Large signal parameters
- Maximum linear excursion (one way) xmax 5.8mm
- Air volume displaced at xmax VD 201cm³
- Power handling P 200W
- Program power Pmax 400W
- Peak power Ppeak 800W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.5Ω
- Inductance (1kHz) LE 0.49mH
- VC Diameter 50.8mm
- Winding height HVC 12mm
- Winding material CCAW / CCAW
- Former material kapton / kapton
Magnet
- Force factor Bl 10.4N/A
- Motor constant Bl/√RE 4.42N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 210mm
- Effective area SD 346cm²
- Moving mass MMS 31.2g
- Moving mass (without air load) MMD 26.6g
- Material Paper / Polymer
Suspensions
- Stiffness KMS 6.9N/mm
- Compliance CMS 145µm/N
- Equivalent volume to the compliance VAS 24.2L
- Mechanical resistance RMS 2.92N·s/m
- Surround material Fabric / Polymer
- Spider material Nomex
Dimensions
- Nominal diameter 10″
- 256mm
- Overall diameter 256mm
- Baffle cutout diameter 232mm
- Mounting depth 121mm
- Volume occupied by the driver (estimated) 1.3L
- Net weight 3.1kg
.webp)
.webp)
