| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 30.6 Hz |
| Q factor | 0.37 |
| Sensitivity | 87.5 dB |
| Linear excursion | ± 6.2 mm |
| Program Power | 100 W |
Driver
Port
Combined

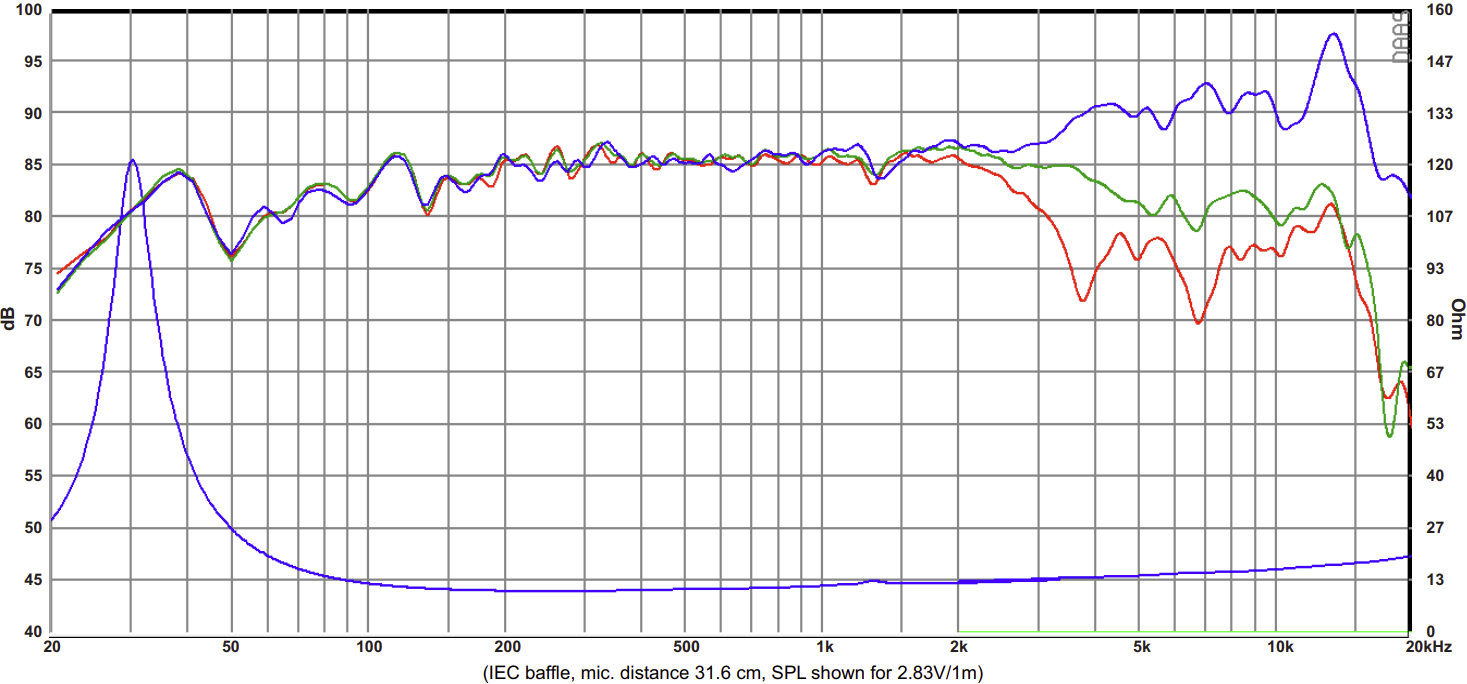

Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.5dB
Thiele & Small parameters
- Resonance frequency (free air) fS 30.6Hz
- Mechanical quality factor QMS 4.81
- Electrical quality factor QES 0.40
- Total quality factor QTS 0.37
Large signal parameters
- Maximum linear excursion xmax 6.2mm
- Air volume displaced at xmax VD 74cm³
- Power handling P 50W
- Program power Pmax 100W
Voice Coil
- Nominal impedance Z 12Ω
- DC resistance RE 10.0Ω
- Inductance (1kHz) LE 0.19mH
- VC Diameter 35.5mm
- Winding height HVC 17.4mm
- Winding material Copper Clad Aluminium
- Former material Glass Fiber
Magnet
- Flux density B 1.17T
- Force factor Bl 7.4N/A
- Motor constant Bl/√RE 2.34N/√W
- Air gap height HAG 5mm
- Weight 0.13kg
- Material Neodymium
Diaphragm
- Effective diameter 123mm
- Effective area SD 119cm²
- Moving mass MMS 11.5g
- Moving mass (without air load) MMD 10.5g
- Material EGYPTIAN PAPYRUS™ fibres (made in-house)
Suspensions
- Stiffness KMS 0.426N/mm
- Compliance CMS 2350µm/N
- Equivalent volume to the compliance VAS 47.3L
- Mechanical resistance RMS 0.46N·s/m
- Surround material Rubber
- Spider material BIMAX

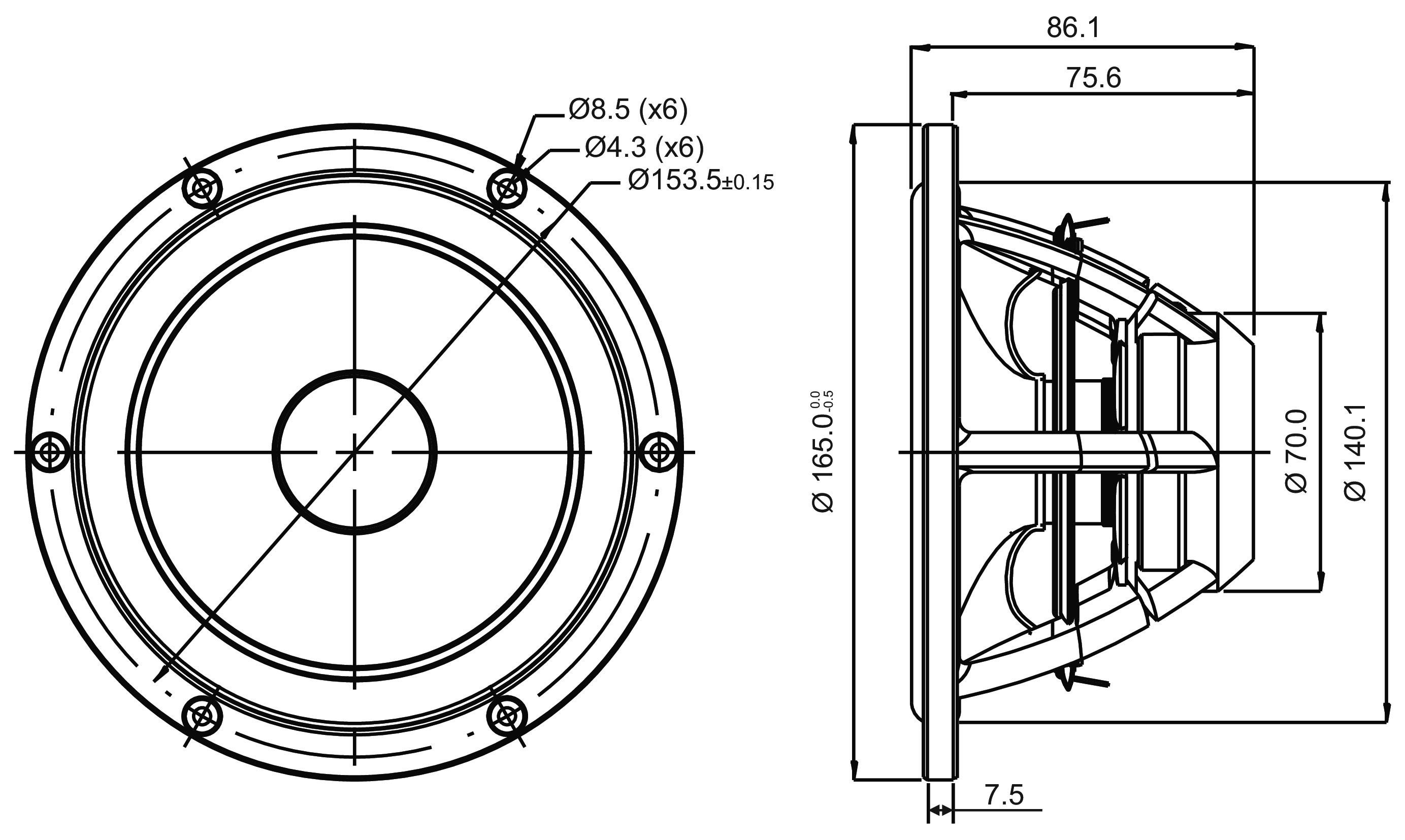

Dimensions
- Nominal diameter 6.5″
- 165mm
- Volume occupied by the driver (estimated) 0.4L
- Net weight 1.01kg
- Frame material Cast aluminium
