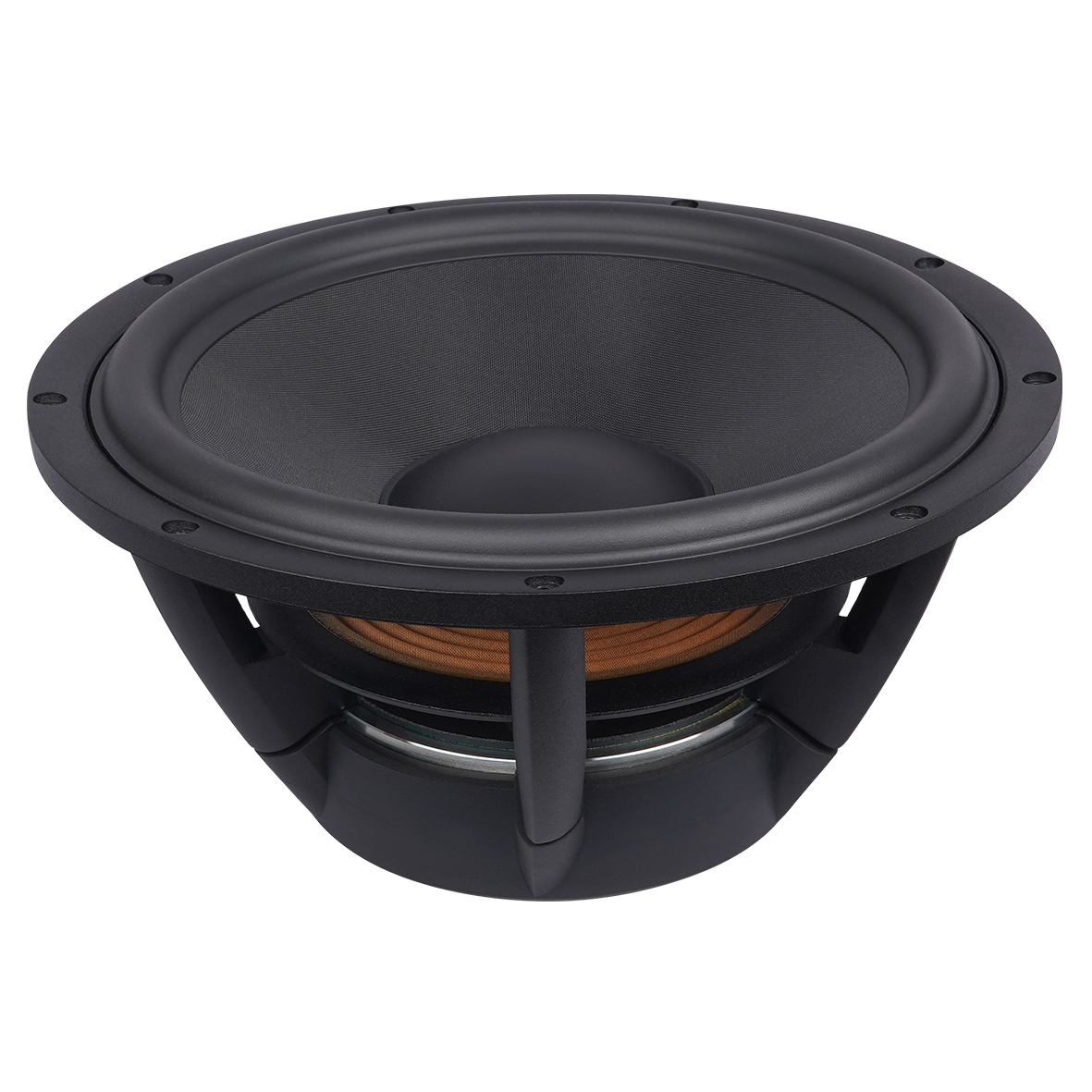

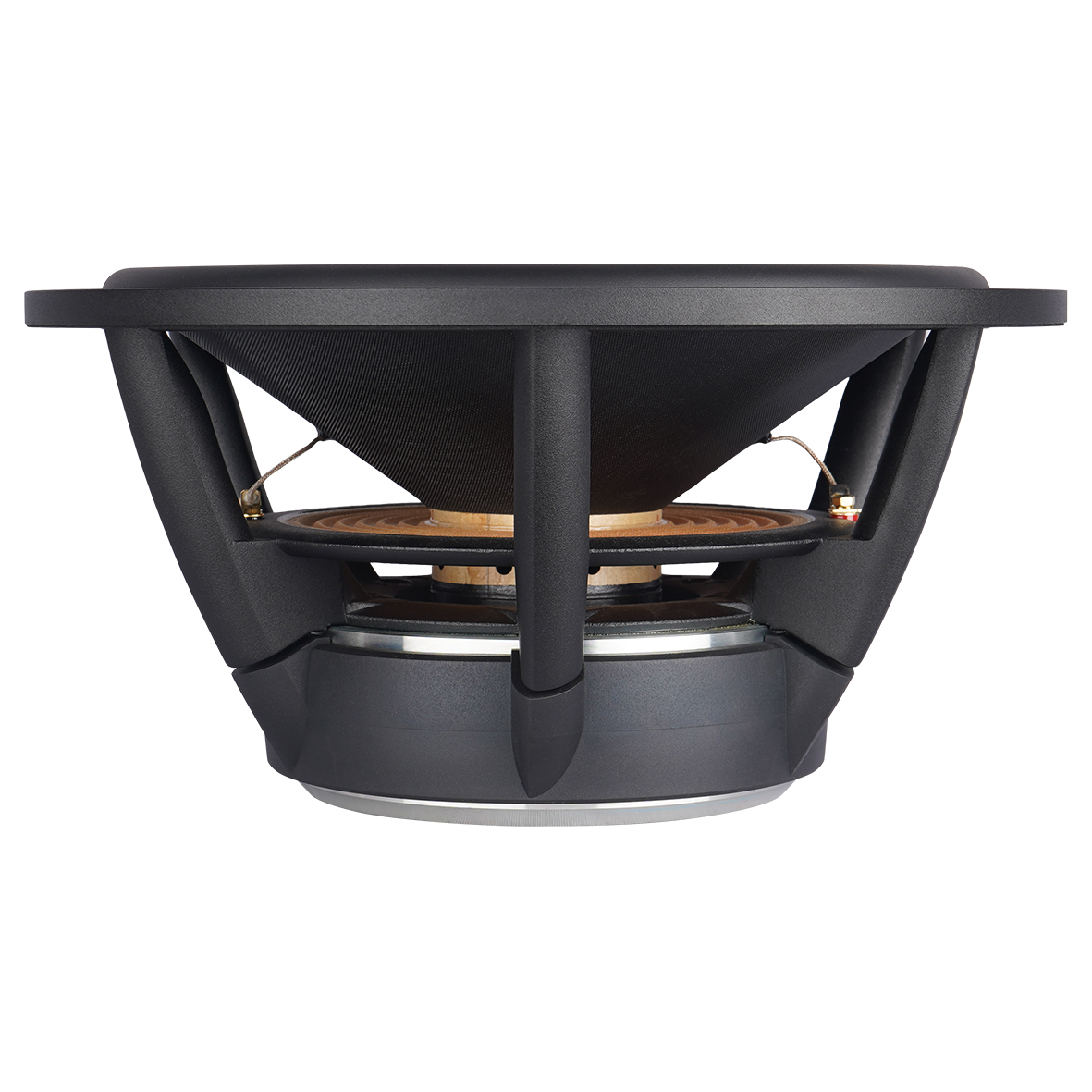

SB Acoustics Satori WO34HC-8
4Ω
8Ω
Woofer
| Nominal diameter | 13.5″ / 343 mm |
| Resonance | 20.2 Hz |
| Q factor | 0.29 |
| Sensitivity | 89.6 dB |
| Linear excursion | ± 8.3 mm |
| Program power | 400 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 89.6dB
Thiele & Small parameters
- Resonance frequency (free air) fS 20.2Hz
- Mechanical quality factor QMS 5.37
- Electrical quality factor QES 0.30
- Total quality factor QTS 0.29
Large signal parameters
- Maximum linear excursion (one way) xmax 8.3mm
- Air volume displaced at xmax VD 486cm³
- Power handling P 200W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.8Ω
- Inductance (1kHz) LE 1mH
- VC Diameter 75.6mm
- Winding height HVC 24.6mm
- Winding material Copper
- Former material Glass Fiber
Magnet
- Flux density B 1.17T
- Force factor Bl 19N/A
- Motor constant Bl/√RE 7.29N/√W
- Air gap height HAG 8mm
- Weight 3.52kg
Diaphragm
- Effective diameter 273mm
- Effective area SD 585cm²
- Moving mass (including air load) MMS 127g
- Moving mass MMD 117g
- Material Honeycomb
Suspensions
- Stiffness KMS 2.04N/mm
- Compliance CMS 490µm/N
- Equivalent volume to the compliance VAS 238L
- Mechanical resistance RMS 3N·s/m
- Surround material Rubber

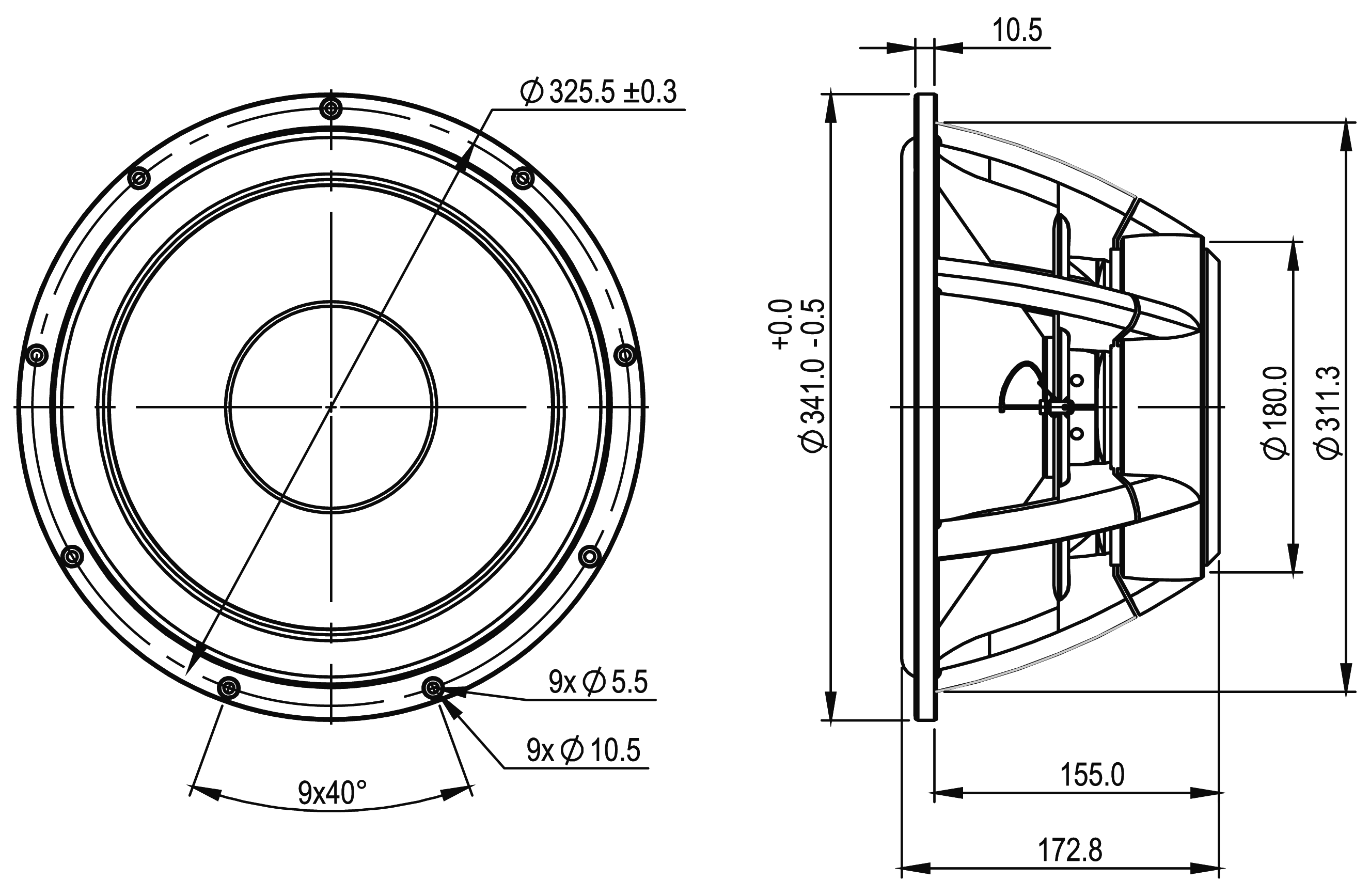

Dimensions
- Nominal diameter 13.5″
- 343mm
- Volume occupied by the driver (estimated) 4.3L
- Net weight 9.52kg
- Frame material Cast aluminium
.png)
.png)
