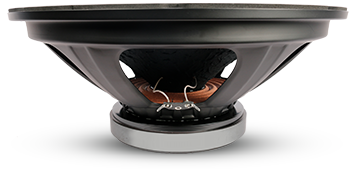

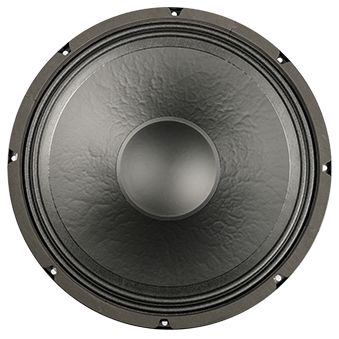

SB Audience BIANCO-15OB350
8Ω
Subwoofer
| Nominal diameter | 15″ / 391 mm |
| Resonance | 34 Hz |
| Q factor | 0.57 |
| Sensitivity | 92.7 dB |
| Linear excursion | ± 11 mm |
| Program Power | 700 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92.7dB

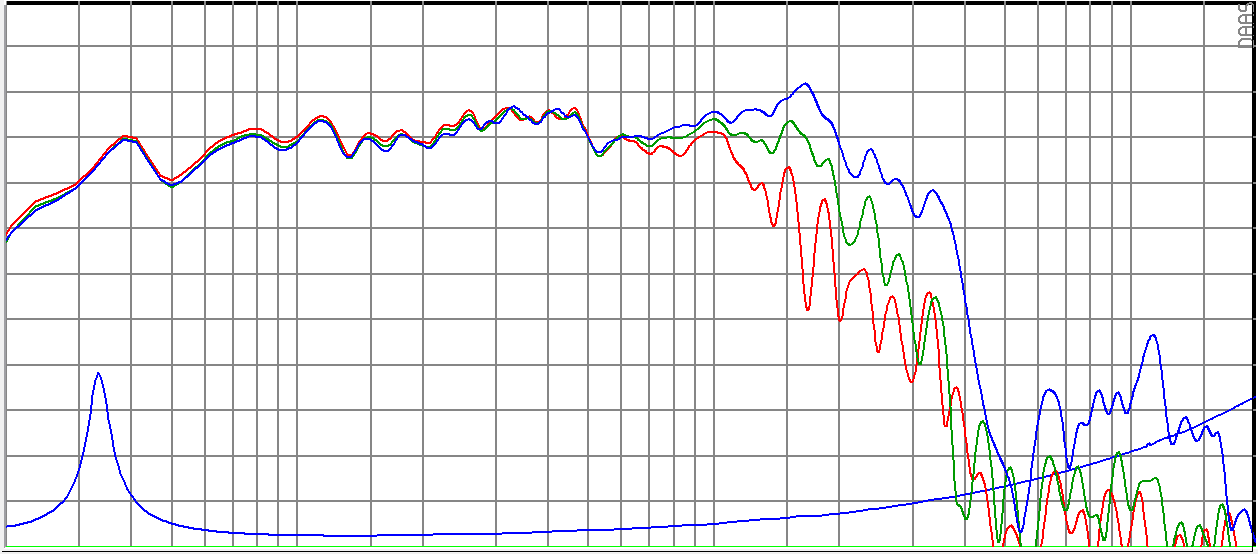

- Frequency response 34 - 3700Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 34Hz
- Mechanical quality factor QMS 12.17
- Electrical quality factor QES 0.60
- Total quality factor QTS 0.57
Large signal parameters
- Maximum linear excursion xmax 11mm
- Maximum excursion before damage xlim 15mm
- Air volume displaced at xmax VD 943cm³
- Power handling P 350W
- Program power Pmax 700W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 7.2Ω
- Inductance (1kHz) LE 1.72mH
- VC Diameter 65.5mm
- Winding height HVC 24.7mm
- Winding material Copper
- Former material Till
Magnet
- Flux density B 1.16T
- Force factor Bl 16.5N/A
- Motor constant Bl/√RE 6.14N/√W
- Air gap height HAG 8mm
- Diameter 180mm
- Material Ferrite
Diaphragm
- Effective diameter 330mm
- Effective area SD 855cm²
- Moving mass MMS 106g
- Moving mass (without air load) MMD 88.9g
- Material Paper
Suspensions
- Stiffness KMS 4.76N/mm
- Compliance CMS 210µm/N
- Equivalent volume to the compliance VAS 213L
- Mechanical resistance RMS 1.87N·s/m

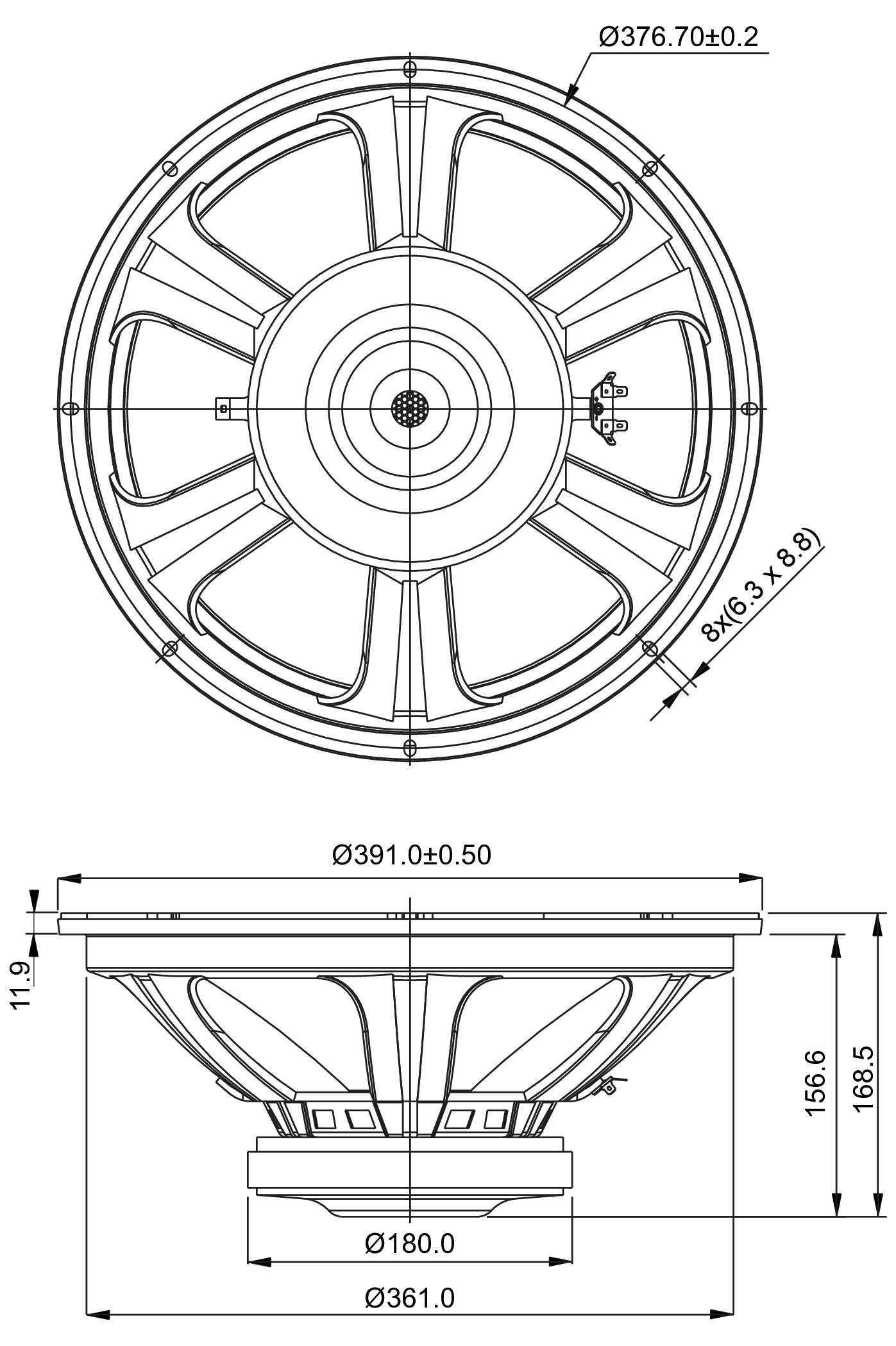

Dimensions
- Nominal diameter 15″
- 391mm
- Overall diameter 391mm
- Baffle cutout diameter 363mm
- Overall depth 169mm
- Flange thickness 12mm
- Mounting depth 157mm
- Volume occupied by the driver 3.87L
- Net weight 6.0kg
- Frame material Stamped steel
.png)
.png)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
