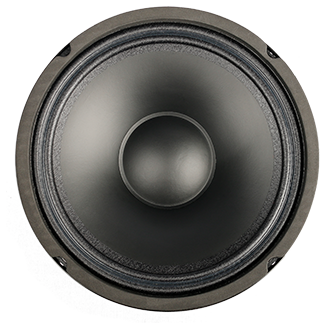

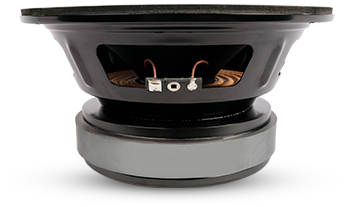

SB Audience BIANCO-8MW125
8Ω
Woofer
| Nominal diameter | 8″ / 206 mm |
| Resonance | 89 Hz |
| Q factor | 0.55 |
| Sensitivity | 92.5 dB |
| Linear excursion | ± 6.4 mm |
| Program Power | 250 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92.5dB
- Frequency response 89 - 7400Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 89Hz
- Mechanical quality factor QMS 14.63
- Electrical quality factor QES 0.57
- Total quality factor QTS 0.55
Large signal parameters
- Maximum linear excursion xmax 6.4mm
- Maximum excursion before damage xlim 8mm
- Air volume displaced at xmax VD 144cm³
- Power handling P 125W
- Program power Pmax 250W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.8Ω
- Inductance (1kHz) LE 0.5mH
- VC Diameter 49.5mm
- Winding height HVC 15.5mm
- Winding material Copper clad aluminium
- Former material Till
Magnet
- Flux density B 1.23T
- Force factor Bl 11.3N/A
- Motor constant Bl/√RE 4.69N/√W
- Air gap height HAG 8mm
- Diameter 140mm
- Material Ferrite
Diaphragm
- Effective diameter 169mm
- Effective area SD 224cm²
- Moving mass MMS 22.8g
- Moving mass (without air load) MMD 20.4g
- Material Paper
Suspensions
- Stiffness KMS 7.14N/mm
- Compliance CMS 140µm/N
- Equivalent volume to the compliance VAS 10.1L
- Mechanical resistance RMS 0.87N·s/m
- Surround material Double half roll with damping glue

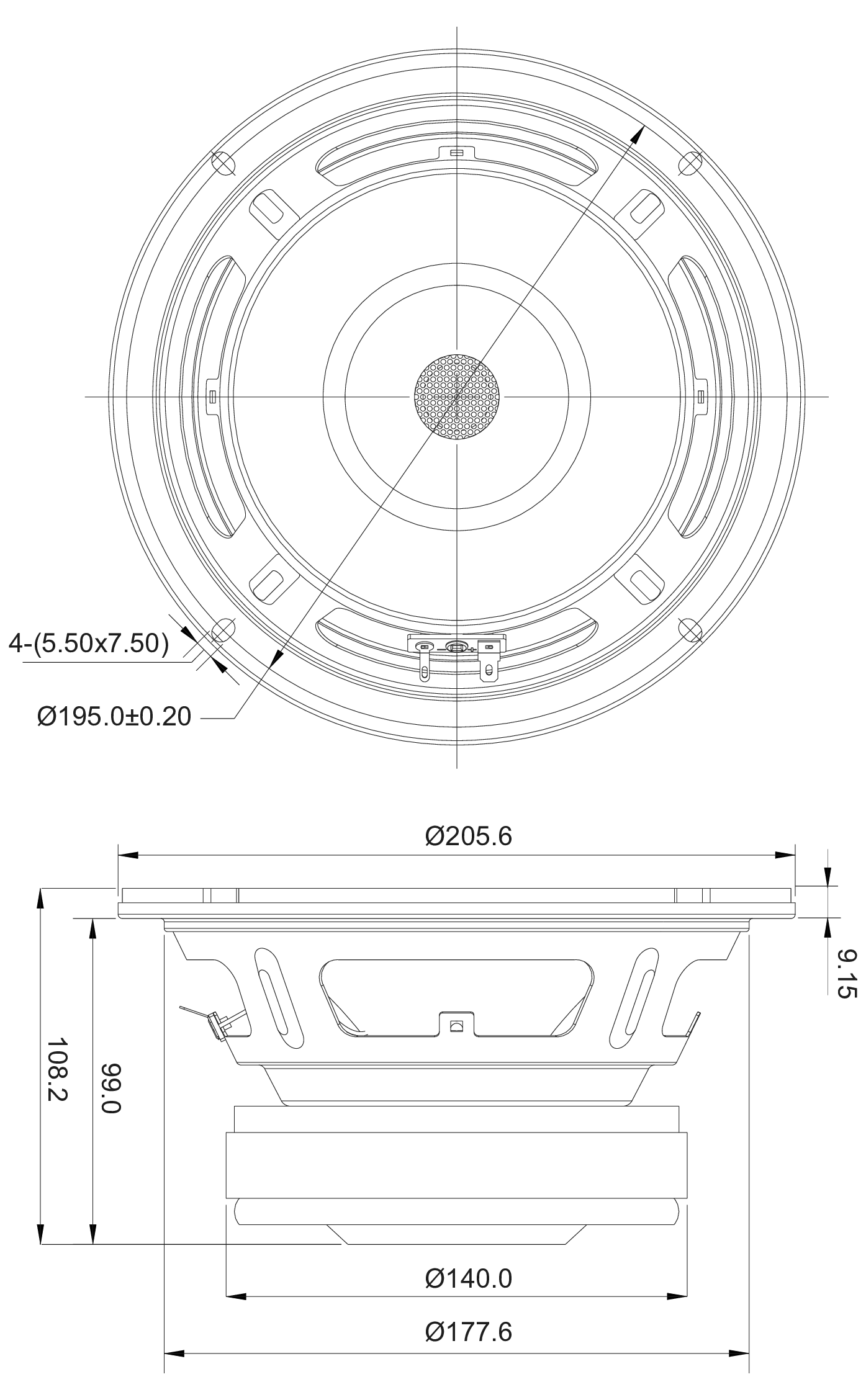

Dimensions
- Nominal diameter 8″
- 206mm
- Overall diameter 206mm
- Baffle cutout diameter 180mm
- Overall depth 108mm
- Flange thickness 9mm
- Mounting depth 99mm
- Volume occupied by the driver 1.54L
- Net weight 3.47kg
- Frame material Stamped steel
.png)
.png)
