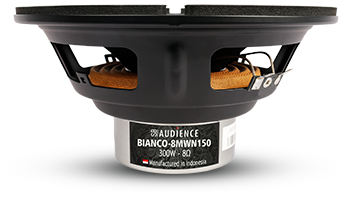

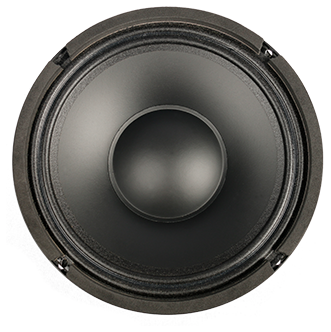

SB Audience BIANCO-8MWN150
8Ω
Woofer
| Nominal diameter | 8″ / 206 mm |
| Resonance | 74 Hz |
| Q factor | 0.38 |
| Sensitivity | 91.7 dB |
| Linear excursion | ± 6 mm |
| Program Power | 300 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 91.7dB
- Frequency response 74 - 6000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 74Hz
- Mechanical quality factor QMS 8.97
- Electrical quality factor QES 0.40
- Total quality factor QTS 0.38
Large signal parameters
- Maximum linear excursion xmax 6mm
- Maximum excursion before damage xlim 8mm
- Air volume displaced at xmax VD 136cm³
- Power handling P 150W
- Program power Pmax 300W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.8Ω
- Inductance (1kHz) LE 1.07mH
- VC Diameter 60.5mm
- Winding height HVC 13.6mm
- Winding material Copper Clad Aluminium
- Former material Till
Magnet
- Flux density B 1.04T
- Force factor Bl 16.5N/A
- Motor constant Bl/√RE 6.33N/√W
- Air gap height HAG 5mm
- Material Neodymium
Diaphragm
- Effective diameter 170mm
- Effective area SD 227cm²
- Moving mass MMS 34g
- Moving mass (without air load) MMD 31.6g
- Material Paper
Suspensions
- Stiffness KMS 7.14N/mm
- Compliance CMS 140µm/N
- Equivalent volume to the compliance VAS 9.9L
- Mechanical resistance RMS 1.76N·s/m

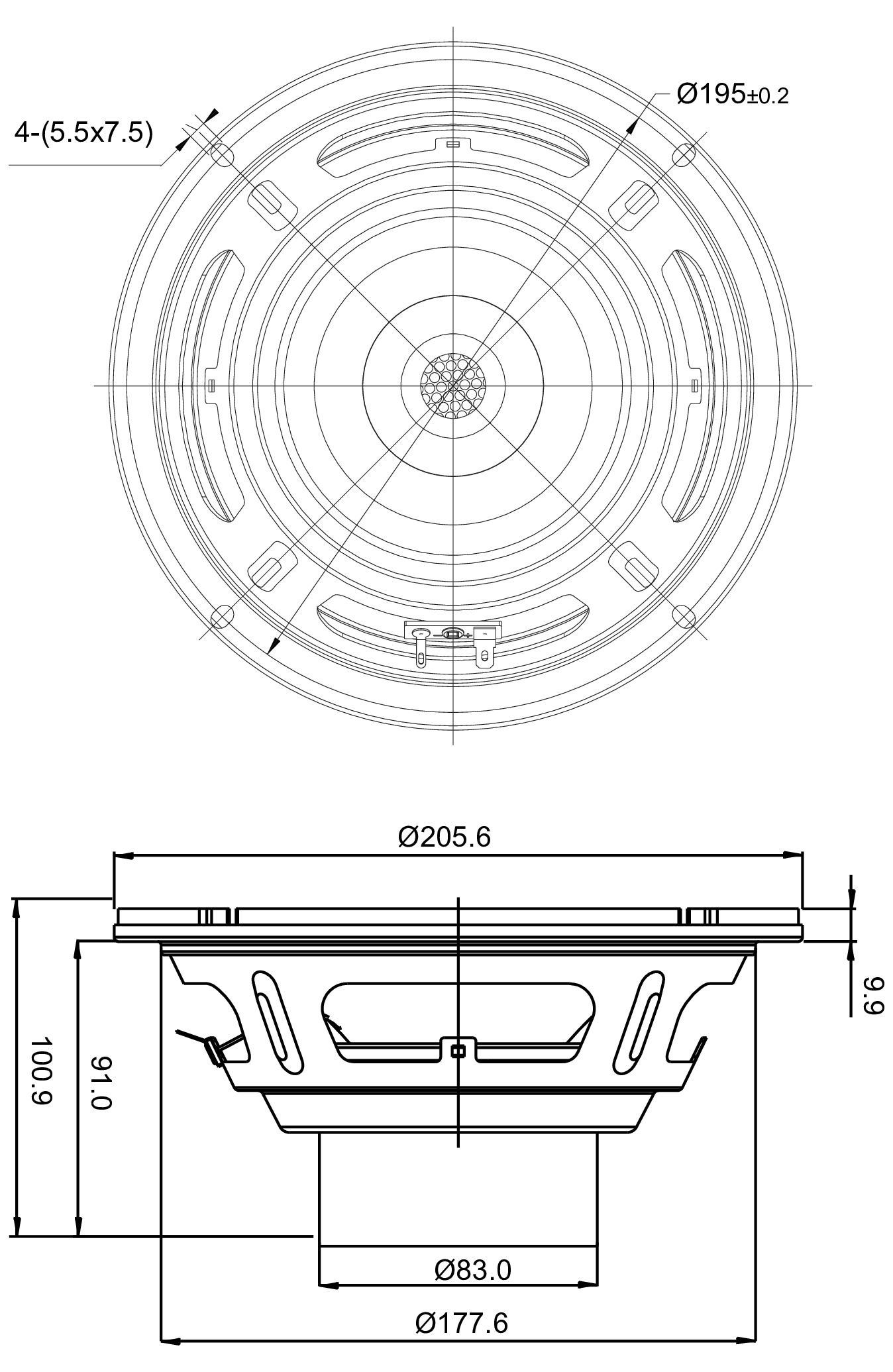

Dimensions
- Nominal diameter 8″
- 206mm
- Overall diameter 206mm
- Baffle cutout diameter 180mm
- Overall depth 101mm
- Flange thickness 10mm
- Mounting depth 91mm
- Volume occupied by the driver 1.23L
- Net weight 1.43kg
- Frame material Stamped steel
.png)
.png)
