SB Audience NERO-10MWN600D
8Ω
Woofer
| Nominal diameter | 10″ / 264 mm |
| Resonance | 68.1 Hz |
| Q factor | 0.34 |
| Sensitivity | 94.3 dB |
| Linear excursion | ± 7.3 mm |
| Program Power | 1200 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.3dB
- Frequency response 68 - 6200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 68.1Hz
- Mechanical quality factor QMS 5.88
- Electrical quality factor QES 0.36
- Total quality factor QTS 0.34
Large signal parameters
- Maximum linear excursion xmax 7.3mm
- Maximum excursion before damage xlim 8.8mm
- Air volume displaced at xmax VD 260cm³
- Power handling P 600W
- Program power Pmax 1200W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.4Ω
- Inductance (1kHz) LE 0.27mH
- VC Diameter 75.6mm
- Winding height HVC 17.8mm
- Winding material Copper
- Former material Till
Magnet
- Flux density B 1.07T
- Force factor Bl 18.2N/A
- Motor constant Bl/√RE 7.83N/√W
- Air gap height HAG 10mm
- Material Neodymium
Diaphragm
- Effective diameter 213mm
- Effective area SD 356cm²
- Moving mass MMS 52.2g
- Moving mass (without air load) MMD 47.3g
- Material Paper with manila pulp
Suspensions
- Stiffness KMS 10N/mm
- Compliance CMS 100µm/N
- Equivalent volume to the compliance VAS 18.8L
- Mechanical resistance RMS 3.8N·s/m
- Surround material Triple roll

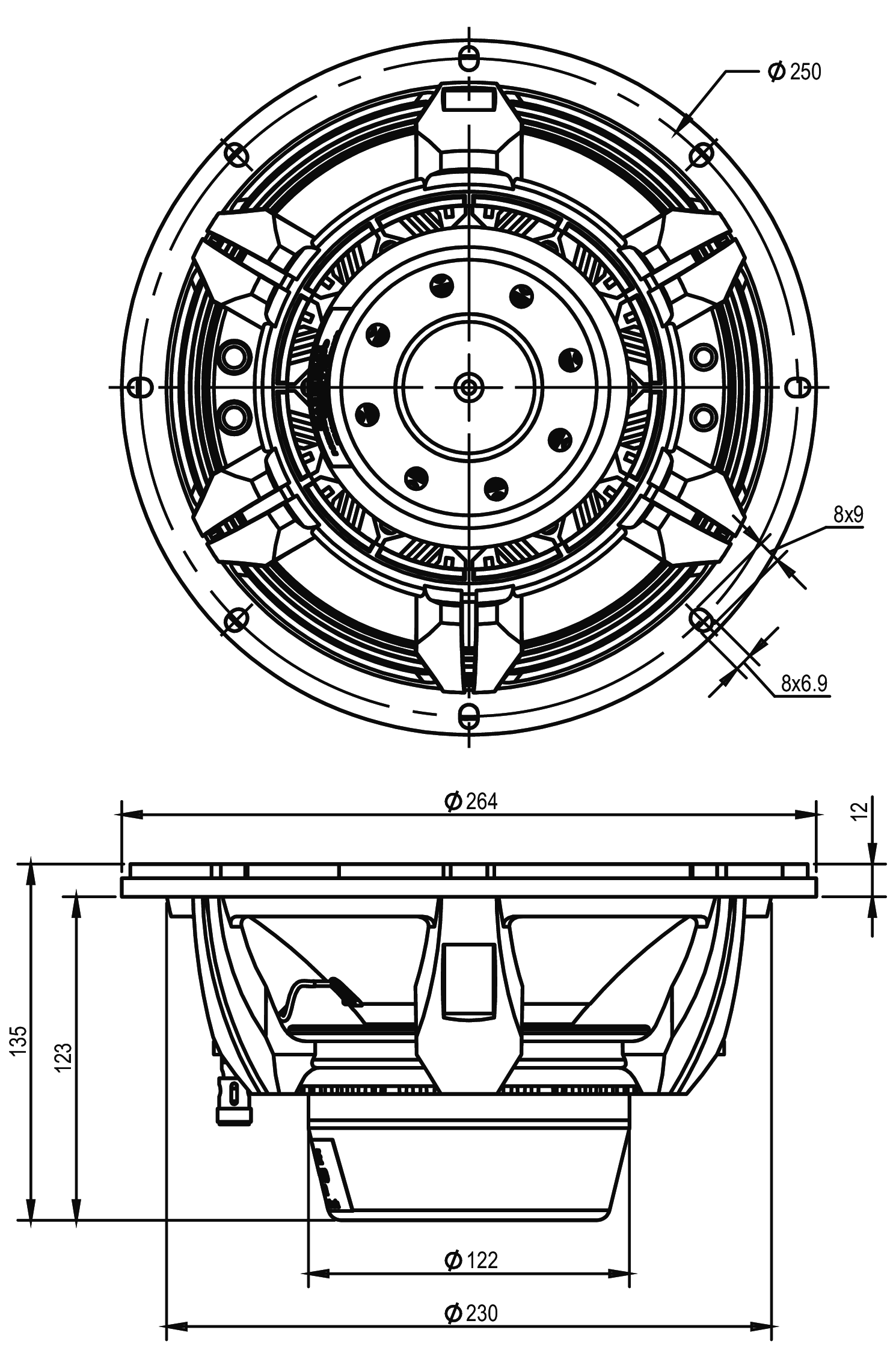

Dimensions
- Nominal diameter 10″
- 264mm
- Overall diameter 264mm
- Baffle cutout diameter 232mm
- Overall depth 135mm
- Flange thickness 12mm
- Mounting depth 123mm
- Volume occupied by the driver 2.55L
- Net weight 3.9kg
- Frame material Aluminium die cast
.png)
.png)
