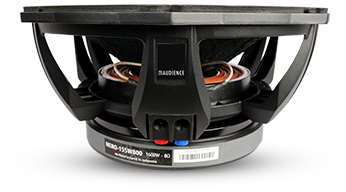

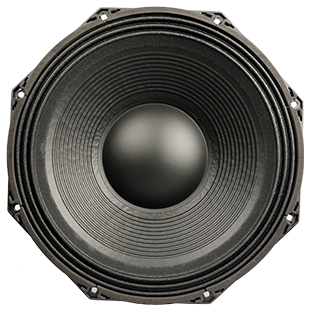

SB Audience NERO-15SW800
8Ω
Subwoofer
| Nominal diameter | 15″ / 404 mm |
| Resonance | 31 Hz |
| Q factor | 0.34 |
| Sensitivity | 92 dB |
| Linear excursion | ± 14.3 mm |
| Program Power | 1600 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92dB
- Frequency response 31 - 2500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 31Hz
- Mechanical quality factor QMS 7.59
- Electrical quality factor QES 0.36
- Total quality factor QTS 0.34
Large signal parameters
- Maximum linear excursion xmax 14.3mm
- Maximum excursion before damage xlim 19mm
- Air volume displaced at xmax VD 1228cm³
- Power handling P 800W
- Program power Pmax 1600W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.3Ω
- Inductance (1kHz) LE 2.08mH
- VC Diameter 113mm
- Winding height HVC 33.2mm
- Winding material Copper
- Former material FIBSV
Magnet
- Flux density B 0.93T
- Force factor Bl 24.4N/A
- Motor constant Bl/√RE 10.6N/√W
- Air gap height HAG 14mm
- Diameter 250mm
- Material Ferrite
Diaphragm
- Effective diameter 331mm
- Effective area SD 861cm²
- Moving mass MMS 207g
- Moving mass (without air load) MMD 189g
- Material Paper / Silk cotton / Manila pulp
Suspensions
- Stiffness KMS 7.69N/mm
- Compliance CMS 130µm/N
- Equivalent volume to the compliance VAS 137L
- Mechanical resistance RMS 5.25N·s/m

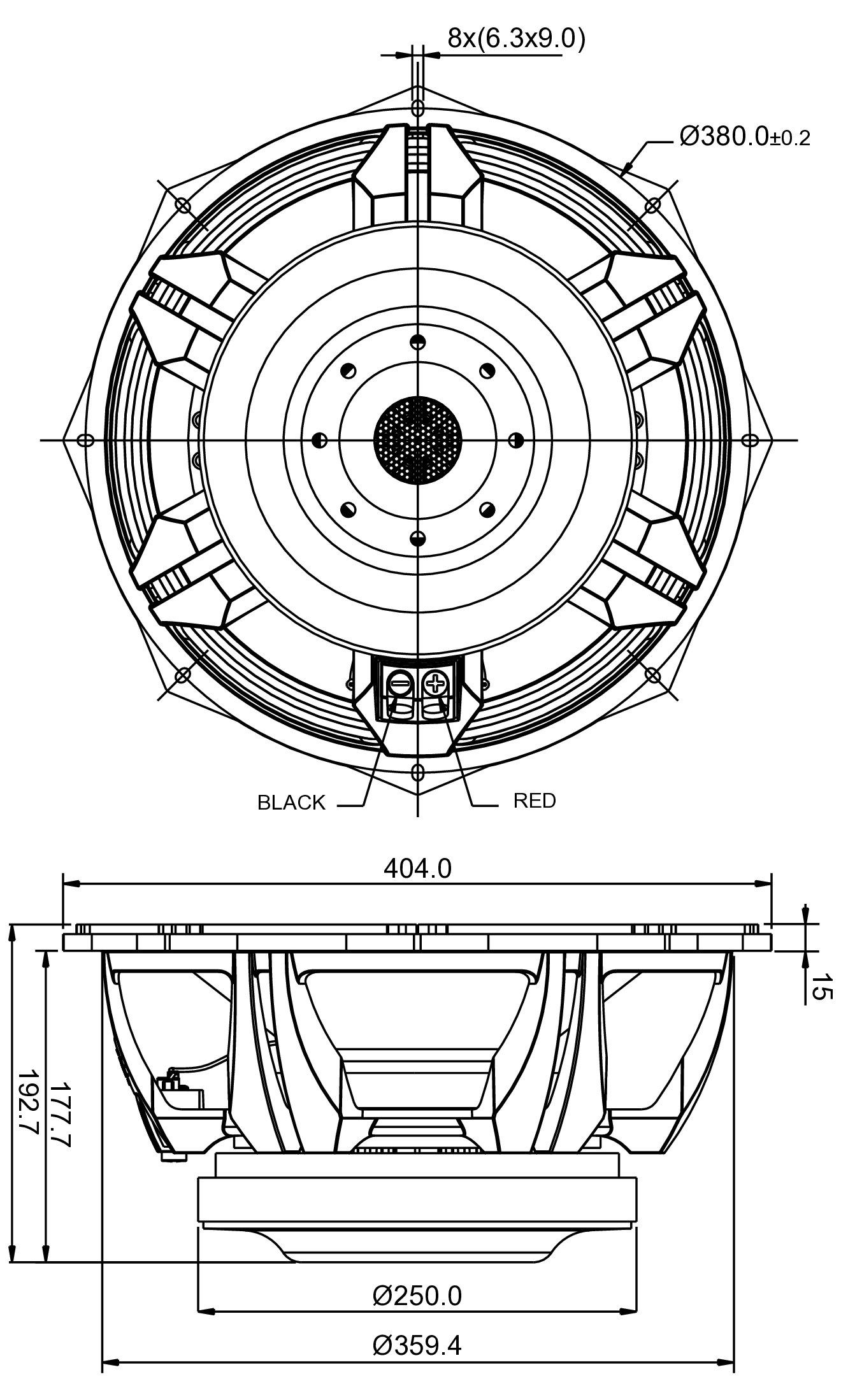

Dimensions
- Nominal diameter 15″
- 404mm
- Overall diameter 404mm
- Baffle cutout diameter 361mm
- Overall depth 193mm
- Flange thickness 15mm
- Mounting depth 178mm
- Volume occupied by the driver 6.45L
- Net weight 16.34kg
- Frame material Aluminium
