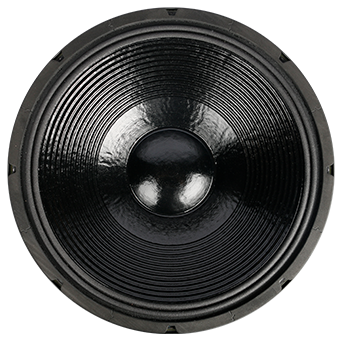

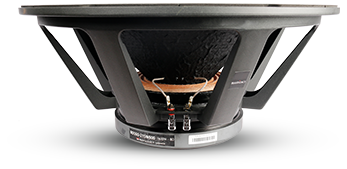

SB Audience ROSSO-21SW800
8Ω
Subwoofer
| Nominal diameter | 21″ / 540 mm |
| Resonance | 38 Hz |
| Q factor | 0.76 |
| Sensitivity | 93.5 dB |
| Linear excursion | ± 11.4 mm |
| Program Power | 1600 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.5dB

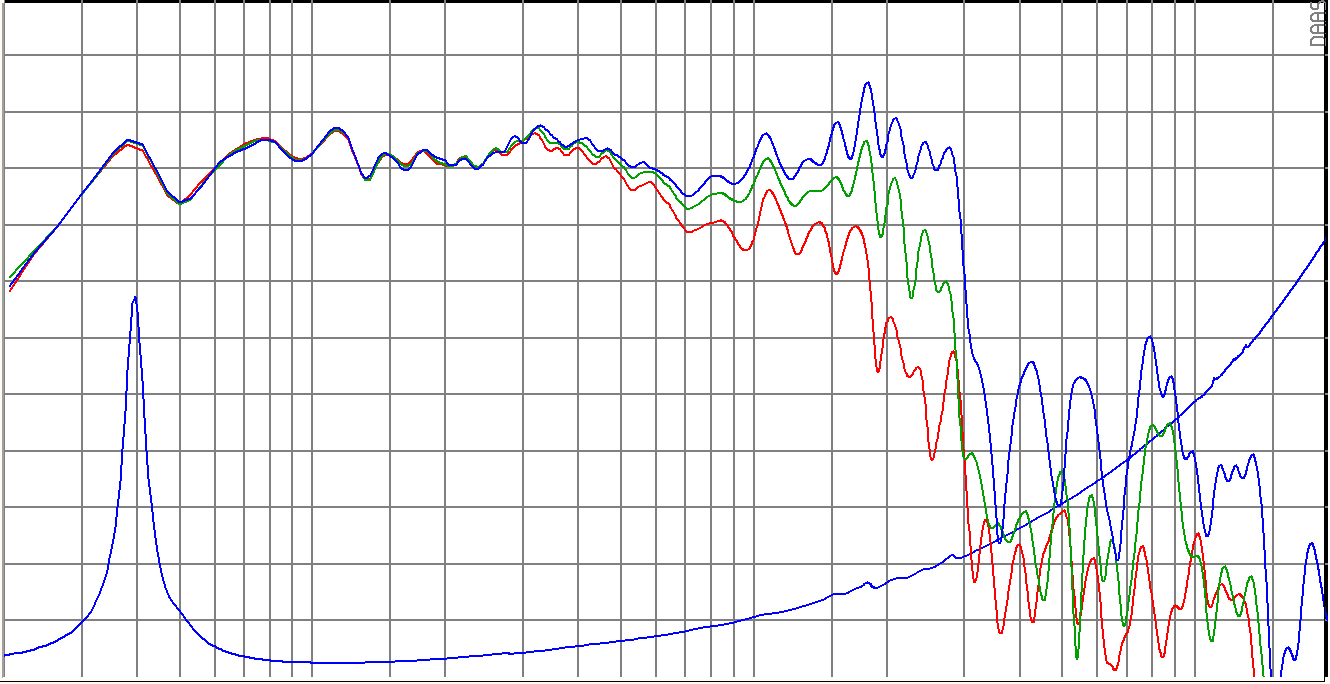

- Frequency response 38 - 3200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 38Hz
- Mechanical quality factor QMS 14.41
- Electrical quality factor QES 0.80
- Total quality factor QTS 0.76
Large signal parameters
- Maximum linear excursion xmax 11.4mm
- Maximum excursion before damage xlim 17.5mm
- Air volume displaced at xmax VD 1898cm³
- Power handling P 800W
- Program power Pmax 1600W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.4Ω
- Inductance (1kHz) LE 1.82mH
- VC Diameter 113mm
- Winding height HVC 27.5mm
- Winding material Flat copper clad aluminium
- Former material FIBSV
Magnet
- Flux density B 0.95T
- Force factor Bl 24.1N/A
- Motor constant Bl/√RE 9.53N/√W
- Air gap height HAG 14mm
- Diameter 250mm
- Material Ferrite
Diaphragm
- Effective diameter 460mm
- Effective area SD 1662cm²
- Moving mass MMS 301g
- Moving mass (without air load) MMD 254g
Suspensions
- Stiffness KMS 16.7N/mm
- Compliance CMS 60µm/N
- Equivalent volume to the compliance VAS 224L
- Mechanical resistance RMS 5.03N·s/m
- Surround material Double half roll with damping glue
- Spider material Single constant height waves

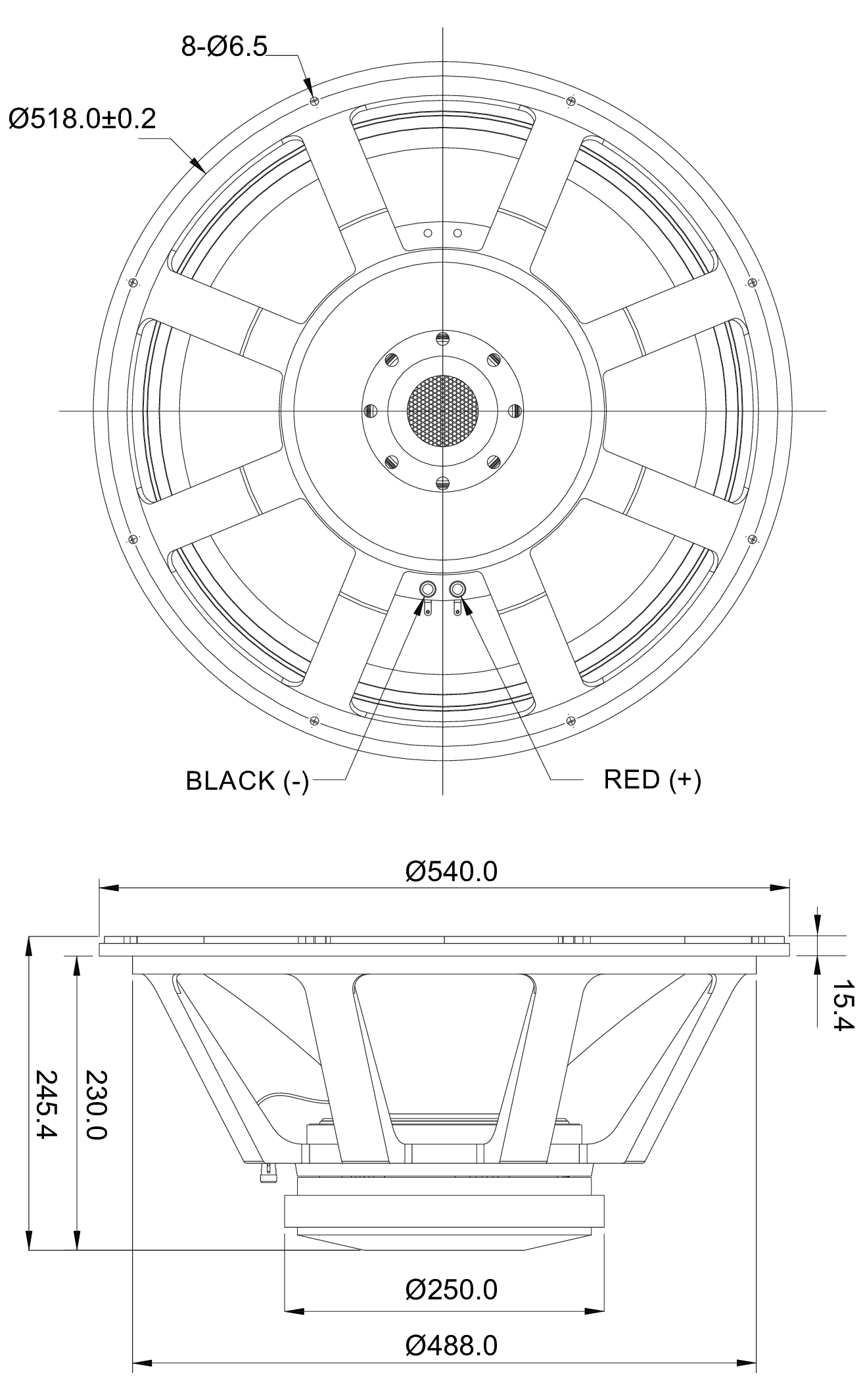

Dimensions
- Nominal diameter 21″
- 540mm
- Overall diameter 540mm
- Baffle cutout diameter 490mm
- Overall depth 245mm
- Flange thickness 15mm
- Mounting depth 230mm
- Volume occupied by the driver 11.5L
- Net weight 16.7kg
- Frame material Aluminium die cast
