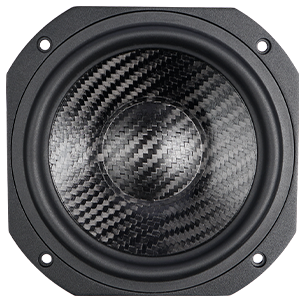

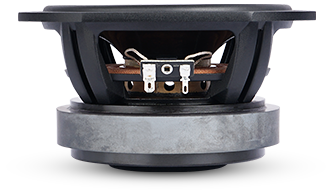

SB Audience ROSSO-6C200D
8Ω
Woofer
| Nominal diameter | 6″ / 185 mm |
| Resonance | 61 Hz |
| Q factor | 0.34 |
| Sensitivity | 89.4 dB |
| Linear excursion | ± 5.2 mm |
| Program power | 400 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 89.4dB
- Frequency response 58 - 5000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 61Hz
- Mechanical quality factor QMS 12.00
- Electrical quality factor QES 0.35
- Total quality factor QTS 0.34
Large signal parameters
- Maximum linear excursion (one way) xmax 5.2mm
- Maximum excursion before damage xlim 16mm
- Air volume displaced at xmax VD 76cm³
- Power handling P 200W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.4Ω
- Inductance (1kHz) LE 0.42mH
- VC Diameter 49.5mm
- Winding height HVC 12.9mm
- Winding material Copper
- Former material Till
Magnet
- Flux density B 1.31T
- Force factor Bl 11.7N/A
- Motor constant Bl/√RE 5.03N/√W
- Air gap height HAG 5mm
- Diameter 130mm
- Material Ferrite
Diaphragm
- Effective diameter 136mm
- Effective area SD 145cm²
- Moving mass (including air load) MMS 23g
- Moving mass MMD 21.6g
- Material Carbon fiber
Suspensions
- Stiffness KMS 3.33N/mm
- Compliance CMS 300µm/N
- Equivalent volume to the compliance VAS 8.8L
- Mechanical resistance RMS 0.74N·s/m
- Surround material Rubber

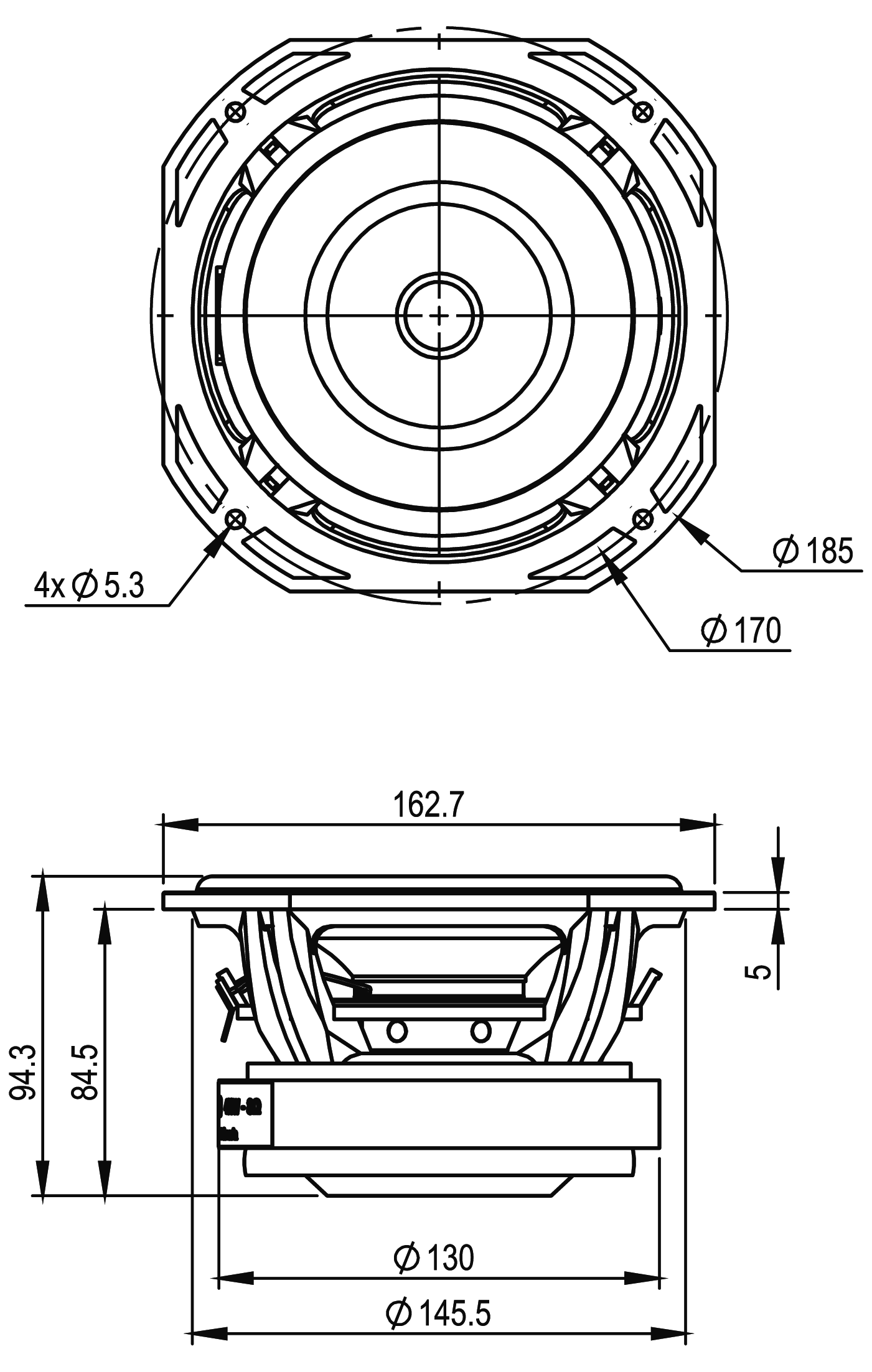

Dimensions
- Nominal diameter 6″
- 185mm
- Overall diameter 185mm
- Baffle cutout diameter 148mm
- Overall depth 94mm
- Flange thickness 5mm
- Mounting depth 85mm
- Volume occupied by the driver 0.92L
- Net weight 2.7kg
- Frame material Die-cast Aluminium
