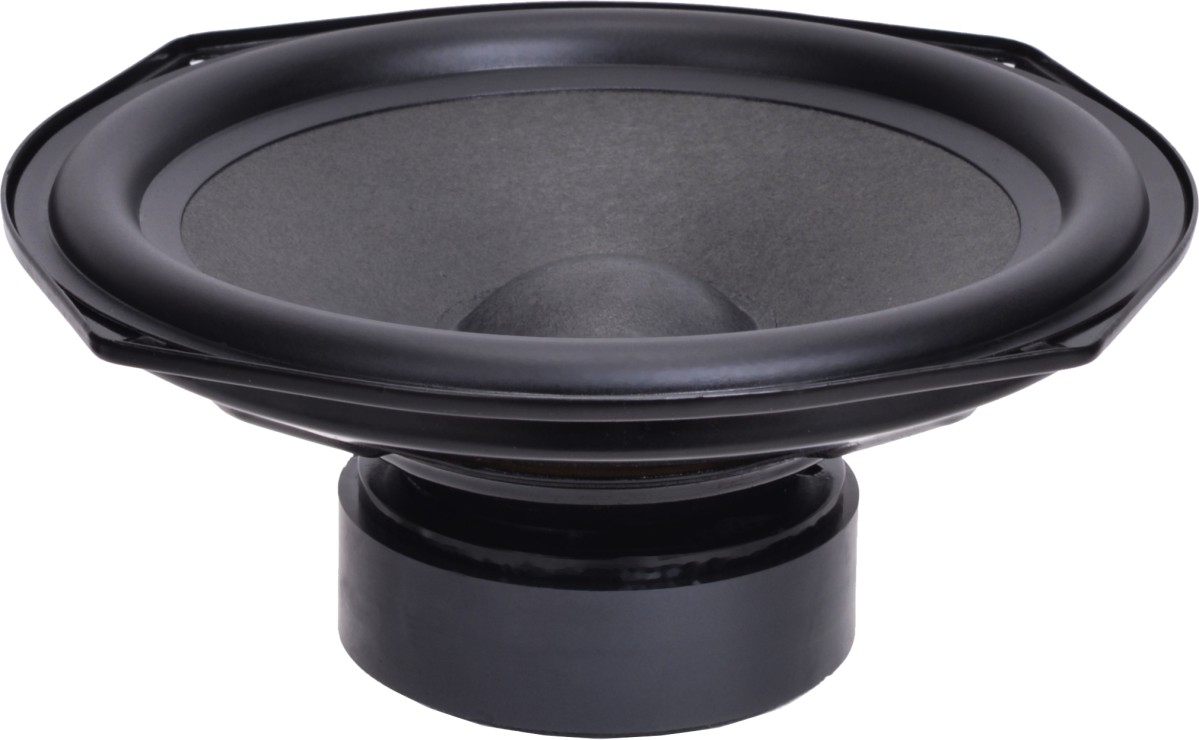

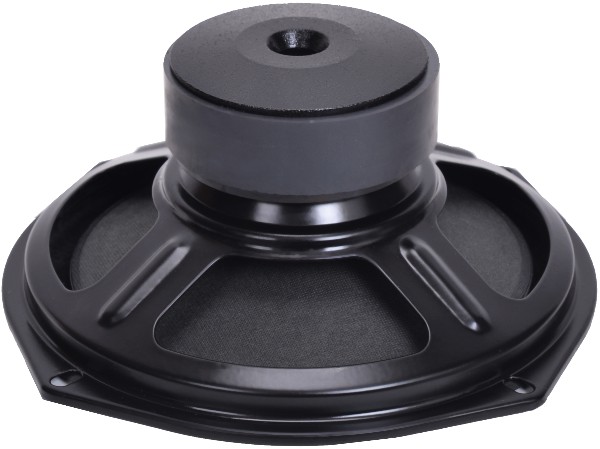

STX M.16.120.8.MC
8Ω
Mid-range
| Nominal diameter | 6.5″ / 160 mm |
| Resonance | 95 Hz |
| Q factor | 1.46 |
| Sensitivity | 89.7 dB |
| Linear excursion | ± 1 mm |
| Program power | 120 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 89.7dB

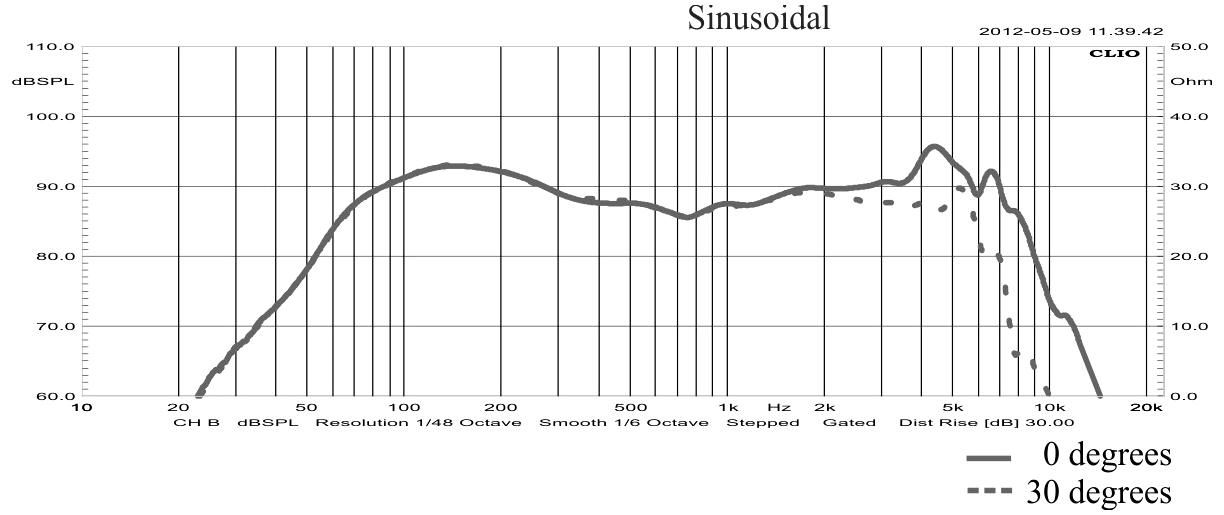

- Frequency response 100 - 8000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 95Hz
- Mechanical quality factor QMS 3.65
- Electrical quality factor QES 2.43
- Total quality factor QTS 1.46
Large signal parameters
- Maximum linear excursion (one way) xmax 1mm
- Maximum excursion before damage xlim 5mm
- Air volume displaced at xmax VD 14cm³
- Power handling P 60W
- Program power Pmax 120W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.1Ω
- Inductance (1kHz) LE 0.43mH
- VC Diameter 25mm
- Winding material Copper
- Former material Aluminum
Magnet
- Force factor Bl 3.65N/A
- Motor constant Bl/√RE 1.48N/√W
- Material Ferrite
Diaphragm
- Effective diameter 135mm
- Effective area SD 143cm²
- Moving mass (including air load) MMS 9.9g
- Moving mass MMD 8.6g
- Material Modified cellulose
Suspensions
- Stiffness KMS 3.45N/mm
- Compliance CMS 290µm/N
- Equivalent volume to the compliance VAS 8.2L
- Mechanical resistance RMS 1.62N·s/m

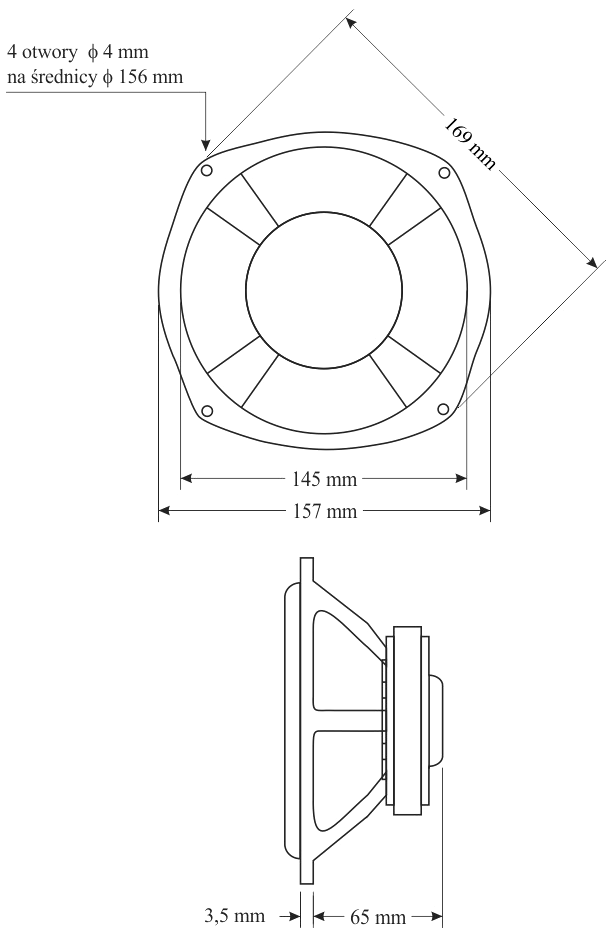

Dimensions
- Nominal diameter 6.5″
- 160mm
- Overall diameter 169mm
- Baffle cutout diameter 145mm
- Overall depth 70mm
- Volume occupied by the driver (estimated) 0.28L
- Net weight 0.7kg
- Frame material Steel
.webp)
.webp)
