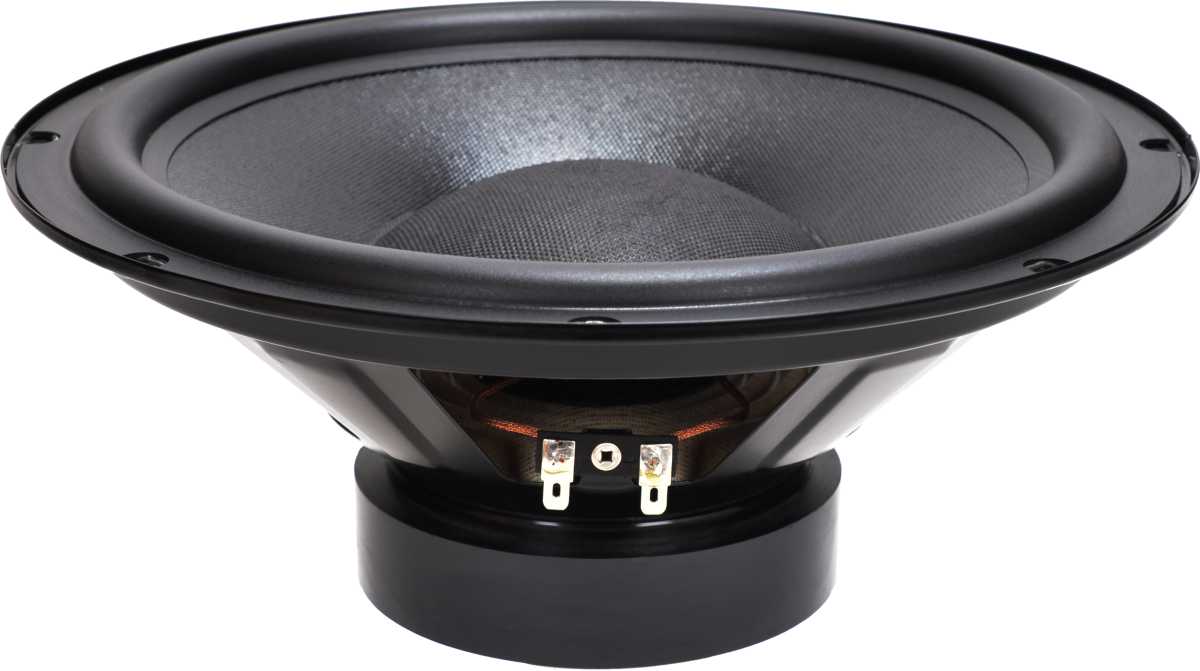

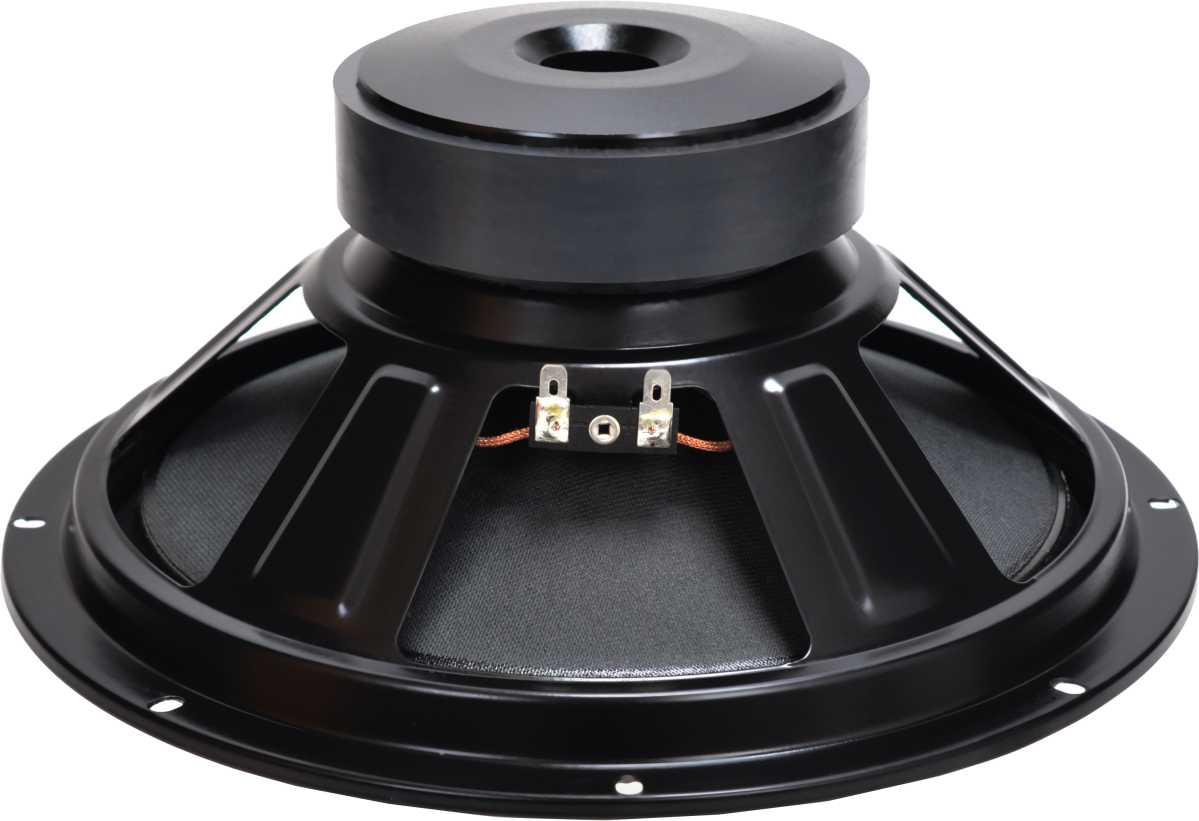

STX W.25.200.8.MC
8Ω
Woofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 28 Hz |
| Q factor | 0.36 |
| Sensitivity | 88.9 dB |
| Linear excursion | ± 4.5 mm |
| Program power | 200 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.9dB

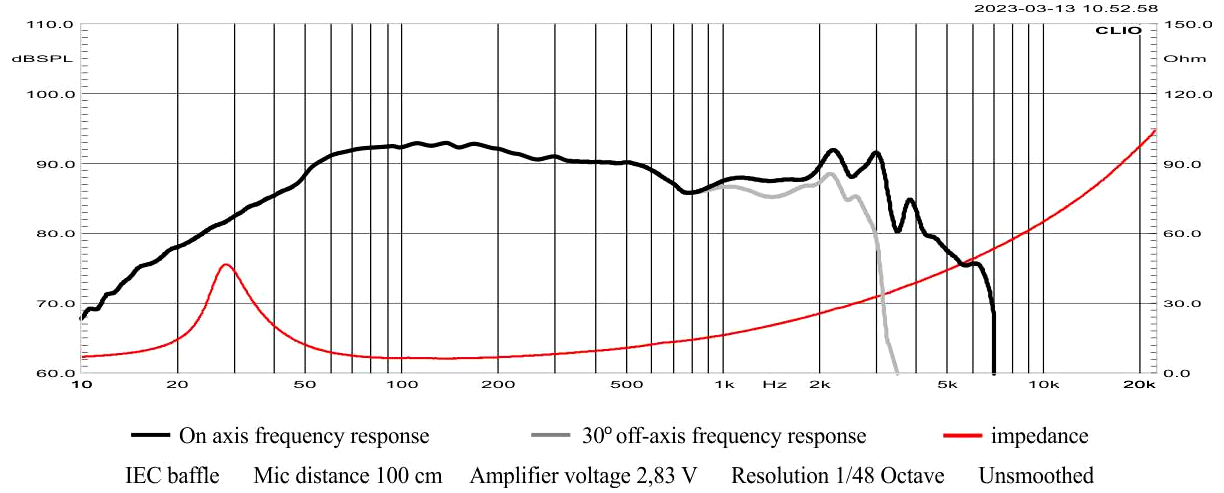

- Frequency response 40 - 3000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 28Hz
- Mechanical quality factor QMS 3.27
- Electrical quality factor QES 0.41
- Total quality factor QTS 0.36
Large signal parameters
- Maximum linear excursion (one way) xmax 4.5mm
- Maximum excursion before damage xlim 15.5mm
- Air volume displaced at xmax VD 155cm³
- Power handling P 100W
- Program power Pmax 200W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.3Ω
- Inductance (1kHz) LE 1.9mH
- VC Diameter 50mm
- Winding material Copper
- Former material Aluminum
Magnet
- Force factor Bl 11.2N/A
- Motor constant Bl/√RE 4.86N/√W
- Material Ferrite
Diaphragm
- Effective diameter 210mm
- Effective area SD 345cm²
- Moving mass (including air load) MMS 54g
- Moving mass MMD 49.4g
- Material Modified cellulose
Suspensions
- Stiffness KMS 1.75N/mm
- Compliance CMS 570µm/N
- Equivalent volume to the compliance VAS 95L
- Mechanical resistance RMS 2.91N·s/m

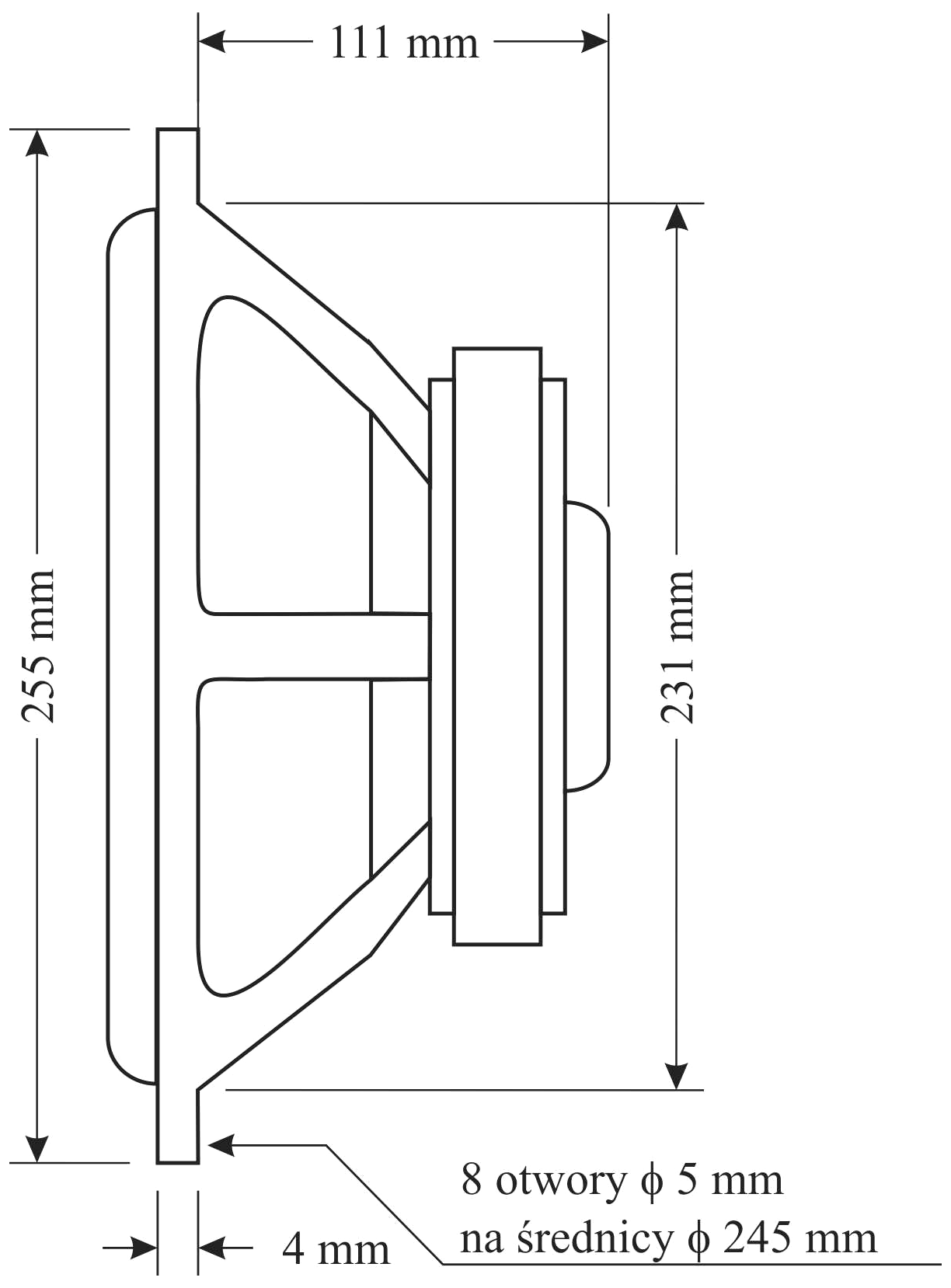

Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 255mm
- Baffle cutout diameter 231mm
- Overall depth 115mm
- Volume occupied by the driver (estimated) 0.97L
- Net weight 1.9kg
- Frame material Steel
.webp)
.webp)
